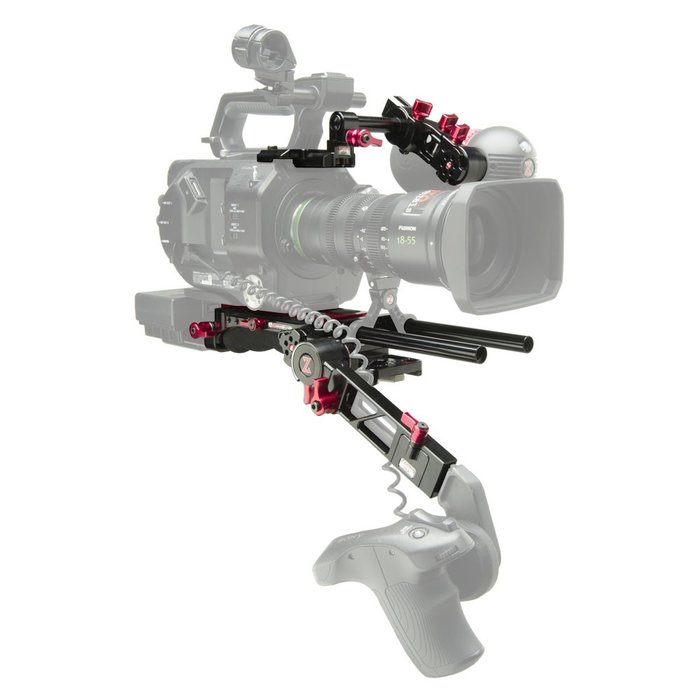

Zacuto Sony FS7 II Recoil Pro V2
Zacuto Sony FS7 II Recoil Pro V2 consists of:
Zacuto VCT Pro Baseplate
Zacuto Axis Mini for Sony FS7
Zacuto FS7 II Trigger Grip

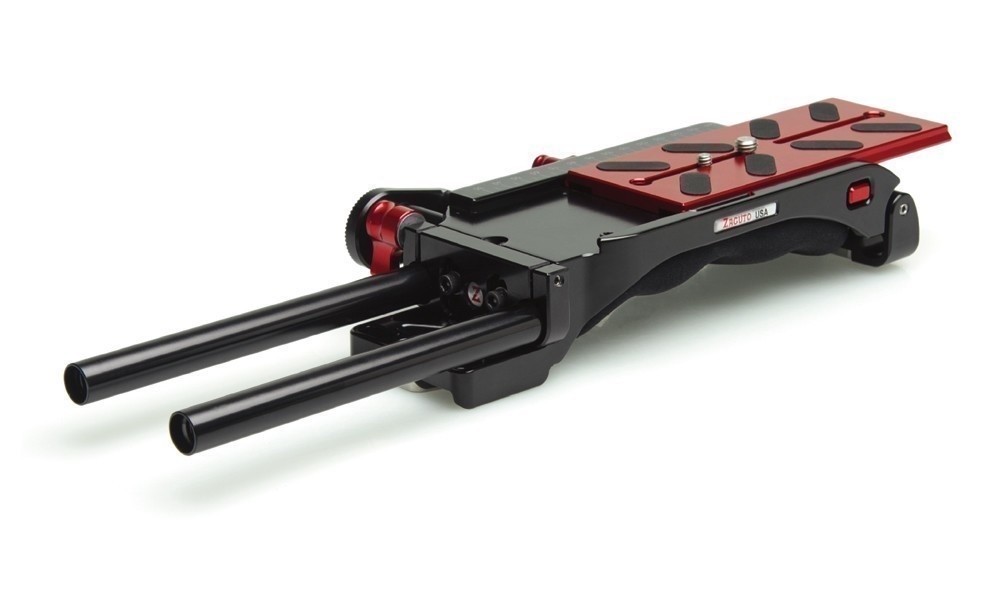

Zacuto VCT Pro Baseplate
Properties:
- Compatible with all camcorders/cameras
- Leightweight and low profile
- Integrated, gel shoulder pad
- Integrated sliding plate for balancing the camcorder e.g. after changing the lens (locking through a ratcheting lever)
- Camcorder/camera is fixed on the sliding plate with the integrated 1/4" or 1/8" screw
- Unique front rod mount for approx. 8.9 cm of extra rod space to get rod mounted accessories close to the camcorder/camera body in a Recoil
- Front rods (length: 16.5 cm) are adjustable in height up to 2.5 cm
- Rear rod support/clamp for 15 mm rods with ratcheting lever
- V-Lock plate for tripod mounting
- Integrated M6 rosette
- Successor of Universal VCT Baseplate (Z-VCT)
Product information:
- Dimensions (WxHxD): 36.2 x 5.08 x 10.8 cm incl. front rods
- Weight: 960 g

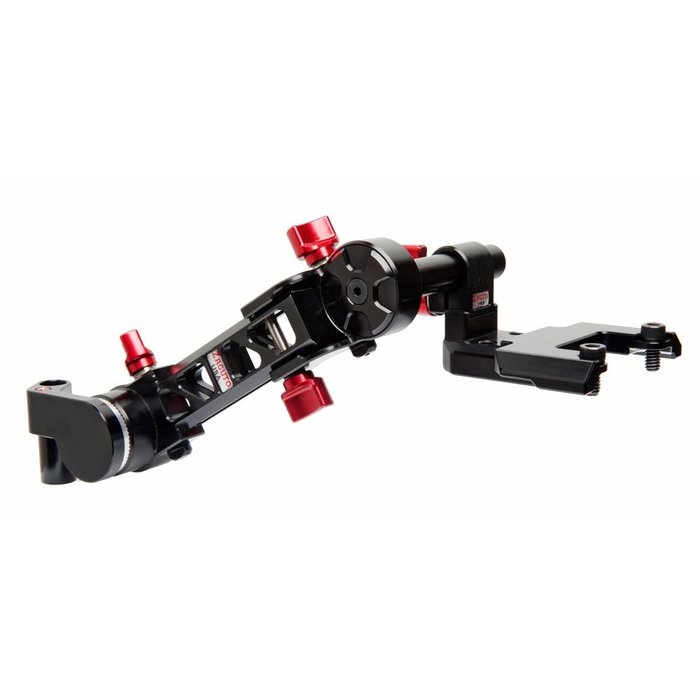

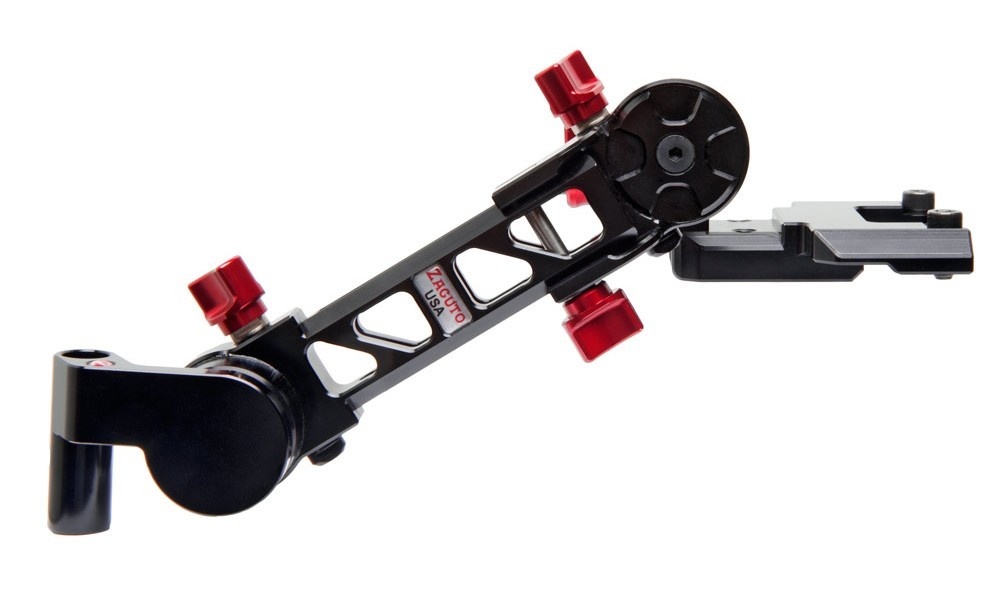

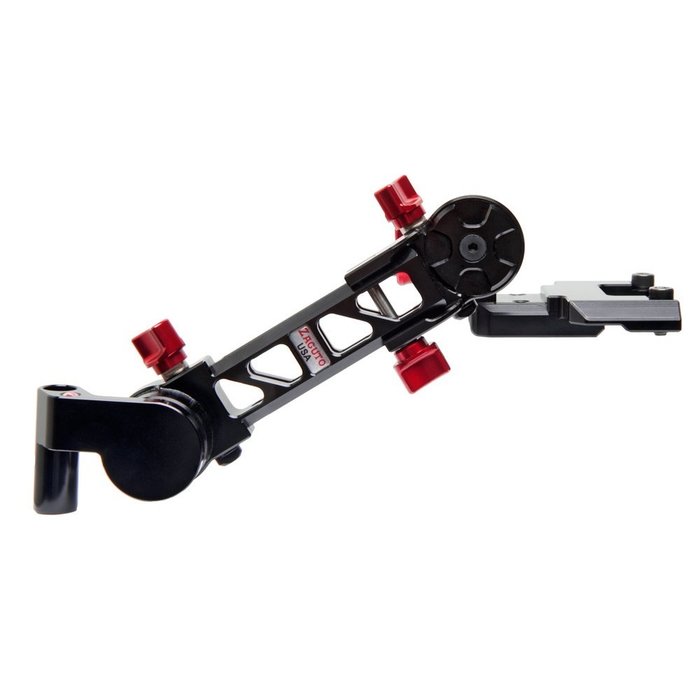

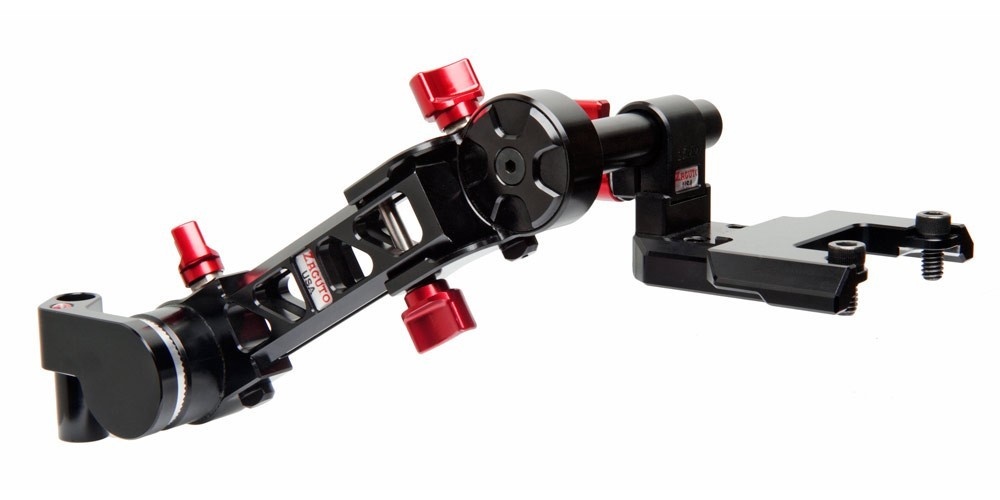

Zacuto Axis Mini for Sony FS7
Features
The Axis Mini for Sony FS7 is the most adjustable ENG style mount for the Sony FS7 Monitor, giving you full 360º motion with four adjustment points. Designed to attach to the FS7 Rod Lock, it leaves plenty of room at the lens for focusing and will work with the widest of lenses. It can easily be adjusted with one hand while the rig is on your shoulder. The Axis Mini has extensive articulation for use in a variety of positions, both shoulder mounted in a Next Generation Recoil or in tripod operating position. It is very small and quick to install and remove.
The Axis Mini for Sony FS7 attaches to your rig via the included FS7 Rod Lock, which attaches to the FS7 body in front of the Sony top handle. Slide the Axis Mini into the extra 15mm rod port on the FS7 Rod Lock and clamp into place. The Axis Mini for FS7 attaches to the Sony monitor via a secure rosette mount adapter.
The Axis Mini has three red tension levers that are controlled independently with 360 degree motion. Release all three levers to completely reposition the mount or release just one to make single segment adjustments. You can dial in the exact amount of tension needed at each lever to adjust on the fly. Just grab and move.

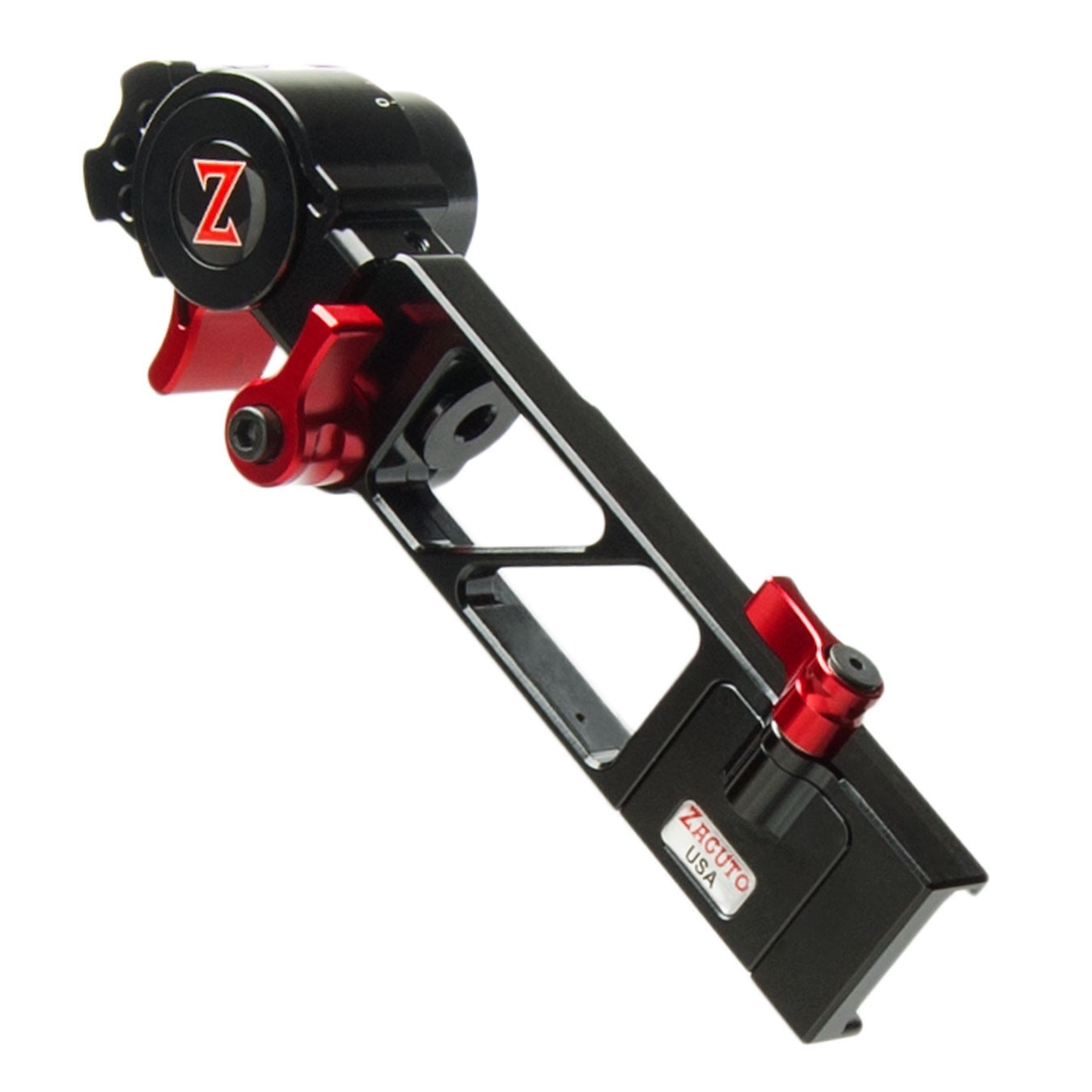

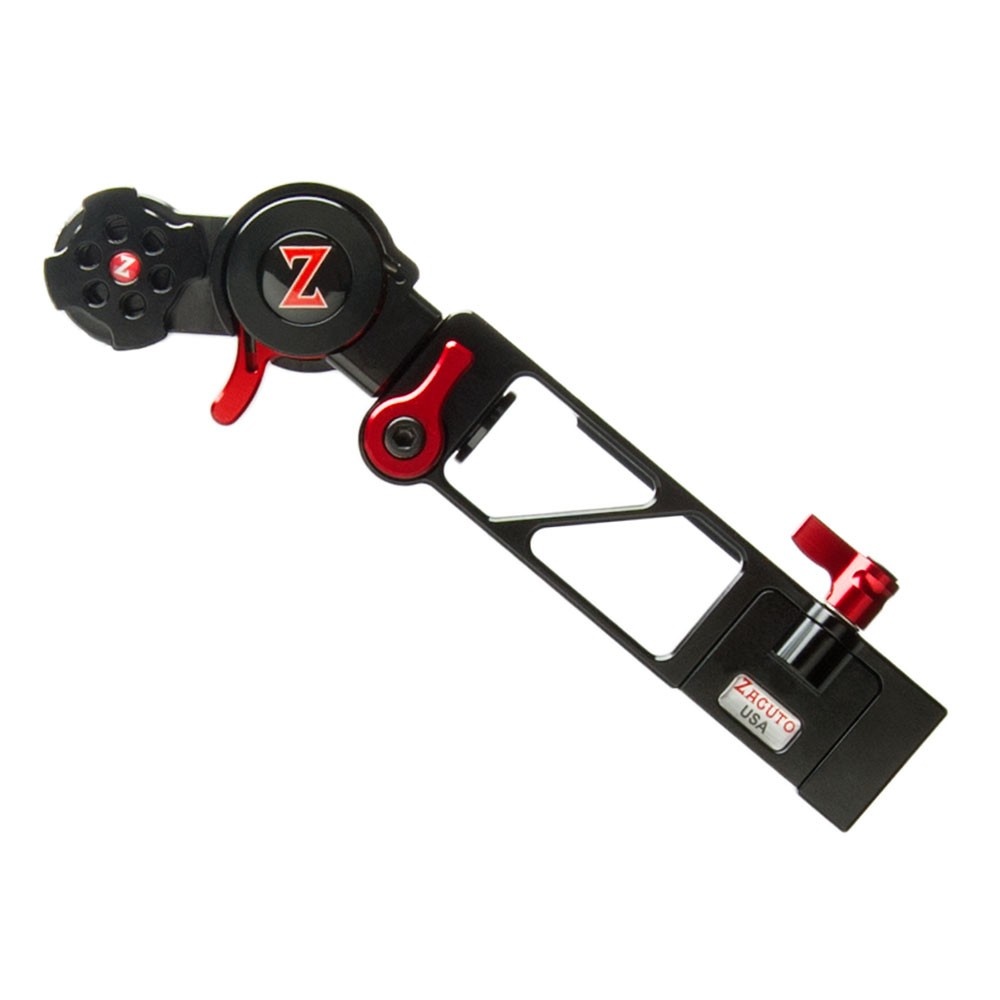

Zacuto FS7 II Trigger Grip
Properties:
The FS7 II Trigger Grip is a one-handed grip specially designed for Sony's PXW-FS7 II. The camera handle is attached to the Trigger Grip, which can be attached either directly to the camera or to a rig using an M6 rosette. The Trigger Grip allows a one-handed 360° rotation with a simple push of a button.
