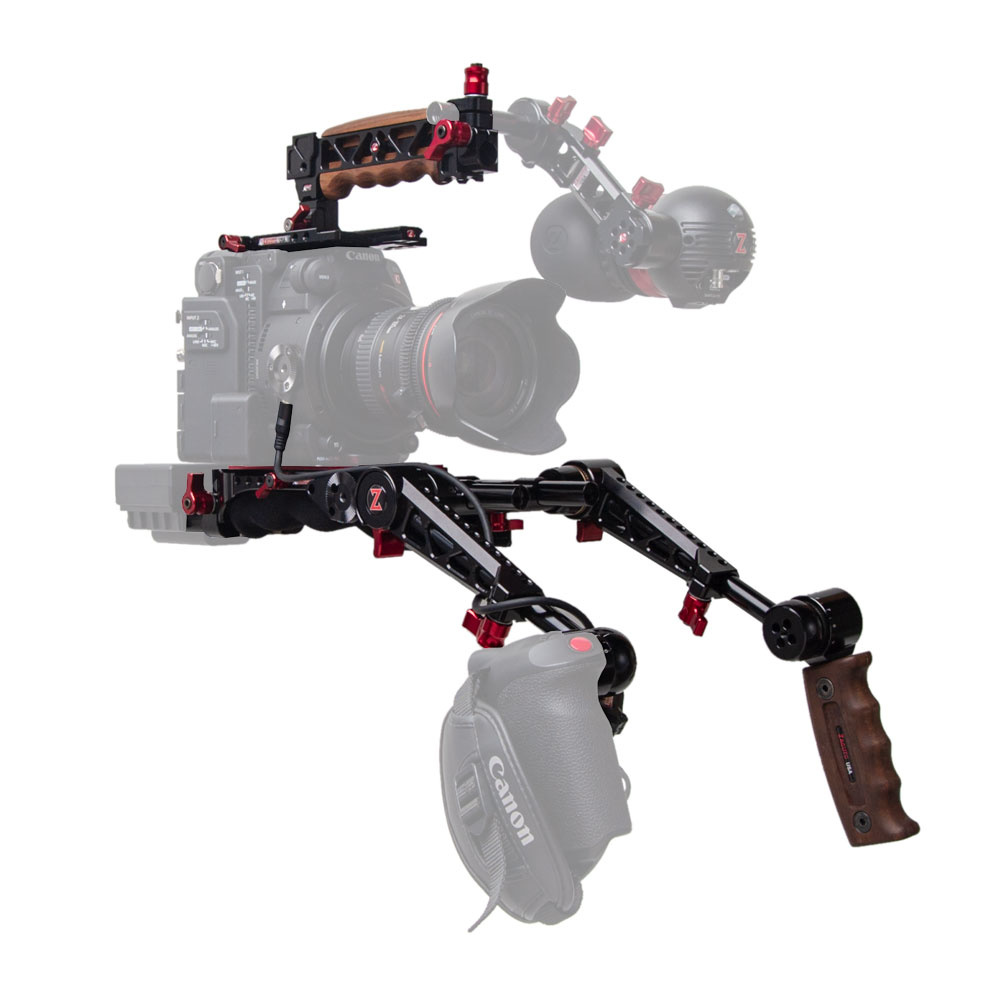

Zacuto C200 EVF Recoil Pro with Dual Trigger Grips

Zacuto C200 EVF Recoil Pro with Dual Trigger Grips consisting of:

Zacuto VCT Pro Baseplate

Zacuto Rosette Dual Trigger Grips

Zacuto C200 Top Plate

Zacuto Recoil Handle

SPECIAL NOTES:

This rig requires the addition of a monitor or Zacuto Gratical EVF. If you’d like to mount the C200 LCD Monitor on the Recoil Handle, you will need the C200 LCD Mount.

Zacuto VCT Pro Baseplate

• Compatible with all camcorders/cameras
• Leightweight and low profile
• Integrated, gel shoulder pad
• Integrated sliding plate for balancing the camcorder e.g. after changing the lens (locking through a ratcheting lever)
• Camcorder/camera is fixed on the sliding plate with the integrated 1/4" or 1/8" screw
• Unique front rod mount for approx. 8.9 cm of extra rod space to get rod mounted accessories close to the camcorder/camera body in a Recoil
• Front rods (length: 16.5 cm) are adjustable in height up to 2.5 cm
• Rear rod support/clamp for 15 mm rods with ratcheting lever
• V-Lock plate for tripod mounting
• Integrated M6 rosette
• Successor of Universal VCT Baseplate (Z-VCT)

General product information:

• Dimensions (WxHxD): 36.2 x 5.08 x 10.8 cm incl. front rods
• Weight: 960 g

Zacuto Rosette Dual Trigger Grips

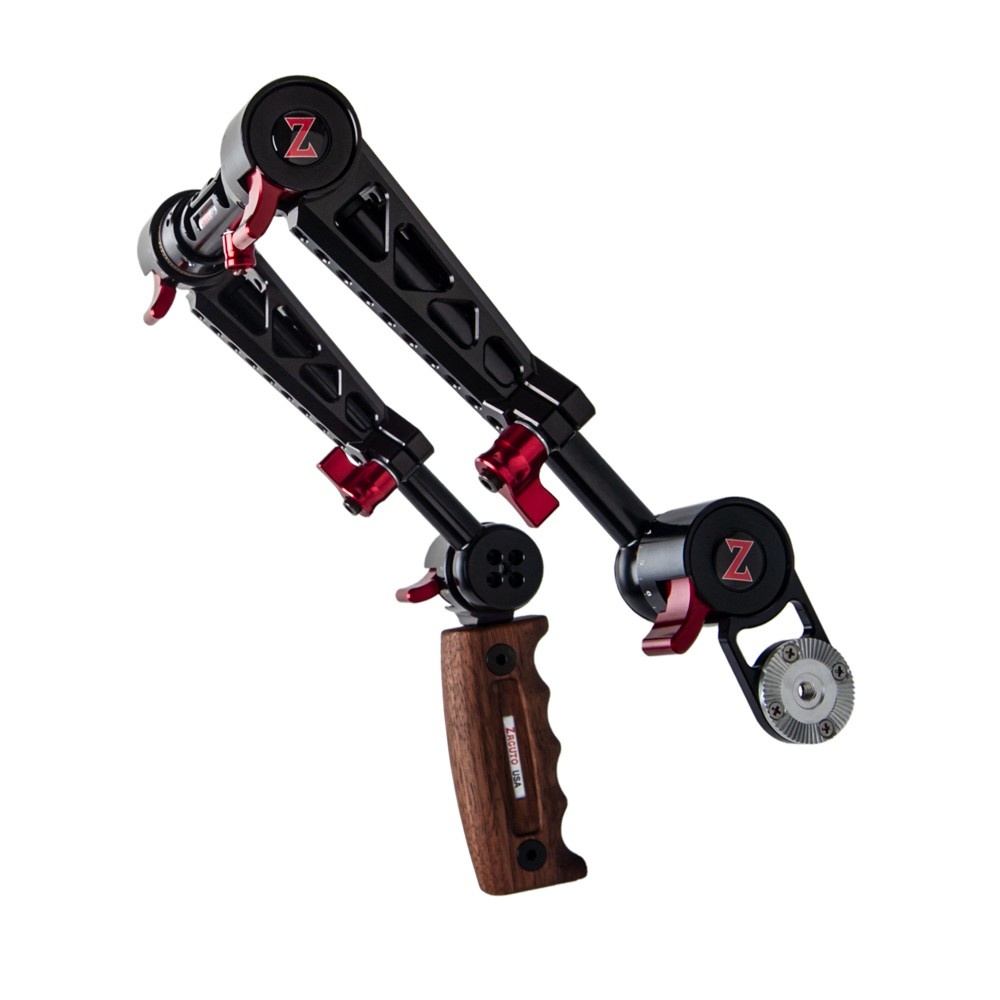

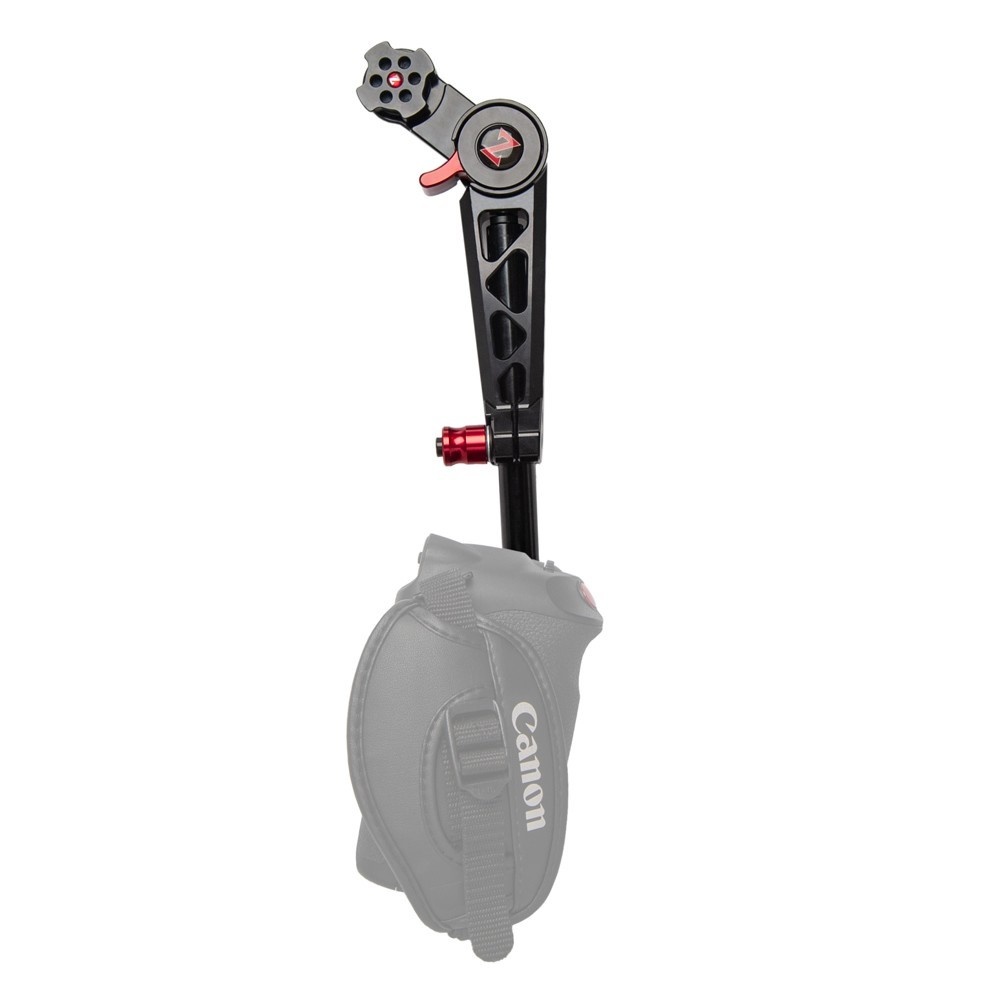

The Rosette Dual Trigger Grips allow the attachment of a rosette-based camera / lens handle on one side and have a Wooden Handgrip on the other. This allows a comfortable position for holding the shoulder rig. The Dual Trigger Grips are pushed onto 15 mm rods and allow a one-handed 360° rotation with a simple push of a button. The two attached handles move independently of each other and are adjustable in length and orientation. The Rosette Trigger Grip is especially compatible with the Canon C200, the Canon 18-80 lens handle, the Blackmagic URSA and the Panasonic Varicam LT.

Zacuto C200 Top Plate

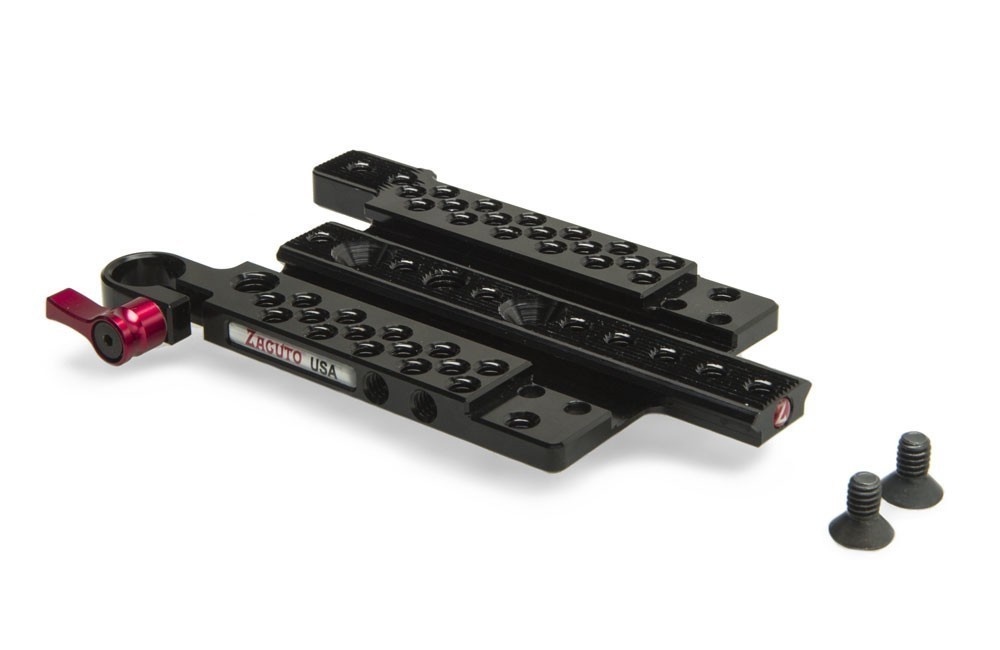

The C200 Top Plate has a built in Z-Rail perfect for adding the Recoil Handle. Or if desired, it is possible to reattach your Canon Handle to the plate. The top plate has a multitude of 1/4" 20 and 3/8" 16 screw holes for mounting various accessories. At the back of the plate is a 15 mm rod support for a Zamerican arm or other 15 mm accessory and a grooved mount for the Canon C200 LCD. The Canon LCD can also mount to the built in Z-Rail if needed. If you are using the Zacuto Recoil handle, the C200 LCD can mount into the coldshoe of the Recoil handle with the addition of the C200 LCD Mount.

If the original camera handle is used and mounting of an Axis for a Gratical EVF is needed, it is possible to attach the Z-Rail Axis Mount to the front of your top plate and it will provide a 15 mm quick release rod support to mount the Axis Mini EVF Mount.

Zacuto Recoil Handle

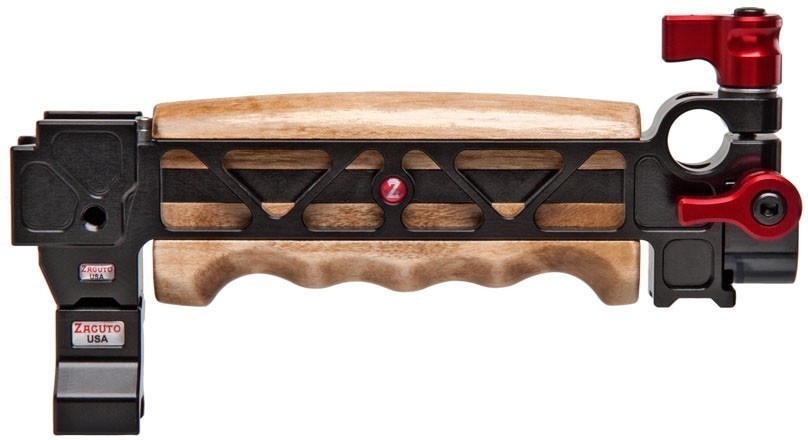

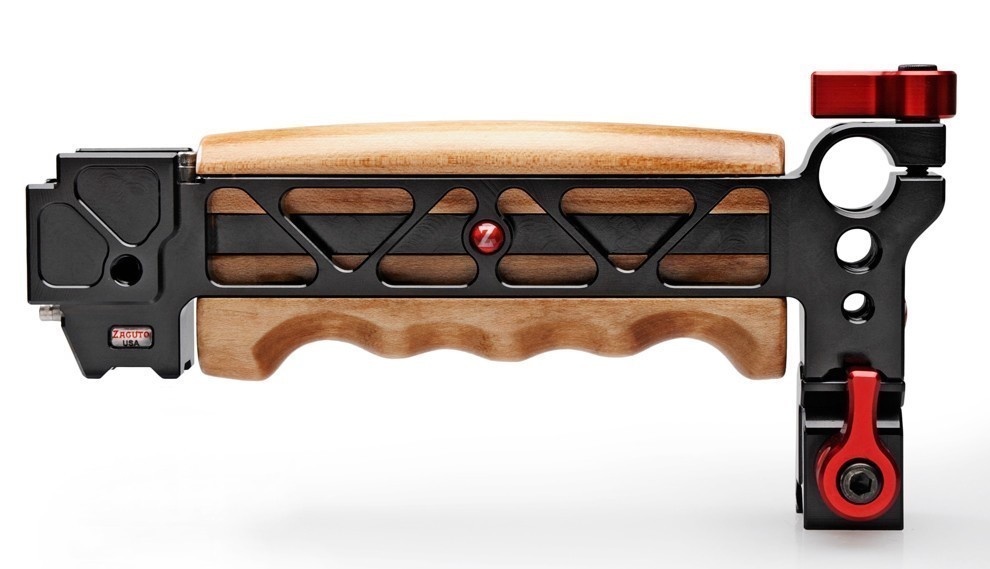

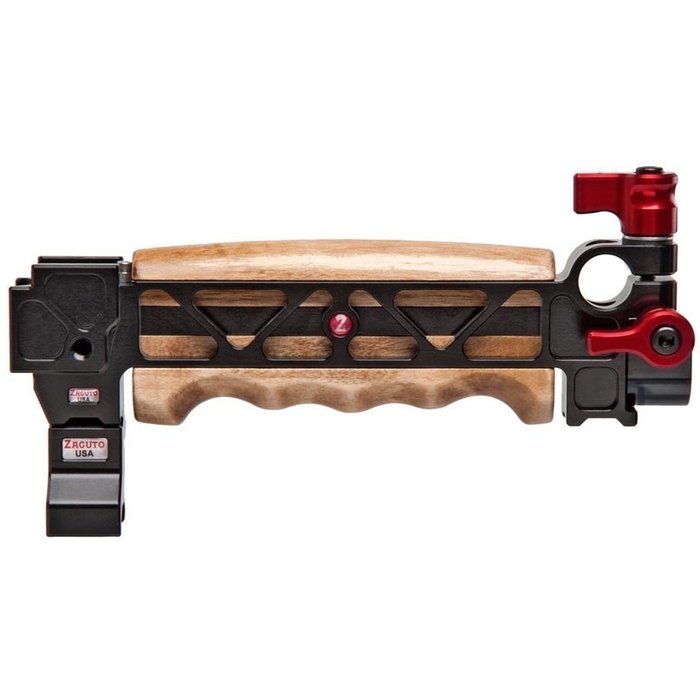

The Recoil Handle is a quick-release top handle with multiple accessory mounting options. It is compatible with any Z-Rail (not included.) It includes two coldshoe mounts (one vertical & one horizontal) that secure with a quick-release clamp onto the shoe of your accessory. Mount two coldshoe items at once with a half turn of a Zacuto lever. No unnecessary winding of an annoying plastic round tie-down wheel!

At the opposite end of the handgrip, there's a 15mm quick-release rod port. The Recoil Handle includes one 3/8" 16 screw hole mount and two 1/4" 20 screw hole mounts. The top handle itself is hand-tooled fine three-quarter maple.

We offer six Z-Rail options (not included) to attach the Recoil Handle:

• Half Cage
• Halfcage Rail
• 3" Z-Rail
• 5" Z-Rail
• Z-Rail Zotshoe
• Z-Rail T
• Also compatible with NATO, SWAT, RED, PICATINNY, and WOODEN CAMERA rails

Recommended Accessories:

• Axis Mini
• Zamerican Articulating Arm
