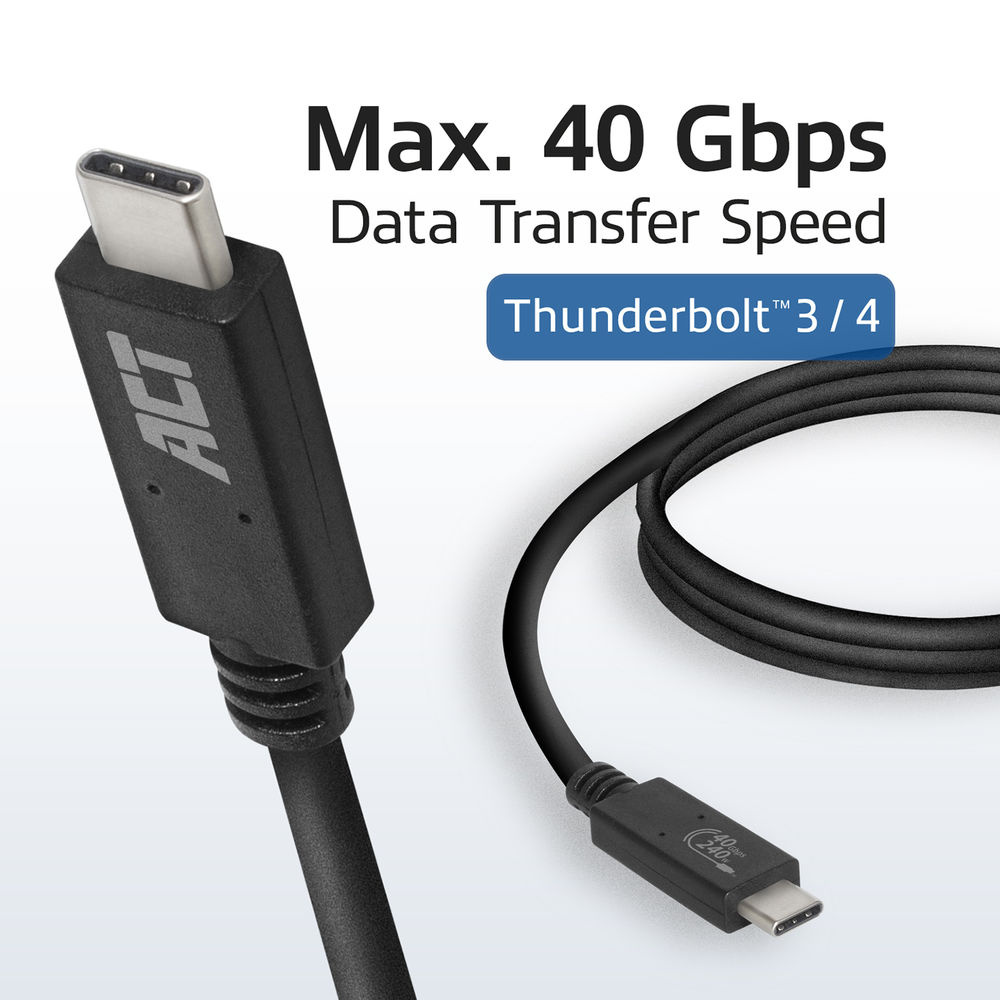

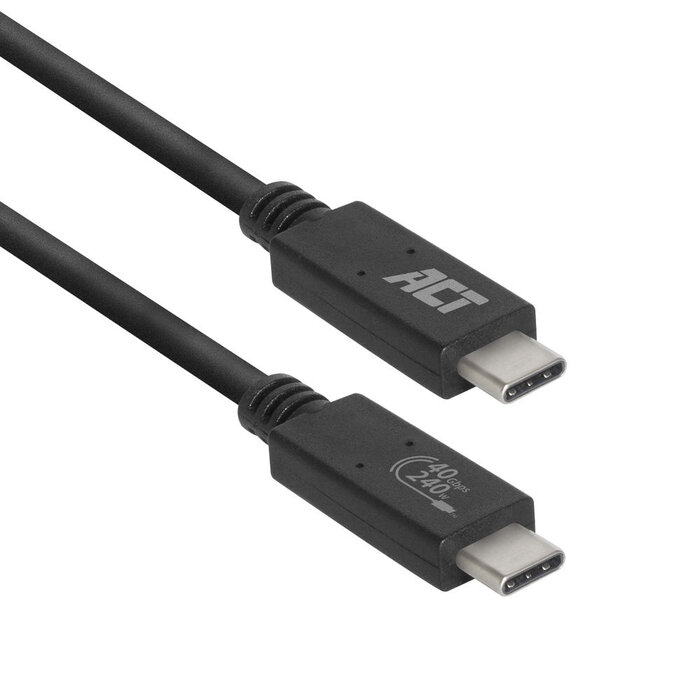

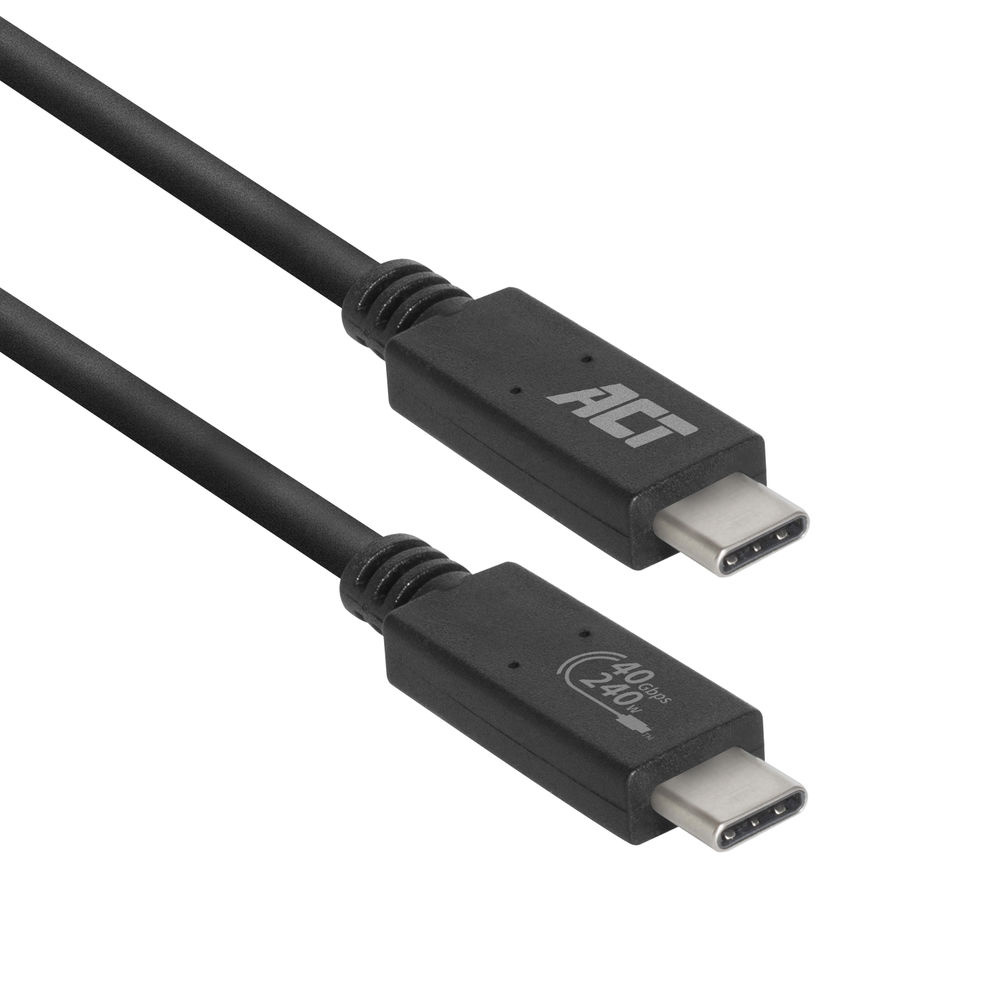

ACT USB-C / Thunderbolt 3/4 cable 40Gb/s 240W 80 cm

USB4 40Gbps | Thunderbolt 3/4 | EPR 240W | USB-IF Certified

• Official USB-IF certified USB4 connection cable with Thunderbolt 4 support
• Data transfer speed up to 40Gbps
• Extended Power Range (EPR) up to 48V @ 5A = 240W
• Maximum video resolution: 1x 8K @ 60Hz or 2x 4K @ 60Hz
• Connectors: C male - C male
• Cable length: 0.8 meters
• Compliant with Thunderbolt 3, USB 3.2 and USB 2.0 specifications

The AC7451 is an officially certified USB-C cable that supports the USB4 protocol and Thunderbolt 4. The USB4 cable achieves a maximum data transfer speed of up to 40Gbps and 240W through the Extended Power Range. The AC7451 supports a maximum resolution of one 8K monitor or two 4K monitors in Daisy chain. The cable is compliant with Thunderbolt 3, USB 3.2 and USB 2.0 specifications.

Fast data, power and video via a single USB4 cable
The AC7451 has an intelligent e-marker chip. This chip communicates with the connected devices, such as a laptop or charger, to determine which functions the cable supports. The AC7451 can handle data, power and video.

USB4 40Gbps and Thunderbolt 4 support
The AC7451 USB-C cable features USB4 technology with Thunderbolt 4. The cable supports a maximum data transfer speed of up to 40Gbps.

Power Delivery: Extended Power Range 240W
EPR adds additional Power Delivery profiles to USB4: 28V, 36V and 48V. The AC7451 features the 48V profile which allows the cable to support a maximum power delivery of 240W. Cables featuring SPR (Standard Power Range) only support 60W.

DisplayPort Alternate Mode Protocol
The USB4 cable supports DisplayPort Alternate Mode (DP Alt Mode) for distributing video over USB-C. The AC7451 supports a maximum resolution of one 8K @ 60Hz monitor or two 4K @ 60Hz monitors in Daisy chain.

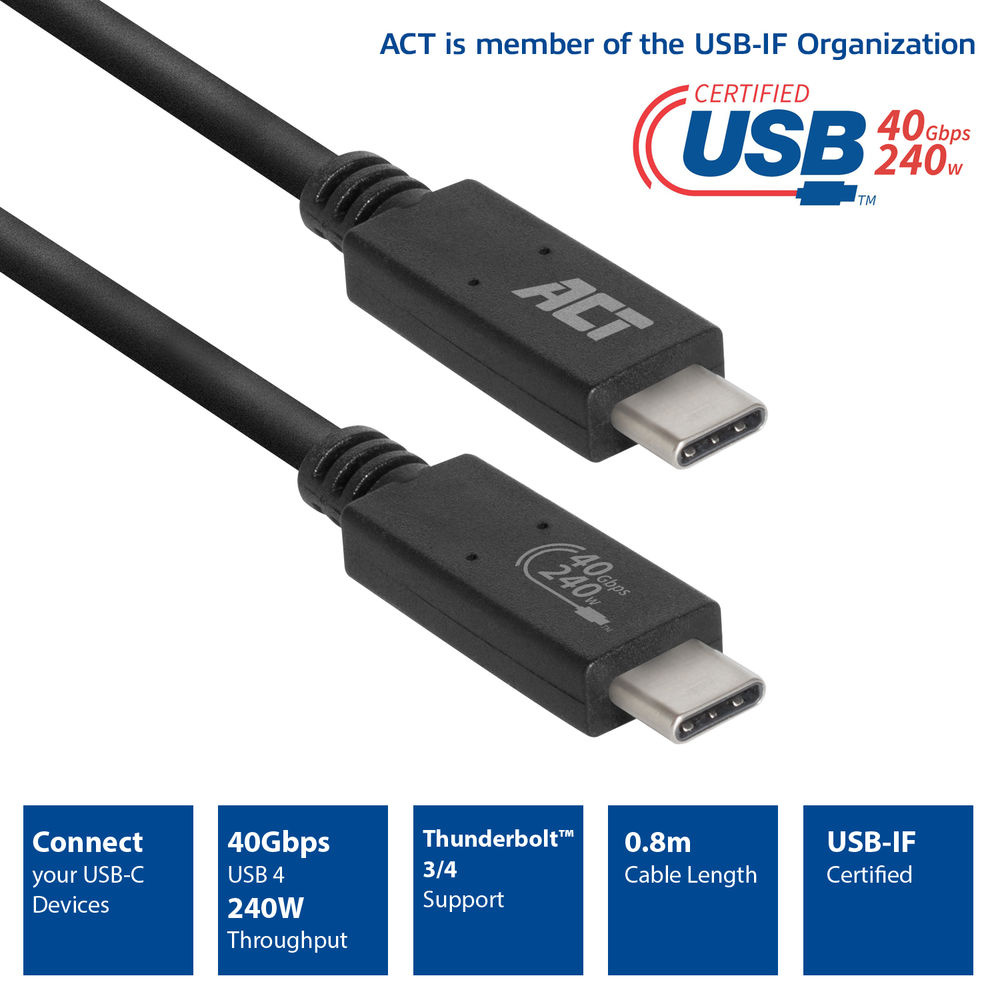

Officially USB-IF certified
The AC7451 is officially certified by USB-IF. The cable meets the highest standards set by USB-IF. The official USB-IF logo is printed on the connector of the cable. ACT is a member of the USB Implementers Forum, Inc.
