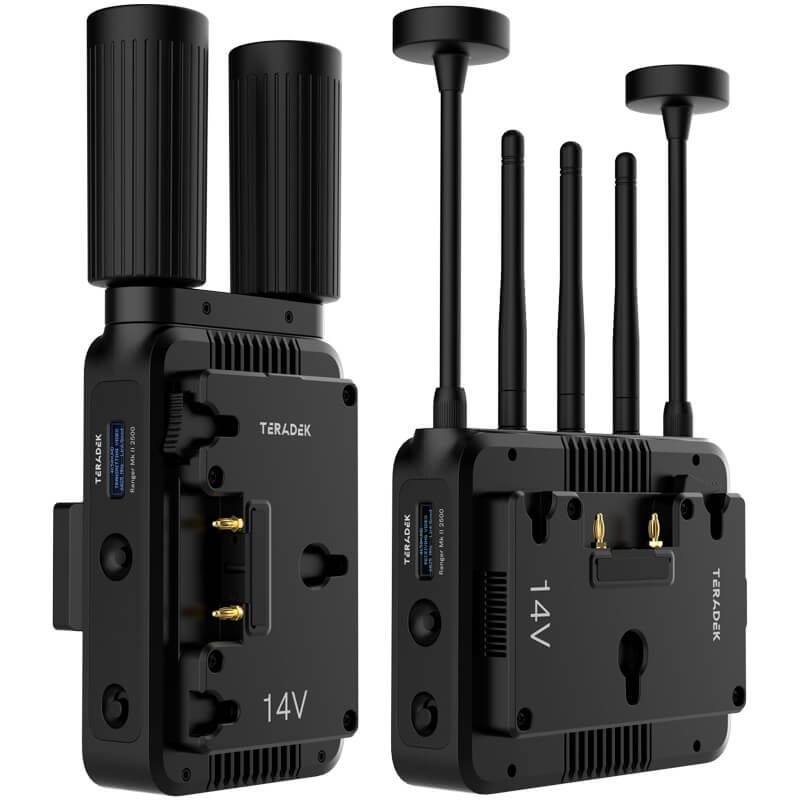

Teradek Ranger MK II 5000 12G-SDI/HDMI Wireless Transmitter/Receiver Set (V-Mount)

Transmit lossless UHD video up to 1524 meters with the Ranger MK II 5000 12G-SDI/HDMI wireless transmitter from Teradek. Redesigned for TV, event, drone and handheld applications, this transmitter can input up to 4K60 video via HDMI or 12G-SDI with 10-bit HDR support and transmit up to 4K60 video over a wide wireless range from 4.9 to 6.4 GHz, including licensed and unlicensed bands in the 6 GHz U-NII 5 spectrum. The transmitter unit delivers a powerful signal up to 1524 meters line of sight. It also has an SDI loop output for local monitoring and a horizontal and vertical N-type antenna.

The transmitter supports the transmission of up to 4K60 video to up to six receivers and has built-in AES-256 encryption. It can transmit visually lossless video to any Ranger series receiver without delay. The transmitter supports a desktop Launchpad software application or the Launchpad app for iOS or Android that connects easily via Bluetooth 5, both of which offer a spectrum analyzer, channel selection tools and remote configuration.

The device is powered via a 2-pin DC input or the included V-mount battery plate, and there are 1/4"-20 and M3 mounting threads to mount your transmitter to various cameras, cages or rigs.

Most important features

Premium wireless hardware

Advanced hardware. Designed for professional video production. The Ranger Series is powered by Teradek's Emmy and Academy Award-winning technology for zero-latency wireless video transmission. This model has a maximum range of 1524 meters and works seamlessly within a variety of professional broadcast, sports and ENG applications, including handheld gimbals, drones and shoulder-worn cameras.

Compatibility with Ranger

Link any combination of Ranger TX and RX together, regardless of model. That means your production can quickly scale and deploy a variety of Ranger systems best suited to your environment, despite differences in transmission range. Mixed Ranger systems operate at a range of the lowest coupled model. 6 GHz operation requires support on both the TX and RX.

No Delay

When a delay in audio and video transmission is noticeable, it is almost impossible to provide a lifelike experience. Ranger's patented zero-delay technology solves this problem. With Ranger, your audio and video signals are transmitted with ultra-low latency, even in 4K60, giving your viewers a visually lossless and engaging experience.

Configure Ranger from PC or phone

Install the Launchpad app on your macOS or Windows computer or on your iOS/Android phone

Bluetooth 5 LE connection support

Link transmitters and receivers at the touch of a button

Measure and analyze the frequency and amplitude of a signal

View live channel strength for licensed/licensed bands

Monitor your live RF spectrum bandwidth

Wide frequency range

With a growing number of wireless devices and a limited number of frequency bands to choose from, there is little room for your signal to go without interference or disruption. But with Ranger you have options: 5 GHz for general use, licensed band frequencies for special events, and the new 6 GHz U-NII-5 band for 12 new channels of uninterrupted wireless spectrum.
