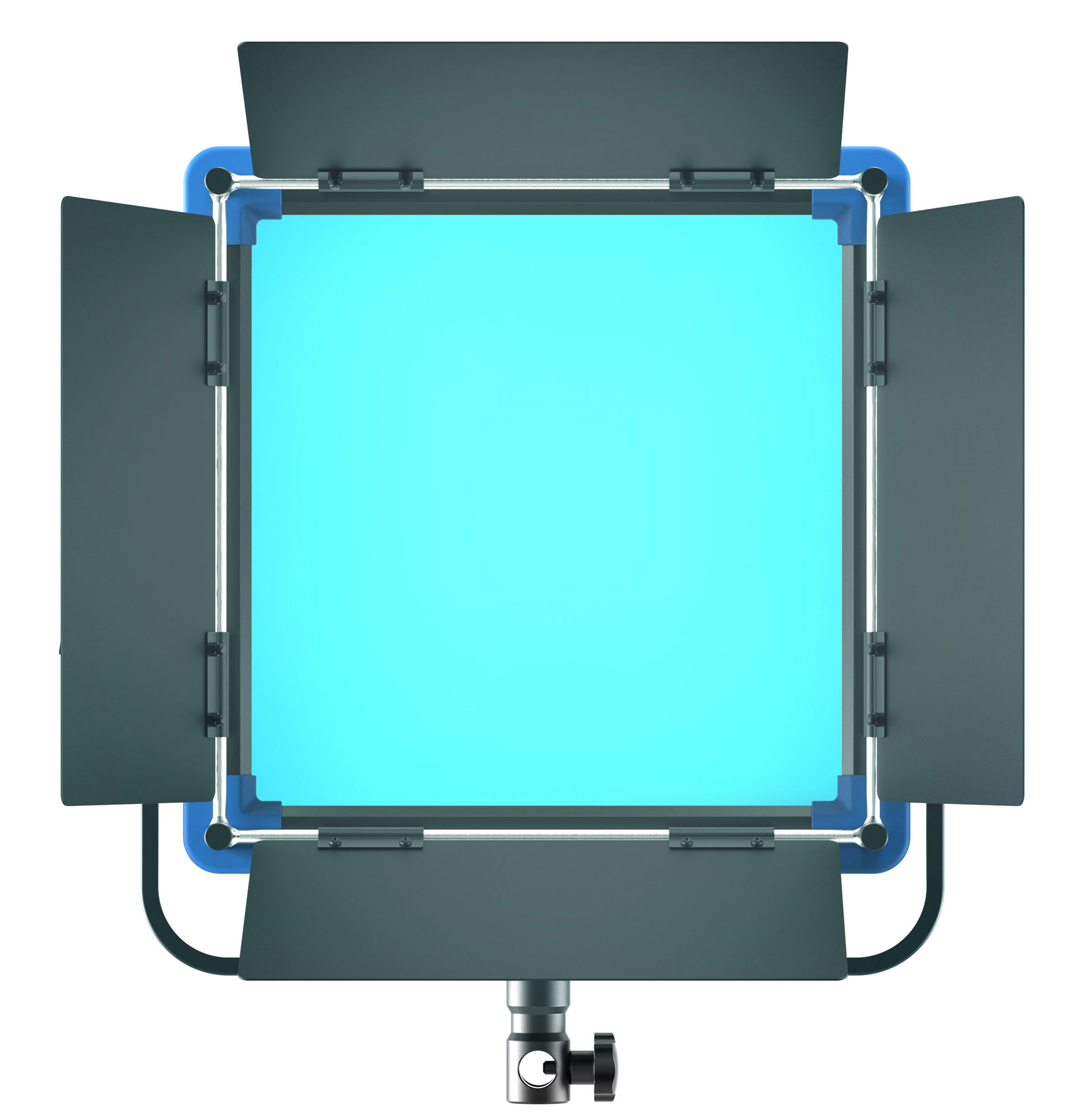

Swit VANGO-70 70W 1:1 Ultra Slim RGBW Panel Light

70W Ultra Slim RGBW

VANGO-70, the slim portable size 70W RGBW panel with extreme high color light output, equivalent to regular 200W RGB color light intensity, for your flexible video studio setup.

21mm Ultra Slim and Soft Light

With SWIT unique Edge Mounted SMD and 90° high efficient light guide tech, the VANGO-70 has an ultra slim size to only 21mm thickness, and diffused to soft light to paint the entire environment.

Time Division Tech, Brighter Color Light

The regular RGB panels are high bright in CCT mode, but much lower in RGB color mode. That’ s because in a regular RGB light, the RGB color LED and White LED have fixed rates to share the total power of the light, and when output color lights, the RGB LEDs use only 1/3 power. By SWIT unique Time Division Drive tech, full power of the light can be assigned to RGB color LEDs, and greatly increased the intensity of color light. The 70W VANGO-70 color light intensity equals to a regular 200W RGB color light intensity.

Control Panel

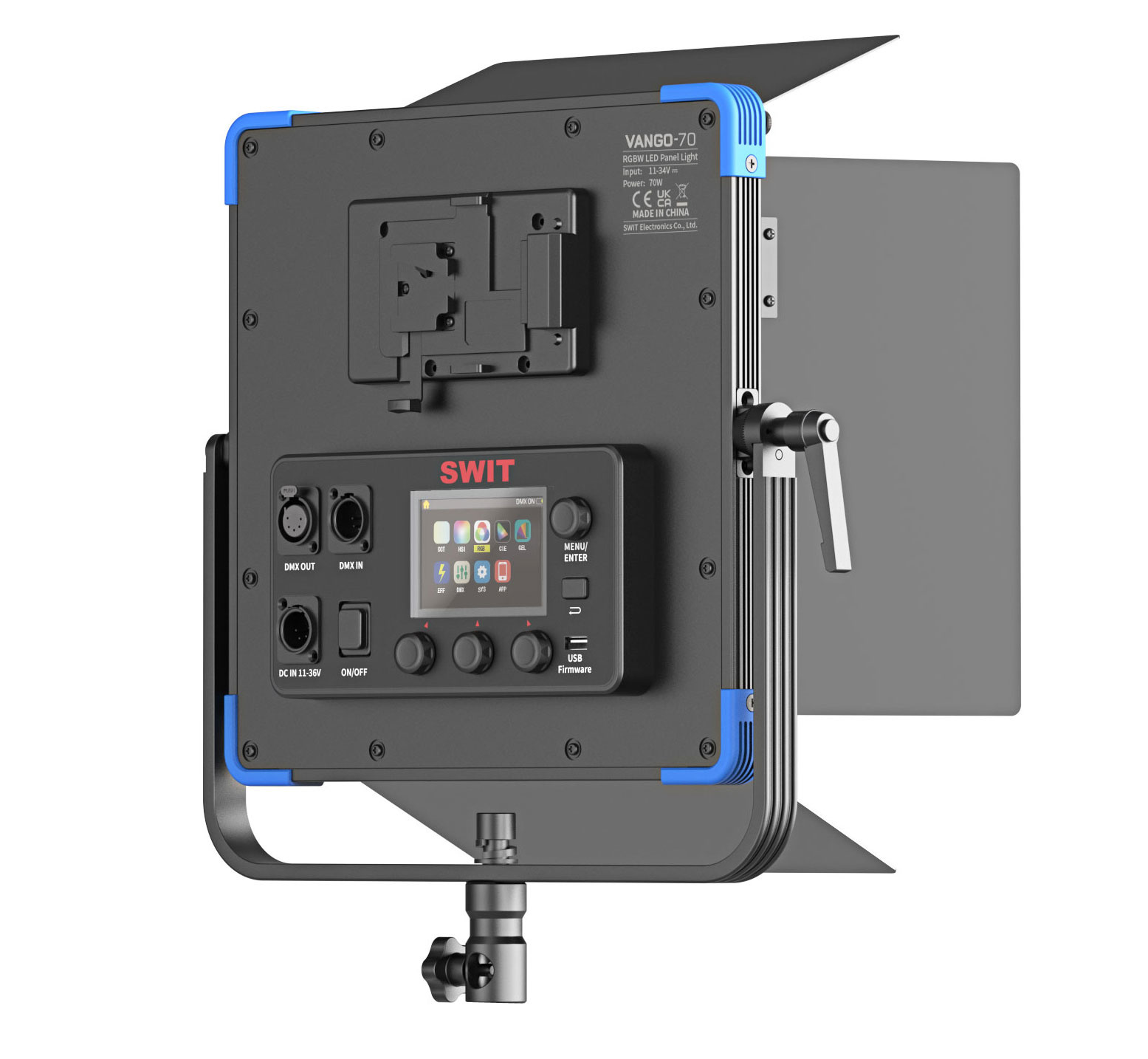

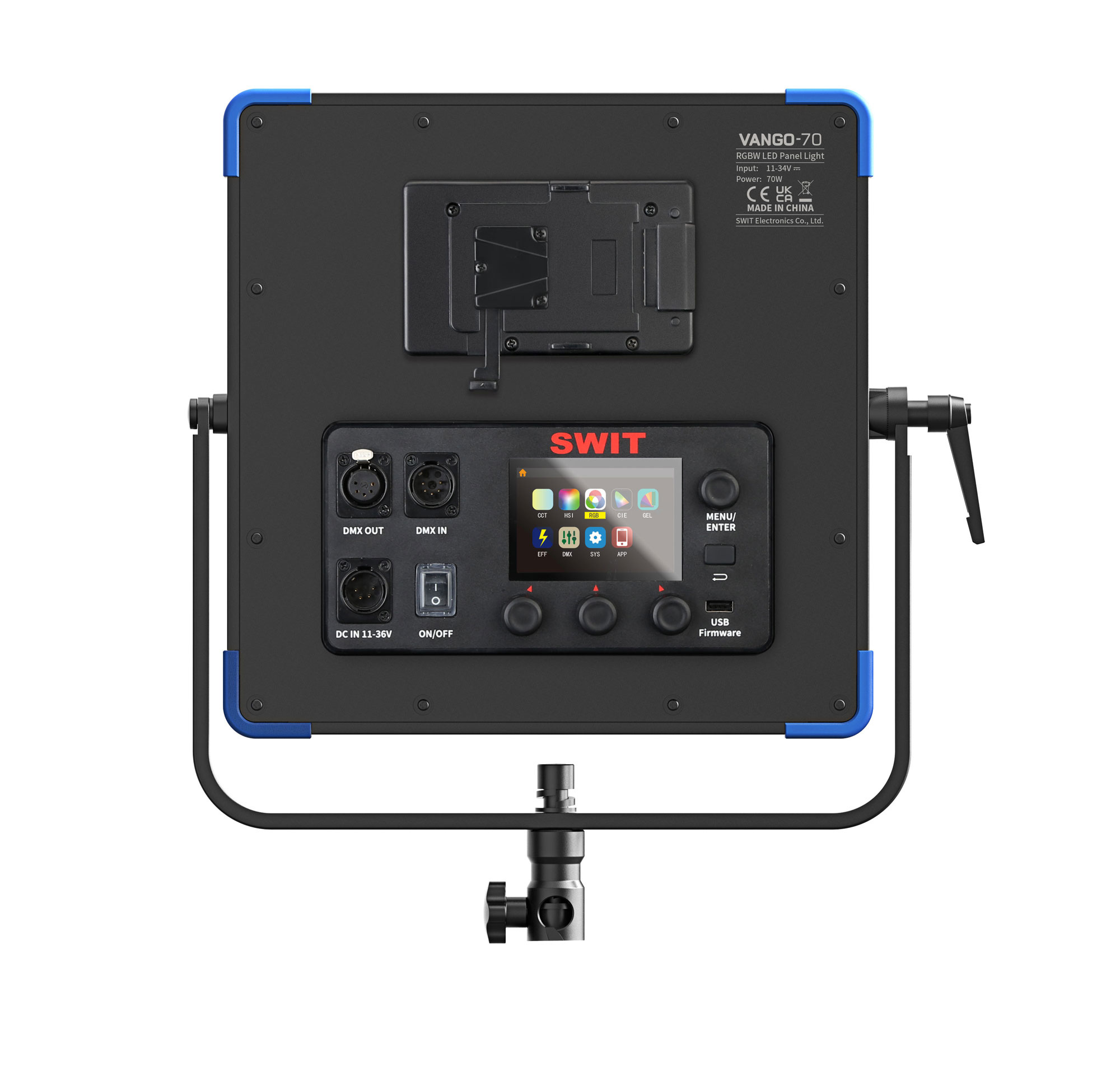

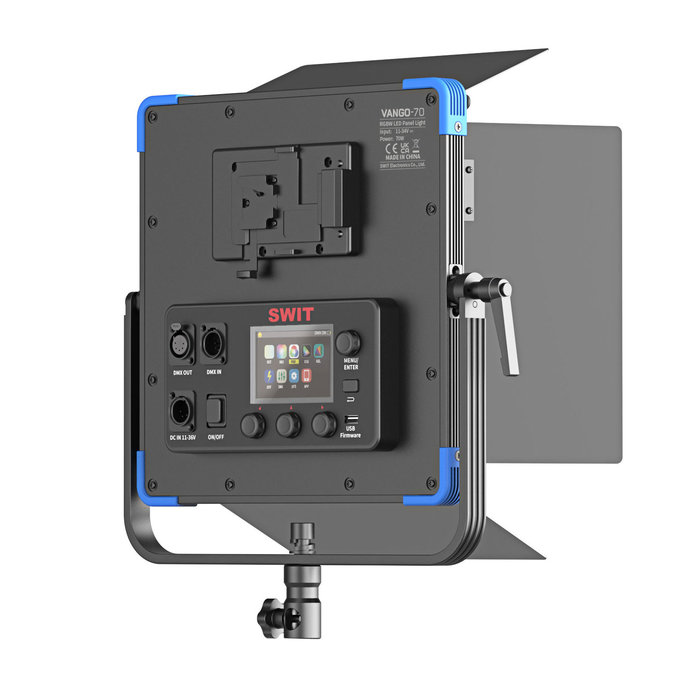

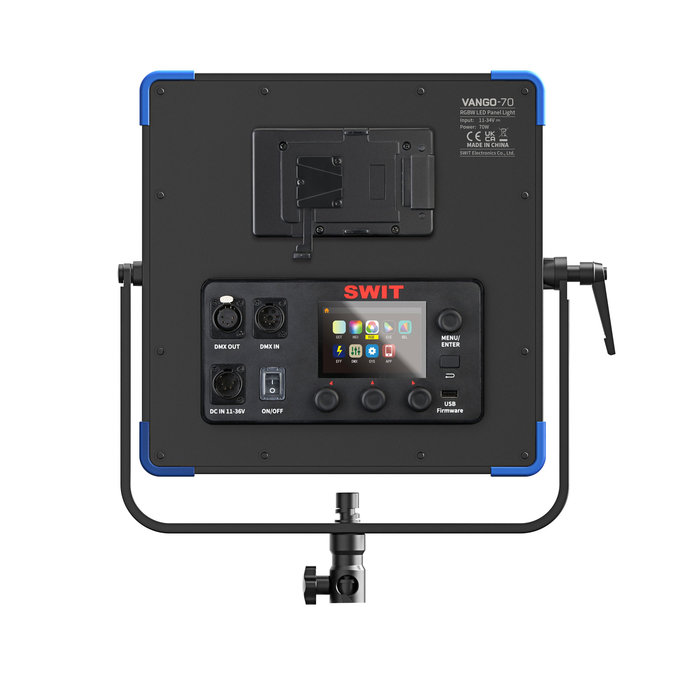

VANGO-70 rear control panel supports 5-pin DMX in & out, 4-pin XLR DC 11-36V in, and V-mount battery plate (Gold mount for option), and a large color LCD with menu and hot keys for convenient color picking. The USB-A port is for firmware update or user color profile upload, and to power wireless DMX receiver.

Bluetooth APP Control

Download “SWIT Console” APP on IOS App Store or Google PLAY, to connect and control VANGO lights via Bluetooth.

The APP control supports CCT, HSI, RGB, CIE color modes, and select preset color GELs and light effects.

Features

120pcs RGB + 200pcs White SMD-LEDs

Edge mounted LEDs, 21mm ultra slim

No fan, No noise

1:1 size, 70W power, 1500Lux @ 1meter

Time-Division drive tech, ultra bright color light

CCT/HSI/RGB/CIE/GEL/EFF color modes

Built-in 20x Rosco and 20x LEE Gels

2800K-10000K, G/M±1.00 adjustment

CRI Ra 96, TLCI 93

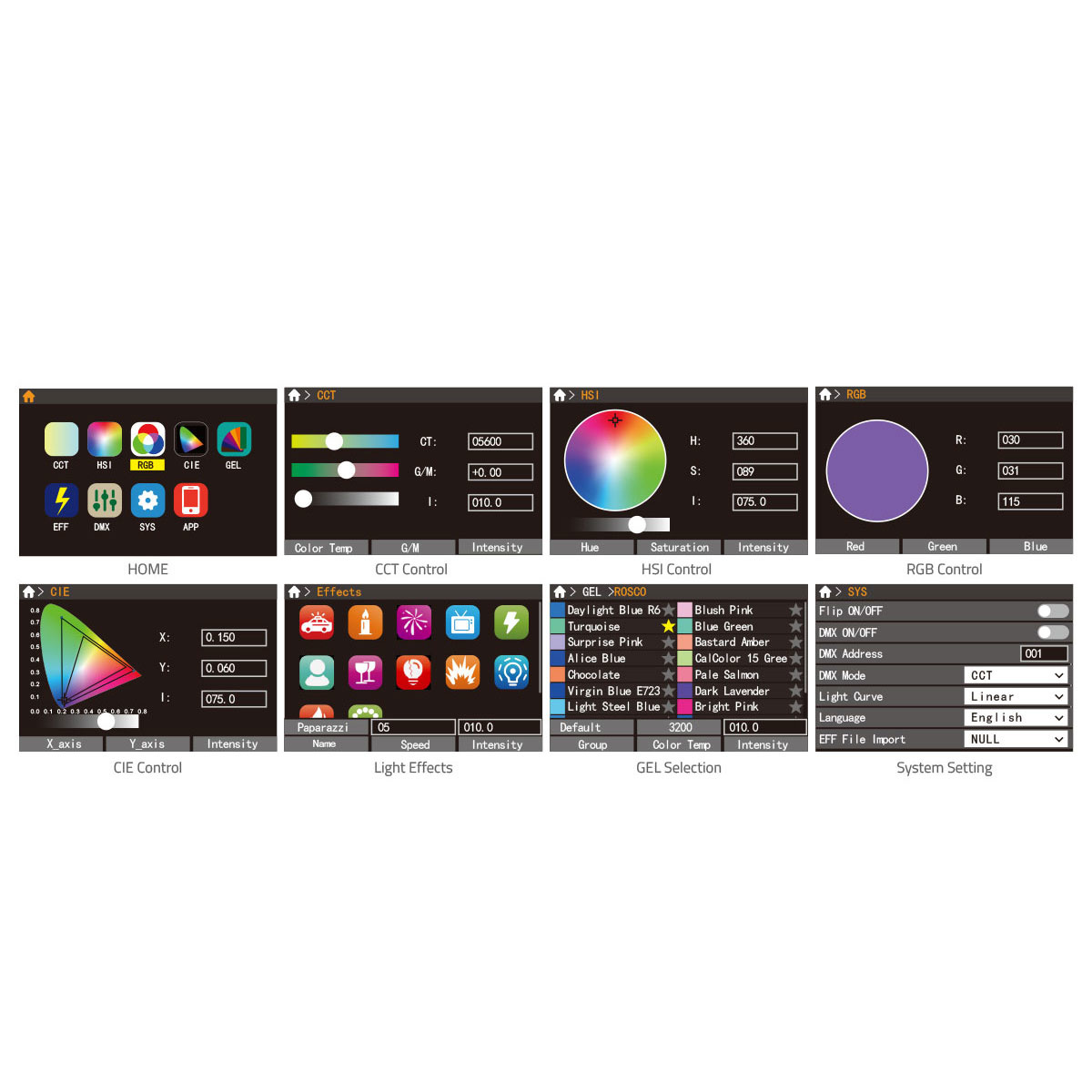

On-board 3.5-inch color LCD visualized color pick

DMX512 3bit/6bit/7bit color control

DC 11-34V wide input voltage

On-board V-mount or Gold mount battery plate

IOS/Android APP bluetooth control

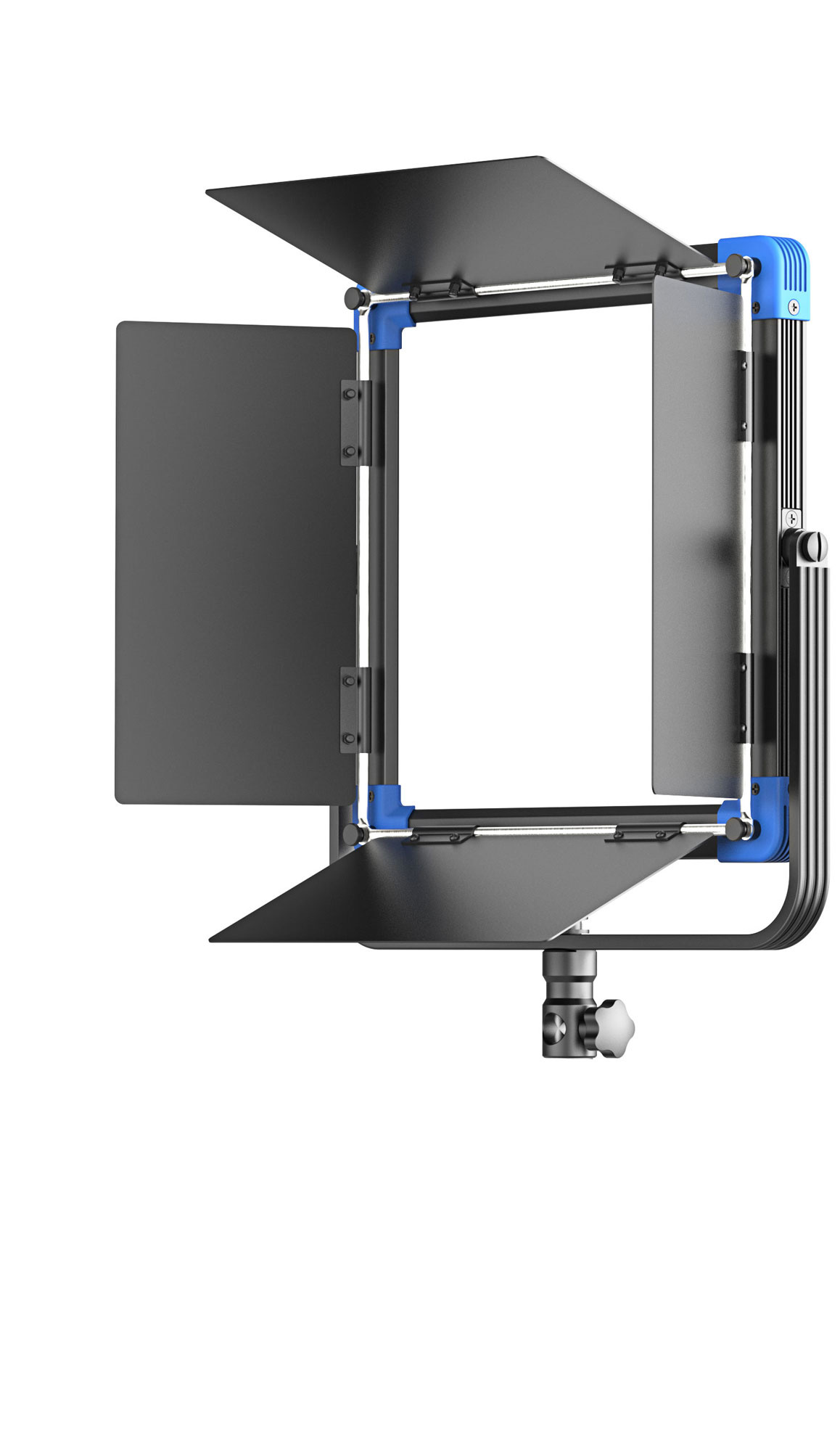

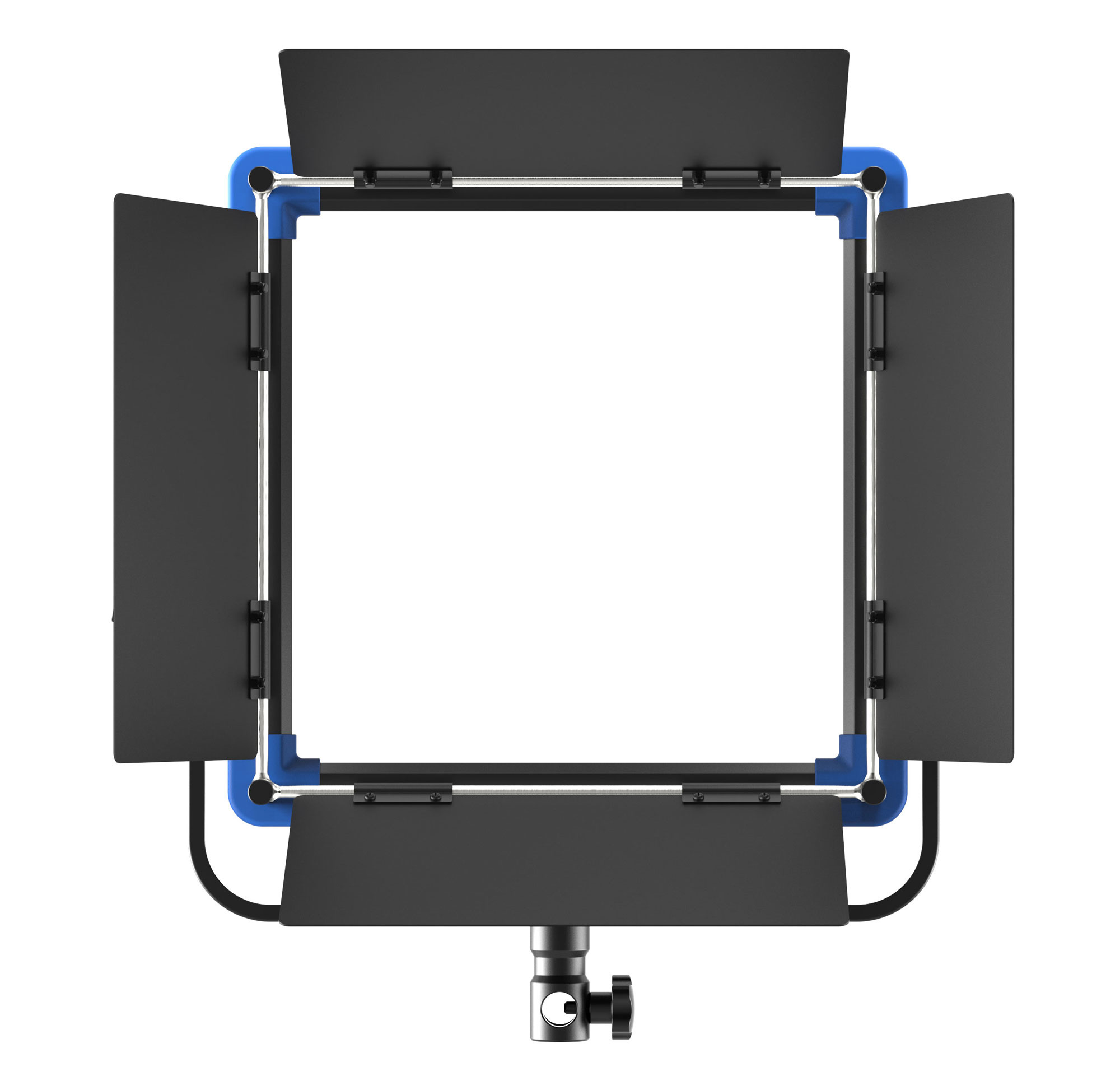

With 4-leaf barn door and optional 40° honeycomb
