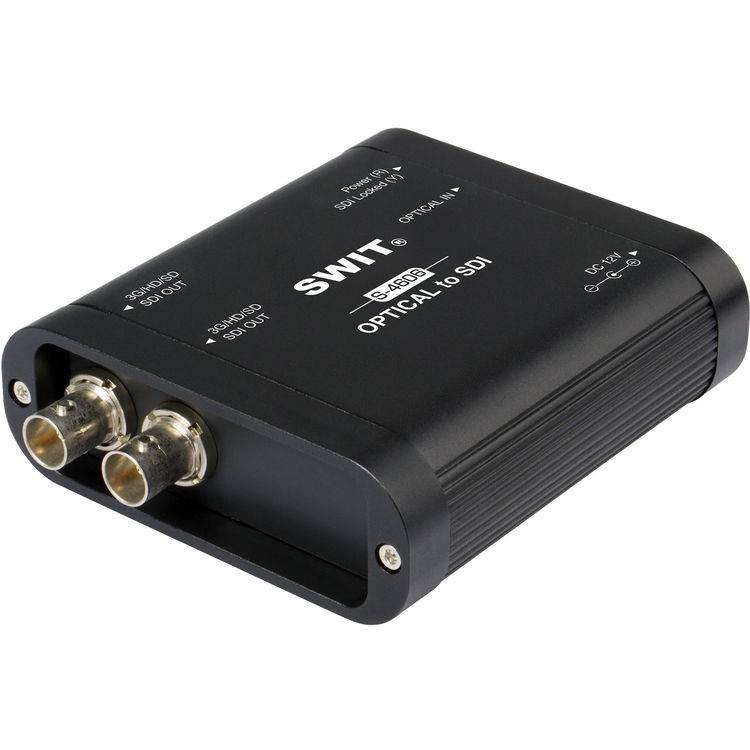

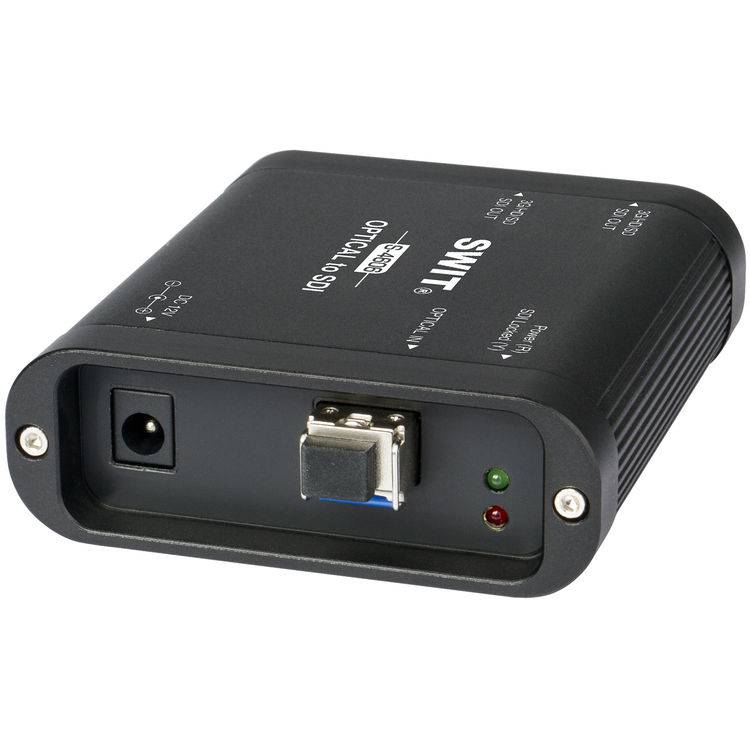

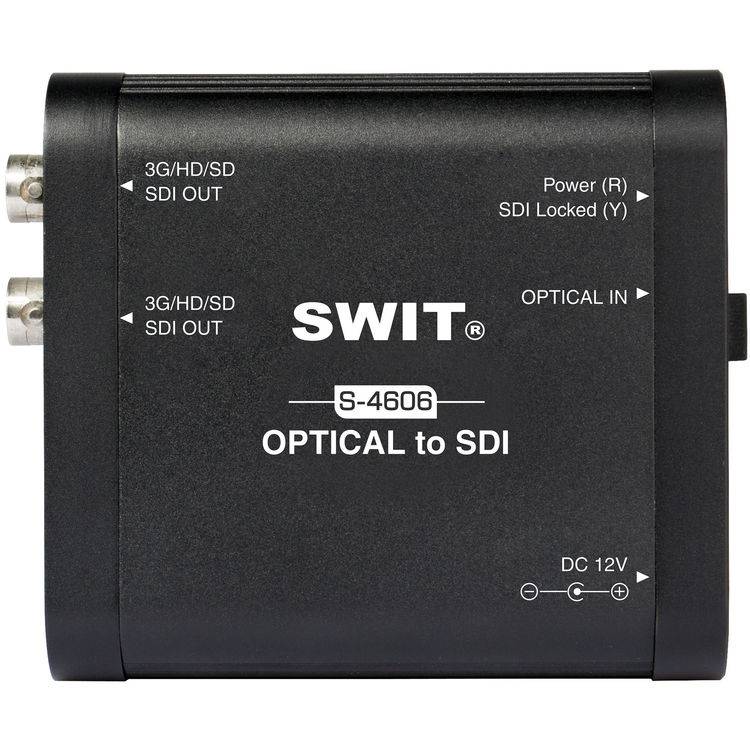

SWIT S-4606 Portable Optical Fiber to SDI Converter
The S-4606 is a portable Optical fiber to 3G/HD/SD-SDI converter. The single-mode fiber ensures max 20 km reliable transmission, and support hot swap of optical module. The S-4606 is heavy duty housing design, protecting the BNC connectors well, and supplied various screw threads in the bottom, for convenient installing.
FEATURES
Portable Optical Fiber to 3G/HD/SD-SDI Converter
1 Fiber input, 2 SDI output
Single mode Optical Fiber, LC connector
Max 20 km reliable transmission
Support hot swap of the optical module
Power / SDI input status indicator
Pole tap 6-18V DC power input
Heavy-duty aluminum housing

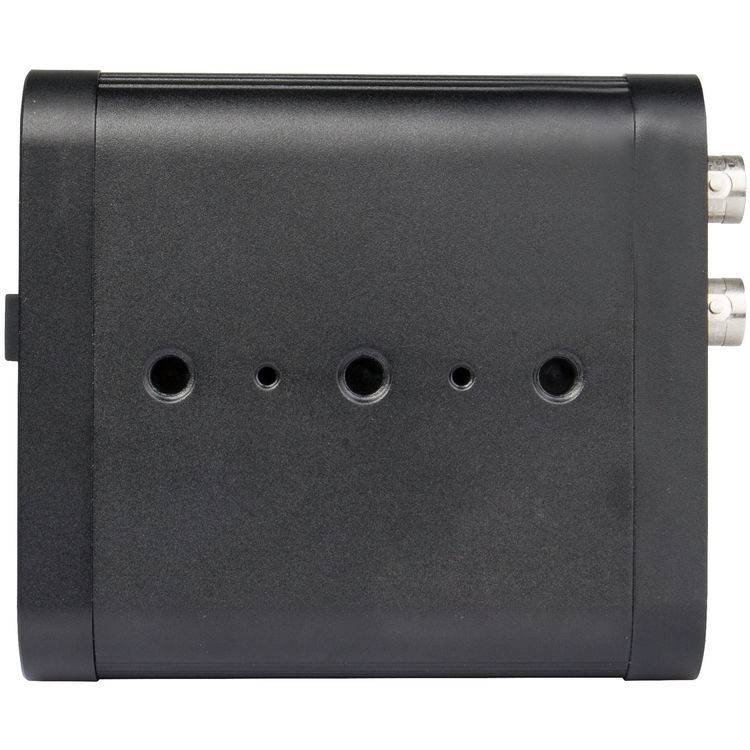

Bottom screw threads for installation
Input | ||
LC×1 | Optical fiber input | |
output | ||
BNC×2 | Converted 3G/HD/SD-SDI output | |
Video Format | ||
SDI | SMPTE-425M | 1080p (60/59.94/50) |
SMPTE-274M | 1080i (60/59.94/50) | |
1080p (30 / 29.97 / 25 / 24 / 23.98) | ||
SMPTE-RP211 | 1080psf (30 / 29.97 / 25 / 24 / 23.98) | |
SMPTE-296M | 720p (60/59.94/50) | |
SMPTE-125M | 480i (59.94) | |
ITU-R BT.656 | 576i (50) | |
optical fiber | SMPTE 297-2006 | |
1260-1580nm wavelength | ||
General | ||
Power | ≤3W | |
Working voltage | DC6-18V | |
working environment | Temperature: 0°C-+70°C, Humidity:10%-90% | |
dimensions | 98×84×29mm | |
Just weight | 220g | |
