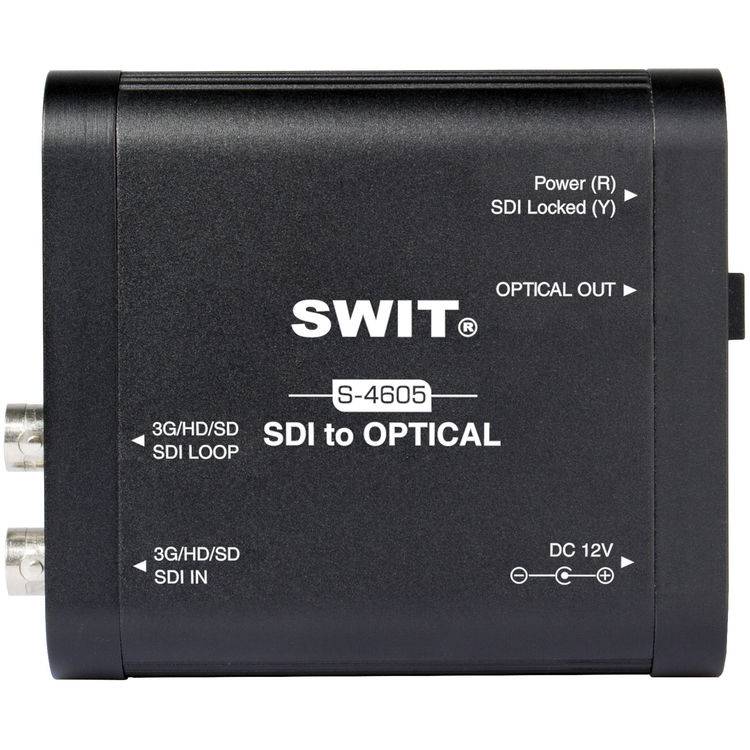

SWIT S-4605 Portable SDI to Optical Fiber Converter
The S-4605 is a portable 3G/HD/SD-SDI to optical fiber converter. The single-mode fiber ensures max 20km reliable transmission, and support hot swap of optical module.

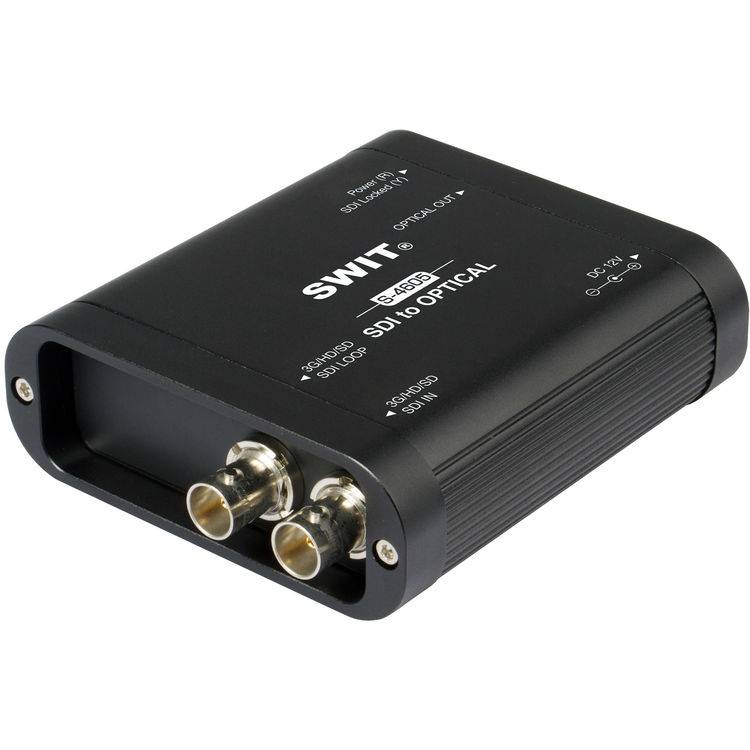

The S-4605 is heavy duty housing design, protecting the BNC connectors well, and supplied various screw threads in the bottom, for convenient installing.
FEATURES
Portable 3G/HD/SD-SDI to Optical Fiber Converter
1 SDI input, 1 Fiber output, and 1 SDI loop output

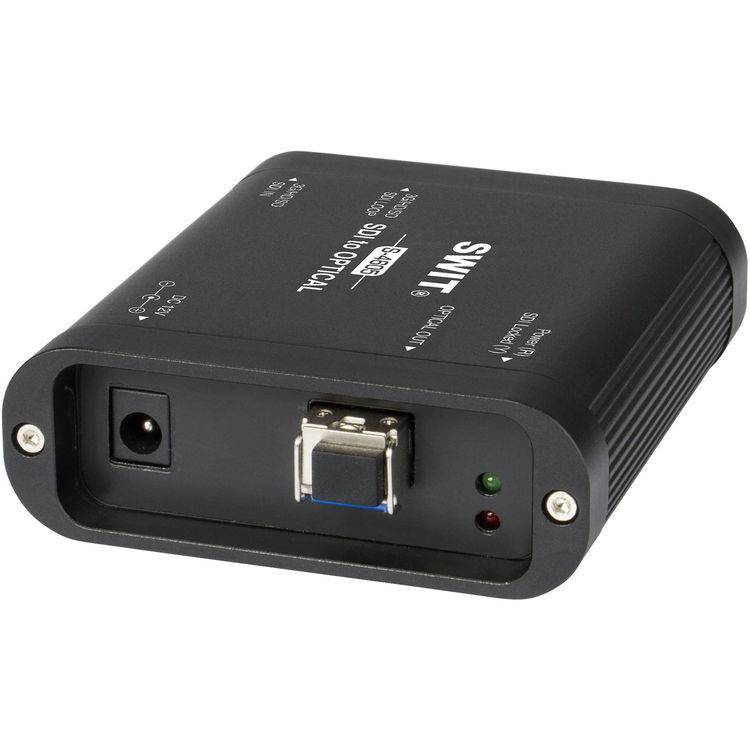

Single mode Optical Fiber, LC connector
Max 20 km reliable transmission
Support hot swap of the optical module
Power / SDI input status indicator
Pole tap 6-18V DC power input
Heavy-duty aluminum housing

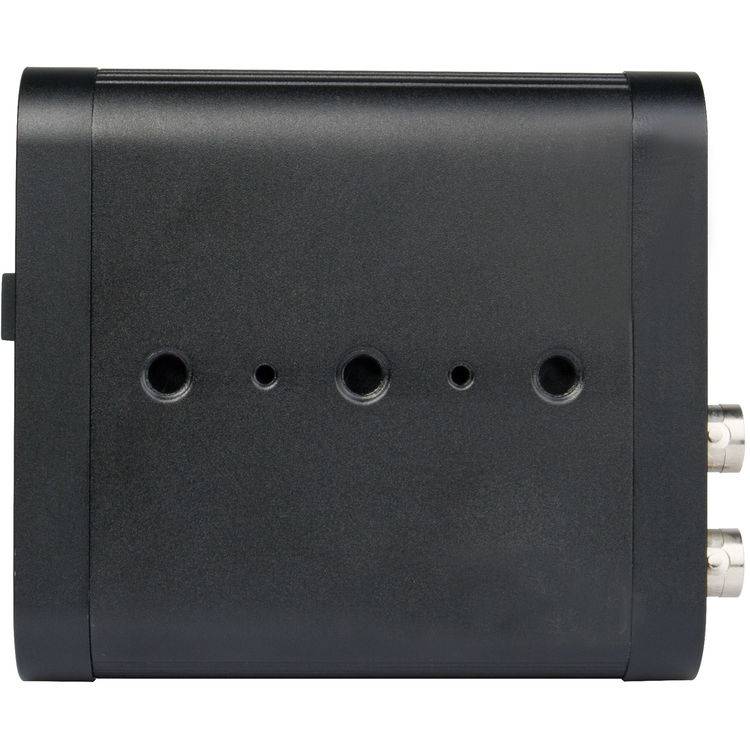

Bottom screw threads for installation
Input | ||
BNC×1 | 3G/HD/SD-SDI input | |
output | ||
BNC ×1 | 3G/HD/SD-SDI loop output | |
LC×1 | Converted optical fiber output | |
Video Format | ||
SDI | SMPTE-425M | 1080p (60/59.94/50) |
SMPTE-274M | 1080i (60/59.94/50) | |
1080p (30 / 29.97 / 25 / 24 / 23.98) | ||
SMPTE-RP211 | 1080psf (30 / 29.97 / 25 / 24 / 23.98) | |
SMPTE-296M | 720p (60/59.94/50) | |
SMPTE-125M | 480i (59.94) | |
ITU-R BT.656 | 576i (50) | |
optical fiber | SMPTE 297-2006 | |
1310nm wavelength | ||
General | ||
Power | ≤3W | |
Working voltage | DC6-18V | |
working environment | Temperature: 0°C-+70°C, Humidity:10%-90% | |
dimensions | 98×84×29mm | |
Just weight | 220g | |
