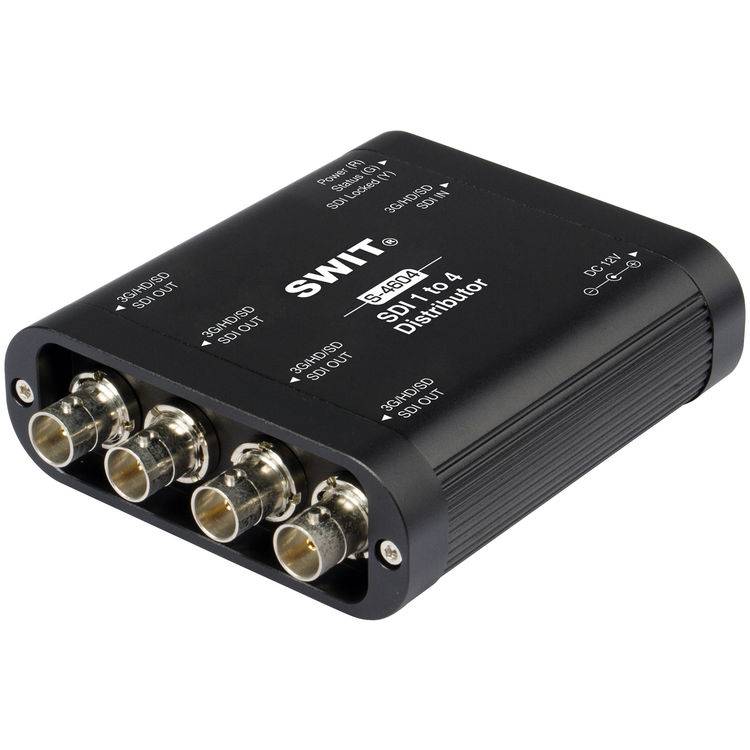

SWIT S-4604 Portable SDI 1-to-4 Distributor & Amplifier
The S-4604 is a portable 3G/HD/SD-SDI distributor. It supports 1 SDI input, and 4 SDI output, with embedded audio. There're Power/Input/Output status indicators to check the connection conditions and availability of distribution.

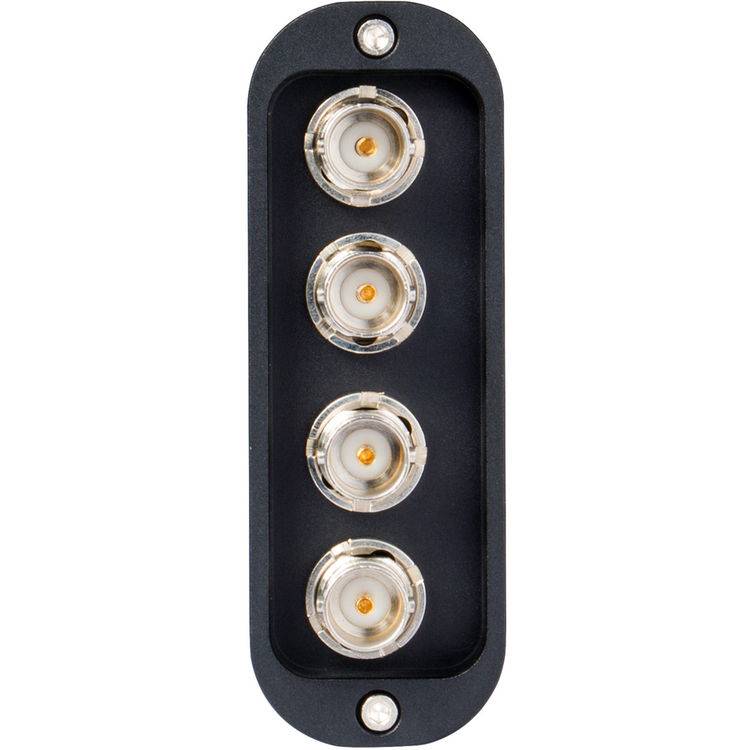

S-4604 is heavy duty housing design, protecting the BNC connectors well, and supplied various screw threads in the bottom, for convenient installing, and future accessories (battery mount, etc).
FEATURES
Portable 3G/HD/SD-SDI 1 to 4 distributor
1 SDI input, 4 SDI output
SDI re-clocking and amplifier

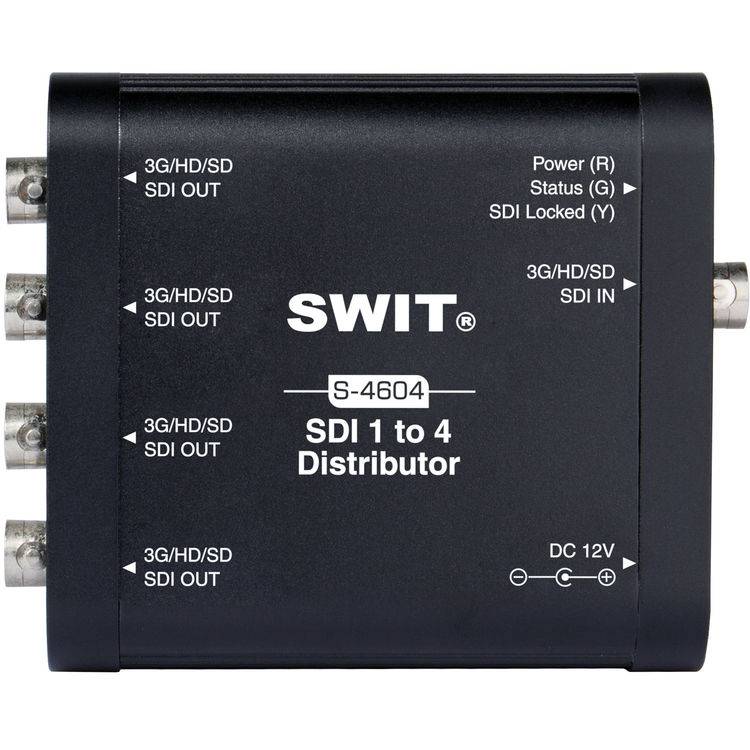

Power/input/output status indicator
Pole tap 6-18V DC power input
Heavy-duty aluminum housing
Bottom screw threads for installing
Input | ||
BNC×1 | 3G/HD/SD-SDI input | |
output | ||
BNC ×4 | 3G/HD/SD-SDI output | |
Video Format | ||
SDI | SMPTE-425M | 1080p (60/59.94/50) |
SMPTE-274M | 1080i (60/59.94/50) | |
1080p (30 / 29.97 / 25 / 24 / 23.98) | ||
SMPTE-RP211 | 1080psf (30 / 29.97 / 25 / 24 / 23.98) | |
SMPTE-296M | 720p (60/59.94/50) | |
SMPTE-125M | 480i (59.94) | |
ITU-R BT.656 | 576i (50) | |
General | ||
Power | ≤2W | |
Working voltage | DC6-18V | |
working environment | Temperature: 0°C-+70°C, Humidity:10%-90% | |
dimensions | 105×84×29mm | |
Just weight | 240g | |
