SWIT - MINO-S210 210Wh Pocket V-mount Battery Pack
Features
- Pocket fit compact V-mount battery
- Support RED V-Raptor install
- 210Wh/14.6Ah high capacity
- 200W/16A constant high load
- 100W/6A ultra fast charging
- 1x D-tap output & charging input
- 1x USB-A 5V/2A output
- 1x USB-C 48W input & 65W output
- 4-step LED power indicator
- Power info for both SONY & RED
- Wire-Free internal technic
- Multiple circuit protections

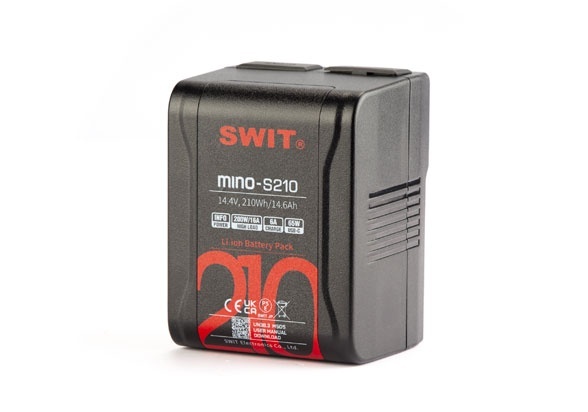

The Smallest 210Wh
V-mount Battery
MINO-S210 is a large capacity pocket fit size V-mount battery for cine range cameras, lights and various film gears. It fits RED V-raptor at the compact size and power the camera for at least 3 hours.

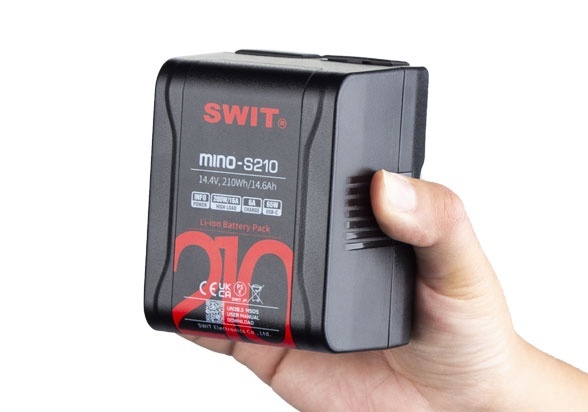

Compact Handheld Size
As a 210Wh large capacity battery, the MINO-S210 has 105x79.6x73.8mm compact size, and weights 1.02kg only. You can even carry it out with your pocket.
210Wh, 200W High Load
MINO-S210 consists of 12 high capacity cells, with 210Wh/14.6Ah high capacity, and support at least 200W/16A constant high load output, for high power cine cameras and lights..

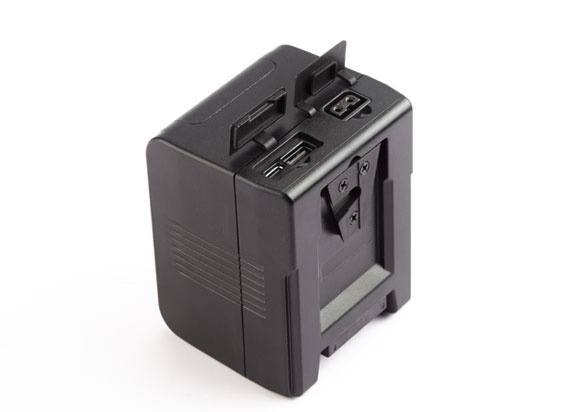

D-tap, USB-A and USB-C
The MINO-S210 provides various DC sockets:
D-tap x1 - 120W/10A load (Support charging input)
USB-A x1 - 5V/2A output
USB-C x1 - 65W output and 48W charging input
USB-C 48W Charging Input
MINO-S70 battery can be charged by USB-C charger, supports PD 5V/9V/12V/15V/20V(Max) 2.4A, 48W charging input, which means you can fully charge the 210Wh battery within 5 hours.
USB-C 65W Power Output
You can power laptop via USB-C by MINO-S210 battery on the filmset. Supports 5V 3.25A, 9V 3.25A, 12V 3.25A, 15V 3.25A and Max 20V 3.25A, BC1.2, PD2.0/3.0, QC2.0/3.0, FCP, SCP multiple protocols. (For Macbook Air/13, Macbook Pro 13/15/16, Huawei Matebook E/12/X13/XPRO, Thinkpad, HP, ASUS, Dell and almost all laptops with USB-C ports)

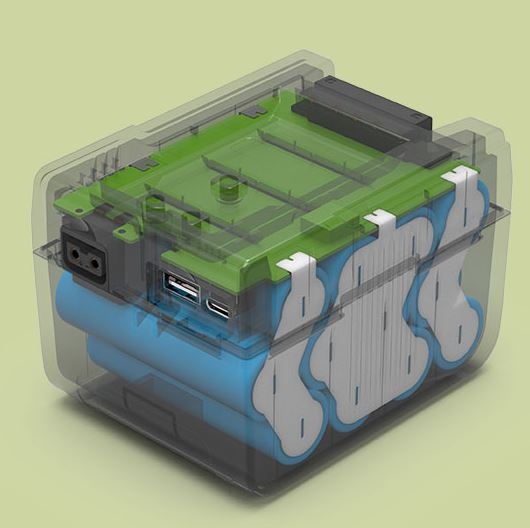

Wire-Free Internal Tech
MINO-S210 has innovative “Wire-Free” internal technic. All the cells, D-tap, USB-A, USB-C, power indicator devices are directly soldered onto PCB, no connecting wires, to reduce internal resistance effectively, and make the circuit stable, safe, and reliable.
Battery plate | V-mount |
Nominal voltage | 14.4V |
Capacity | 210Wh, 14.6Ah |
Power IN&OUT | Electrodes: 200W 16A out, 16.8V 6A in |
D-tap: 120W 10A out, 16.8V 6A in | |
USB-A: 10W, 5V/2A out | |
USB-C: Max 65W out, 5V/9V/12V/15V/20V(Max) 3.25A BC1.2, PD2.0/3.0, QC2.0/3.0, FCP, SCP Max 48W in, 5V/9V/12V/15V/20V(Max) 2.4A | |
Dimension | 105×79.6×73.8mm (Fit RED Raptor) |
Charging Temperature | 0-40°C |
Discharging Temperature | -20°C-50°C (Capacity and Max Load may decrease when operating below 0°) |
Net weight | 1.02kg |
