Sirui Video Tripod SVT75 Lite with SVH15 Fluid Head

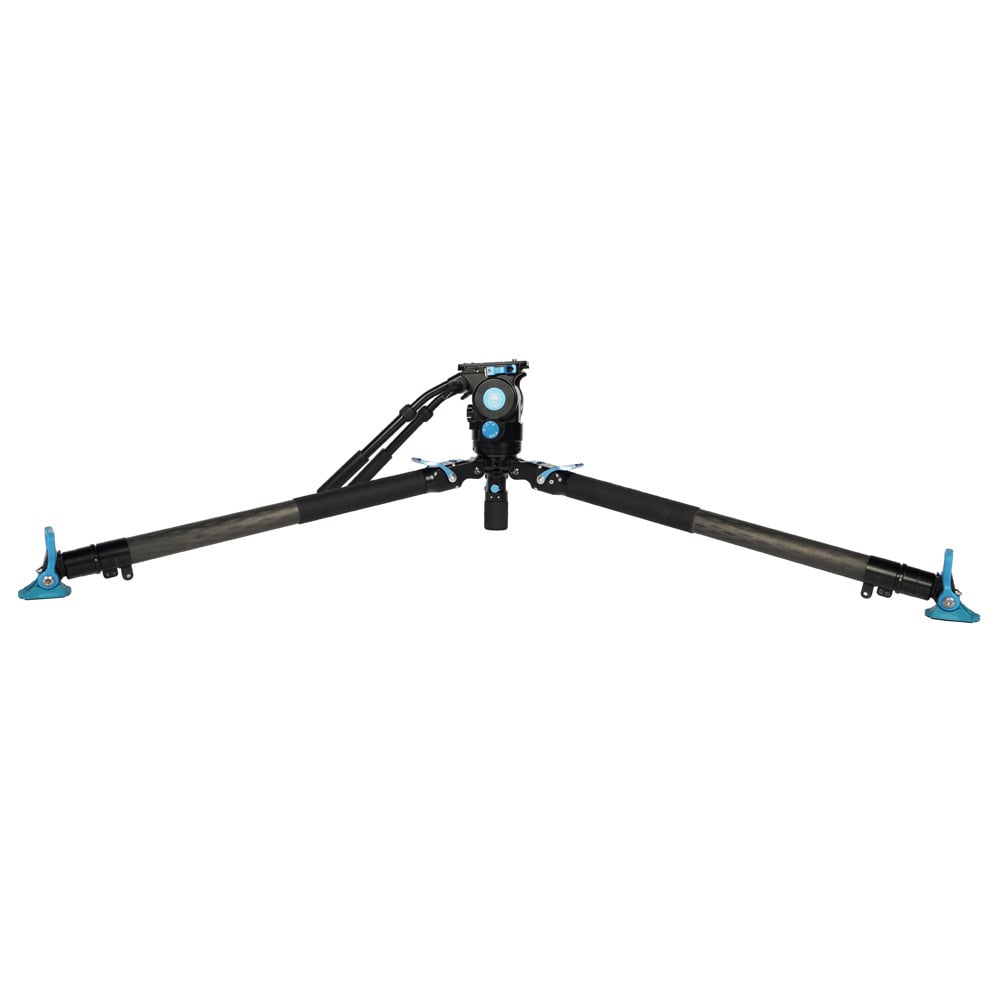

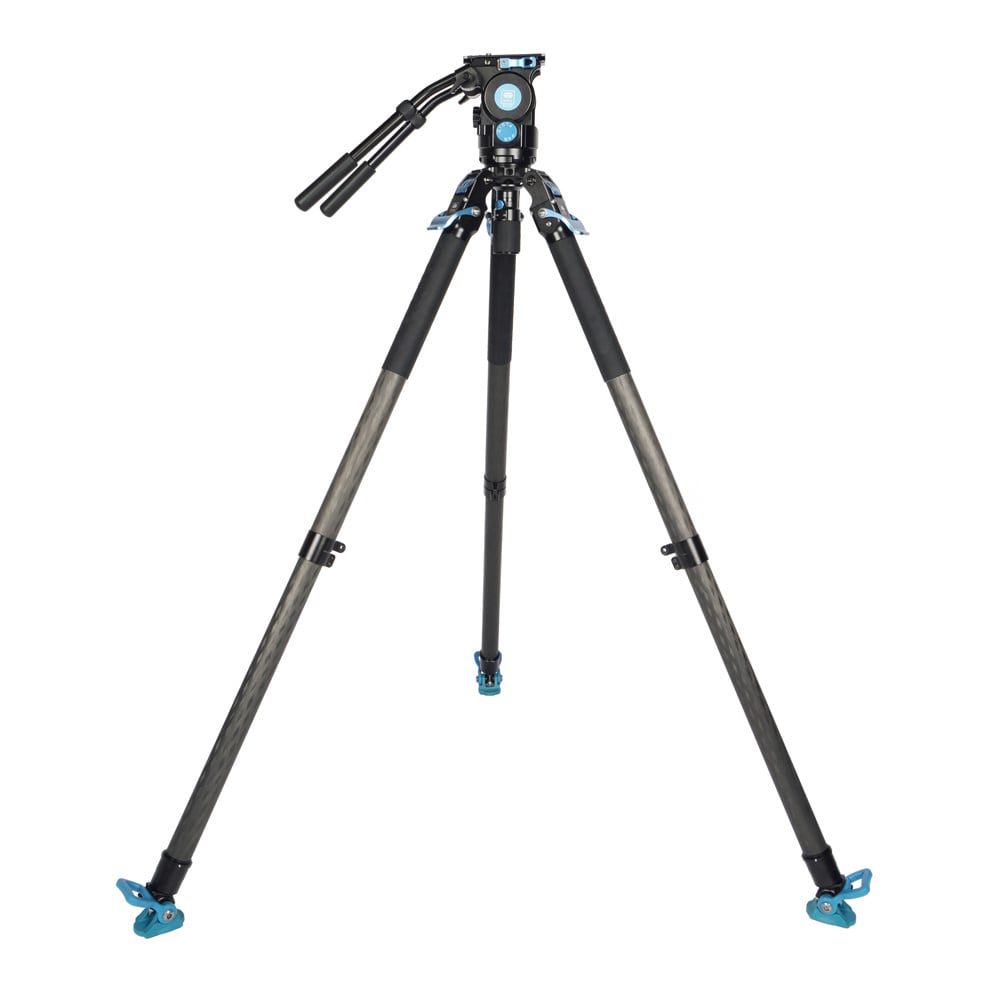

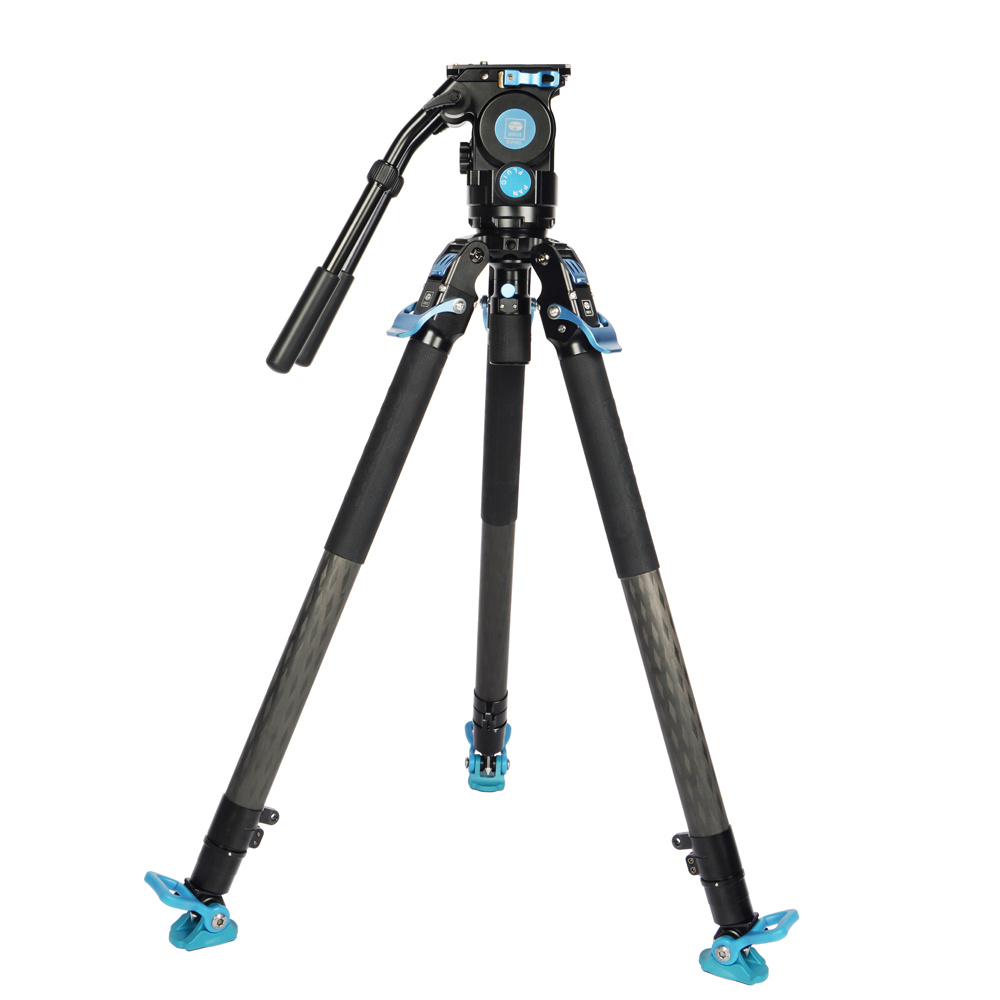

The Sirui SVT75 Lite Rapid System Video Tripod with One Step Release and SVH15 Video Fluid Head Kit is a versatile, yet lightweight and portable travel tripod and fluid head system with a minimum height of 21 cm, maximum height of 153 cm and a capacity of 25 kg .
The SVH15 video head features a sideload mechanism with a quick release plate, a 75mm half ball, stepless damping adjustments, 7+0 counterweight steps and a tilt range of -70/+90°. The 3-piece carbon fiber legs feature a 75mm bowl, a mid-level spreader, double spike feet, rubber feet, a handle and a strap.
Sirui SVT75 Lite Rapid system Video tripod with one step height adjustment

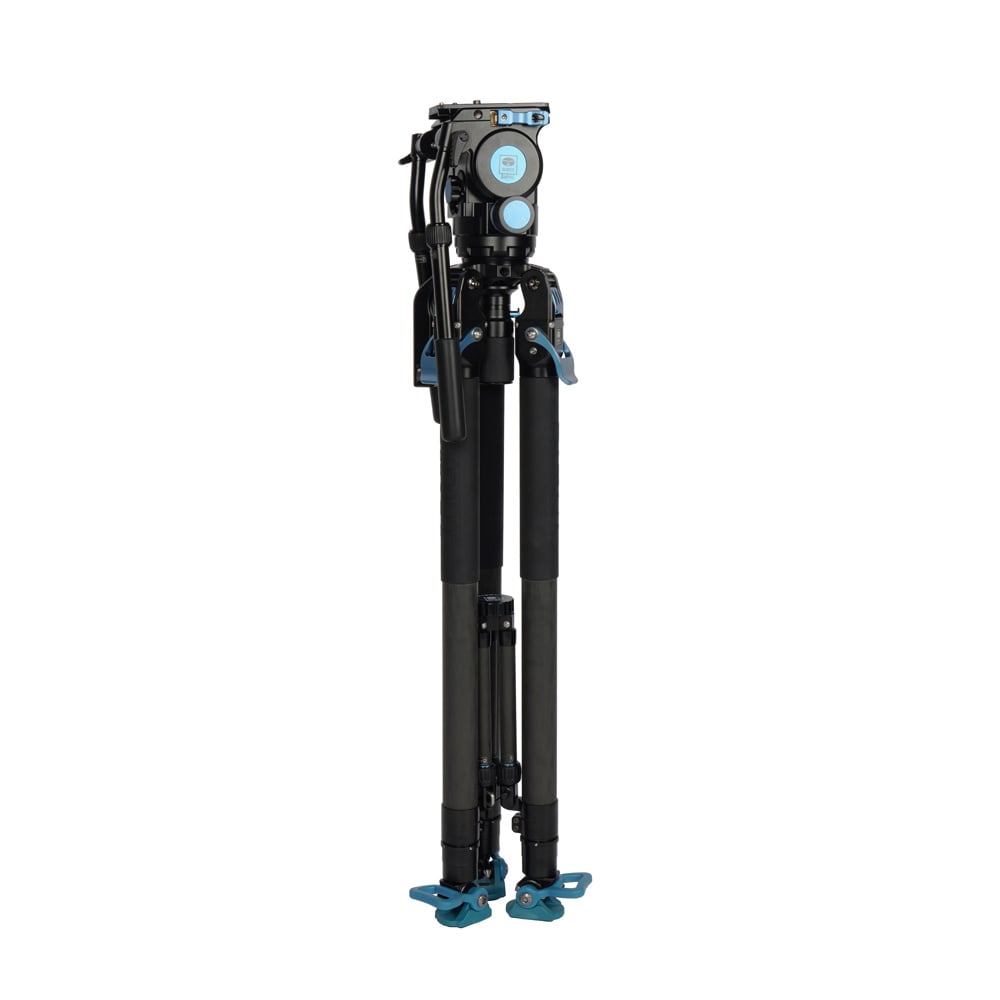

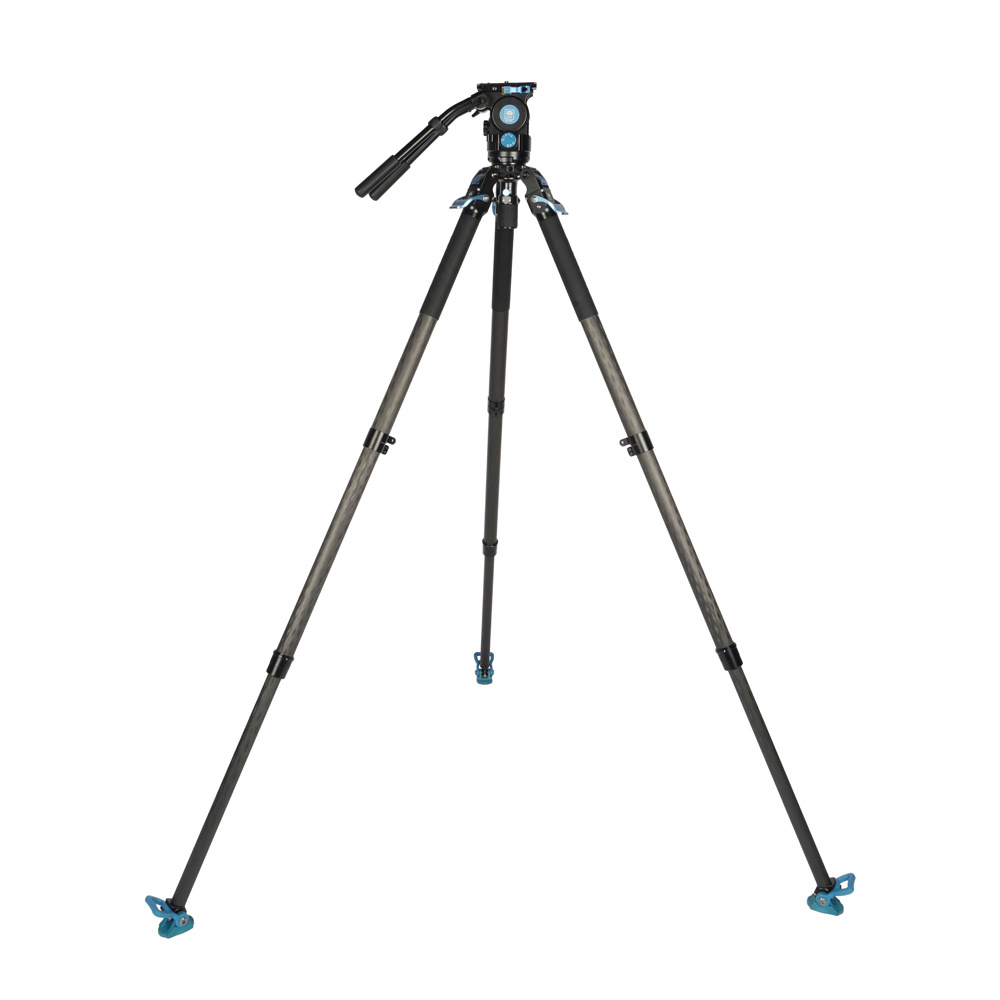

The Sirui SVT75 Pro Rapid System video tripod with one step height adjustment is a lightweight and compact tripod with a minimum height of 21 cm, a maximum height of 153 cm and a collapsed length of 75 cm and supports loads up to 25 kg.

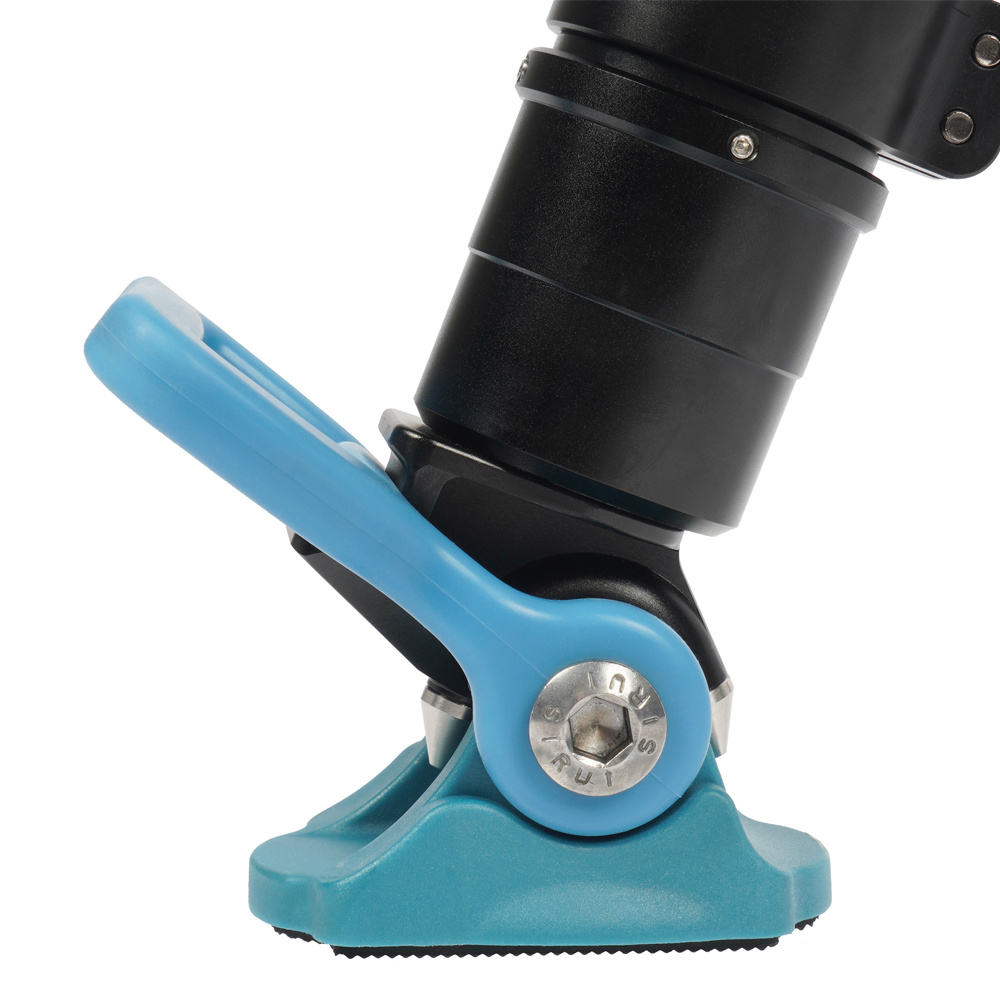

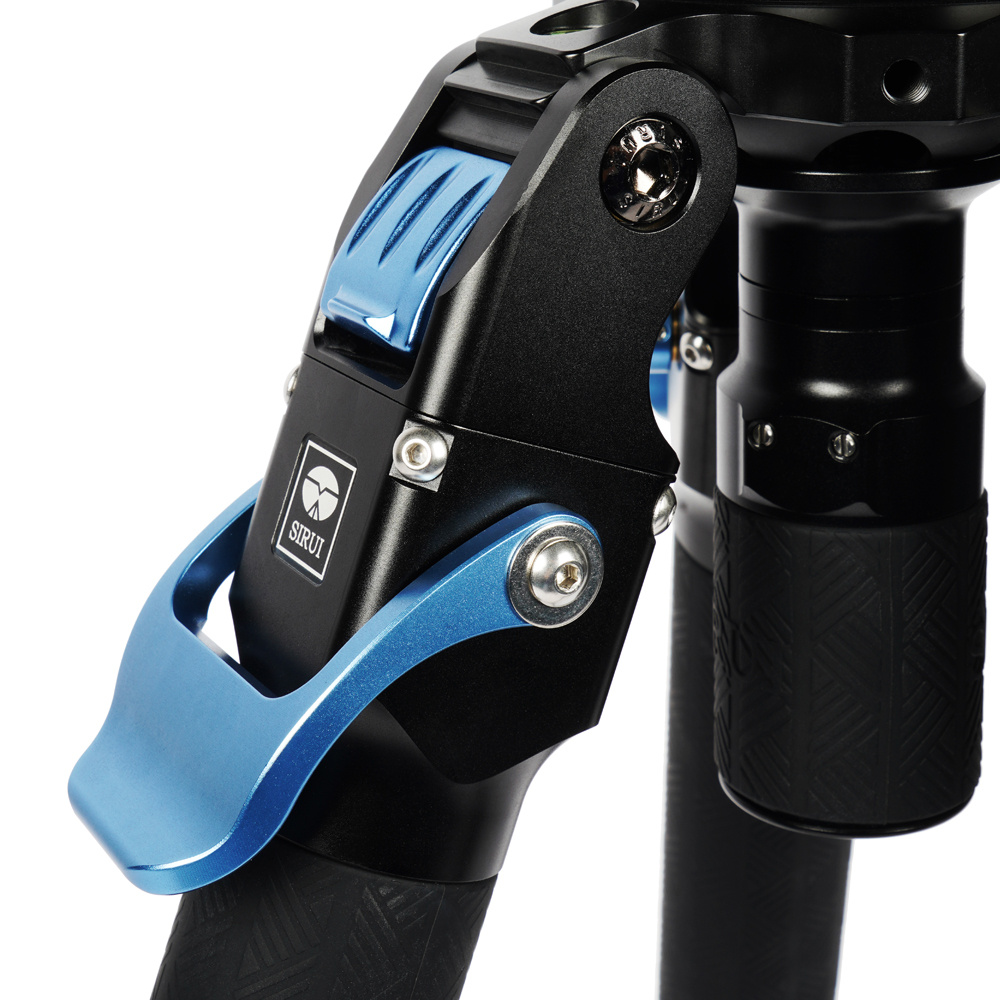

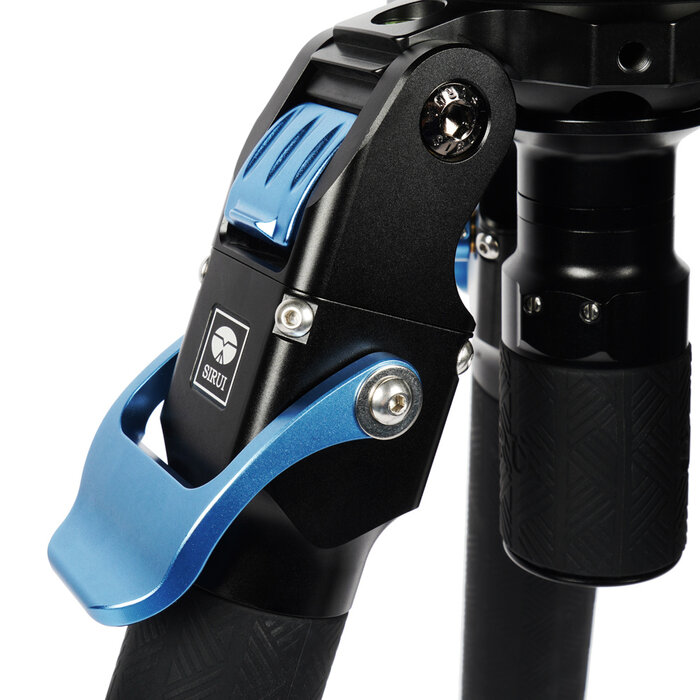

The carbon fiber and aluminum legs feature flip-lock joints, allowing you to quickly adjust the height in one step. A carrying strap and handle are included to assist with set-up and transport. The rubber feet provide grip and the legs are equipped with steel spikes for outdoor use. A carrying bag is included to store and transport the tripod.

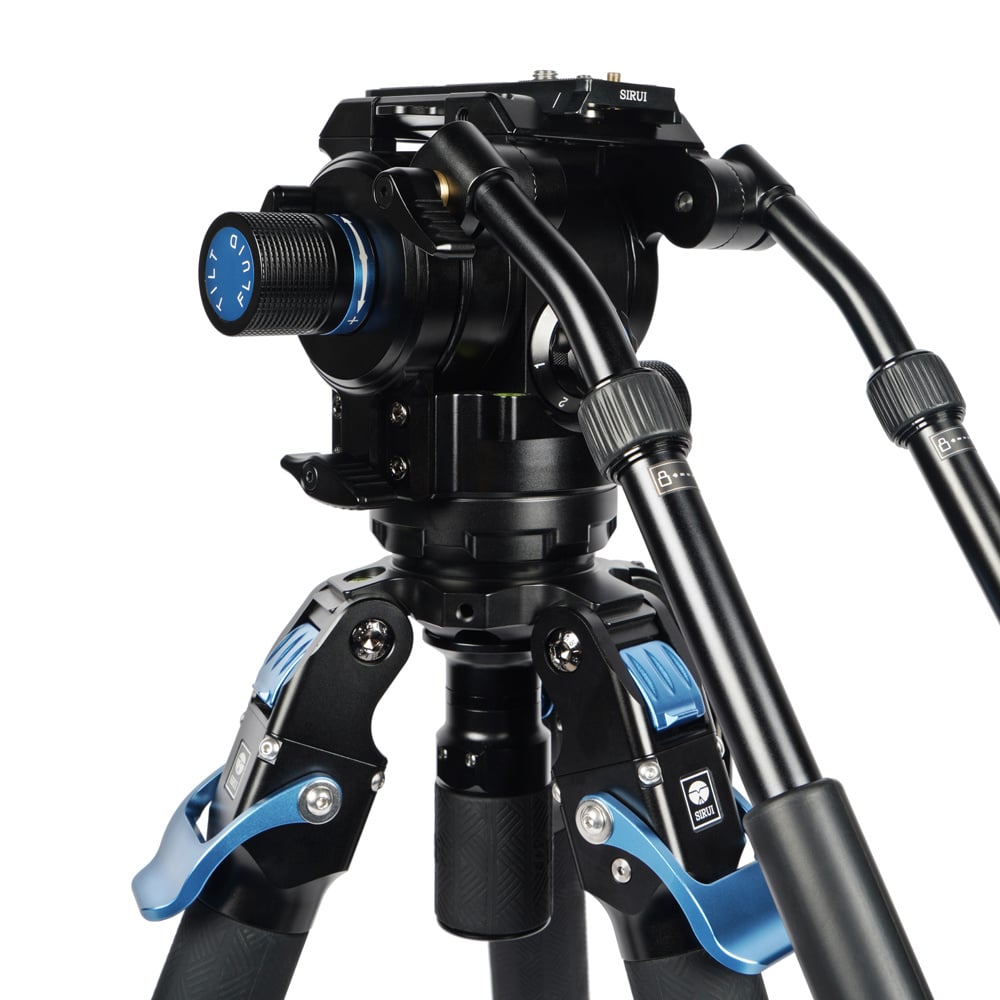

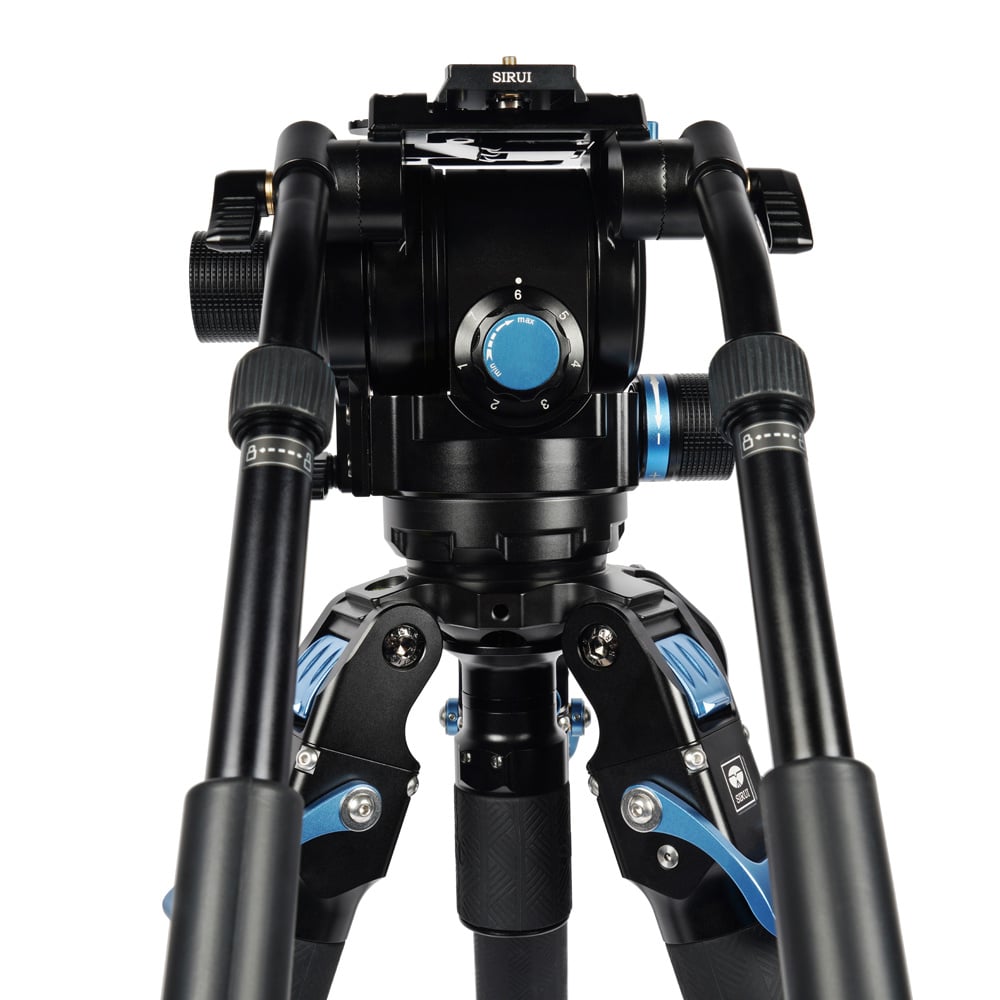

Sirui SVH15 75 mm fluid head with sideload plate
For professional video applications, the SVH15 75mm fluid head features a 75mm ball for use on compatible tripod legs or other accessories such as sliders and jibs. Damping can be continuously adjusted for frictionless movement, and an adjustable counterweight in 7+0 steps can compensate cameras at the most extreme angles. The SVH15 has a tilt range of -70/+90°.
The sideload camera platform secures the camera plate with double locking, preventing the camera from accidentally falling off the head during adjustment. To save time balancing your camera, the platform is etched with calibrated markings. The sideload plate features rubber strips on the top and 1/4"-20 and 3/8"-16 camera mounting screws. The durable aluminum construction ensures a long lifespan and keeps the weight low.
Quick functions
Durable aluminum construction
Continuous resistance adjustment for pan and tilt
7+0 steps for counterweight adjustment
Illuminated spirit level on top
Dual Safety Lock Quick Release Platform: Prevents the camera from sliding off the head during alignment for proper balance
Calibrated Quick Release Platform: Slide your camera precisely using the etched markings on the platform
Double telescopic handles
1/4"-20 and 3/8"-16 camera mounting screws on the sideload quick release plate

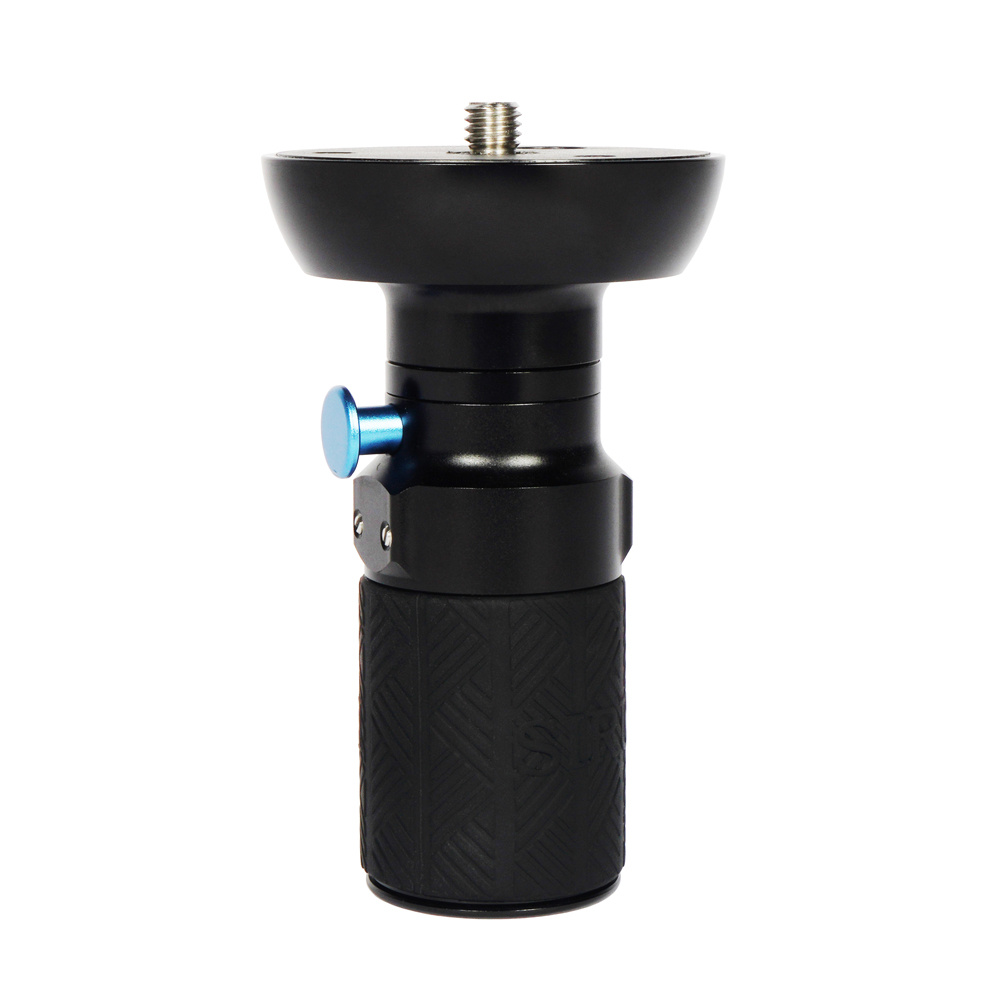

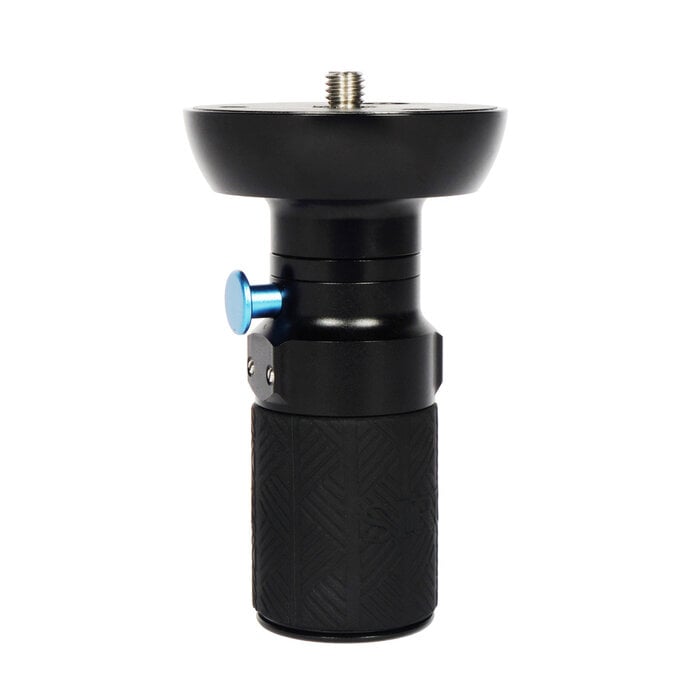

Integrated 75mm half ball with 3/8"-16 thread with adjustment lever
Sirui SVT75 Pro tripod
Carrying strap
Quick Release handle
Carrier bag
Sirui SVH15 75mm fluid head
2 x Pan Handle
Sideload plate
Carrier bag
6 year warranty
Sirui SVT75 Pro Tripod
General
Load Capacity | 55.1 lb / 25 kg |
Head Mount Type | 75mm Bowl |
Maximum Working Height | 60.2" / 152.9cm |
Minimum Working Height | 8.3" / 21.1cm |
Closed Length | Not Specified by Manufacturer |
Materials | Aluminum, Carbon Fiber |
Weight | 9.5 lb / 4.3 kg |
Legs
Leg Lock Type | Twist Lock |
Leg Positions | 3 Positions |
Independent Leg Spread | Yes |
Leg Sections | 3 |
Leg Diameter | 1.6" / 40mm (Maximum) |
Bubble Level | No |
Feet Features | Rubber, Spiked |
Spreader | No |
Sirui SVH15 75mm Fluid Head
Camera Attachment
Camera Plate Features | Sliding Balance Plate |
Camera Plate Type | Sideload Plate |
Camera Mounting Screw | 1 x 1/4"-20 Male with Locating Pin |
Balance Plate Sliding Range | 1.2" / 30mm |
Safety Lock | Yes |
Head
Base Mount | 3/8"-16 Female |
CounterBalance | Incremental 7-Step Plus 0 |
Pan Handle Fittings | 2 x Rosette |
Bubble Level | 1 x Illuminated |
Base Diameter | 3.5" / 90mm |
Height | 11.2" / 285.00mm |
Pan & Tilt
Drag Control | Continuous |
DragType | Fluid |
Vertical Tilt | +90° to -70° |
Panning Range | 360° |
Independent Pan Lock | Yes |
Independent Tilt Lock | Yes |
General
Load Capacity | 33.1 lb / 15 kg |
Materials | Aluminum |
Weight | 8.2 lb / 3.7 kg |
