Shimbol ZO1000 SDI/HDMI Video Transmitter

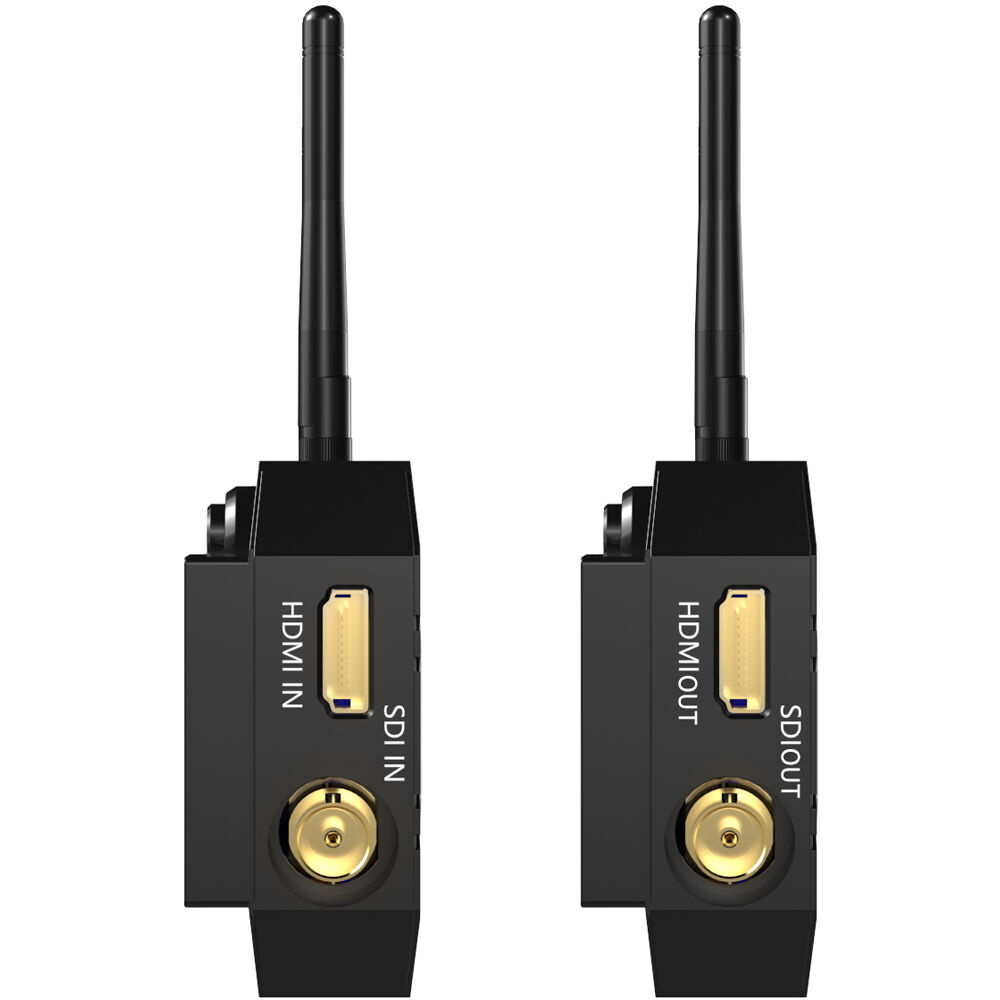

Transmit video up to 1080p60 with your gimbal, mirrorless or DSLR camera system and the Shimbol ZO1000 SDI/HDMI Wireless Video System. The transmitter offers both HDMI and SDI inputs and the receiver offers SDI, HDMI and USB-C UVC outputs. This one transmitter and one receiver kit features low latency of 80ms with line-of-sight transmission up to 300m, embedded audio and AES encryption. The transmitter can be used with a 2nd, optional receiver or your iOS device and the receiver's USB-C port can be connected to your computer for live streaming using a third-party platform.

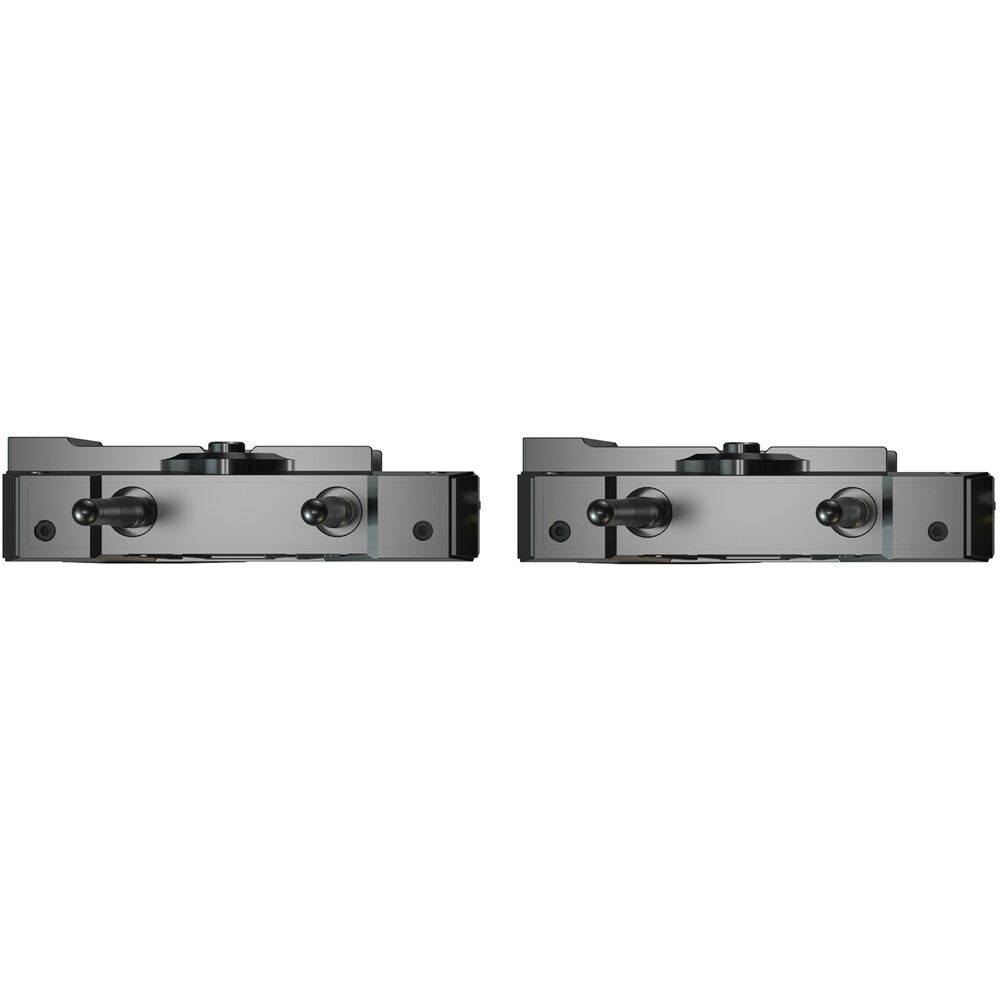

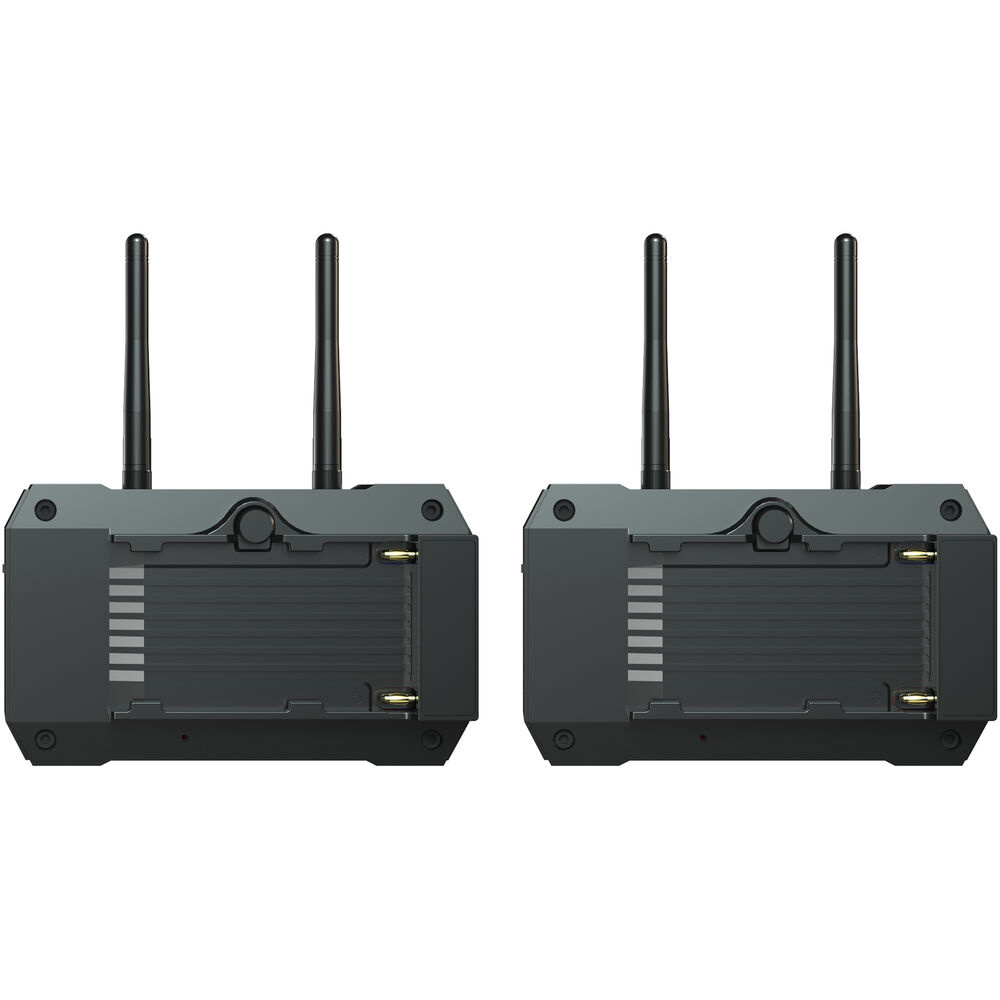

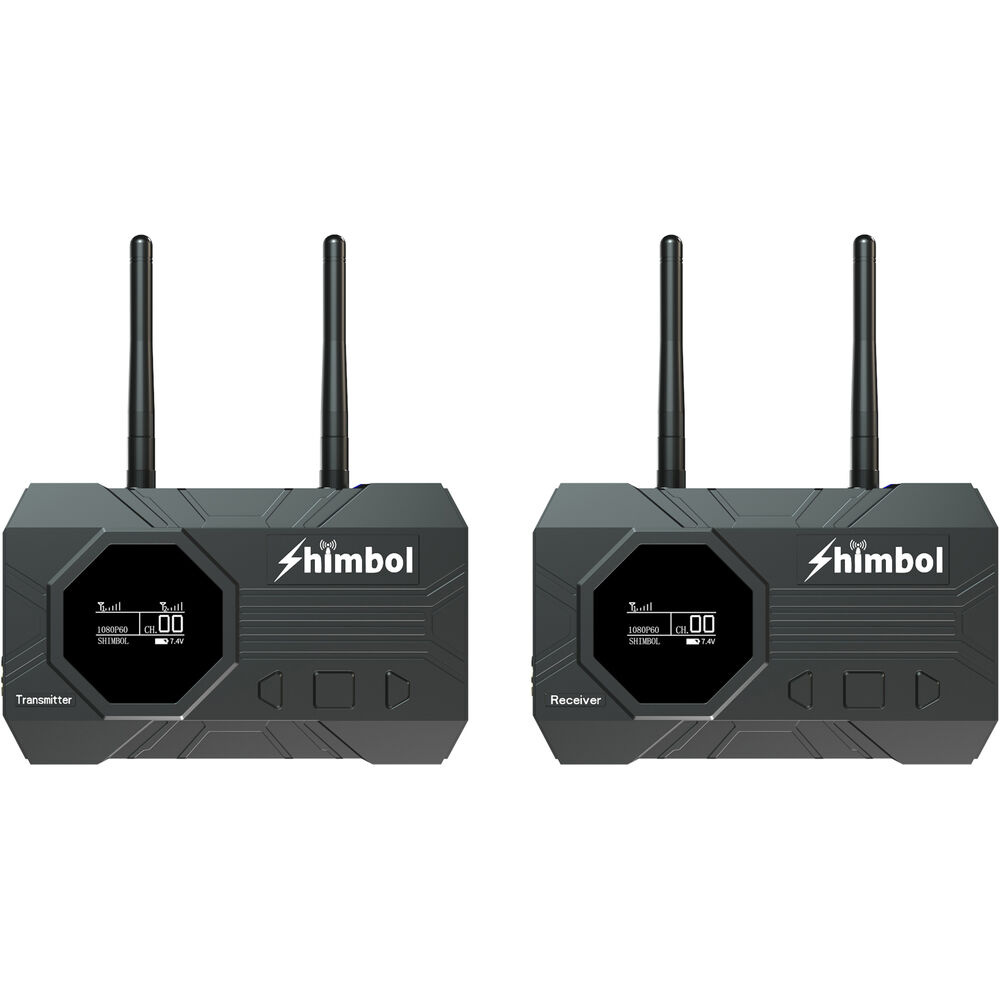

The compact transmitter and receiver each have a bright OLED screen, 1/4"-20 mounting thread and detachable antennas. Each unit can be powered from a USB Type-C source or by a separately available Sony NP-F (L-series type ) battery using the integrated battery plates.
300m range
Provides an impressive line-of-sight transmission range of up to 300m.
HD video transmission
Sends up to 1080p60 SDI or HDMI video to up to two receivers.
iOS compatibility
Send to your iPhone or iPad with the Shimbol app.
USB-C UVC recording
Connect the receiver to your computer via the USB-C port to stream video using a third-party platform.
Characteristics
WPA-128-Bit AES encryption for secure transmission.
2-channel, 48KHz embedded audio transmission.
Low latency of 80 ms.
Versatile nutrition

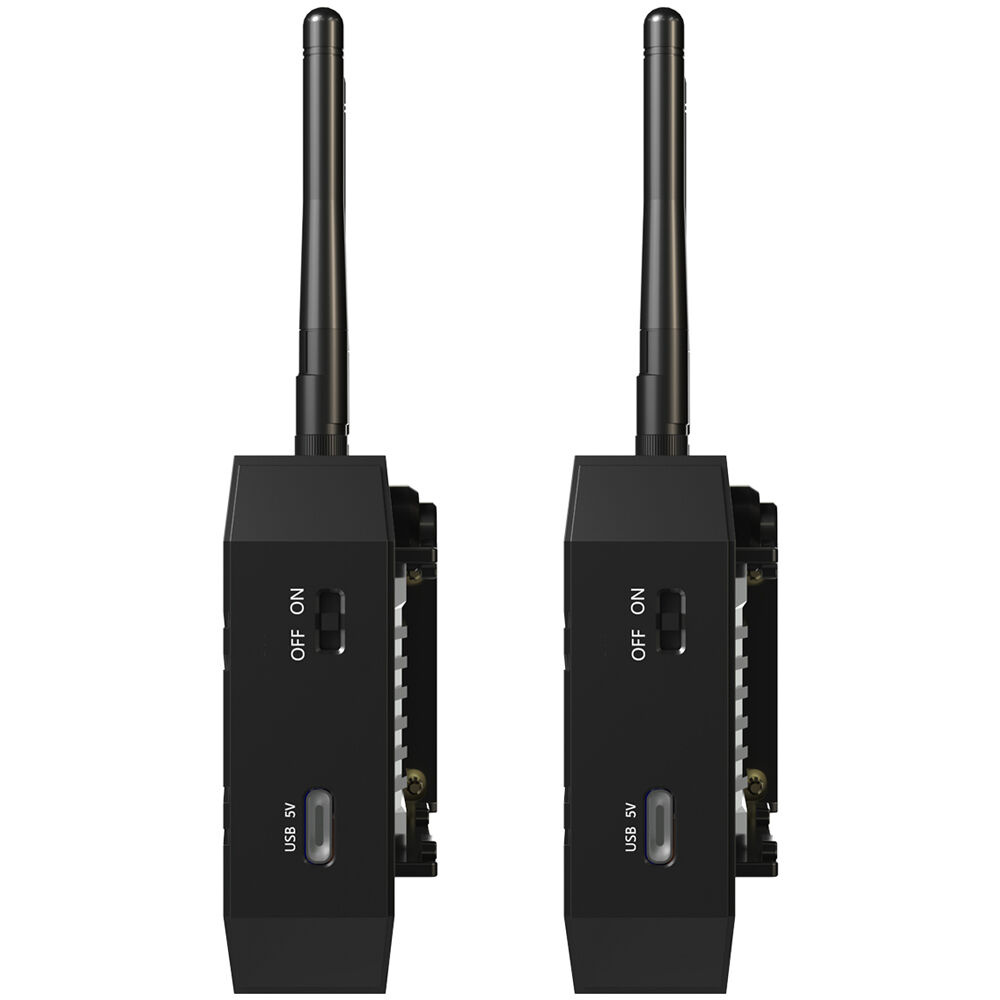

Power the transmitter and receiver with a Sony NP-F battery (type L series) or via the USB-C port.
Shimbol ZO1000
5 x Antenna
USB-C Power Cable
Display
Panel Type | Transmitter/Receiver: OLED |
Resolution | Not Specified by Manufacturer |
Aspect Ratio | Not Specified by Manufacturer |
Touch screen | No |
Inputs/Outputs
Video I/O | Transmitter: 1 x HDMI Input |
Audio I/O | No |
Power | Transmitter: 1 x USB-C (2 A / 5 VDC) Input |
Encryption | 128-Bit AES |
Wireless
Wireless Range | 1000' / 304.8 m |
Frequency Range | 5.1 to 5.8 GHz |
Latency | 80ms |
RF Power | 17 dBm |
RF Sensitivity | -80 dBm |
WiFi | No |
Bluetooth | No |
Mobile App Compatible | Yes: iOS Only |
Format Support
Video Format | HDMI |
Audio Format | 2-Channel 48kHz |
Timecode Support | No |
Power
DC Input Power | 5 VDC at 2 A |
Battery Type | Transmitter/Receiver: 1 x L-Series |
Power Consumption | Transmitter/Receiver: 4 W (Maximum) |
Mounting
Mounting | 1 x 1/4"-20 Female |
Environmental
Environmental Protection | No |
Certifications | FCC, CE, UKCA, RoHS |
Operating Temperature | 32 to 104°F / 0 to 40°C |
Operating Humidity | 80% |
Storage Temperature | -4 to 140°F / -20 to 60°C |
General
Material of Construction | Aluminum |
Dimensions | Transmitter/Receiver: 4.3 x 2.6 x 1.2" / 110 x 66.5 x 29.5 mm |
Weight | 5.9oz / 168g |
Weight | Transmitter/Receiver: 5.9 oz / 168 g |
