Sennheiser XSW-D Portable ENG Set
User-friendly one-touch wireless audio set that easily links audio sources via digital transmission. Equipped with an XLR transmitter and a 3.5 mm receiver. This elegant solution makes recording voice with a DSLR easier than ever via a reliable connection.
Functions
- One-touch ease of use
- 2.4 GHz digital transmission for worldwide use
- 75 meters range in optimal conditions
- Up to 5 hours of battery life on a single charge
- Switch between multiple transmitters that are connected to a receiver
- Configure each combination of transmitters and receivers
- Mute from channel or receiver

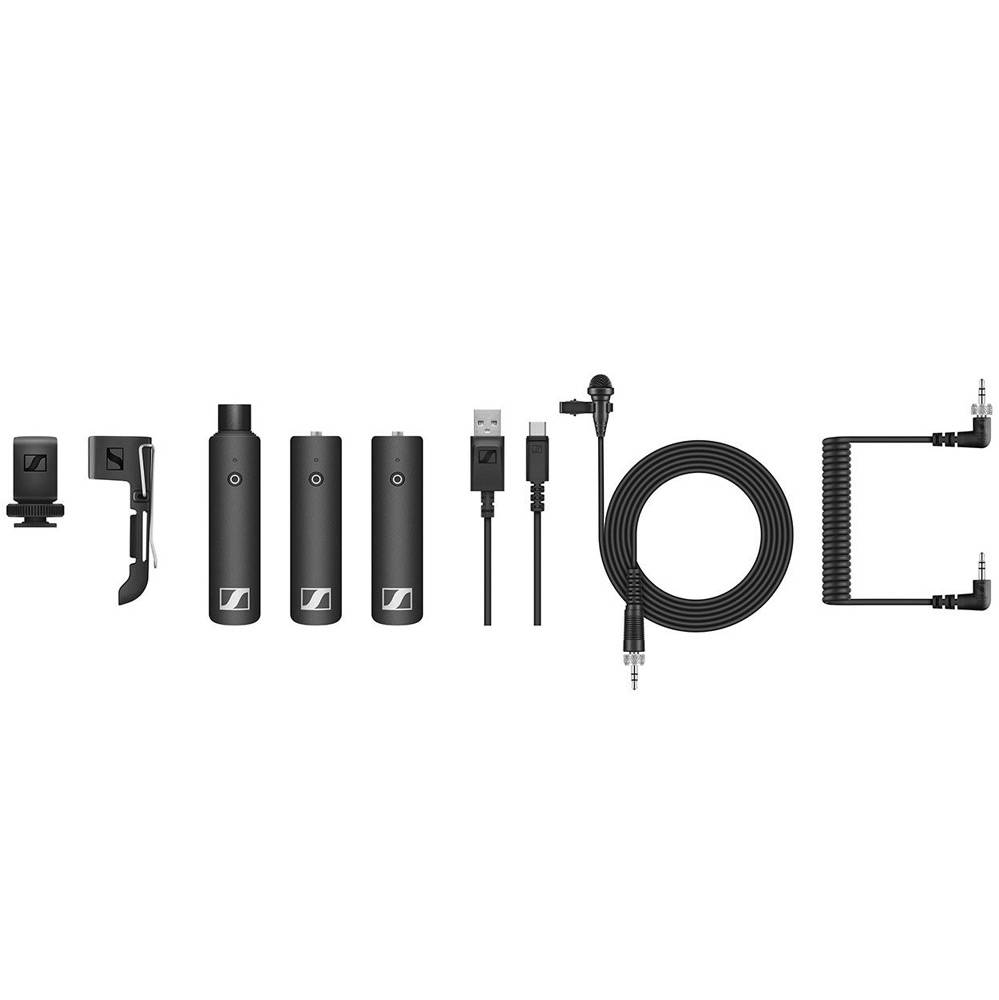

What's included?

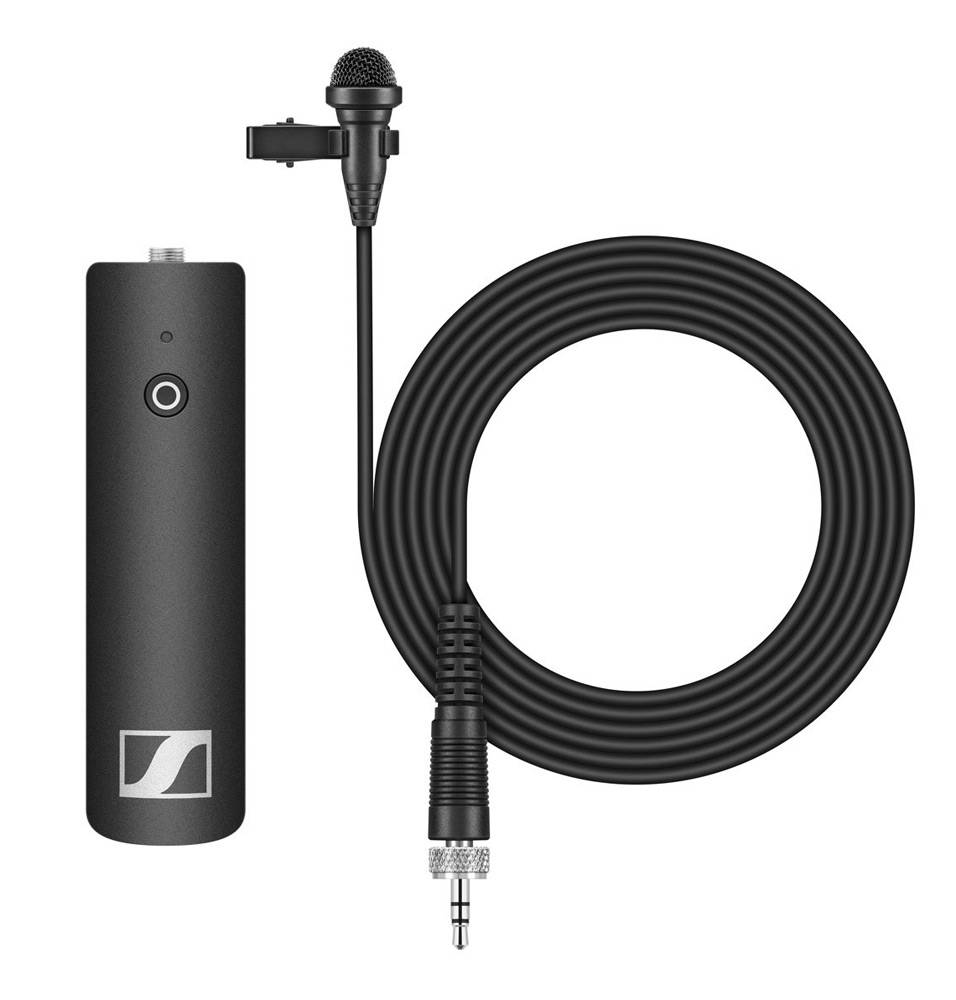

- XSW-D transmitter with 3.5 mm connection

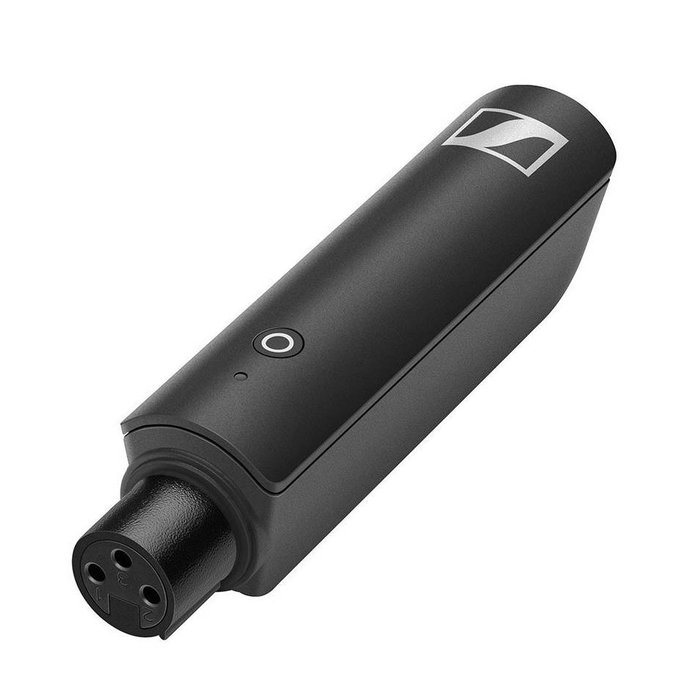

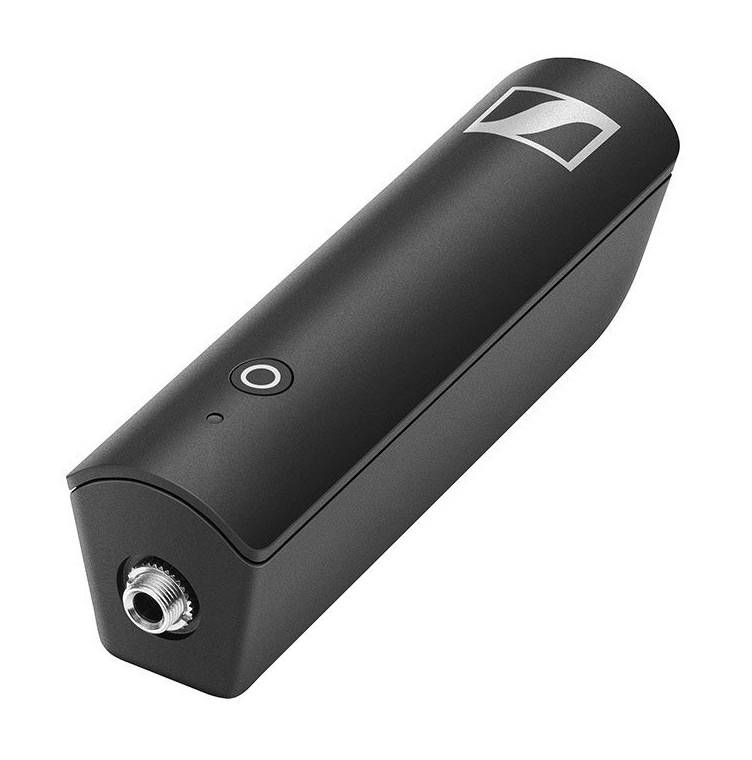

- XSW-D female XLR transmitter
- XSW-D receiver with 3.5 mm connection
- ME2-II lapel microphone

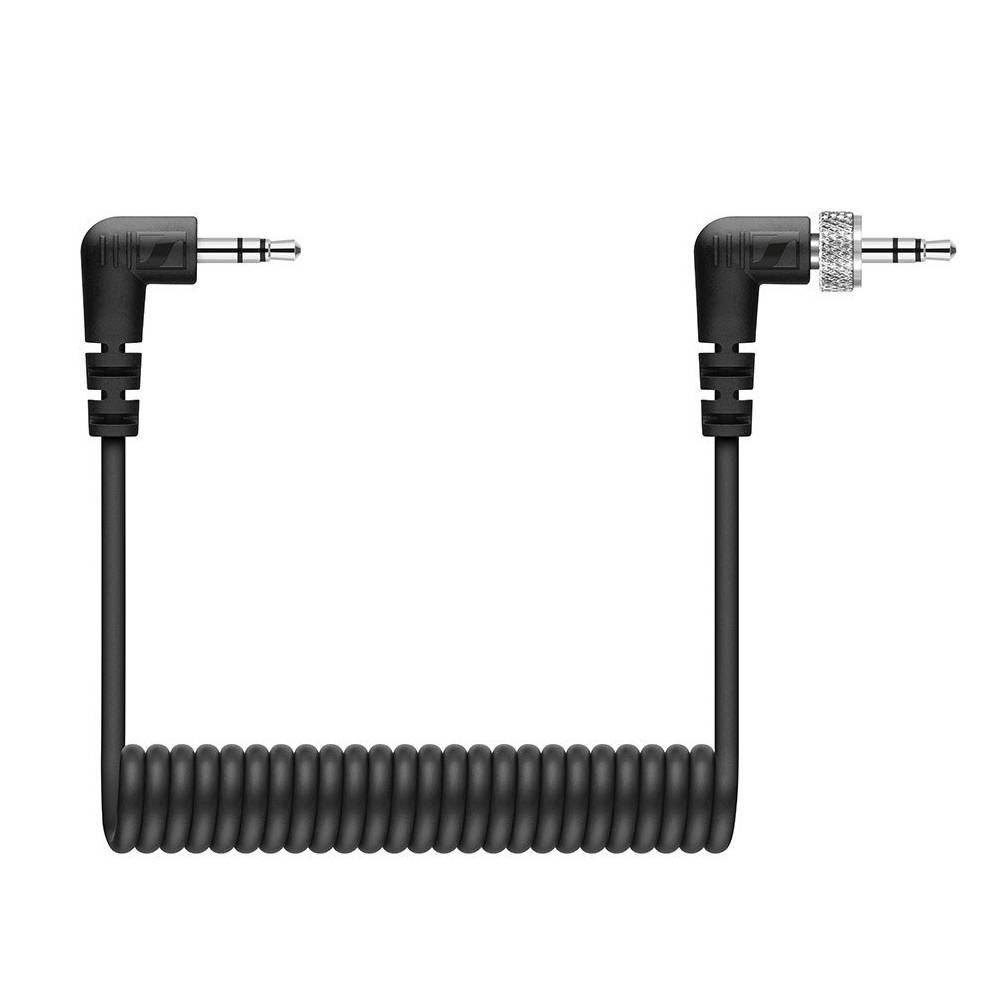

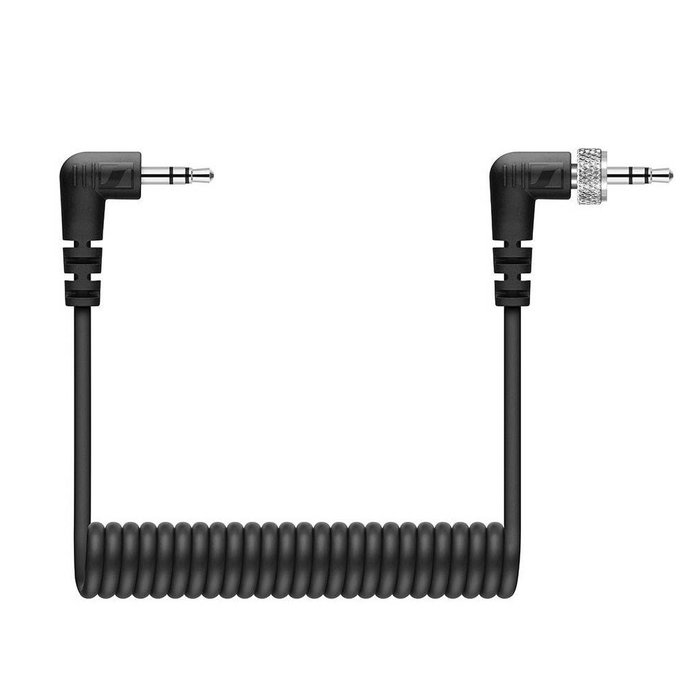

- Spiral cable with 3.5 mm connection

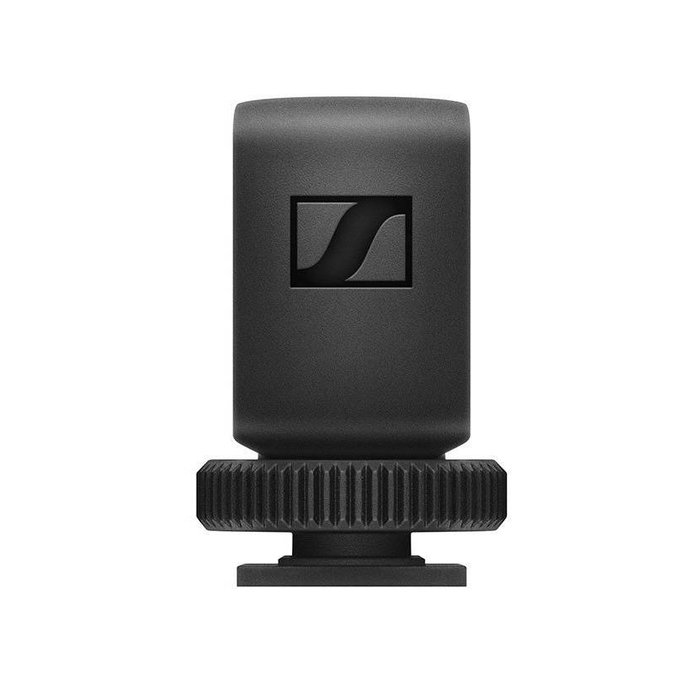

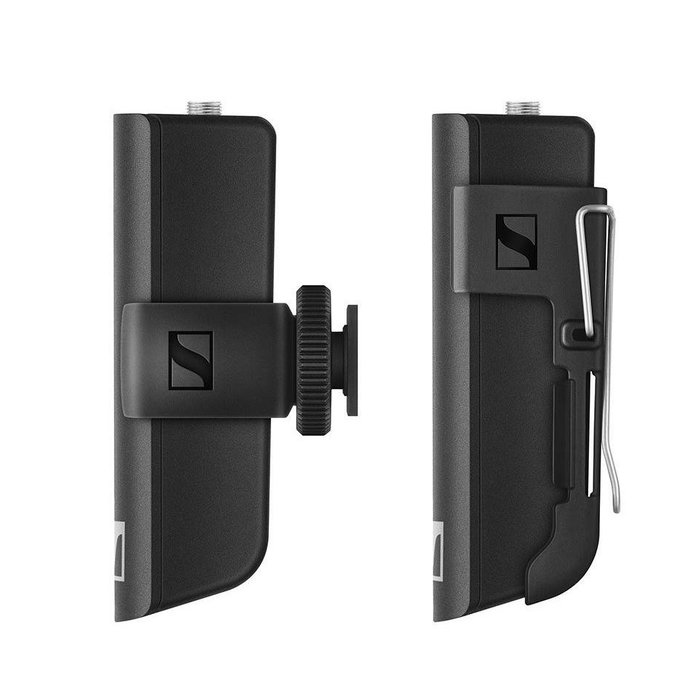

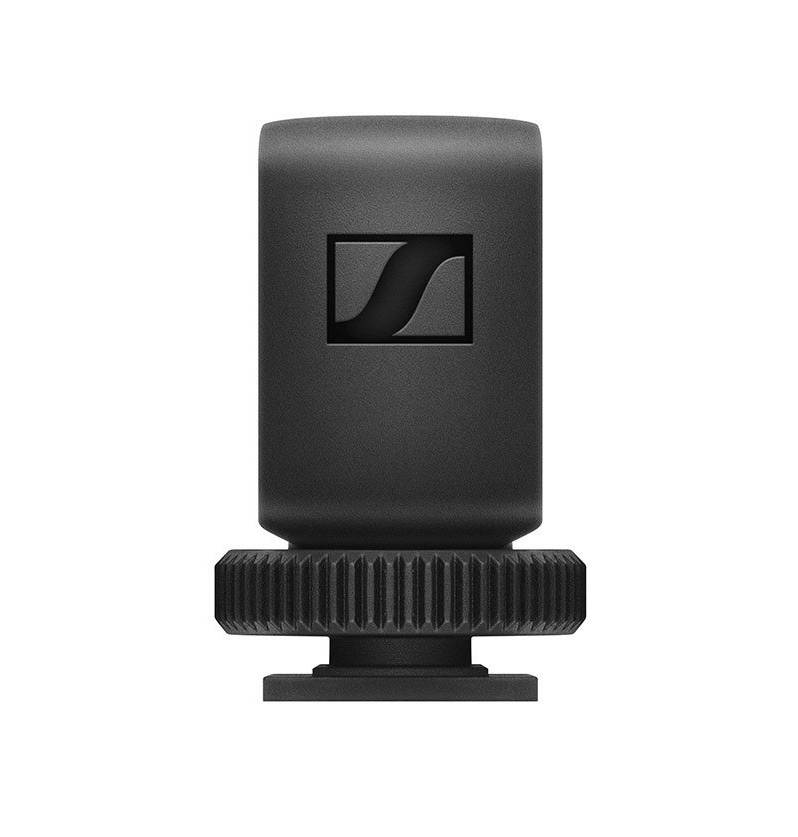

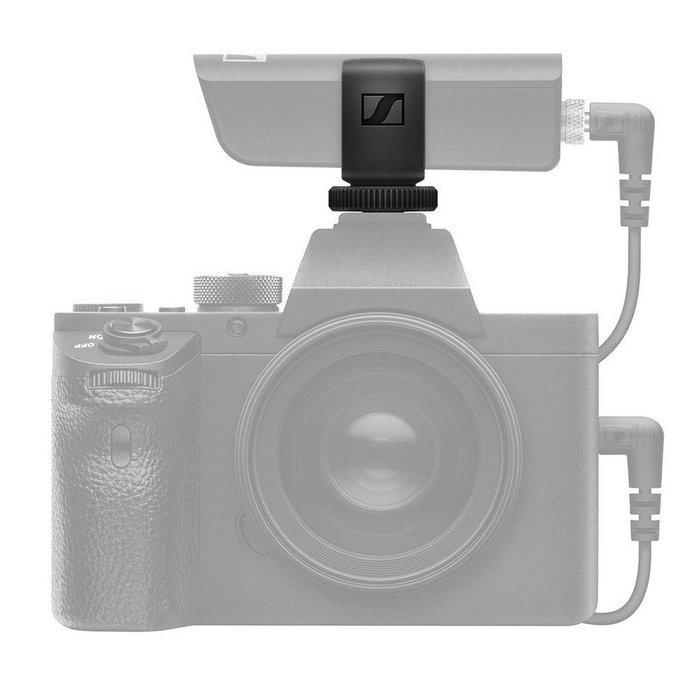

- Cold shoe mount

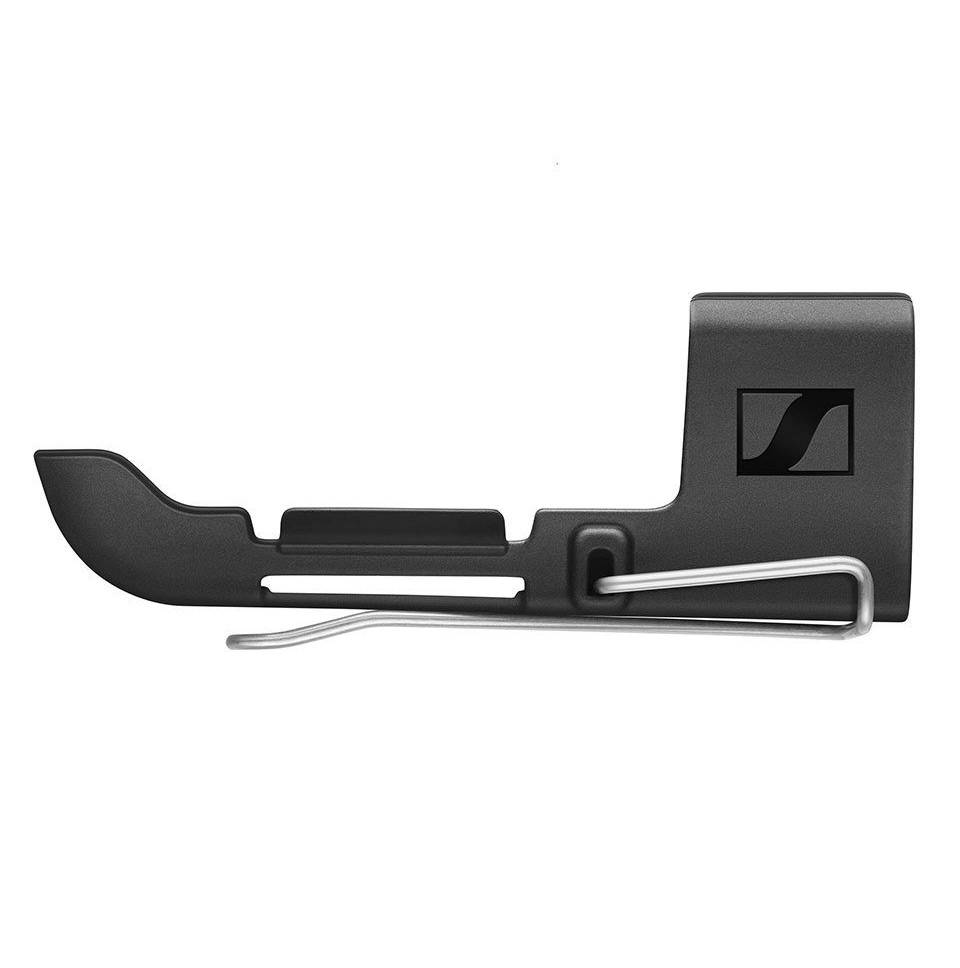

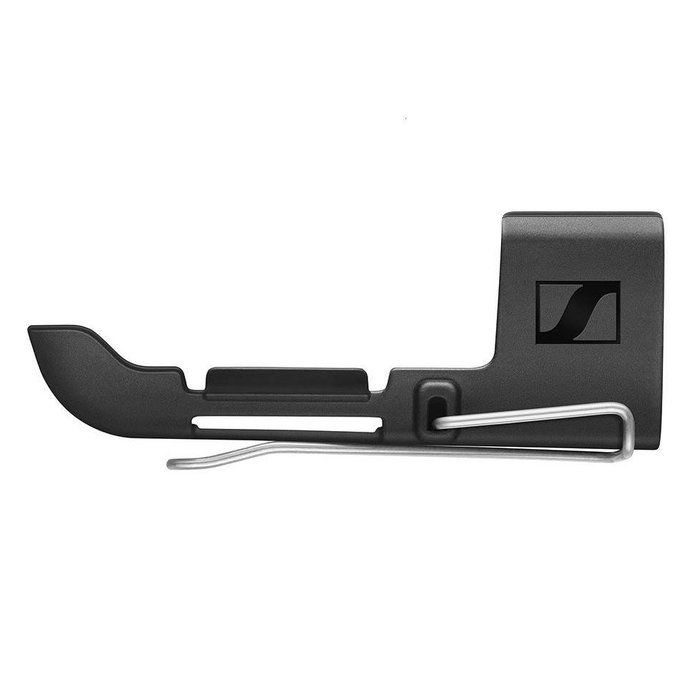

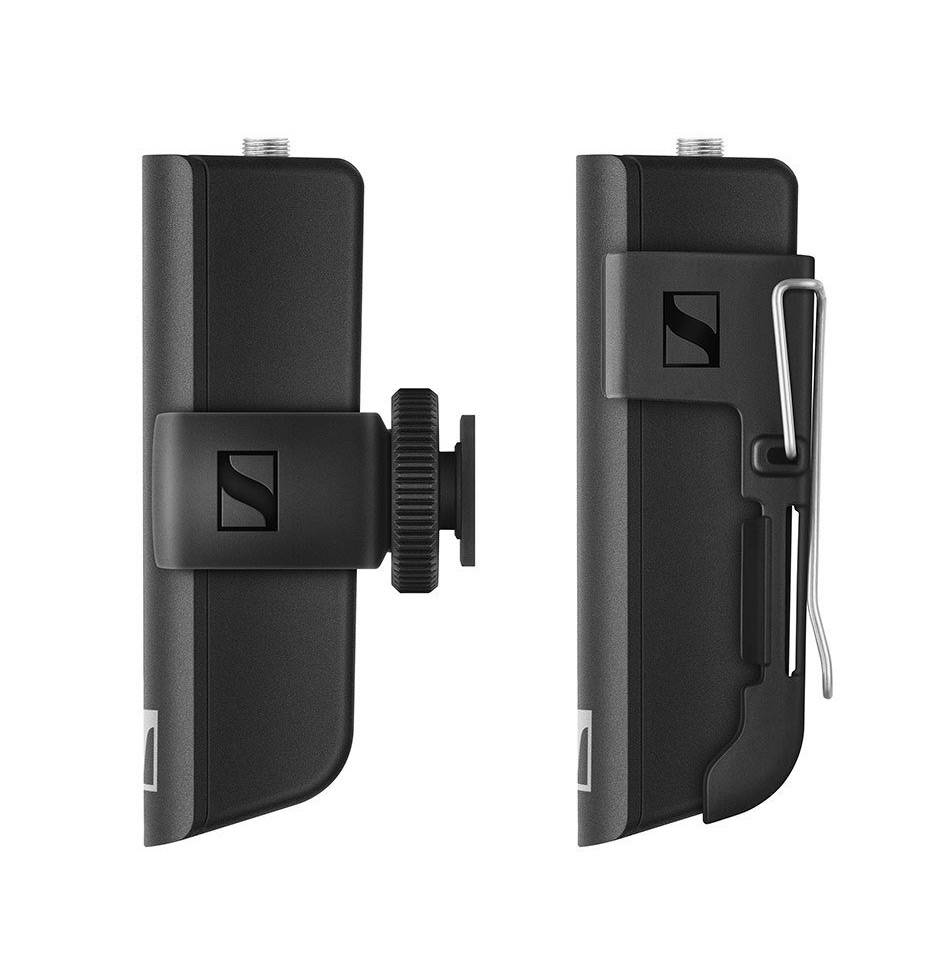

- Belt clip
- Charging cable from USB-A to USB-C
Dimensions
XSW-D XLR FEMALE TX: approx. 102 x 24 x 28 mm
XSW-D MINI JACK TX: approx. 86 x 24 x 28 mm
XSW-D INSTRUMENT TX: approx. 122 x 24 x 28 mm
XSW-D XLR MALE RX: approx. 109 x 24 x 28 mm
XSW-D MINI JACK RX: approx. 86 x 24 x 28 mm
XSW-D INSTRUMENT RX: approx. 122 x 24 x 28 mm
XSW-D PEDALBOARD RX: approx. 130 x 82 x 51 mm
THD, total harmonic distortion
<0.1%
Load time
typ. 3 hours
Audio output
max. 12 dBu
Operating temperature
-10 ° C to +55 ° C (14 ° F to 131 ° F)
Ratio-to-noise ratio
≥ 106 dB
Operating time
till 5 o 'clock
Modulation
GFSK with TDMA
Battery specification
Li-Ion
Capacity
850 mAh
Codec
aptX® Live
Frequency range
2,400 - 2,483.5 MHz
Max. input voltage
typ. 5.0 V
Transmittance
max. 10 mW
Tension
3.7 V
relative humidity in operation
95% (non-condensing)
Latency
<4 ms
Temperature range
0 ° C - 60 ° C (32 ° F - 140 ° F)
Audio frequency response
3.5mm connection / XLR: 80 - 18,000 Hz
6.3mm connection: 10 - 18.000 Hz
