Second chance Blackmagic Design MultiView 4

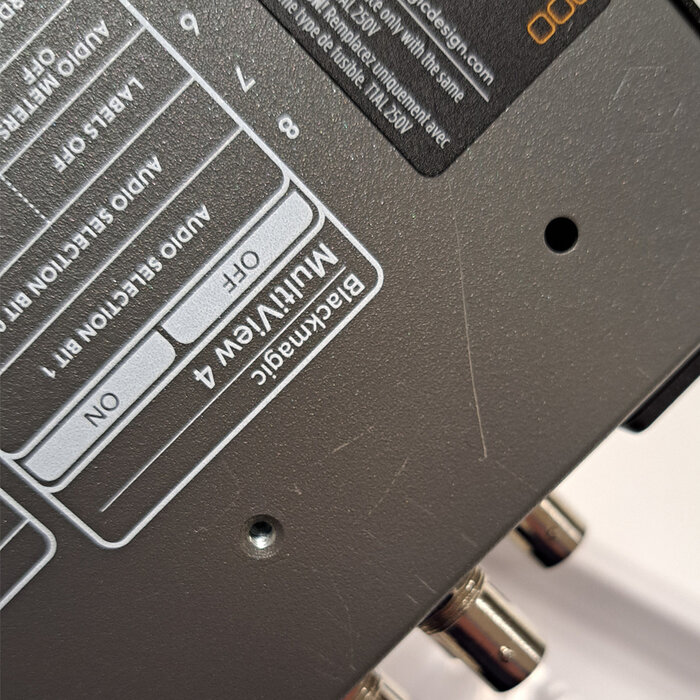

Second chance article with some signs of use. The customer has not been too carefull when testing. The article has a full guarantee.

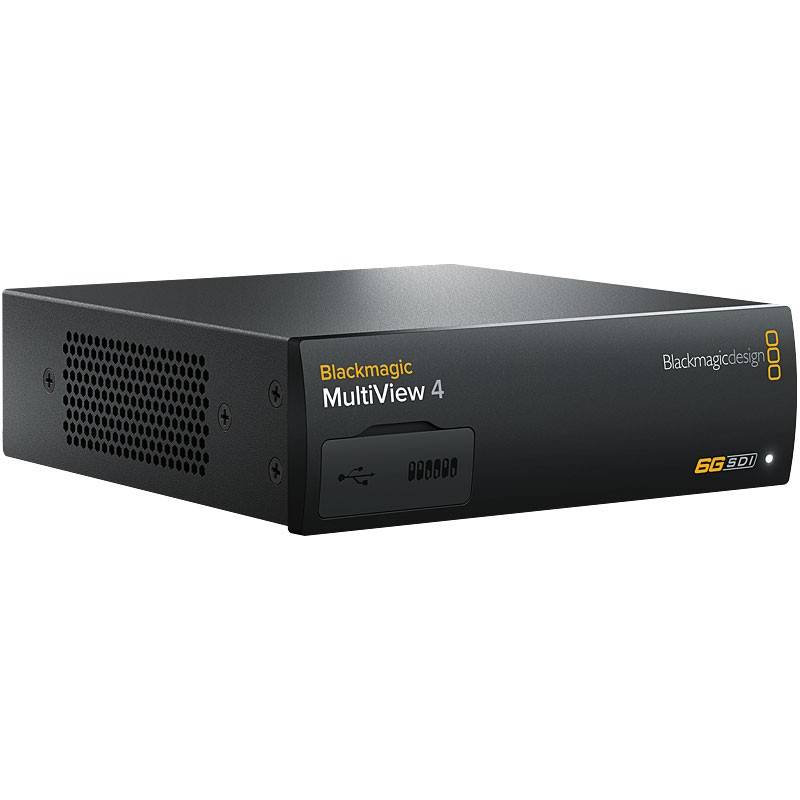

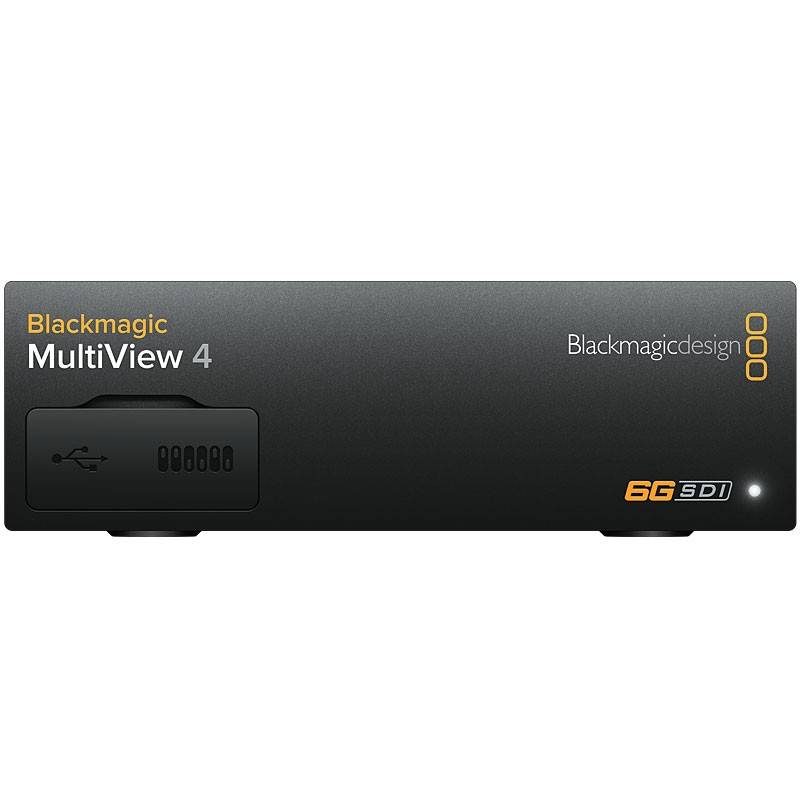

The Blackmagic MultiView 4 features four fully independent 6G-SDI inputs that work with all SD, HD and Ultra HD formats up to 2160p30. Simply connect your sources and you’ll get a standard 2x2 grid view on an HD or Ultra HD television. The included Ethernet remote control software lets you enable audio meters, choose what audio to output, create custom labels and much more! MultiView 4 is compatible with the Teranex Mini Rack Shelf so you can use it desktop or rack mount it. You can also add an optional Teranex Mini Smart Panel for front panel control! For the ultimate in broadcast reliability and redundancy, MultiView 4 can be powered from either the AC power supply or via Ethernet.
Blackmagic MultiViews are the world’s first native Ultra HD multi-viewers, allowing you to monitor completely independent SDI video sources on a single HD or Ultra HD display! With full frame synchronization on every input, you can view any combination of SD, HD, and Ultra HD formats and frame rates simultaneously on the same screen. When paired with an Ultra HD television, quad split viewing gives you four full resolution 1080 HD monitors on one screen! You also get on-screen audio meters, custom display labels, and much more.
Blackmagic MultiView 4
3 year Limited Manufacturer's Warranty.

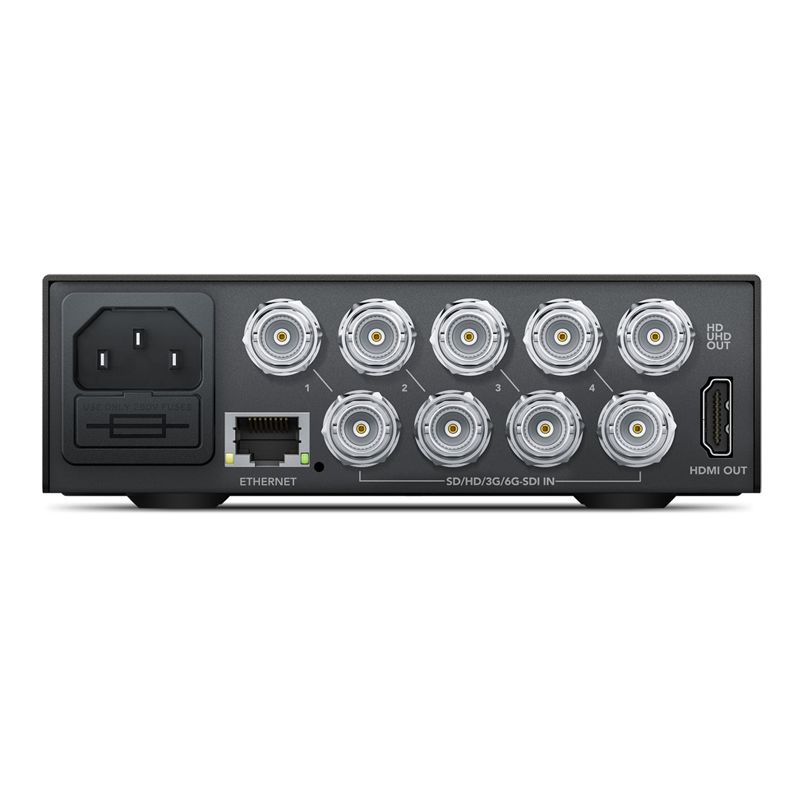

Connections
SDI Video Input
4 x 10-bit SD-SDI, HD-SDI and 6G-SDI.
SDI Video Loop Output
4 x 10-bit SD-SDI, HD-SDI and 6G-SDI.
SDI Video Multi View Outputs
1 x 10-bit HD-SDI and 10-bit 6G-SDI
HDMI Video Multi View Outputs
1 x HDMI type A connector. Output supports EDID of the monitor.
Multi Rate Support
Auto detection of SD, HD or 6G-SDI. Simultaneous viewing of 4K, HD and SD video.
Updates
USB or Ethernet.
Control
Optional front mounted Teranex Mini Smart Panel with LCD, rotary knob and six settings buttons.
Configuration
RJ45 Ethernet or USB 2.0 for firmware updates and IP address setting.
Reclocking
On all SDI outputs, auto switching between standard definition, high definition or 6G-SDI video.
Standards
SD Format Support
525i29.97 NTSC , 625i25 PAL
HD Format Support
720p50, 720p59.94,720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50,1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
2K Format Support
2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p
2K 23.98 PsF, 2K 24 PsF, 2K 25 PsF.
Ultra HD Format Support
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
4K Format Support
2160p24
SDI Compliance
SMPTE 259M , SMPTE 292M , SMPTE 296M , SMPTE 310M , SMPTE 425M , ITU-R BT.656 and ITU-R BT.601.
SDI Video Rates
SDI video inputs are switchable between standard definition, high definition and 4K. SDI switches between 270 Mb/s standard definition SDI, 1.5 Gb/s HD-SDI, 3G-SDI and 6G-SDI.
SDI Video Sampling
4:2:2 and 4:4:4.
SDI Audio Sampling
Television standard sample rate of 48kHz and 24-bit.
SDI Color Precision
10-bit 4:2:2 and 4:4:4.
SDI Color Space
YUV or RGB for inputs, YUV for outputs.
SDI Auto Switching
Automatically selects between SD-SDI, HD-SDI, and 6G-SDI on each input so that each input can be running a different television standard.
SDI Metadata Support
Video payload identification ancillary data as per SMPTE 352M .
Display
Optional Teranex Mini Smart Panel with 1.5” LCD for menu settings.
Software
Software Control
Multi view software included free for Windows™ and Mac OS X™.
Internal Software Upgrade
Via included updater application.
Operating Systems
Mac OS X 10.10 Yosemite,
Mac OS X 10.11 El Capitan or later.
Windows 8.1 or Windows 10.
Power Requirements
Power Fail Protection
MultiView 4 settings preserved and restored instantly at power on.
Power Supply
IEC power cable required. 90 - 240V AC input.
Power over Ethernet
Can be powered via 48V DC using PoE+ (power over ethernet)
Power Consumption
16 Watts
Environmental Specifications
Operating temperature:
0° to 40° C (32° to 104° F)
Storage temperature:
-20° to 45° C (-4° to 113° F)
Relative Humidity:
0% to 90% non-condensing
