Sachtler System 20 S1 HD MCF
Description of the individual products:

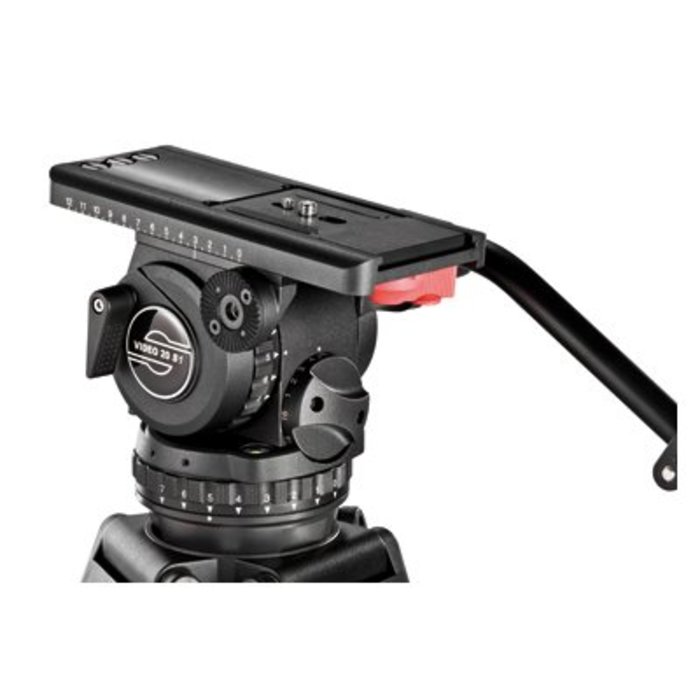

S1 20 fluid head
The S1 fluid heads are the latest models of the two legendary Sachtler Video 18 and Video 20 ENG / EFP series. Now with 4 steps more, the Video 20 S1 has a 16-step counterbalance and enables extremely fine tuning for the camera users. Additionally, the payload range of the Video 20 S1 has been broadened and can take on cameras starting at two kilograms. The fluid head now also has a Boost Button for a quick payload range shift and is therefore not only suitable for conventional usage in the ENG area with digital and HDV camcorders but also suitable for DSLR cameras. Sachtler's well-proven Speedbalance technology enables quick and fine adjustment.

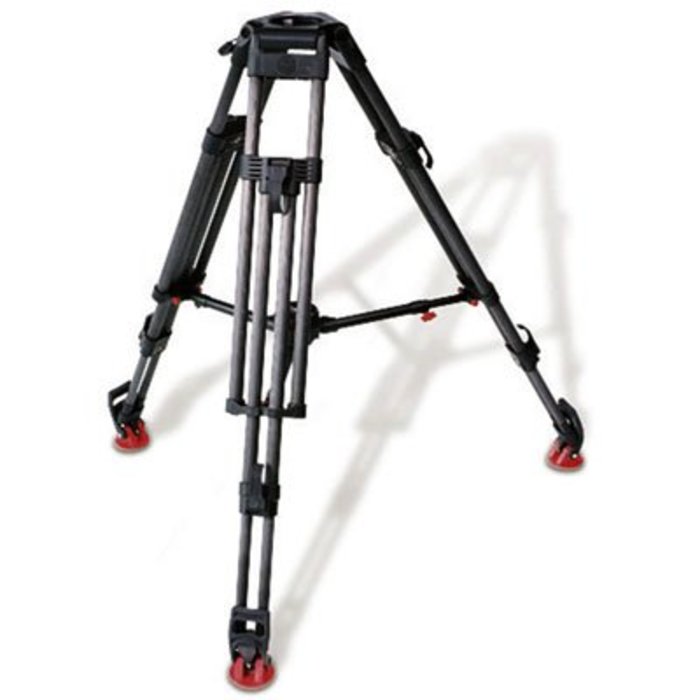

ENG 2 CF HD
The ENG 2 CF is extremely lightweight, solid and stable. Although the ENG 2 CF HD weighs just 4 kg / 8.8 lb, its completely dual tube design ensures it can safely and stably carry payloads of up to 95 kg / 209 lb even at its maximum height of 161 cm / 63.4". And with its folding handle, you can easily carry the tripod in a horizontal position.
Double extension tripods are ideal for a much wider variety of applications, due to their expanded height range, i.e. lower bottom and higher top positions. In addition, their transport length is even shorter. For extra stability, Sachtler offers heavy duty (HD) versions with larger tube diameters. With the quick clamping system, you can securely- and visibly – lock the tripod.

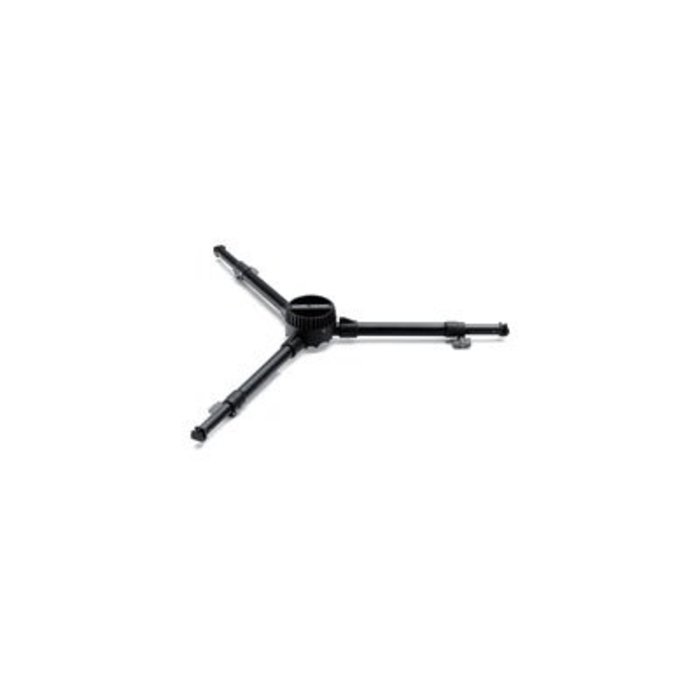

Mid-level spreader 100/150
Weight
Rubber feet 100/150
Weight

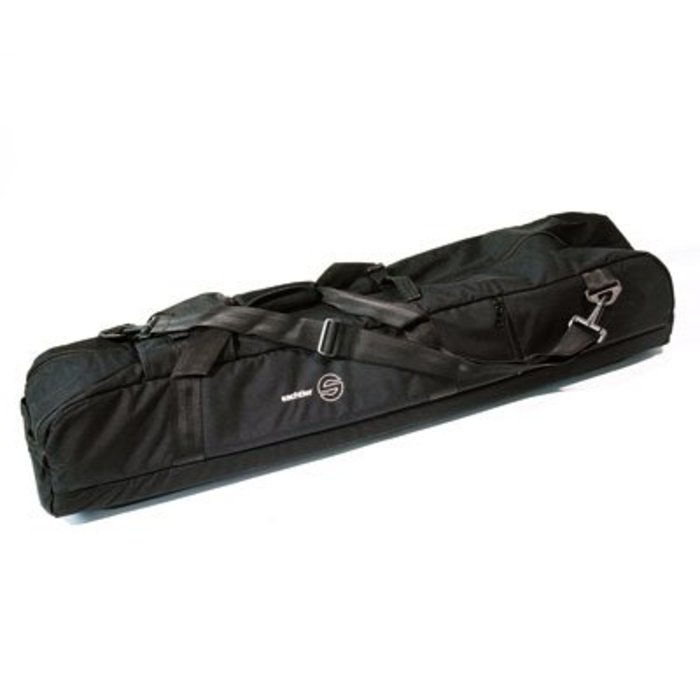

Padded bag ENG 2 CF HD
Weight

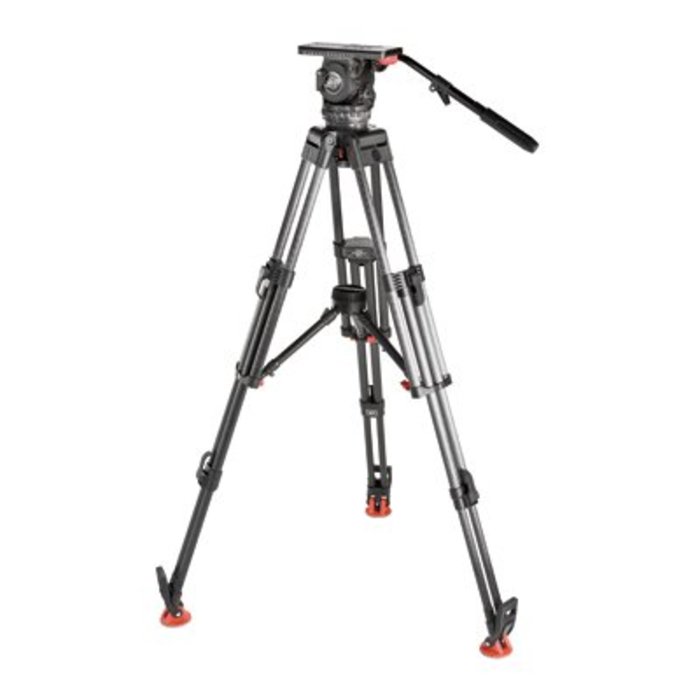

This tripod set consists of the following products:
- Video 20 S1 Fluid Head (#2010)
- Tripod ENG 2 CF HD (#5390)
- Mid-level spreader 100/150 (#7007)
- Rubber feet 100/150 (#7004)
- Padded bag ENG/EFP (#9106)
Technische specificaties
S1 20 fluid head
- Weight
- 3.4 kg / 7.5 lbs
- Payload
- 2 - 25 kg / 4 - 40 lbs (2 - 15 kg / 4 - 33 lbs, 12 - 25 kg / 26 - 55 lbs depending on boost button setting)
- Sliding range - plate
- 120 mm / 4.7 in
- Counterbalance
- in 16 steps + Boost Button
- Grades of drag
- 7 each horizontal and vertical + 0
- Tilt range
- +90/-70°
- Temperature range
- -40° to +60° C / -40 to +140° F
- Camera fitting
- Touch & Go plate 16
- Tripod/Pedestal fitting
- 100 mm bowl, integrated flat base fitting
- Pan bar(s)
- 1, telescopic, Type Plus right
- Level
- self-illuminating Touch Bubble
- Batteries Level
- 1 × CR2032 ENG 2 CF HD
- Weight
- 4 kg / 8.8 lbs
- Payload
- 95 kg / 209 lbs
- Height with spreader
- 55 - 161 cm / 21.7 - 63.4 in
- Height with mid-level spreader
- 56 - 157 cm / 22.0 - 61.8 in
- Head fitting
- 100 mm
- Transport length
- 75 cm / 29.5 in
- Extension
- 2-fold
Mid-level spreader 100/150
- Weight
- 0.75 kg / 1.7 lbs
- Build up radius
- 28 - 46 cm / 11 - 18.1 in
Rubber feet 100/150
- Weight
- 0.58 kg / 1 lb
- Payload
- 95 kg / 209 lbs
- Height
- 40 mm / 1.6 in
- Build up radius
- Ø 7.2 cm / 2.8 in
Padded bag ENG 2 CF HD
- Weight
- 2.4 kg / 5.3 lbs
- Dimensions (L X W × H)
- 96 × 23.5 × 20 cm / 37.8 × 9..3 × 7.9 in
