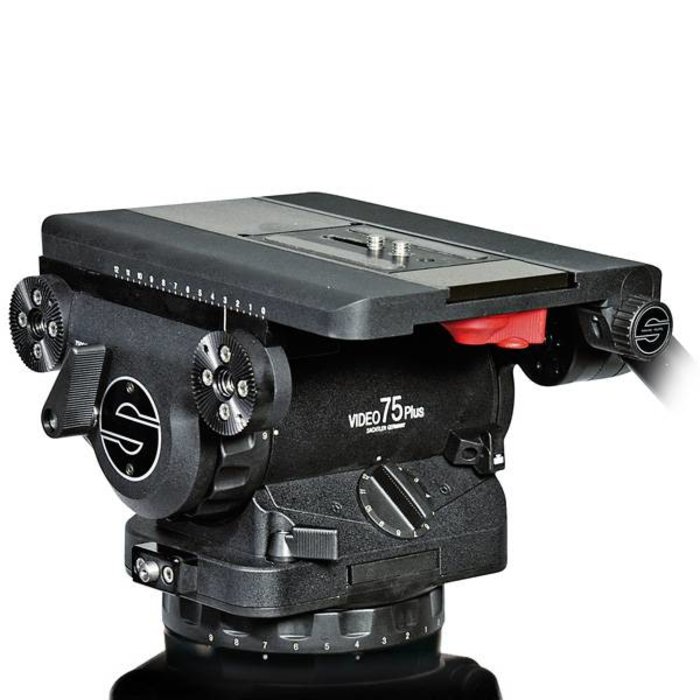

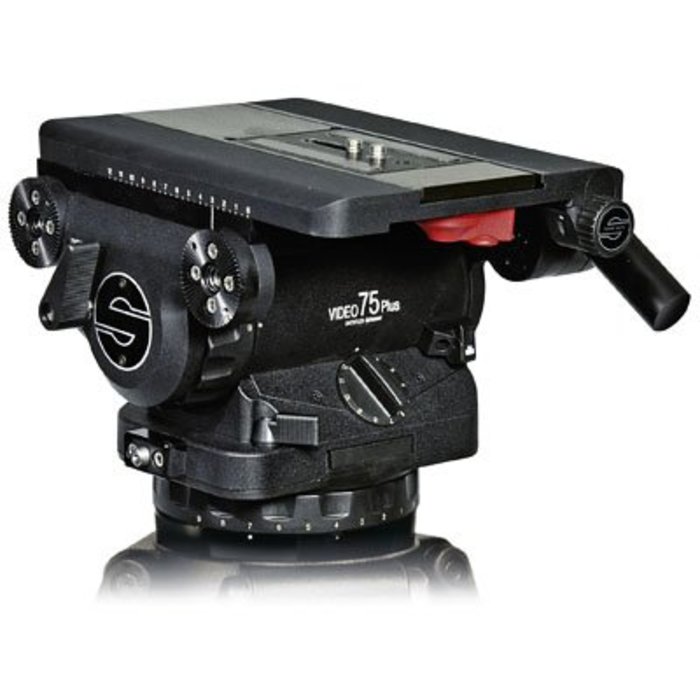

Sachtler Fluid Head Video 75 Plus EFP (7500)
It comes with a connection for a viewfinder extension, and with a maximum load capacity of 85 kg, it's a real all-round talent for EFP and ENG . With just a few simple steps it can be converted to the 4-hole flat base fitting.
The Video 75 Plus EFP boasts a outstanding payload range of 12 to 85 kg / 25 to 190 lb. Suitable for a variety of camera configurations and flexible applications in both EFP and studio operation, this all-round talent offers users a broad palette of solutions.
The 24 step counterbalance which can be adjusted in 12 stages with the well known Sachtler dial. Fine-tuning is achieved via a half step lever. The Video 75 Plus EFP normally supports up to 165 pounds with a camera center of gravity (C.O.G.)of six inches above the camera platform, however using the boost button allows the fluid head to asupport up to 185.4 pounds at C.O.G. of six inches. For even more precise adjustment the balance plate has a sliding range of up to 120mm / 4.7", and up to 145mm / 5.7" for the studio version. This allows you to safely balance the camera at any tilt angle.
The Video 75 Plus EFP fluid head has a modular design, allowing you to change it for different applications. Various configuration options are available like; 150mm Ball Base with the Touch & Go quick release system and camera plate 35 wedge or Flat Base with the V-shaped wedge plate, or you can even mount it on a Mitchell Mount base.
Sachtler Fluid Head Video 75 Plus EFP
Weight: 13.7 kg
Payload: 12 – 85 kg
24 counterbalance steps + boost button
9 horizontal and vertical grades of drag, +0
Tilt range: +90º to -60º
Slide range: 120 mm
Temperature range: -40º – 60ºc
Camera fitting: Touch & Go 35
Head fitting: 150 mm
Integrated flat base
Pan bar type / number: 2 pan bar front and back sections each
Level: Illuminated
Adapter viewfinder extension: Standard
