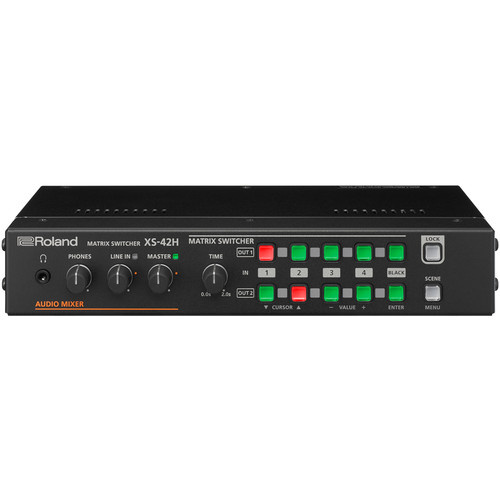

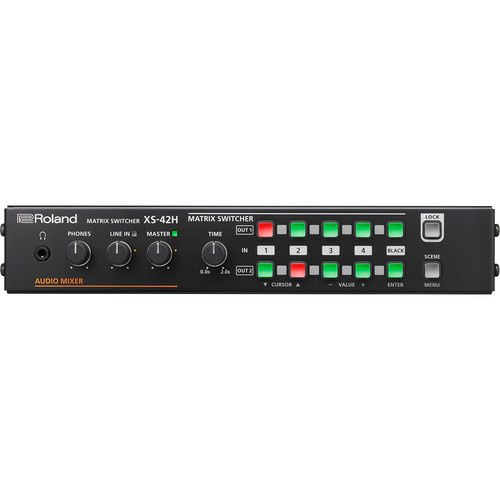

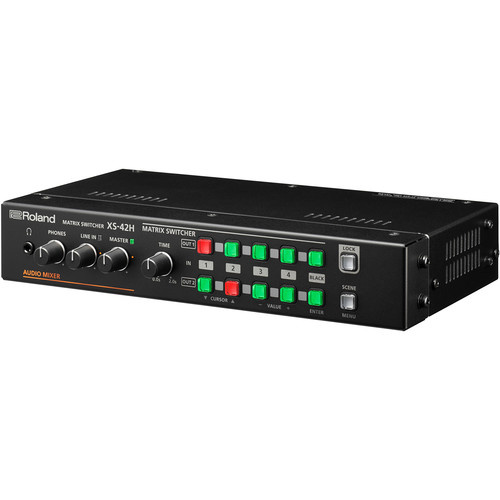

Roland XS-42H Matrix Switcher 4 x 2 HDMI

Designed for meetings and huddle spaces, Roland's XS-42H Matrix Switcher 4 x 2 HDMI enables you to switch up to four HDMI sources to one or two output displays. This compact unit features auto source detection, source scaling, and web-based browser setup and wireless control using your tablet, laptop, or smartphone.

The XS-42H Switcher supports multiple video resolutions up to 1080p60, offers mix and cut transitions, and accepts still image and logo input via a USB port. Use the internal audio mixer to adjust the embedded HDMI audio and output audio via the RCA connections to external speakers.

The XS-42H Switcher's dual HDMI outputs can be used to present complementary content like documents, a website window, or video conferencing in addition to your main speaker or presentation. A default input source can be set to display before each use and a still photo or your company logo can be input for automatic display if the XS-42H Switcher is unlinked from your computer.

4 x 2 Switcher

Switch up to four HDMI inputs to one or two outputs

Up to 1080p60 Video

Supports multiple video resolutions up to 1080p60

Automatic Display

Auto Input Detection enables content to display automatically

Network Control

Browser-based network control for remote switching and simple set up using tablet, laptop, or smartphone

Audio Features

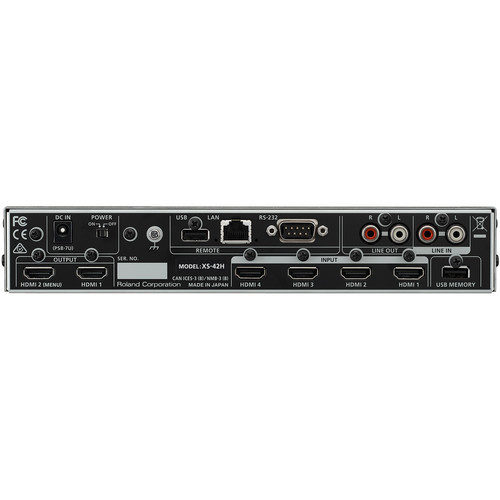

Internal audio mixer, RCA inputs/outputs for embedding and de-embedding audio

Presets

One-button recall of saved meeting presets

Defaults to Image or Logo

Automatically defaults to a stored image or logo if disconnected from your computer

In the Box

• Roland XS-42H Matrix Switcher 4 x 2 HDMI
• AC Adapter
• Power Cord
• 4 x Rubber Feet

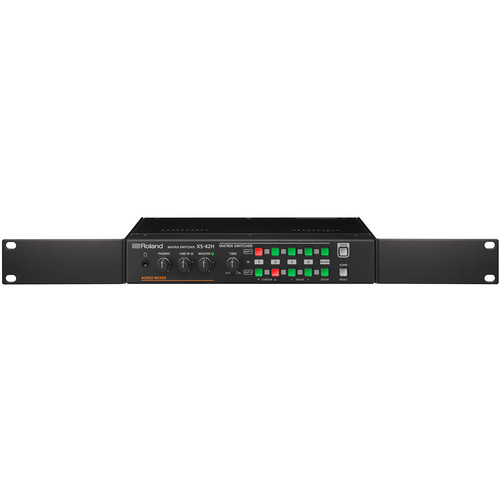

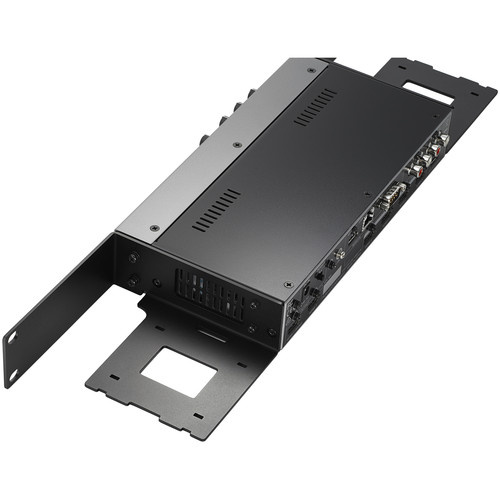

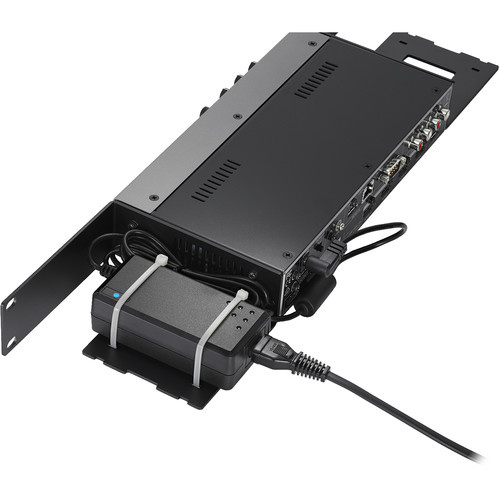

• Rackmount Angle Set
