Roland's V-1HD+ Compact 4 x HDMI Video Switcher is a portable solution for HD video production that can accommodate up to four HDMI inputs, as well as PC resolutions through any of the inputs. Each input has a framebuffer/TBC and supports framerate conversion, so you don't need to genlock your input sources together. You can control the switcher manually using the built-in controls or remotely via RS-232, and it has a tally output for working with live cameras. Select the desired resolution and switch between four input sources. Built into the switcher is a 14-channel audio mixer that can de-embed and embed audio signals from HDMI.
The integrated T-fader lets you manually control the speed of transitions, or you can use the take button to trigger your selected transition. The unit has two HDMI outputs, both of which are selectable between program and multiview (with up to 10 views on each output), and output #2 also supports an on-screen menu display. The V-1HD+ also features a four-layer effects engine that supports keying effects, PiP and downstream keys. It has an internal memory for four still images and you can access external drives via the USB port as an additional image source.
General
The V-1HD+ features industry-standard PGM and PST buses, as well as a transition/fade bar (T-bar). Tactile audio volume knobs, signal/peak lights and markers allow intuitive audio level adjustments on the fly.
HD switcher
This compact HD switcher has four HDMI inputs and supports HD video and PC resolutions. Each input contains a framebuffer/TBC that allows you to use non-genlocked cameras and playback devices as video sources. You select the broadcast system (59.94/50 Hz) in the menu.
audio mixer
The built-in 14-channel audio mixer allows you to de-embed, mix and re-add audio from the HDMI stream to your output stream. In addition to the built-in audio, the V-1HD+ supports analog audio input via two 3-pin XLR, a left/right pair of RCA connectors and a 3.5mm stereo microphone input.
audio
Each audio input has its own three-band equalizer, high-pass filter, compressor and noise gate, plus a sync delay to sync audio onto the video image as needed. The XLR and 3.5mm inputs also include de-essers to clean up vocal sounds in real time. The built-in limiter, three-band equalizer and compressor on the main outputs allow you to deliver broadcast-quality sound from the analog audio outputs.
live stream
You can record or live stream the mixer's output by connecting it to a computer
Control buttons
The soft rubber backlit buttons make it easy to see the condition of your switcher, even in low light conditions. The V-1HD+ features the standard source, preview, mix, cut and auto buttons, fader bar and fade-in/out button, as well as four physical memory buttons that let you quickly select up to eight presets for photos and effect sources .
To withdraw
The device has a record button that allows you to start and stop recording on suitable Atomos recorders.
Four-layer effects engine
The V-1HD+ supports up to four composition layers, making it easy to add titles, logos, social media comments and more for a polished professional output that captures your audience's attention.
keying
The keying functionality enables picture-in-picture as well as greenscreen and graphical keying.
Video Effects
Transition: Cut, Mix (Dissolve/FAM/NAM), Swipe (8 types)
Composition: PiP (square, circle, diamond), split (2 types), keyer (luminance, chroma), DSK (luminance, chroma)
Other: Flip Horizontal, Flip Vertical, Still Image Capture, Still Image Playback, Output Blur (Audio, Video: White or Black), Test Pattern Output
Memory
The Memory button lets you save or recall up to eight presets, and the Freeze button lets you temporarily pause the incoming video.
panel buttons
These buttons can be used to instantly switch videos or apply effects.
transitions
The T-bar lets you control the speed of your selected transitions.
Still image
The switcher can store up to four files in the internal memory and supports the following still image formats:
Bitmap file (.bmp): Up to 1920 x 1080 pixels, 24-bit color, uncompressed
PNG file (.png): Up to 1920 x 1080 pixels, 24-bit color (PNG alpha channel not supported)
Audio Effects
Delay
High-pass filter
de-esser
Compressor
noise gate
equalizer
limiter
reverberation
Test tone output
Additional Features
Preset memory (8 types)
Panel lock function
EDID Emulator
Automatic switching
Automatic Feed Detection

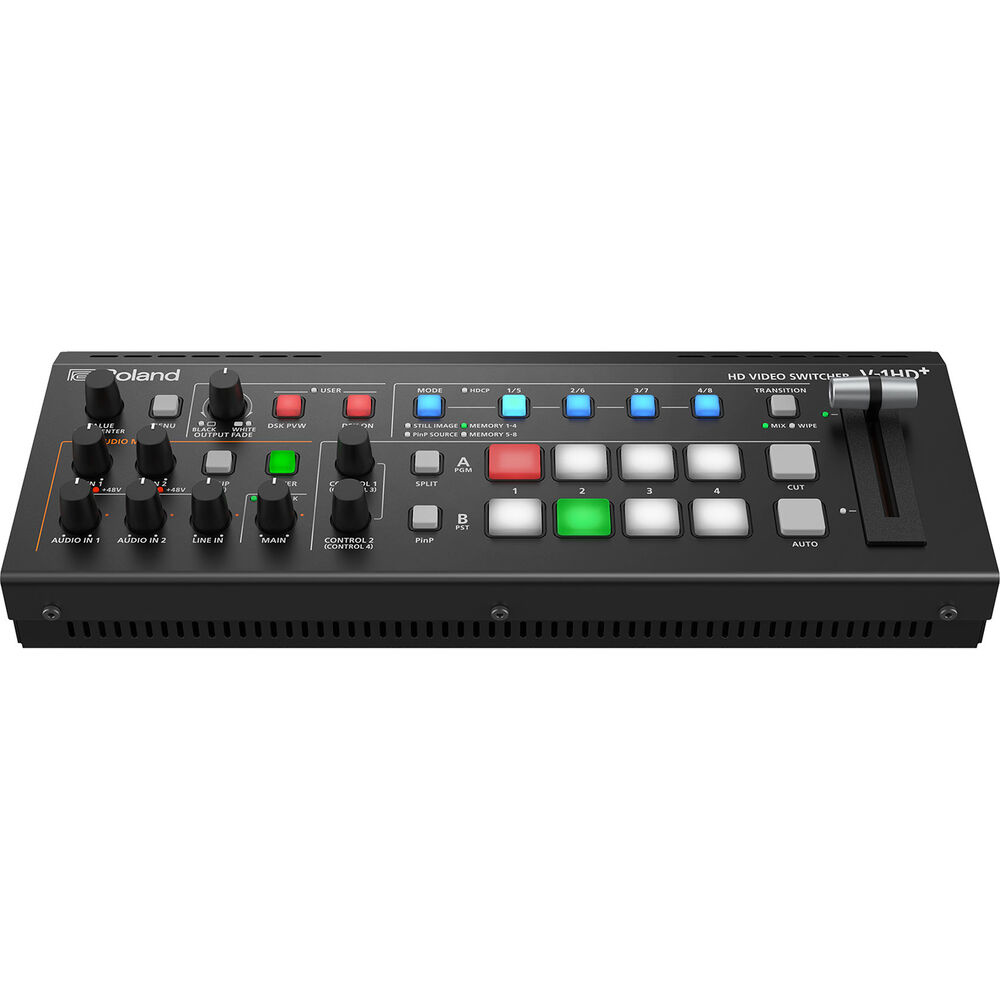

Roland V-1HD+ Compact 4 x HDMI Video Switcher
AC Adapter/Power Cord
Cord Hook
Processing
Switching Type | Push button, T-Bar |
Processing Resolution | 1080p at 23.98/24/25/29.97/30/50/59.94/60 |
Color Processing | 8-Bit 4:2:2 |
Audio Processing | 48 kHz / 24-bit |
Input
Video Input Connectors | 4 x HDMI |
Input Video Format | HDMI (8 Bit) |
Audio Input Connectors | 2 x 3-Pin XLR Mono Analog |
Input Audio Format | analog |
Embedded Audio Input | HDMI: 2-Channel (per Input) |
output
Video Output Connectors | 2 x HDMI |
Output Video Format | HDMI (8 Bit) |
Audio Output Connectors | 2 x 1/4" TRS Analog Female |
Output Audio Format | analog |
Embedded Audio Output | HDMI: 2-Channel (per Output) |
Multiview Output | 10-Way Multiview via HDMI |
Connectivity
Other I/O | 1 x USB Type-B |
HDCP Support | yes |
power
Power Connector | 1 x Barrel Input |
Power Consumption | Device: 12 to 17 VDC at 2.1 A (25.1 W) |
Environmental
Operating Temperature | 32 to 104°F / 0 to 40°C |
General
weight | 3.1lb / 1.4kg |
