Roland 6-Channel HD Video Switcher with Audio Mixer & PTZ Camera Control (1 RU)

This compact, rack-mountable 6-Channel HD Video Switcher from Roland can switch between 3G-SDI, HDMI, and RGB sources along with two still images stored in the internal memory. PGM/PST, dissolve, and matrix video switching modes can be selected, allowing for a wide range of applications. The XS-62S features an 18-channel audio mixer which includes four TRS jacks, RCA stereo pair, and audio de-embedding from the six video inputs.

This integrated solution supports presentation/performance/special event venues, corporate AV conferences, and classrooms for e-learning. The XS-62S is a 1 RU unit with front panel control buttons and a menu screen. It can also be controlled from a Windows PC or Mac using the real-time remote control software.

Live Production Studio

This all-in-one switching and audio mixing system streamlines the production process to create content. The XS-62S is controlled from either the front panel controls or remote control software of a Windows PC or Mac.

Performance Venue

The XS-62S is designed for hotel meeting rooms, banquet halls, houses of worship, and live performance venues. The auto-mixing function automatically balances incoming audio sources such as microphones from a discussion panel. The audio processing also includes advanced effects such as EQ, dynamics, and delay for mixing of vocal speech along with music and other audio embedded in video sources.

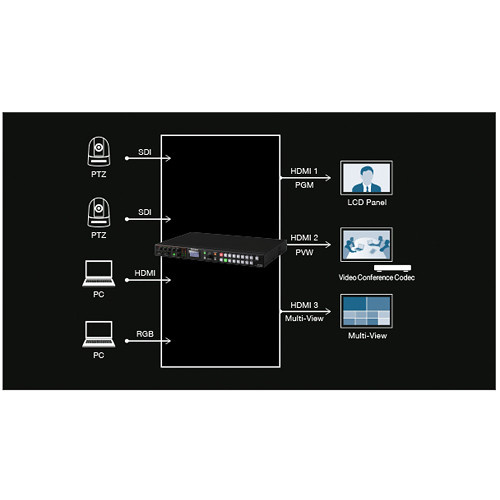

Live Streaming and Videoconference

The XS-62S is suitable for live streaming and web conferencing systems. A PTZ camera can be controlled from the switcher while video is being switched by the same operator.

Note:

To do live streaming you will need to add an encoder device with an SDI or HDMI input from a third-party supplier.

User Interface

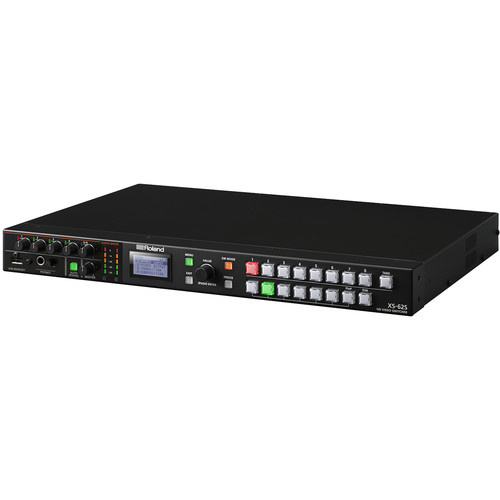

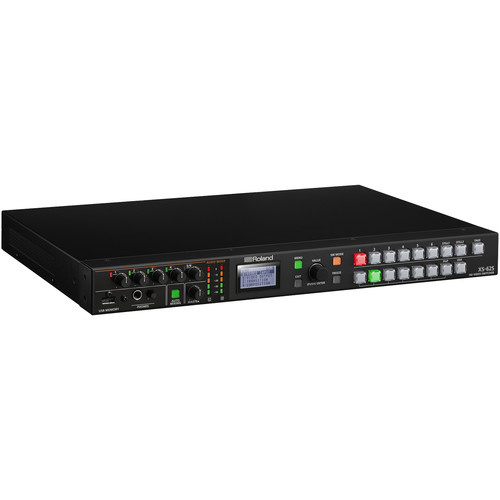

The broadcast cross-point buttons are backlit with brightness control for use in bright daylight or dark performance spaces. A menu screen and volume knobs for adjusting audio are both accessible on the front panel.

Switching Mode

The XS-62S has multiple switching modes to best suit the app. The PGM/PST mode operates as a traditional video switcher complete with video compositions that enable grouping multiple images on one screen. The Dissolve mode allows for video switching and composition with cross dissolve to the PGM bus. Operated from the front panel, this mode is suitable for a system where the user directly operates the main unit in a meeting space or event. The Matrix mode allows for individual video input signals to be output to three different destinations on three buses. This mode is effective for routing signals and is ideal for events and using multiple screens.

Video Composition

The PiP function can select circle, heart, or diamond shapes in addition to traditional square or rectangle shapes. The DSK function allows you to overlay titles, lyrics, and logos on top of composited video. Both luminance key (black/white) and chroma key (blue/green) functions are available.

Audio Mixer with Preamp and Dynamics (Compressor)

The XS-62S preamp and dynamics effects include a high-pass filter, gate, compressor, 3-band EQ, delay, and an ability to select an audio-follows-video channel so the audio passes through when a specific video source is selected. Dynamics can be adjusted from the on-screen menu or accessed through the remote-control software for Windows or Mac.

Auto-Mixing

The included auto-mixing function ensures the correct mix for multiple panel participants at conferences by automatically adjusting levels across all audio sources. A priority weighting assignment that is channel-specific can be set giving the moderator or priority audio channel a higher volume level while using the auto-mixing function.

Discrete Multichannel Audio Embedding

Assign up to eight analog audio inputs to a separate audio embedded channel on the two SDI outputs to ensure a separate mix pre-effect (dry) or post-effect (wet) for correcting audio problems post-live event. This feature is additionally useful for multilanguage events to record the voice-over or language translation on its own audio channel to a separate master.

Smart Tally

The wireless tally system uses a wireless LAN router connected to the XS-62S to send tally information to iOS or Android devices on the network.

PTZ Control

Achieve multiple camera angles for fixed installations by controlling up to six PTZ cameras using VISCA protocol. You can save and recall seven position settings for each camera.

Remote Control

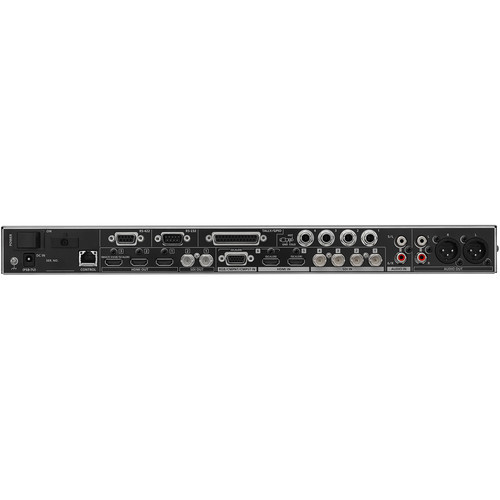

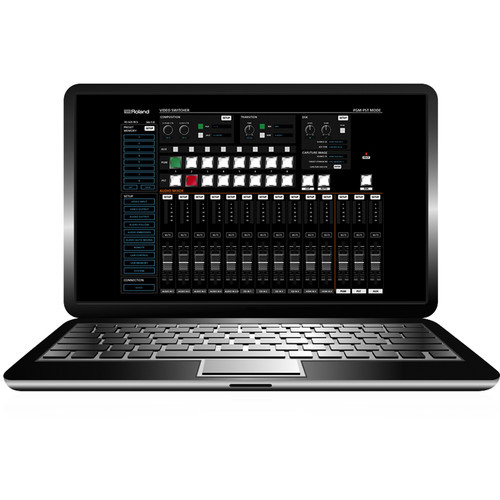

The RCS software application for Mac or Windows PC provides setup and control information for the switcher through a network port. You can copy, store, and recall memory (backup) and preset settings. The XS-62S is equipped with RS-232 and LAN ports for control and operation remotely from a touch panel or other programmable interface device.

In the Box

• Roland 6-Channel HD Video Switcher with Audio Mixer & PTZ Camera Control (1 RU)
• AC Adapter
• Power Cord
• 4 x Rubber Foot
