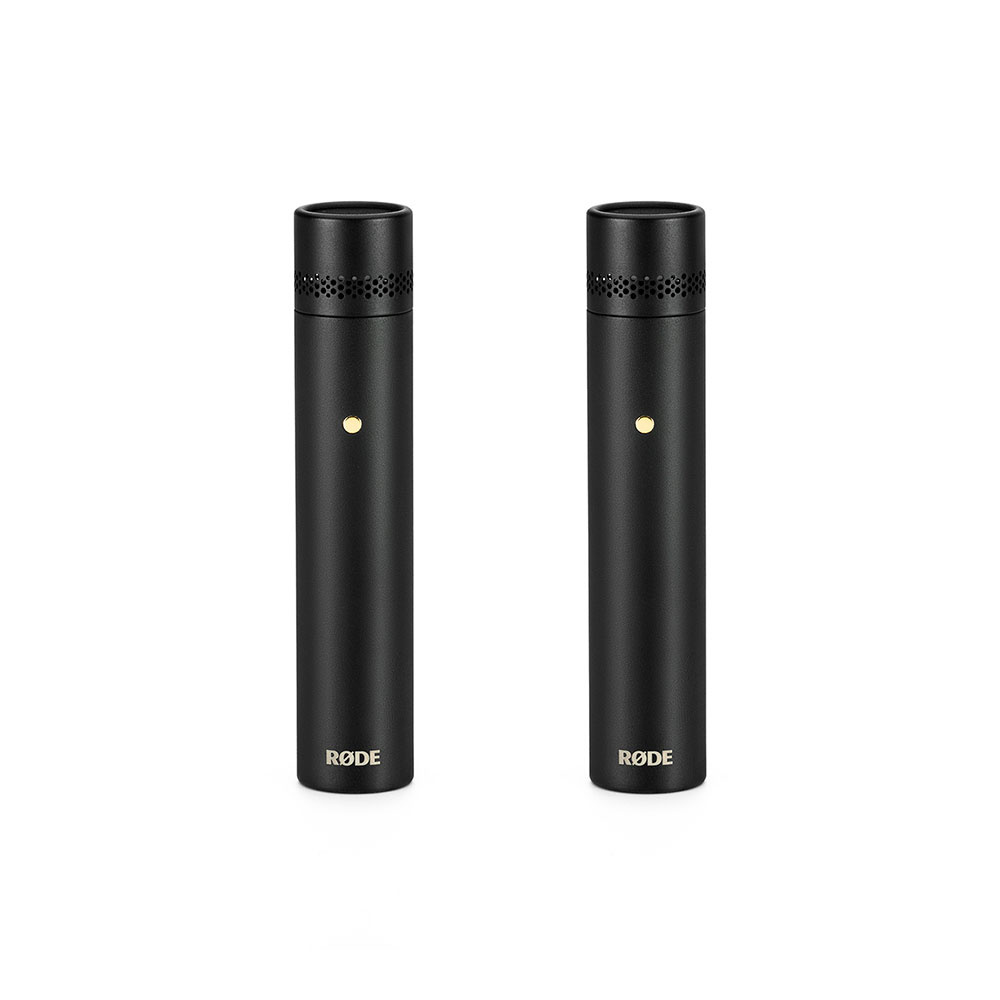

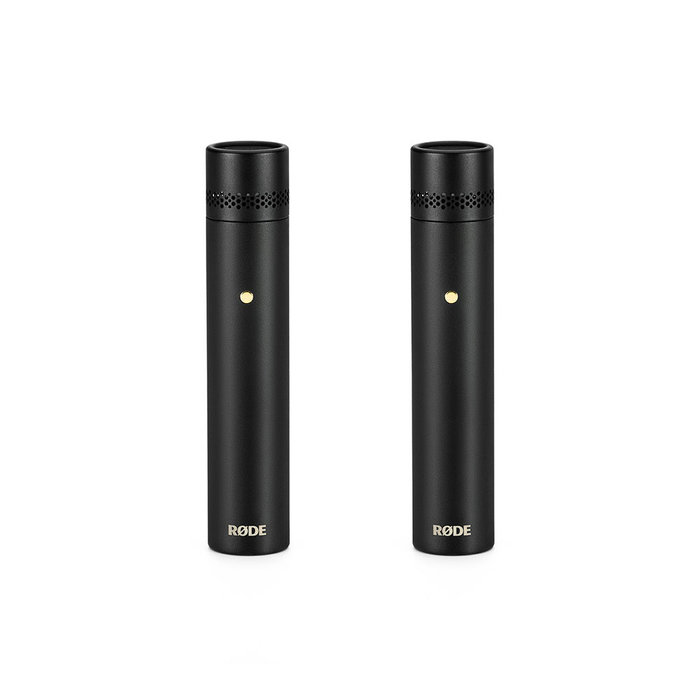

RED - RED TF5 matched pair
The TF-5 represent a new standard in small diaphragm condensers. The all-new capsule is engineered to sub-micron tolerances, giving unprecedented consistency of tone and response.
The TF-5 features the hallmark clarity and airiness of other RØDE small diaphragm mics, and adds to this a unique warmth of tone which is often lacking in smaller 'pencil mics' of this type, making the TF-5 uniquely versatile.
features
- Precision paired small diaphragm cardioid condenser microphones
- Ultra low noise
- Flat frequency response
- Tight cardioid directivity
- Warm, accurate sound
- Suitable for the most critical recording applications
- Designed in collaboration with Grammy® award winning classical producer and engineer, Tony Faulkner
ACOUSTIC & ELECTRICAL SPECIFICATION
Acoustic Principle | Externally biased condenser |
Active Electronics | JFET impedance converter with bipolar output buffer |
Polar pattern | Cardioid |
FrequencyRange | 20Hz - 20kHz |
Frequency Response | 30Hz - 20kHz ±3dB // 20Hz - 20kHz ±4dB |
output impedance | 63Ω |
Signal-to-noise Ratio | 80 dB |
equivalent noise | 14 dB SPL |
Input SPL @ 1% THD | 135dB SPL (1kHz @ 1% THD, 600Ω load) |
sensitivity | -29 dB re.1 Volt/Pascal or better (35 mV @ 94dB SPL @ 1kHz) |
dynamicrange | 112.6dB (1kHz @ Max SPL) |
Power Requirements | 7mA @ 48V phantom power |
|
|
MECHANICAL SPECIFICATION
Weight (g) | 114g (single mic) |
dimensions | Length: 98.7mm Diameter: 20mm |
