PTZ Optics Move 4K 20X Zoom NDI|HX Gray
The PTZOptics Move 4K series sets a new standard for PTZ cameras, providing accurate auto-tracking capabilities with resolutions up to 4K60fps (1080p 60fps over 3G-SDI). In addition, the Move 4K series includes a wide range of outputs such as USB, HDMI, SDI and NDI|HX.
The PTZOptics Move 4K 20X comes with a 20x optical zoom lens and a horizontal field of view of 60.7°. The advanced UHD CMOS sensor allows the camera to perform exceptionally in low light scenarios with a wide dynamic range and noise is kept to an absolute minimum.
The Move 4K series is compatible with a wide range of production software, including vMix, OBS, Wirecast and many more.
Most important features:
Built-in automatic tracking
Advanced White Balance Modes
Wide dynamic range
Full Frame Rates: 2160p-60/50/30/25, 1080p-60/50/30/25, 1080-60/50, 720p-60/50/30/25
3D noise reduction
Up to 4K resolution @ 60fps (1080p 60fps over 3G-SDI)
Blackmagic Switcher Integration
Broadcast frame rates: 2160p-59.94/29.97, 1080p59.94/29.97, 1080i59.94, 720p59.94
SRT Support
The new standard
PTZOptics introduces the new Move 4K series for a completely different and advanced user experience. The Move 4K cameras feature accurate auto-tracking and resolutions up to 4k 60fps (SDI 1080p 60fps). In addition, PTZOptics has upgraded its hardware and software for better low-light performance.
Other features include power with PoE and a built-in tally lamp. The Move 4K product range will allow users to modernize their setup, but will still be compatible with older systems as HD and Full HD video resolutions are supported.
Unparalleled Performance and Versatility
PTZOptics has implemented SDI, HDMI, USB and IP output in every Move 4K camera for easy implementation and better usability. In addition, all cameras come with NDI|HX.
Mount the Move 4K anywhere
Mount your camera at multiple angles using the optional PTZOptics brackets. The Move 4K has a new video inversion feature that automatically detects the orientation of the camera. This feature saves you time on setup and installation.
Control and Track
The updated PTZOptics Web UI allows users to control their Move 4K camera PTZ and access the integrated auto-tracking functions. Users can also use production software such as OBS, Livestream Studio, Wirecast, vMix, mimoLive or Tricaster.
PTZOptics also offers joysticks for precise PTZ control. View the PTZOptics IP and serial joysticks.
PTZOptics Move 4K 20x Gray
IR Remote Control
12 VDC Power Adapter
USB-A to USB-A Cable
RS-232 Cable
2 x AA Battery
Imaging
Sensor Type | 1/8"-Type CMOS Sensor |
Sensor Resolution | Effective: 8.42 Megapixels (3840 x 2160) |
IR Cut Filter | no |
Built-In ND Filter | none |
Focus Control | Autofocus |
Exposure Control
Shutter Type | Electronic Global Shutter |
Shutter Speed | 1/30 to 1/10000 Seconds |
Signal-to-Noise Ratio | 55 dB |
Minimum Illumination | 0.5 Lux |
Flip/Mirror Support | Image Flip, Mirror (Vertical) |
Lens
Optical Zoom Ratio | 20x |
Max Digital Zoom | 16x |
Field of View | Horizontal: 60.7 to 3.5° |
Video Capture
External Recording Modes | SDI/BNC |
Embedded Audio | HDMI/LAN (RJ45)/NDI/SDI: 2-Channel |
Broadcast Output | NTSC/PAL |
IP Streaming | H.264, H.265, MJPEG, RTMP, RTSP, SRT |
IP Multi-Stream Support | Simultaneous |
Control
presets | 255 |
Move Speed | Pan: 1.7 to 100°/sec |
Movement Range | Tilt: 120° (-30 to 90°) |
Tally Light | yes |
Supported Control Protocols | IP |

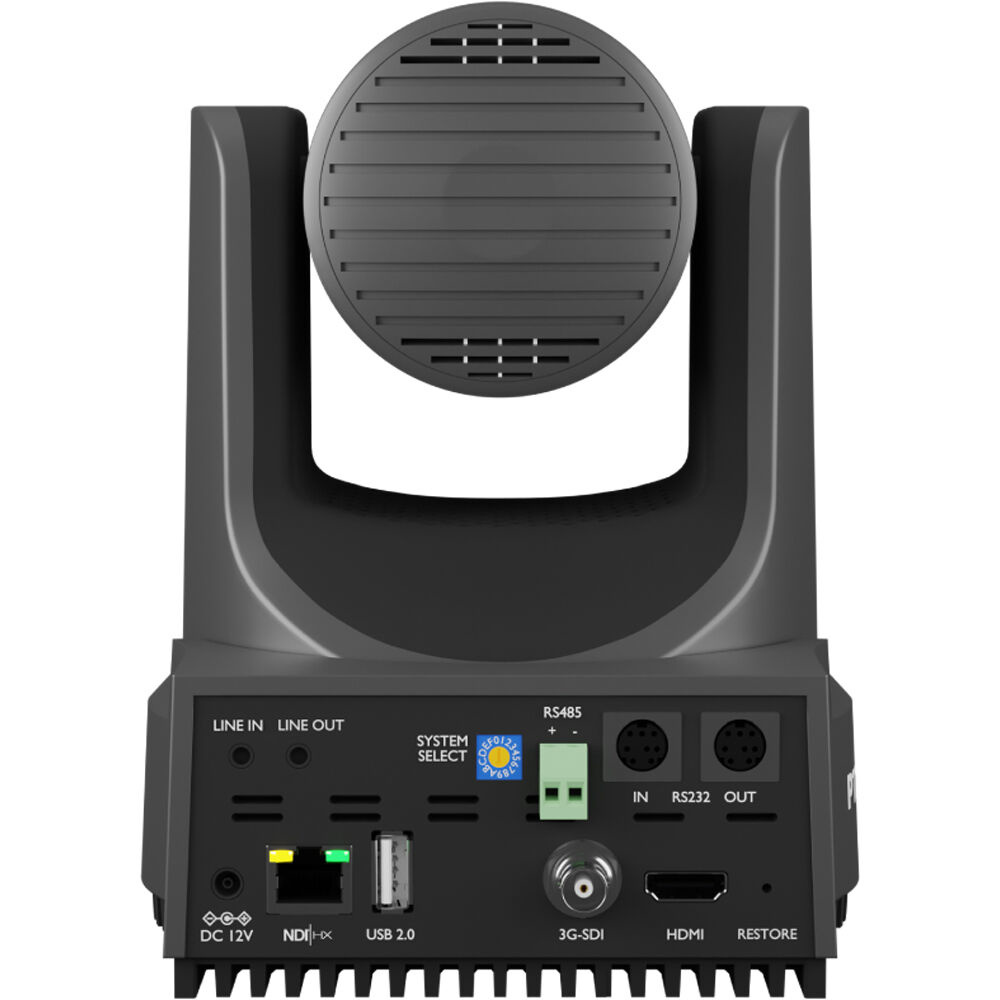

Interface
Video I/O | 1 x HDMI 2.0 Output |
Audio I/O | 1 x 1/8" / 3.5mm TRS Stereo Line Input |
Other I/O | 1 x D-Sub 8-Pin (RS-232) Control Input |
Built-In Speaker | no |
power
PoE Support | PoE 802.3af |
Power I/O | 1 x DC (12VDC) Input |
Power Consumption | Device: 12 VDC at 2 A (12 W) |
Environmental
Operating Temperature | 14 to 104°F / -10 to 40°C |
Storage Temperature | -40 to 140°F / -40 to 60°C |
General
Material of Construction | Aluminum, Plastic |
Dimensions (W x H x D) | 6.6 x 6.5 x 5.6" / 168.4 x 164.5 x 141.5mm |
weight | 3.24lb / 1.47kg |
