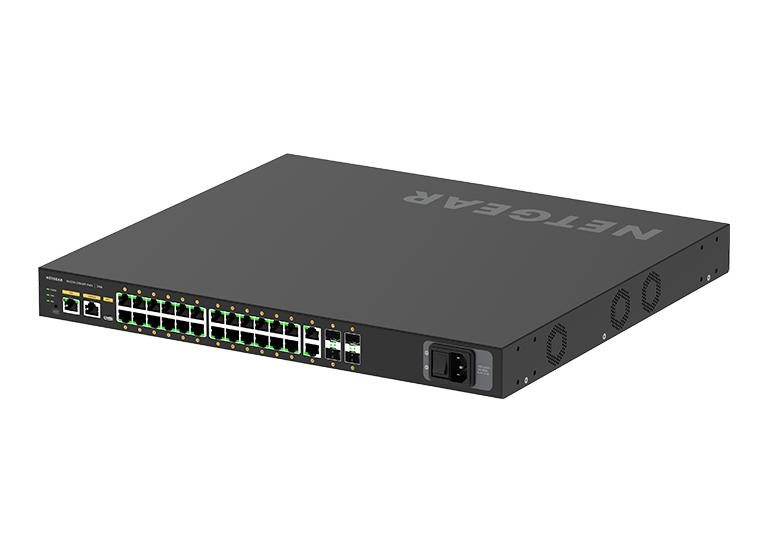

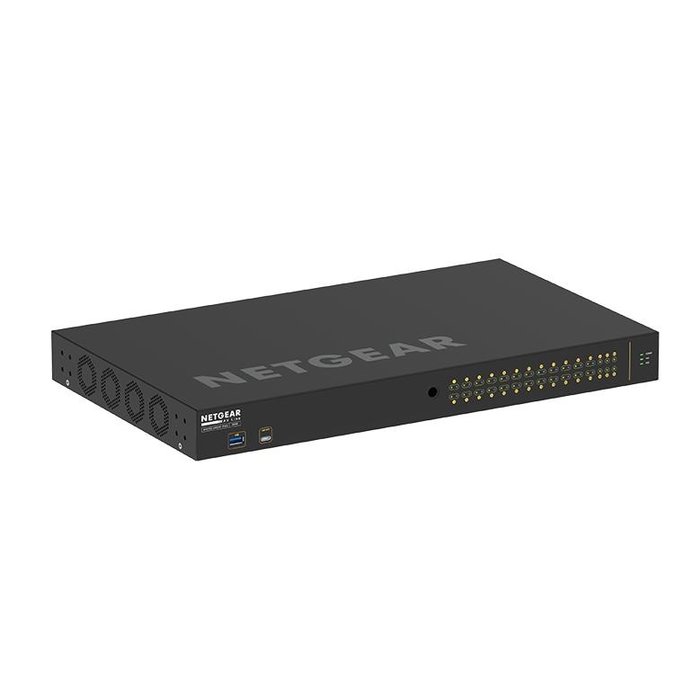

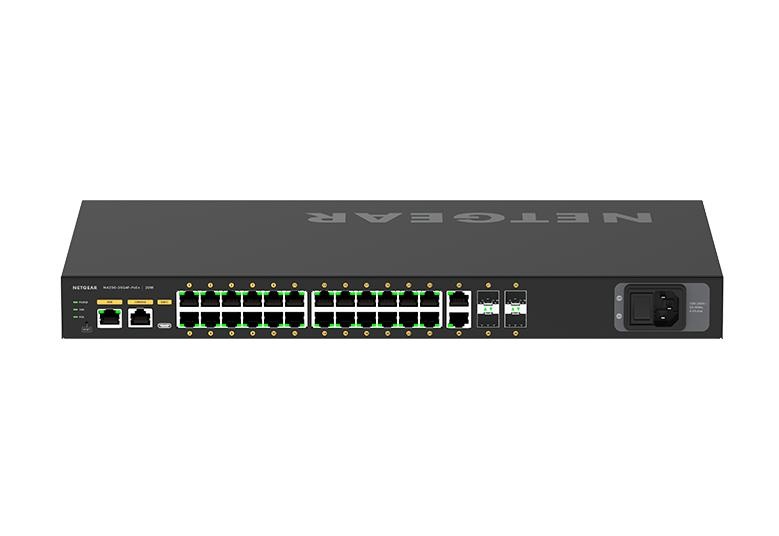

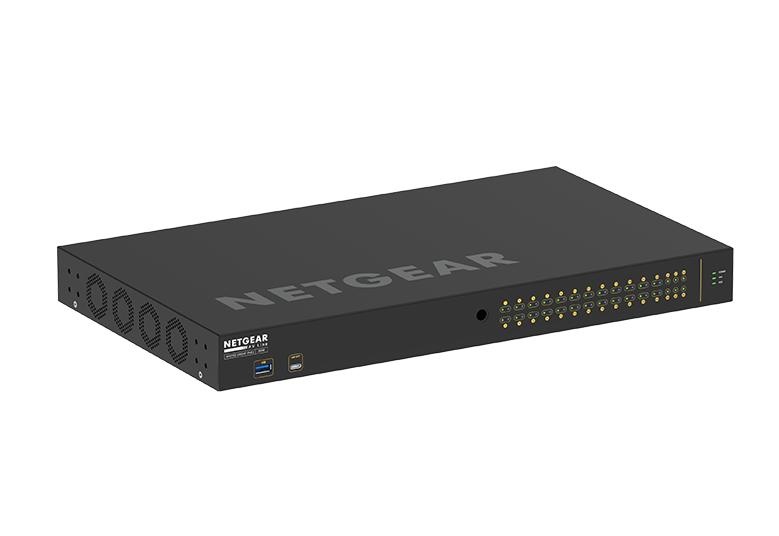

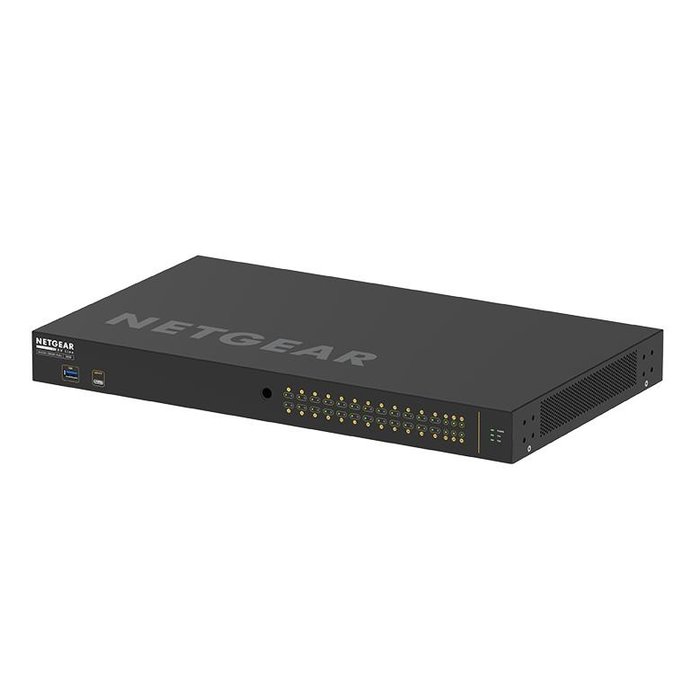

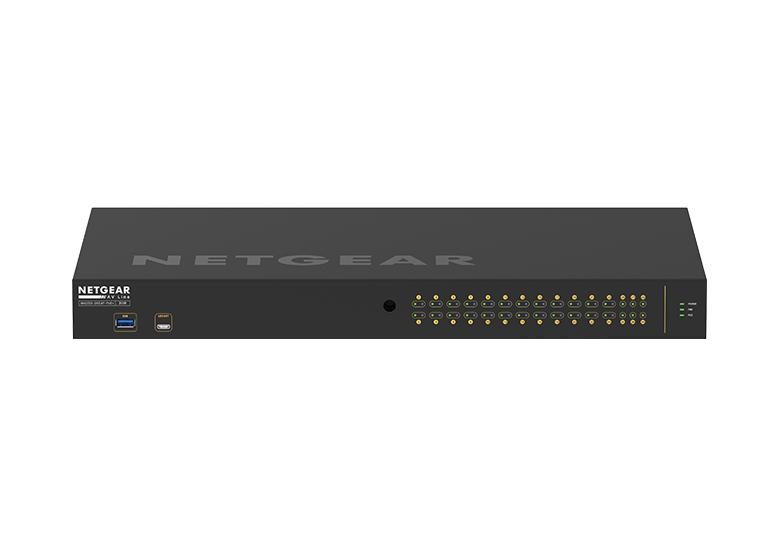

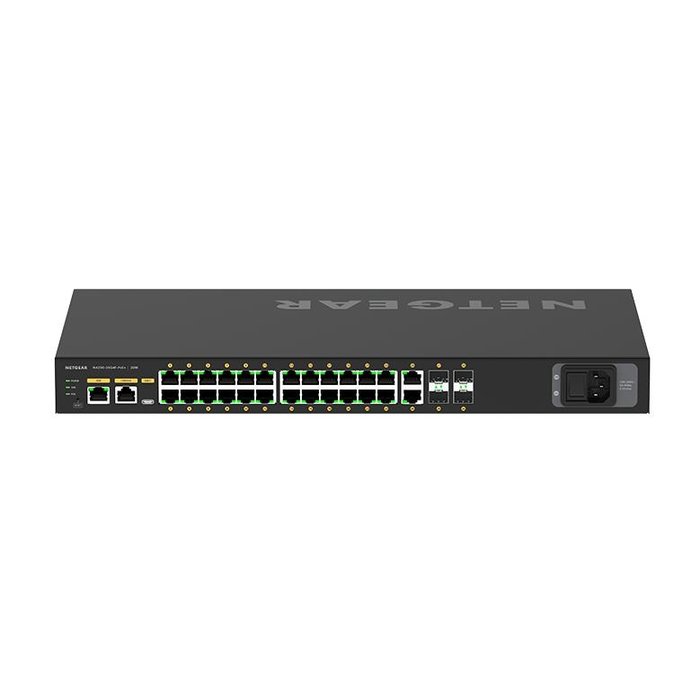

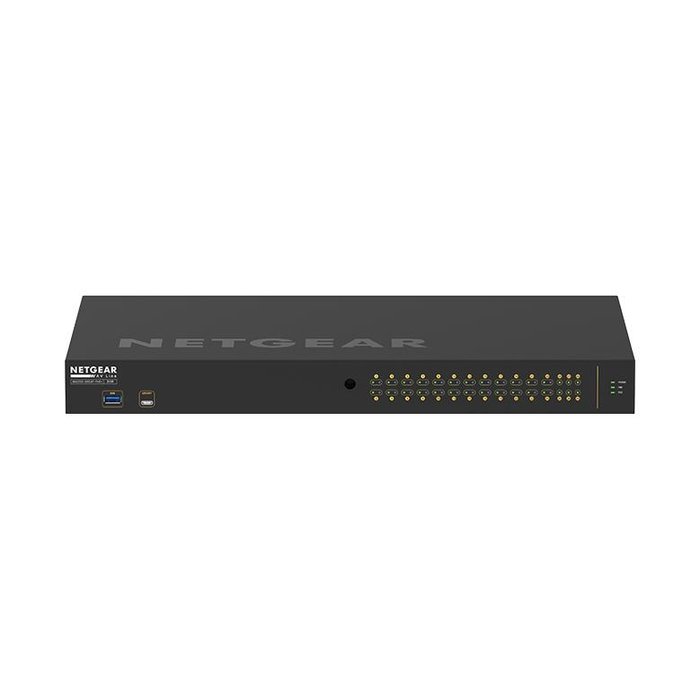

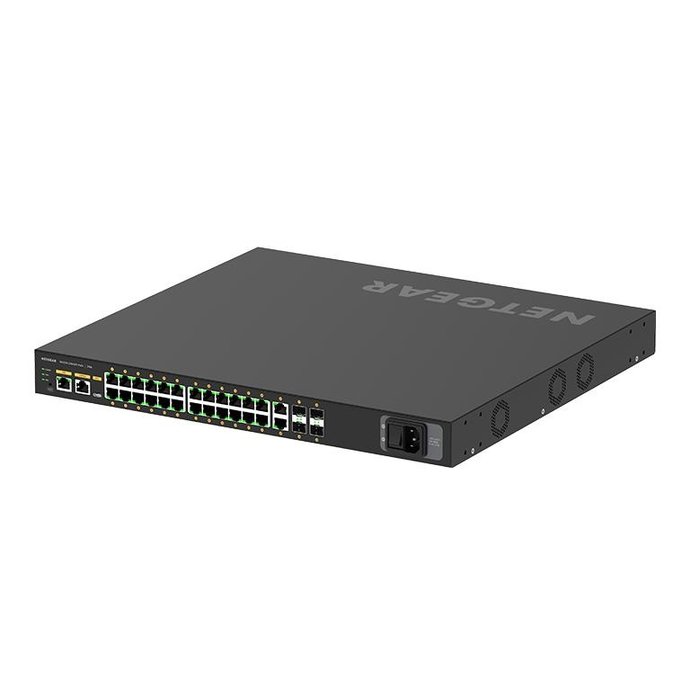

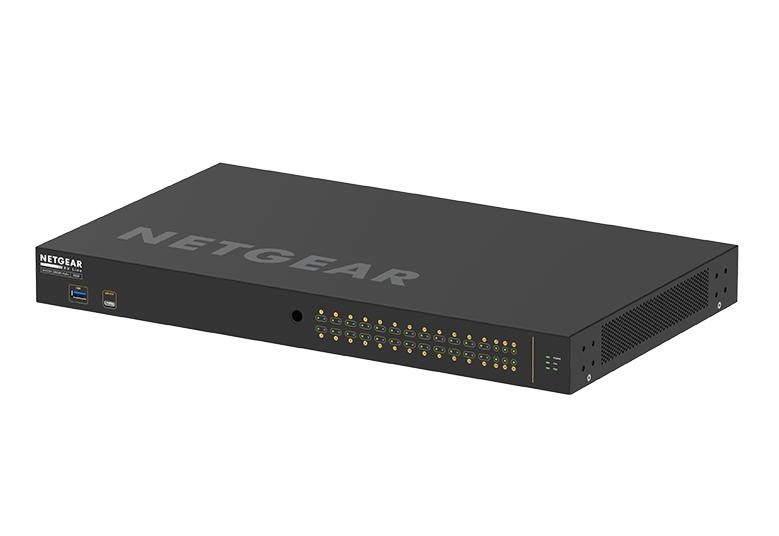

Netgear AV Line M4250-26G4F-PoE+
24x1G PoE+ 300W 2x1G and 4xSFP Managed Switch designed for 1G AV over IP with rear ports for perfect integration into AV racks.
Pre-configured for out-of-the-box use
NETGEAR IGMP Plus™ enables instant multicast functionality for most AV-over-IP installations.
Dedicated web interface for AV
Unique interface designed for the AV professional with color-coded port-based profiles.
Common Audio Protocol Profiles
Quickly assign profiles to ports for Dante, AES67 and AVB audio configurations. AVB requires a separate license.
Built-in video profiles
Dedicated profiles for NVX, SVSI, Q-SYS and Dante video profiles can be easily mapped to ports as needed.
Unique automatic configuration
Auto-trunk and auto-lag functionality automatically configures other M4250 switches for use in star topology.
M4250-26G4F-POE+ (GSM4230P)
Power cord(s)
Console USB Type-C and RJ45-DB9 cables
Standard Rack Mount Brackets
Longer recessed mounting brackets
Rubber feet for tabletop installation
Installation manual
Number of ports: 30 (24x 1G PoE+, 2x 1G, 4x SFP) | |
PoE type: PoE+ | |
Uplink Speed: 1 Gigabit | |
Primary port speed: 1 Gigabit | |
PoE Ports/Budget: 24 PoE+ (30W/Port), 300W Budget | |
IGMP Support: Enhanced (NETGEAR IGMP Plus™) | |
Support for jumbo frames: Yes (up to 12 Kb) | |
Acoustics: Fanless or 34 dB at 25 C | |
Power Consumption: With PoE 401 W/1369.01 BTU/hr | |
AVB Support: Yes (Electronic License Required) | |
Weight: 4.3 Kg | |
Dimensions outside (hxwxd): 440 x 257 x 43.2 mm | |
