Netgear AV Line M4250-16XF

Switching designed for 1G AV over IP with rear ports for perfect integration into AV racks. Pre-configured for out-of-the-box functionality!

Made for AV over IP

Pre-configured for out-of-the-box use

NETGEAR IGMP Plus enables instant multicast functionality for most AV over IP installations

Dedicated web interface for AV

Unique interface designed for the AV professional with color-coded port-based profiles

Common Audio Protocol Profiles

Quickly assign profiles to ports for Dante, AES67 and AVB audio configurations. AVB requires a separate license

Built-in video profiles

Dedicated profiles for NVX, SVSI, Q-SYS and Dante video profiles can be easily mapped to ports as needed

Flexible mounting

Rack-Mount Versatility

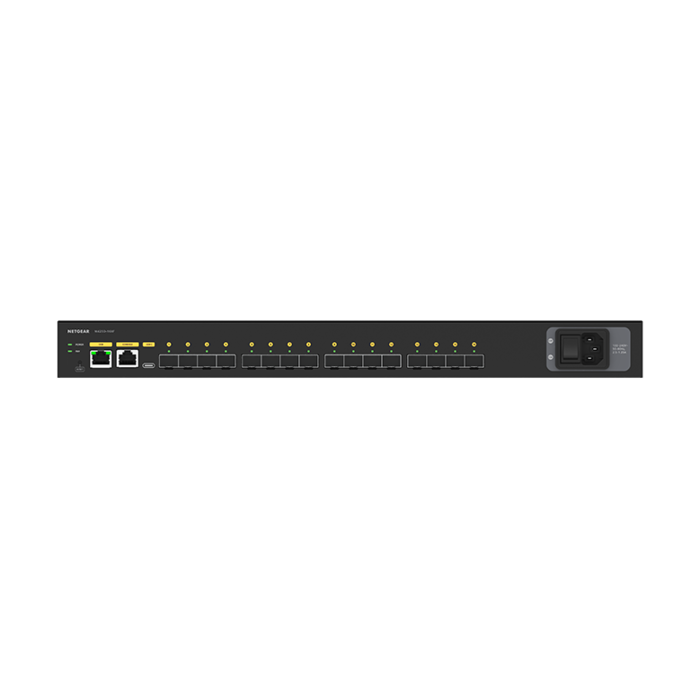

1U, 200mm deep rack mount with all power and Ethernet ports on the back

Possibility of reverse mounting

Possible reverse mounting with front ports, including flush mounting to protect cables

Availability of universal mounting

Out-of-rack mounting is made possible with M5 threaded holes on the bottom and M10 on the front

Adjustable fan functionality

Silent mode with 56.7 dB at 25ºC (all ports used), fanless mode with max 25C ambient temperature, 75ºC internal sensor and 8 ports SFP+ used

Advanced Features

Link aggregation with multiple switches

16xSFP+ 1G/10G fiber ports for 1G/10G aggregation in M4250 star topologies (spine and leaf)

Layer 2/Layer 3 Switching

Common Layer 2 and Layer 3 switching engine for all M4250 models

There are numerous control methods

Built-in IT web interface, console, telnet and SSH, consistent with other NETGEAR M4xxx series

Standard Network Features

Feature set includes static, RIP and PIM routing, DHCP server and PTPv2
