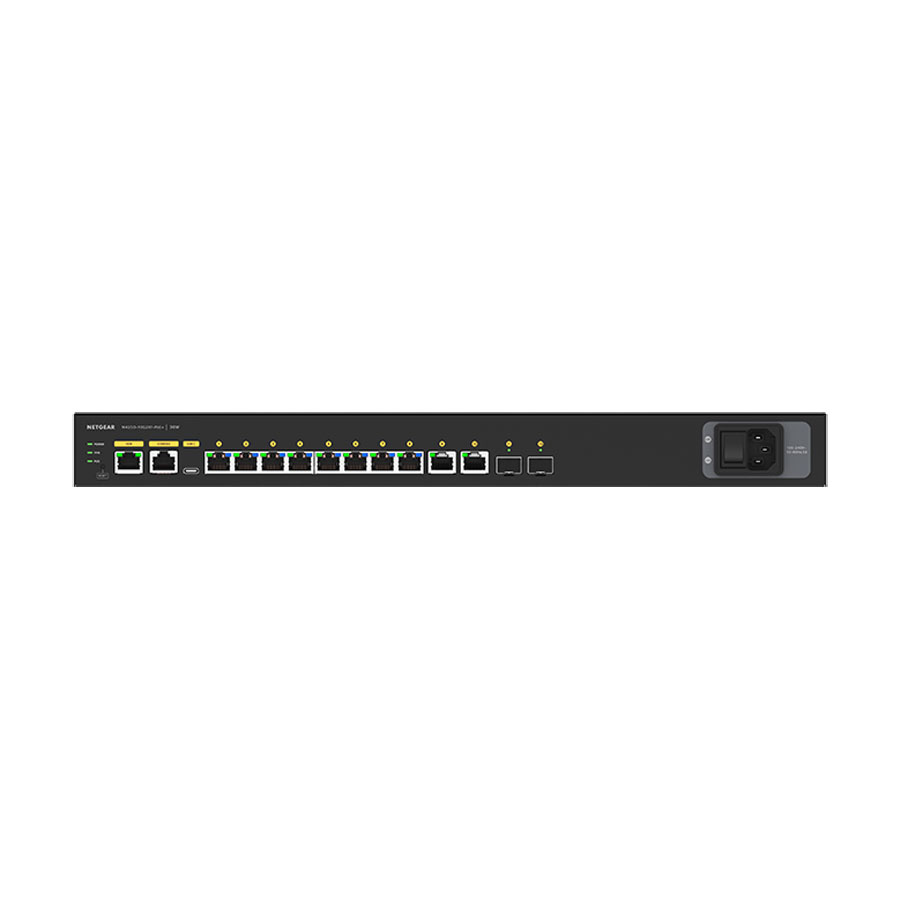

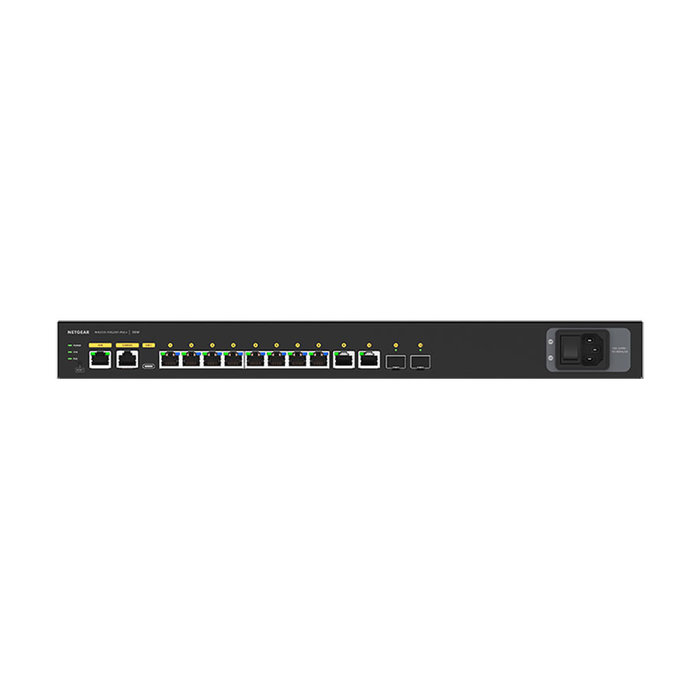

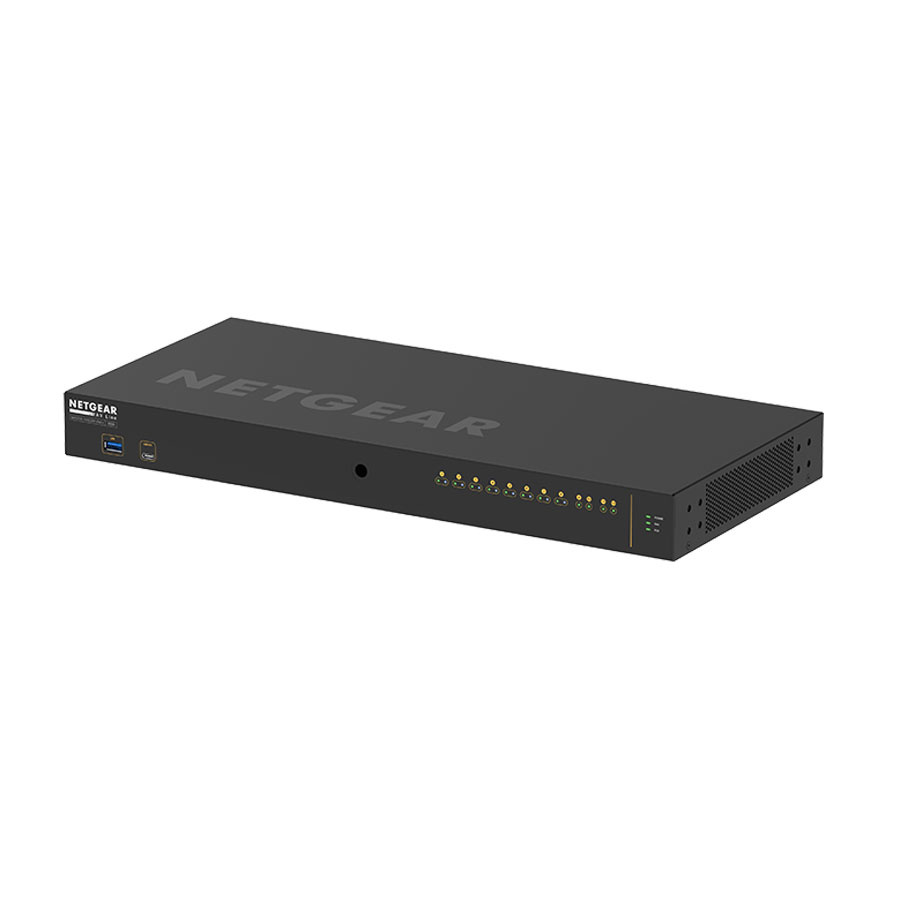

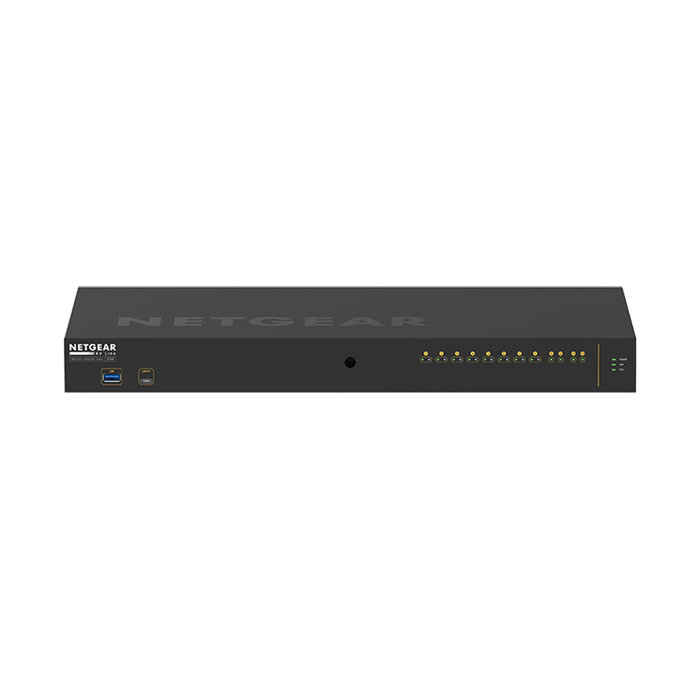

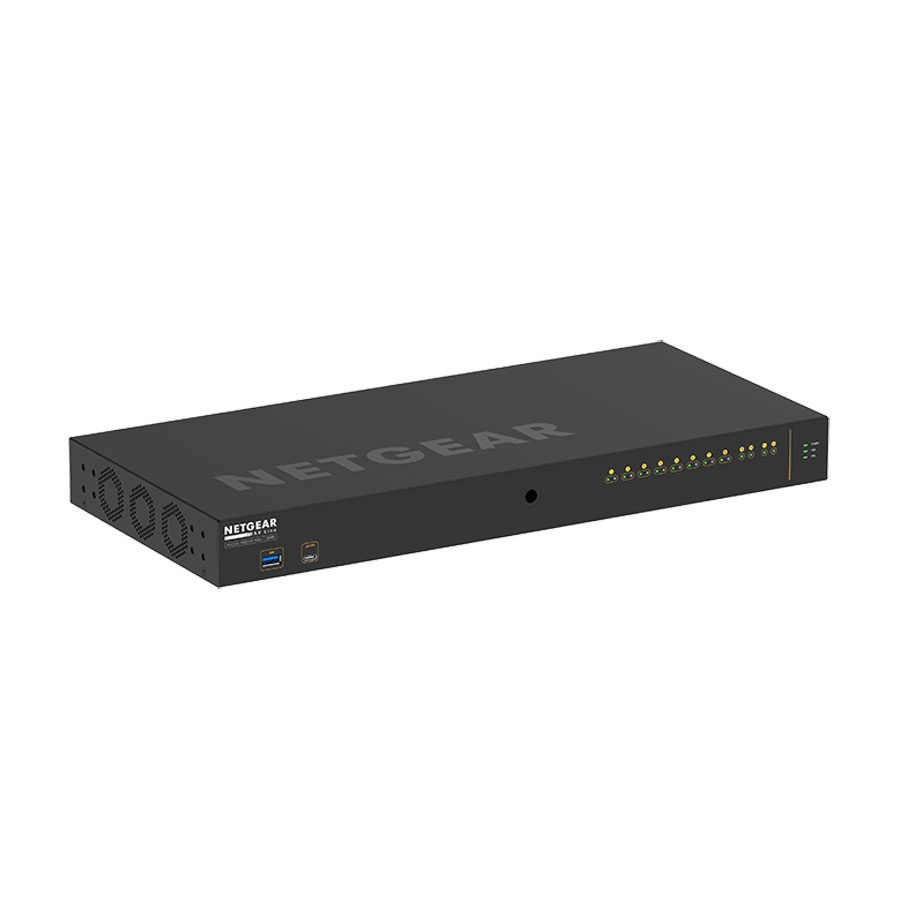

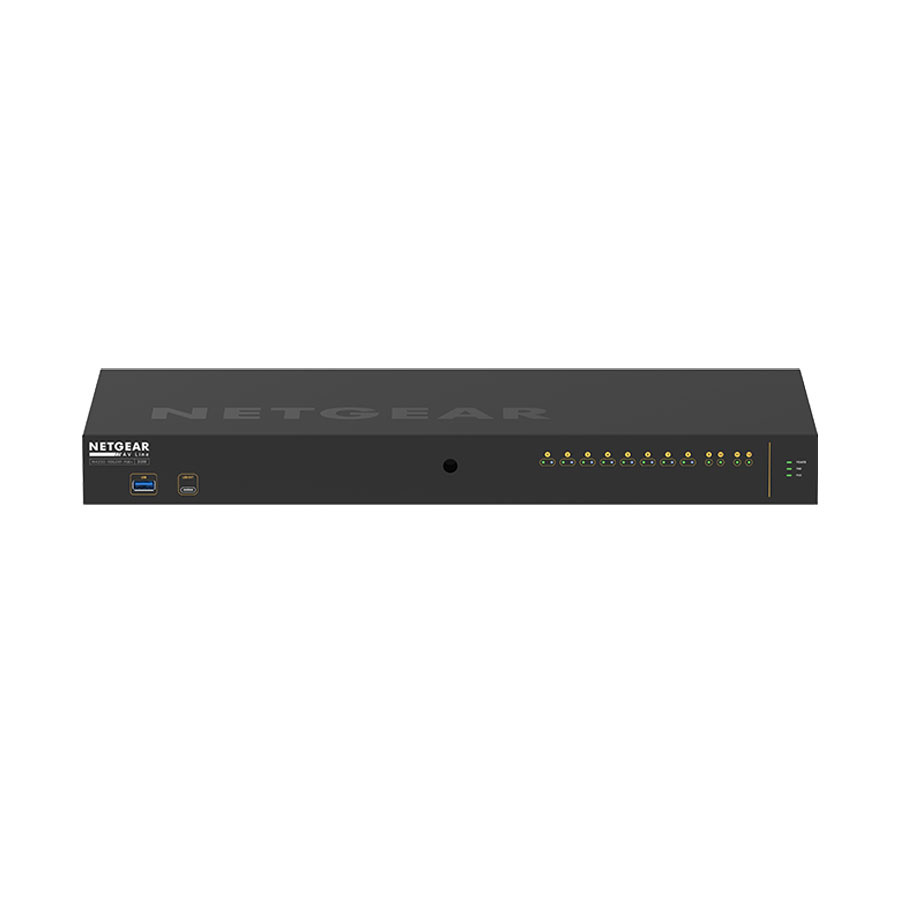

Netgear AV Line M4250-10G2XF-PoE+
Managed switch designed for 1G AV over IP with rear ports for perfect integration into AV racks. Pre-configured for out-of-the-box functionality!
Pre-configured for out-of-the-box use
NETGEAR IGMP PlusTM enables instant multicast functionality for most AV-over-IP installations.
Dedicated web interface for AV
Unique interface designed for the AV professional with color-coded port-based profiles.
Common Audio Protocol Profiles
Quickly assign profiles to ports for Dante, AES67 and AVB audio configurations. AVB requires a separate license.
Built-in video profiles
Dedicated profiles for NVX, SVSI, Q-SYS and Dante video profiles can be easily mapped to ports as needed.
M4250-10G2XF-POE+ (GSM4212PX)
Power cord(s)
Console USB Type-C and RJ45-DB9 cables
Standard Rack Mount Brackets
Longer recessed mounting brackets
Rubber feet for tabletop installation
Installation manual
Number of ports: 12 (10x 1G, 2x SFP) | |
PoE type: PoE+ | |
Uplink speed: 10 Gigabit | |
Primary port speed: 1 Gigabit | |
PoE Ports/Budget: 8 PoE+ (30W/Port), 240W Budget | |
IGMP Support: Enhanced (NETGEAR IGMP Plus) | |
Support for jumbo frames: Yes (up to 12 Kb) | |
Acoustics: Fanless or 30 dB at 25 C | |
Power Consumption: With PoE 163.9 W/559,555 BTU/hr; without PoE: 17.32 W/59.13 Btu/hr; | |
AVB Support: Yes (Electronic License Required) | |
Weight: 2.85Kg | |
Dimensions outside (hxwxd): 440 x 200 x 43.2 mm | |
19" Rackmount: Included (standard 19" brackets + longer for flush mounting) | |
