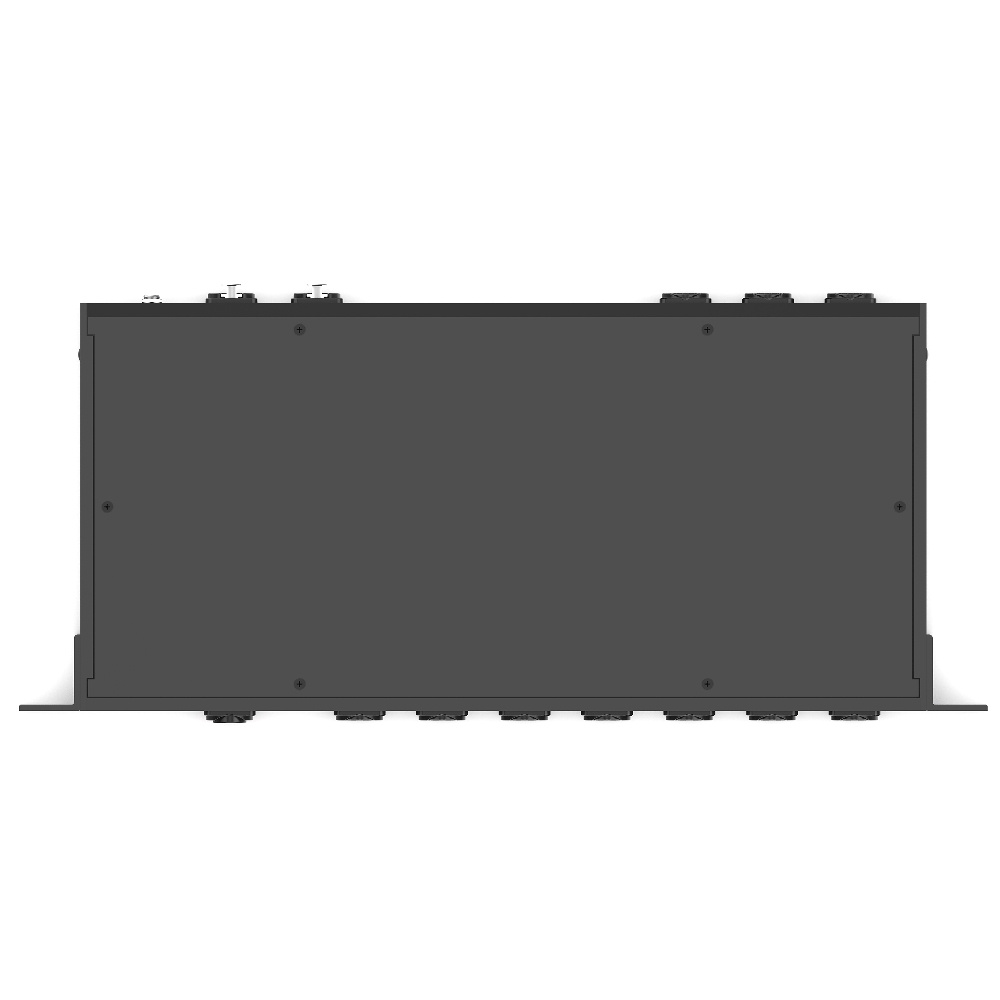

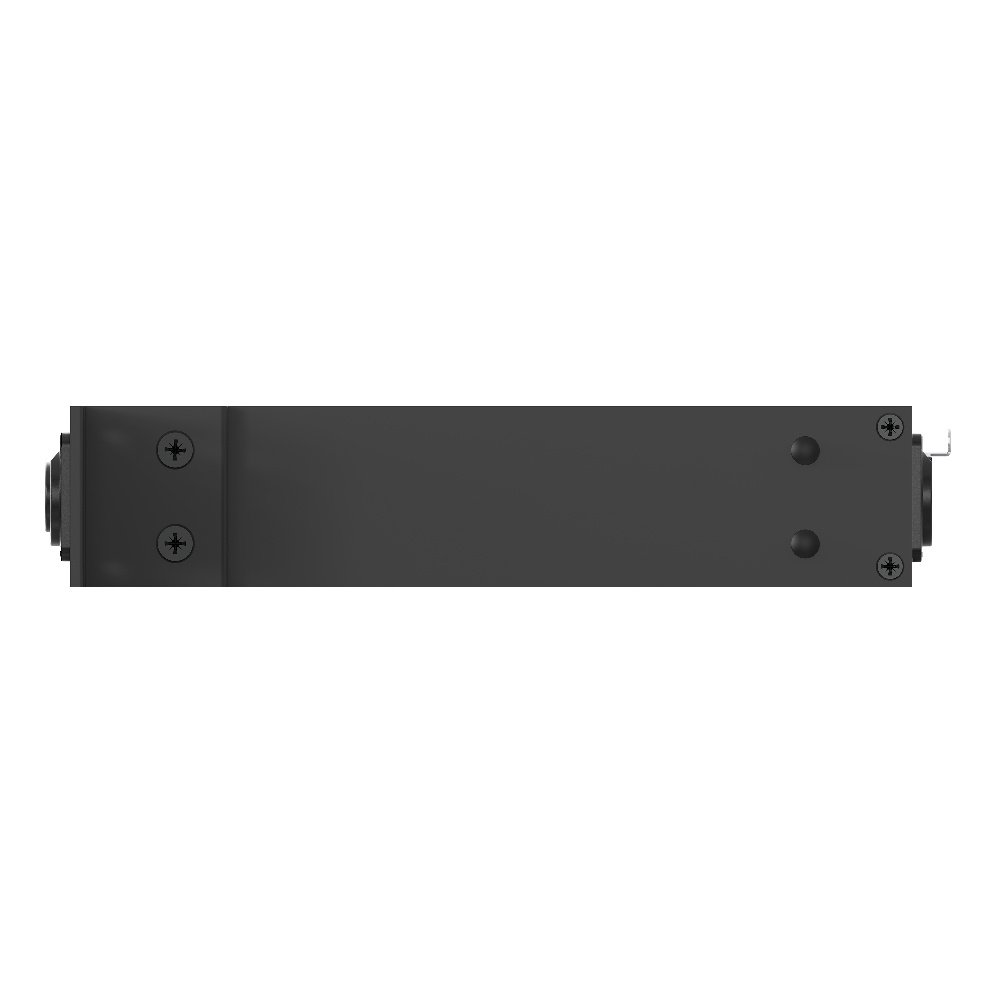

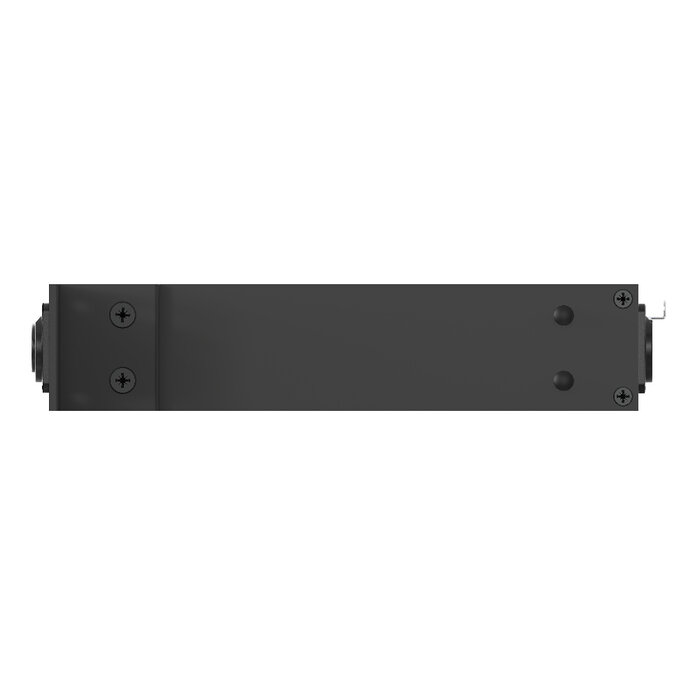

Middle Things Fiber Bridge 10 12G

The Middle Things Fiber Bridge 10 splits a Neutrik opticalCON MTP 24 fiber cable into 10 different OpticalCON Duo pairs + 2x LAN, and vice versa (bidirectional).

Stage box with bidirectional design

With the Fiber Bridge 10 you only have one cable running from the control room to the stage. On stage the Fiber Bridge 10 acts as a stage box that splits the Neutrik opticalCON MTP 24 fiber cable into 10 different OpticalCON Duo pairs + 2x LAN. You can also use it the other way around and merge 10 OpticalCON Duo pairs + 2x LAN into a single opticalCON MTP 24 fiber cable.

Can work without electricity

The Fiber Bridge is a passive splitter, meaning that it does not require power to operate. However, if you plan on using the LAN connection, you will need to supply +12V DC power via the DC jack.

Robust fiber connector

The opticalCON MTP 24 connector makes the Fiber Bridge compatible with Neutrik's robust opticalCON MTP 24 cables, designed for use in the field and harsh environments. The connector has a built-in automatic termination that protects the 12 fiber cores as soon as the cable is disconnected.

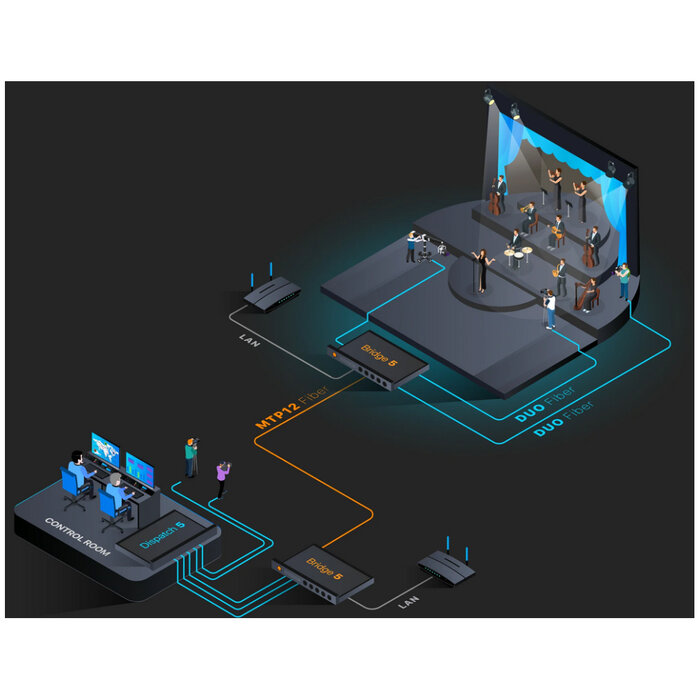

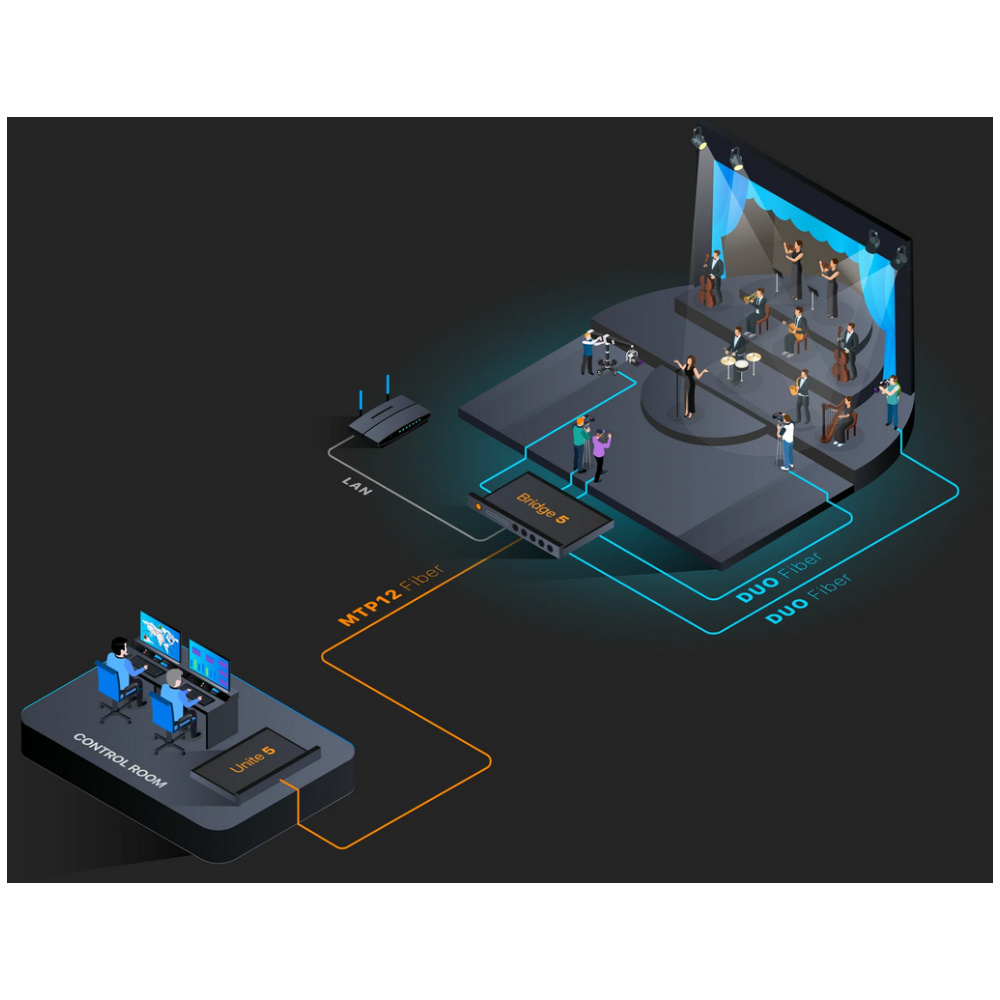

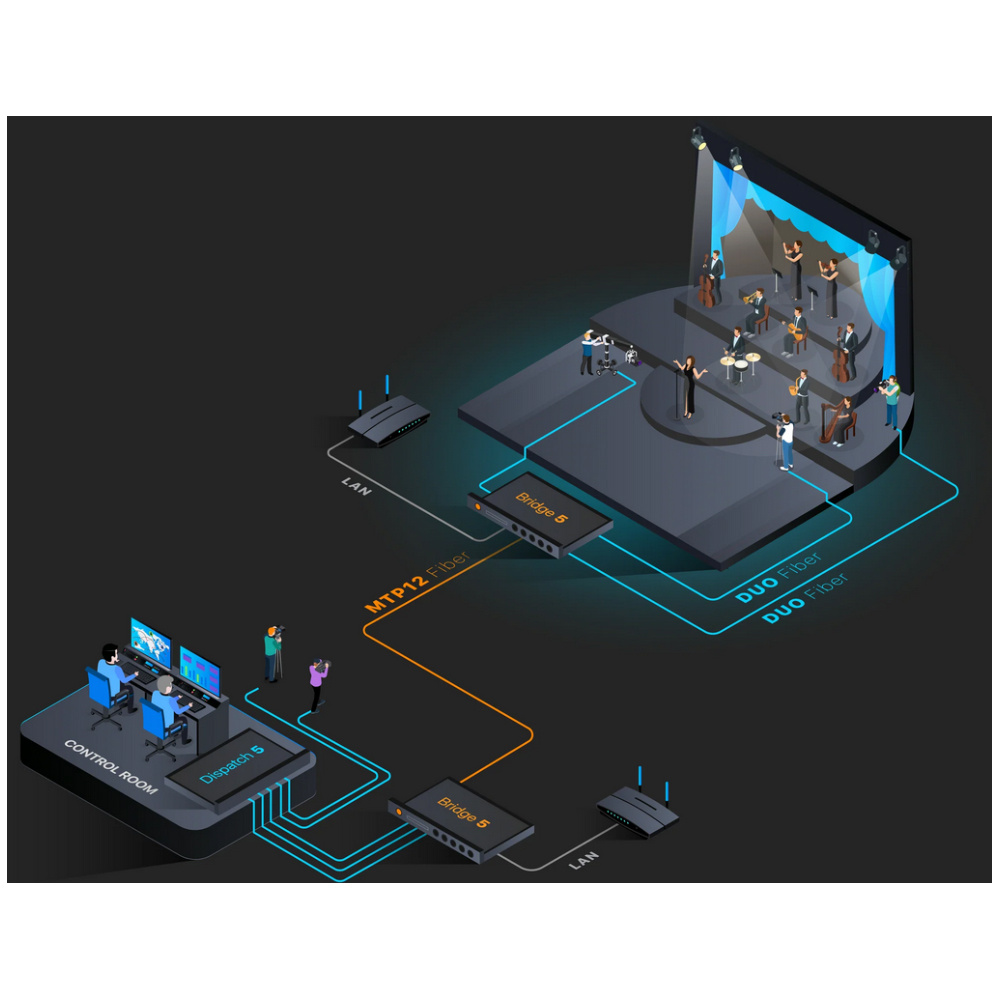

Many possibilities with the Middle Fiber products

In combination with a Fiber Dispatch, a Fiber Unite or a Fiber Camera Box, many configurations are possible that will greatly improve your daily multi-camera workflow!

The Fiber Bridge 10 can be used with the Middle Things Fiber Bridge 10, Dispatch 5 and Fiber Camera Box. It supports single mode LC fiber optic cables and Neutrik OpticalCon Duo and OpticalCon Duo Lite cables. The MTP 24 connector supports OpticalCon MTP 24 cables.
