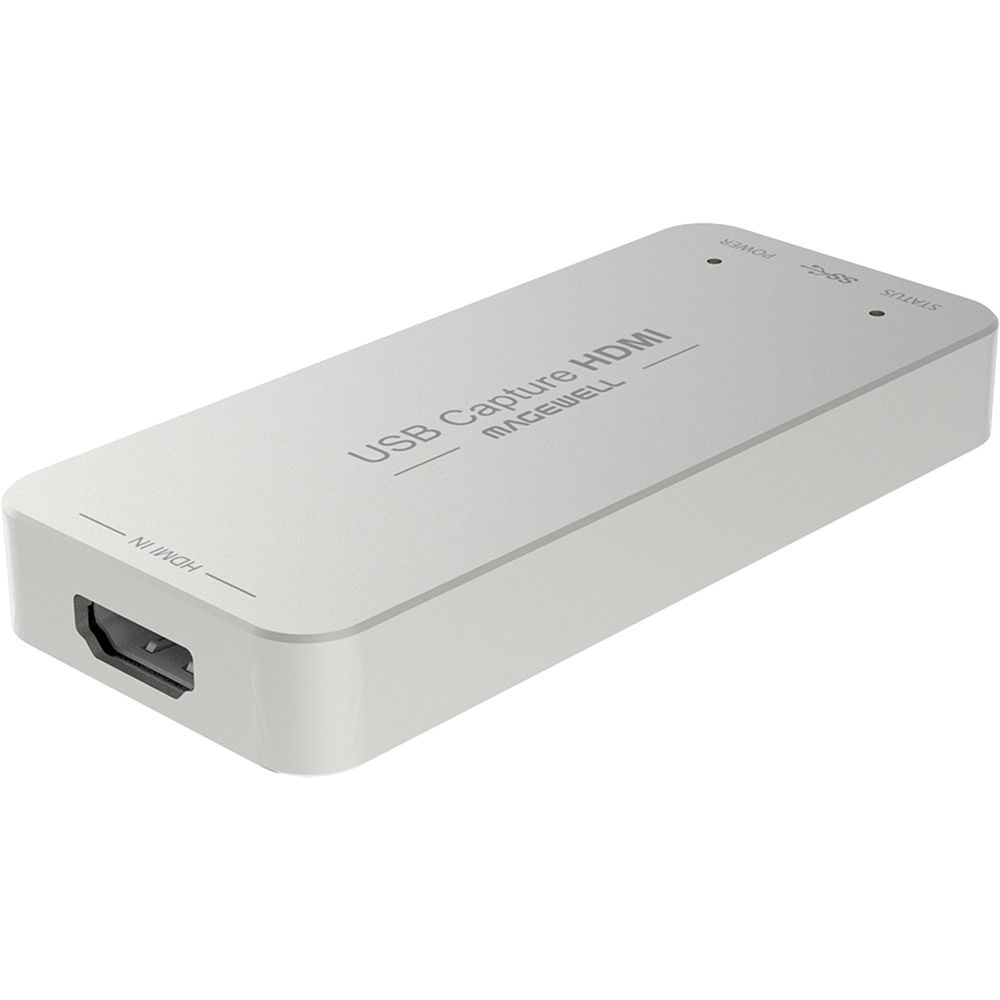

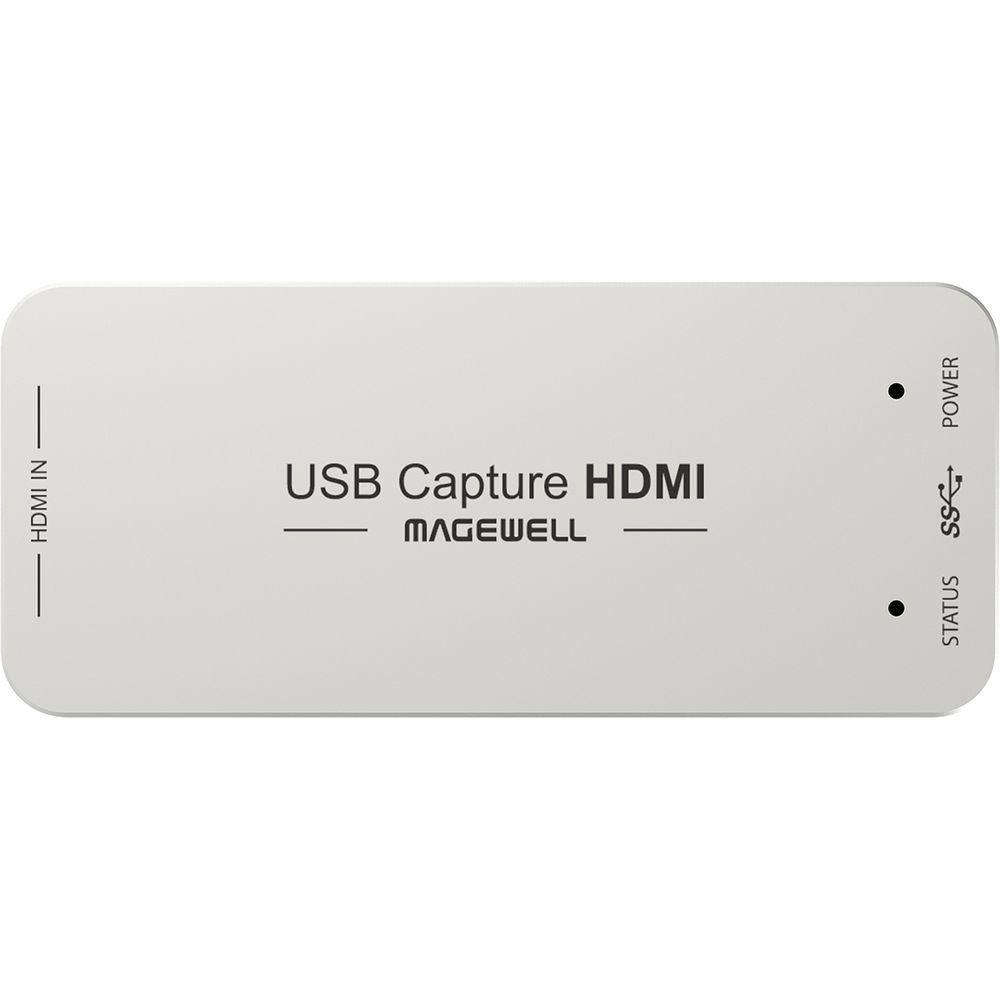

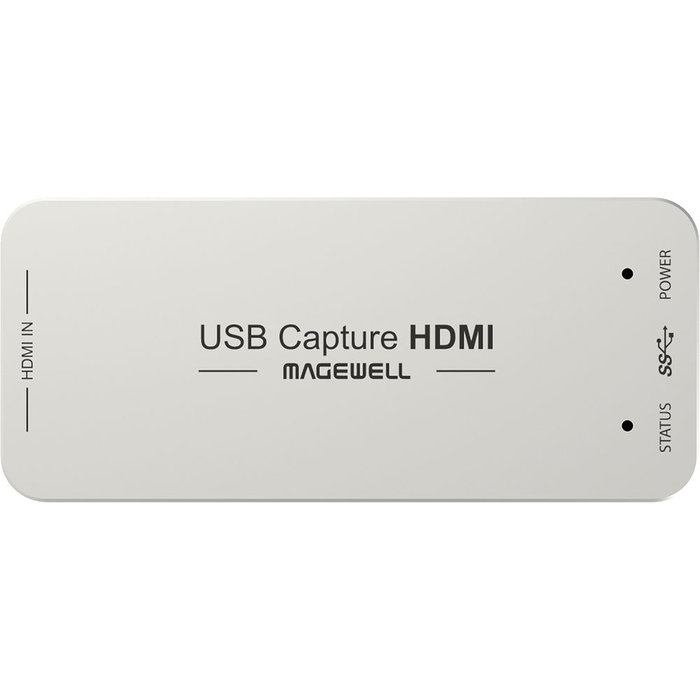

Magewell USB Capture HDMI Gen 2

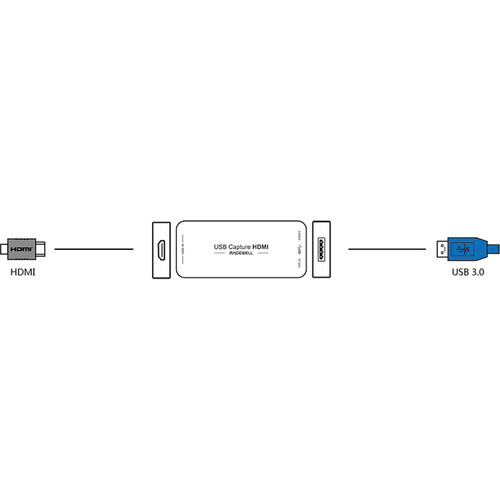

Record or stream an HDMI signal via USB 3.0 with the Magewell USB Capture HDMI Gen 2. With its HDMI v1.4a input, this capture device will accept resolutions of up to 1920 x 1200 at 60p. If you need to stream or record at a certain resolution, the USB Capture HDMI will internally up or down-covert the input signal to the set resolution. It can also perform frame-rate conversion and de-interlacing in real-time with its own hardware, taking the processing load off of your computer's CPU.
Because the USB Capture HDMI uses the existing drivers on your computer, the capture device will work with any software that supports those drivers. If you don't have a USB 3.0 port available, the USB Capture HDMI will work with a USB 2.0 port, although the resolution and frame rate capabilities will be reduced due to the restricted bandwidth.
No drivers needed for Windows, Mac, or Linux
Automatically determines input video format and converts it to the specified output size and frame rate
Automatically converts input audio formats to 48 KHz PCM stereo audio
64MB of DDR2 onboard memory to control frame buffer and avoid interruption or dropped frames when USB bandwidth is occupied
1x Magewell USB Capture HDMI Gen 2
1x USB 3.0 Cable
Host Interface | USB 3.0, 300-350MB/s throughput |
HDMI Input | HDMI 1.4a standard, and support up to 1080p/60Hz 8-bit, (RGB, YUV) |
Output Resolutions | Resolutions: 640×480 / 720×480 / 720×576 / 768×576 / 800×600 / 1024×768 / 1280×720 / 1280×800 / 1280×960 / 1280×1024 / 1368×768 / 1440×900 / 1600×1200 / 1680×1050 / 1920×1080 / 1920×1200 / 640×360 / 856×480 / 960×540 / 1024×576 |
Sampling Rate | HDMI: 165 MHz |
USB Standard | Meets the standards of UVC (USB video class) and UAC（USB audio class） |
Color Space | YUY2, RGB24 |
Scaling | Hardware based |
Image Adjustment | Brightness, contrast, hue, saturation |
Operating System | Windows 7 (x86 and x64 version) |
Software Compatibility | Windows Media Encoder (Windows) Adobe Flash Media Live Encoder(Windows, OS X) Real Producer Plus(Windows) |
APIs | DirectShow (Windows), DirectSound (Windows),V4L2 (Linux), ALSA (Linux) |
Onboard Memory | 64MB DDR2, 16 bits at 300 MHz |
Upgradeable Firmware | Yes |
Power Consumption | <= 2.5W |
Operating Temperature | 32 to 122°F / 0 to 50°C |
Storage Temperature | -4 to 158°F / -20 to 70°C |
Relative Humidity | 5 - 90% |
Dimensions | 3.3 x 1.7 x 0.5" / 84 x 43 x 13 mm |
