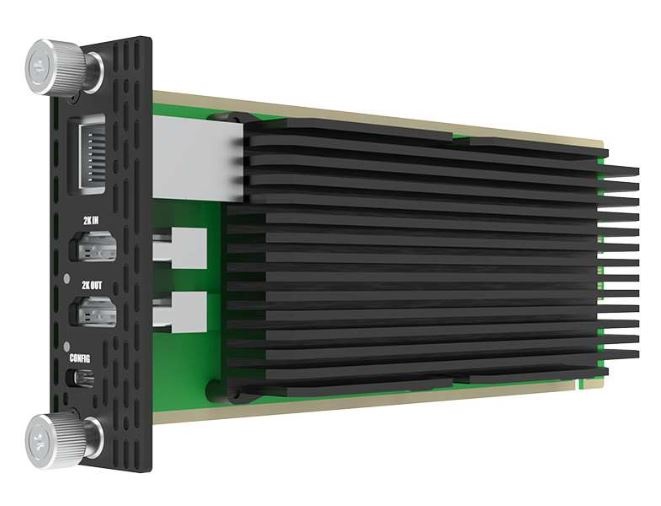

Magewell Pro Convert HDMI Plus Module
Magewell Pro Convert HDMI Plus Module
Converts an HD HDMI input signal into high-bandwidth NDI® with loop-through
A hot-swappable module to be installed in Magewell Modator chassis
Supports up to 4096x2160 60fps (4:2:0) or 30fps (4:4:4), down-converting them to HD NDI
Centrally manageable via the Modator chassis and Magewell Control Hub
Input & Loop-Through Features
Support for up to 4096x2160 4:4:4/4:2:2 30fps or 4:2:0 60fps HDMI input and loop-through
Supports 8-channel HDMI-embedded audio
NDI® Encoding Features
Support for up to 2048x2160 120fps 4:2:2 8-bit NDI encoding
Sends NDI streams across network segments
Encodes 8-channel NDI-embedded audio
Supports NDI 5.x
Features & Advantages
Very low latency
Configure through the touch screen of Magewell Modator chassis, Web GUI or Control Hub
HTTP-based APIs for custom integration
