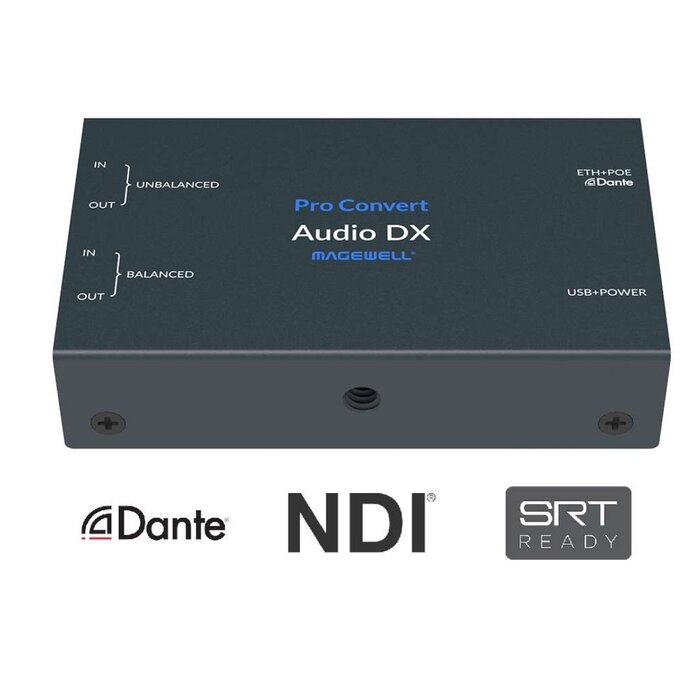

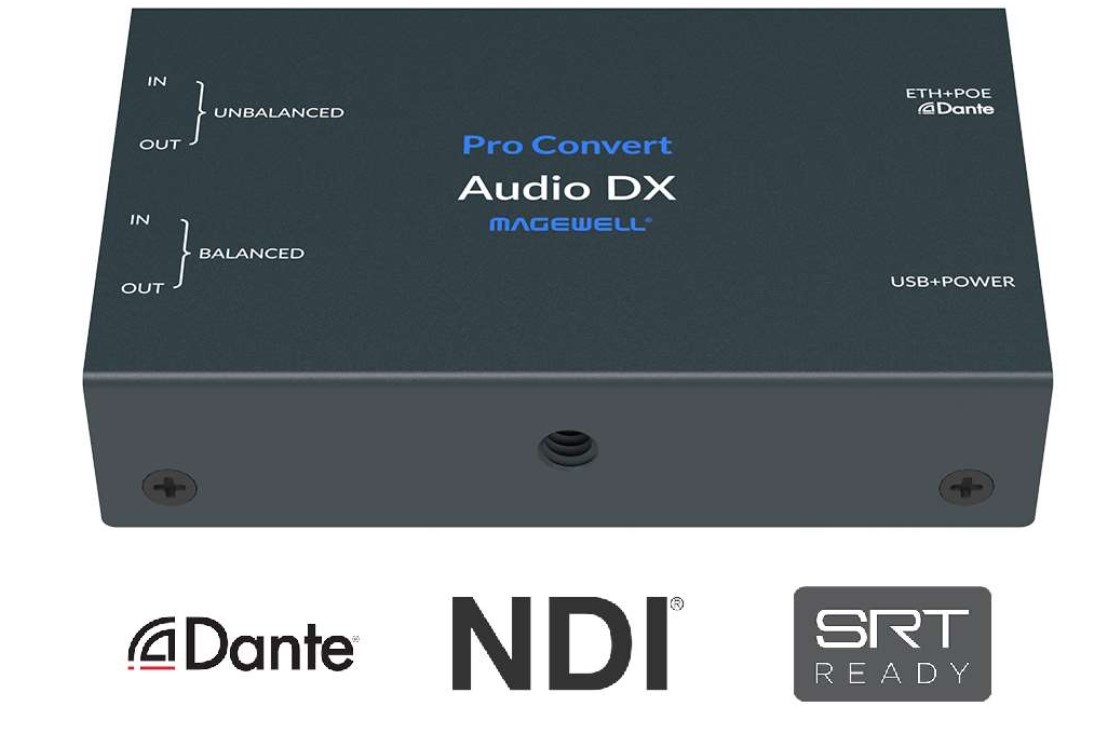

Magewell Pro Convert Audio DX - 64260

The Magewell Pro Convert Audio DX is a highly flexible IP audio conversion and capture device that allows you to easily convert audio between Dante®, NDI® and SRT in multiple directions. It is the ideal device for bridging software, audio and IP networks.

- Analog audio encoding to Dante®, NDI® and SRT.
- Decode IP audio streams to Dante®, NDI® and SRT (analog output).
- Capture audio to your PC or laptop via USB.

Encode, decode and capture audio in many ways
The Magewell Pro Convert Audio DX can encode analog audio to multiple formats and streaming protocols such as Dante®, NDI® or SRT. Decode your IP audio streams to all these formats and protocols for analog output. Capture and save audio streams with the Pro Convert Audio DX by connecting the device to your PC or laptop via USB. UAC compatibility ensures immediate recognition by popular video conferencing, streaming and production software.

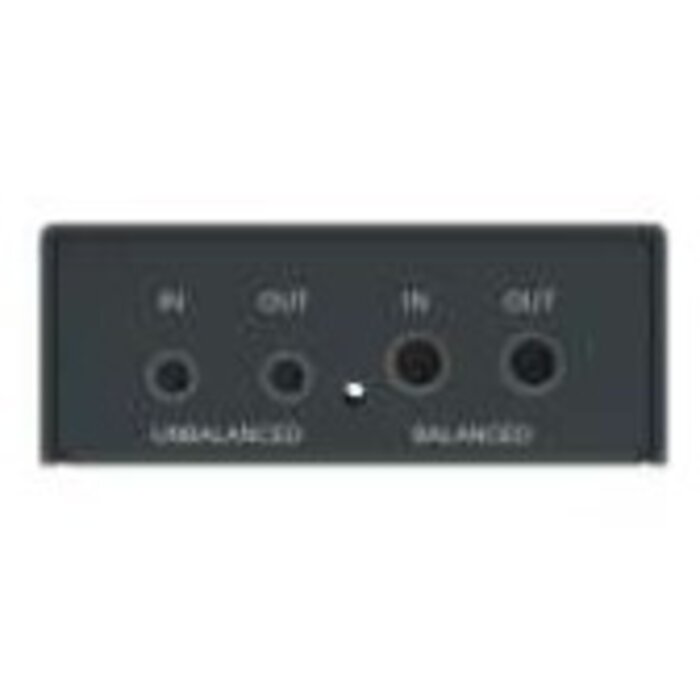

3.5mm in/out
- 1 x 2-channel 3.5mm TRS unbalanced in (5k Ohm)
- 1 x 2-channel 3.5mm TRS unbalanced out (10 Ohm)

4.4mm in/out
- 1 x 2-channel 4.4mm TRRRS balanced in (20k Ohm)
- 1 x 2-channel 4.4mm TRRRS balanced out (150 Ohm)

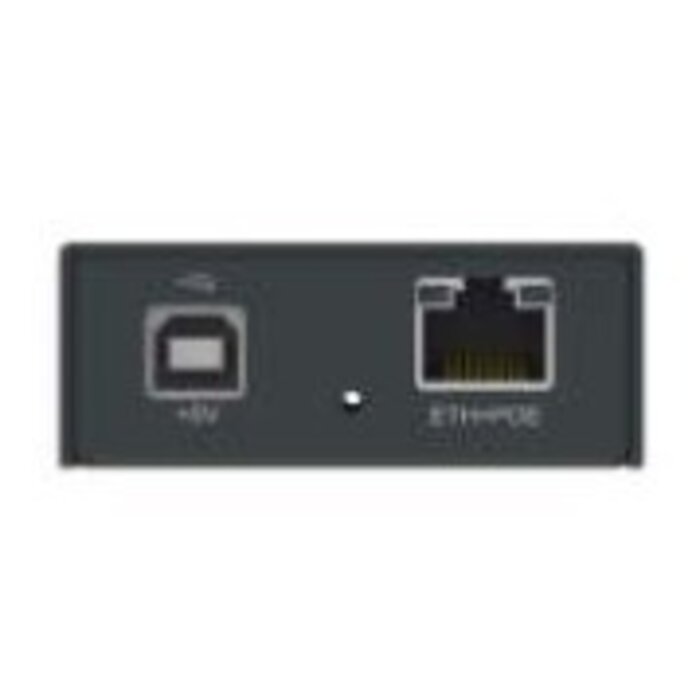

USB-B in/out
- 1 x 4-channel 24-bit/48k USB Audio in and out

ETH in/out
- Receive and encode 24-bit 8-channel Dante® stream
- Receive and encode 1 x 4-channel 16-bit NDI® audio stream
- Receive and encode 1 x 4-channel 16-bit SRT audio stream

Audio mixing and routing
The Magewell Virtual Audio Matrix allows users to easily route and mix any analog or IP-based input channel to any IP, analog or UAC output. The Matrix is accessible via the Web GUI and requires no software installation.

Input/Reception Functions
- 1 x 2-channel 3.5mm unbalanced in
- 1 x 2-channel 4.4mm balanced in
- 1 x 4-channel 24-bit/48k UAC in
- Receiving 8-channel 24-bit Dante® streams in unicast or multicast
- Simultaneous reception of 1 x 4-channel 16-bit SRT/NDI® audio stream

Output/Shipping Functions
- 1 x 2-channel 3.5mm unbalanced output
- 1 x 2-channel 4.4mm balanced output
- 1 x 4-channel 24-bit/48k UAC output
- Encoding of 8-channel 24-bit Dante® streams in unicast or multicast
- Simultaneous encoding of 1 x 4-channel 16-bit audio for RTSP/SRT/NDI® audio streams

Audio routing and mixing features
- Any analog or IP-based input channel can be routed and mixed to any analog, IP or UAC output via a web-based user interface

Other
- Dante Controller support, for signal routing and configuration
- Plug and play as UAC device
- Extensive information about the device and signals in real time
- Remote control via Web GUI and Magewell Cloud
- HTTP APIs provide
