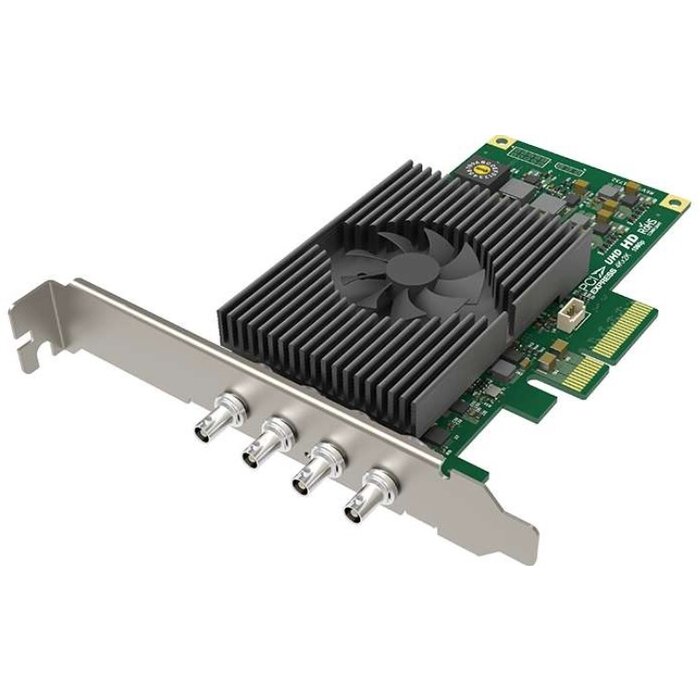

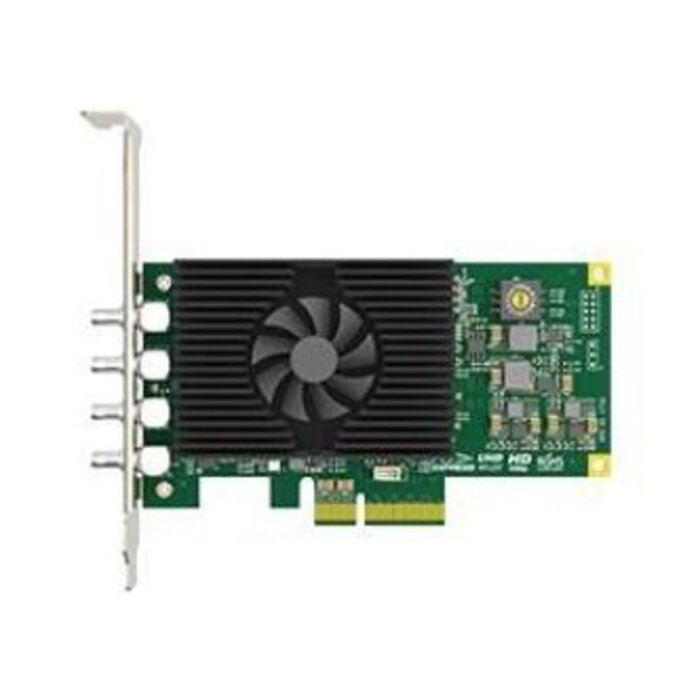

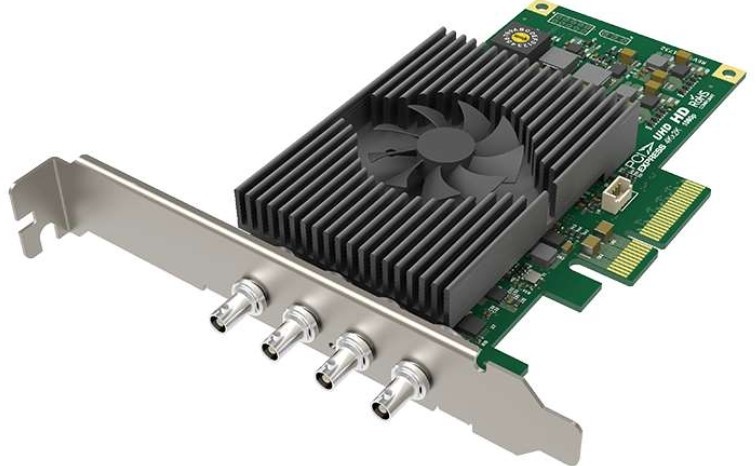

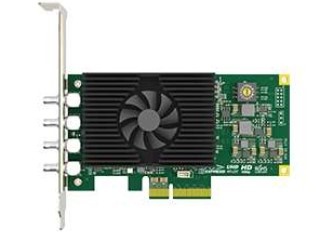

Magewell Pro Capture SDI 4K Plus
The Magewell Pro Capture SDI 4K Plus is a High-performance, low-latency PCIe capture card. This One-channel 4K PCI card captures one 12G-SDI signal in either a Single-link 12G-SDI, Dual-link 6G-SDI, or Quad-link 3G-SDI connecting method. The Magewell Pro Capture SDI 4K Plus supports input resolution up to 4096×2160 pixels.
These models automatically detect the input signal format, delivering reliable, high-quality video and audio capture for video professionals, systems integrators, and OEM developers. Moreover, All Pro Capture models feature Magewell’s FPGA-based, zero-CPU-usage video processing, providing high-quality up/down conversion and image adjustments without consuming valuable host system processing power.
Pro Capture devices support Windows, Linux and macOS operating systems – including x86, x64 & ARM architectures – and offer extensive compatibility with popular streaming, live production, web conferencing, lecture capture, collaboration, and medical imaging software. The Magewell MWCapture SDK provides both generic interfaces and custom APIs across OS platforms, helping developers leverage the full capabilities of Magewell capture hardware and achieve lower-latency, multi-stream capture and AV synchronization across multi-channel or even multiple capture cards.
One-Channel 4K Capture Card

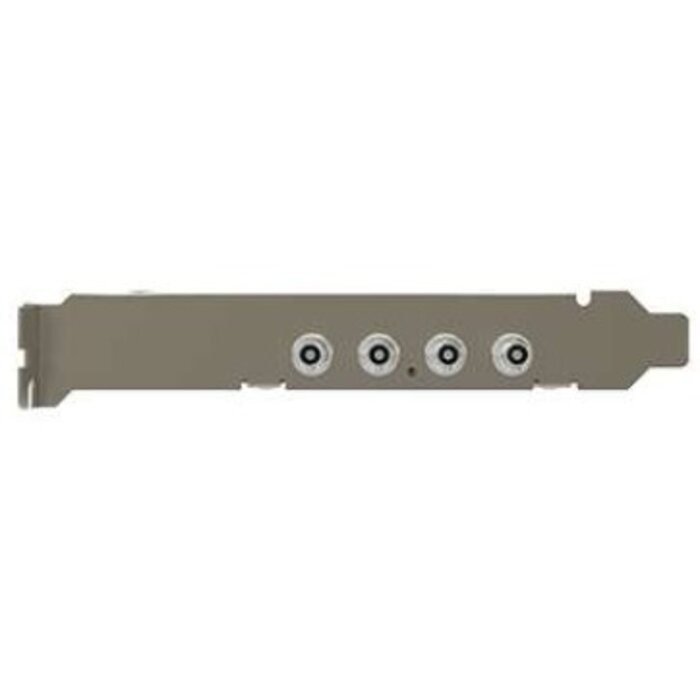

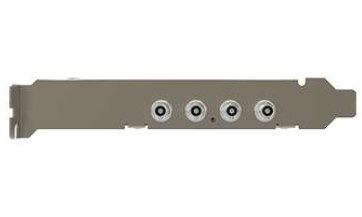

Capture one 12G-SDI signal in one of the following connecting methods:
- Single-link 12G-SDI
- Dual-link 6G-SDI
- Quad-link 3G-SDI
- SD/HD/3G/2K/6G/12G SDI x1
- SD/HD/3G/2K/6G SDI x1
- SD/HD/3G/2K/SDI x2
- Support input resolution up to 4096×2160 pixels
Interface
Input Interface
Host Interface
PCIe Gen2 x4
Video Engine
10-bit video processing
Deinterlace
Cropping
Color Adjustment
Hardware Timestamp
Color Space Conversion
Up/down Conversion
Aspect Ratio Conversion
OSD
SG-DMA Transmission mode
Signal Detection & Support
Auto Detection of Input Signal Format
Time Code
Closed Caption
Software Environment
OS
Windows, Linux, Mac
Driver and Firmware
Universal Driver, Updatable Firmware
Included Software
Capture Express
Compatible Software
Others
Multiple Capture Streams
Low Latency Mode
Multiple Devices on One Host
Mounting Hole
Continuously Work for 24hx7
High-speed Memory
LED Status Indicator
Rotary Switch
Windows, Linux and Mac SDK
2-year Warranty
