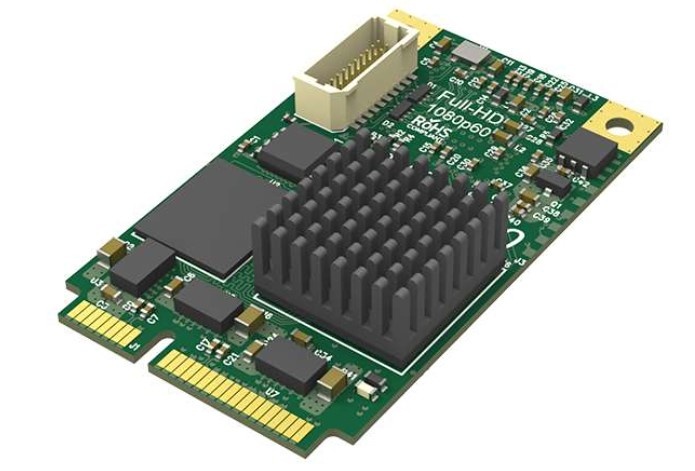

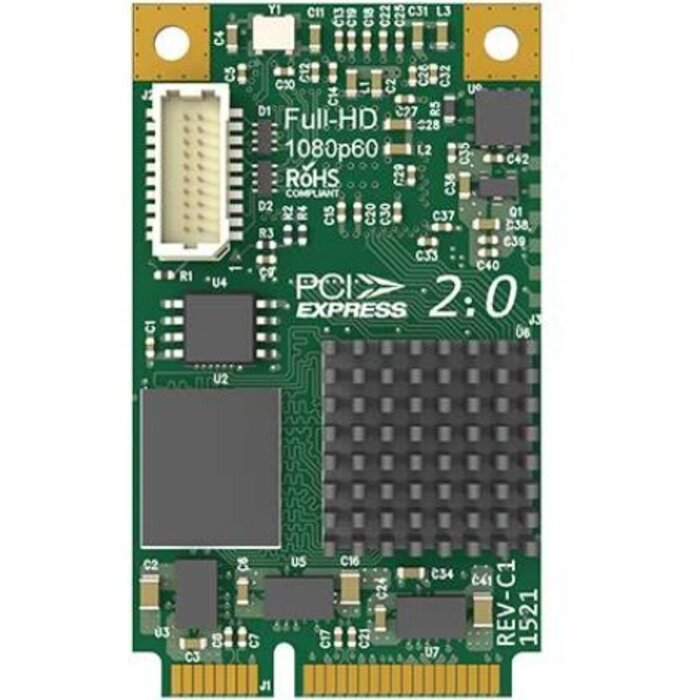

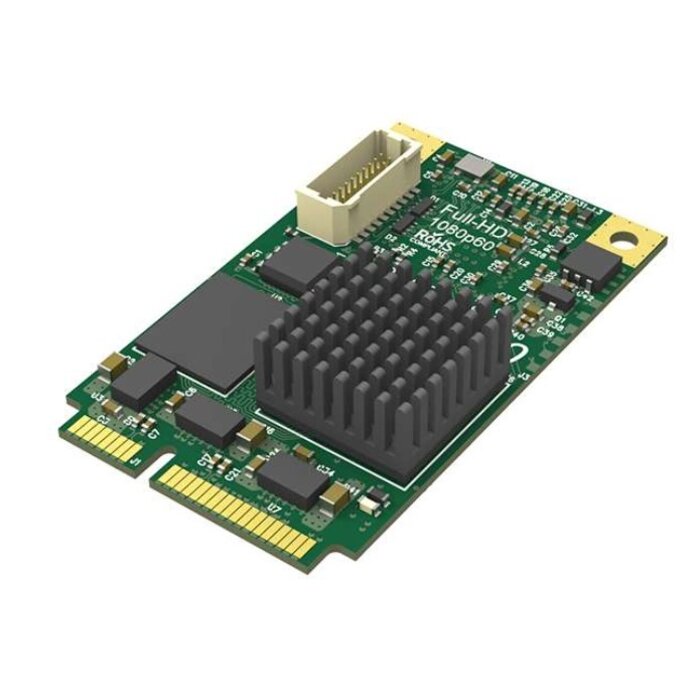

Magewell Pro Capture Mini HDMI - 11110

Interface

Input Interface

• HDMI x1
• Support input resolution up to 2048×2160 pixels

Host Interface

Mini PCIe Gen2 x1

Video Engine

10-bit video processing

Deinterlace

Cropping

Color Adjustment

Hardware Timestamp

Color Space Conversion

Up/down Conversion

Aspect Ratio Conversion

OSD

SG-DMA Transmission mode

Signal Detection & Support

Auto Detection of Input Signal Format

3D HDMI

Time Code

Software Environment

OS

Windows, Linux, Mac

Driver and Firmware

Universal Driver, Updatable Firmware

Included Software

Capture Express

Compatible Software

50+
