Magewell Eco Capture SDI 4K Plus M.2
Magewell Eco Capture SDI 4K Plus M.2

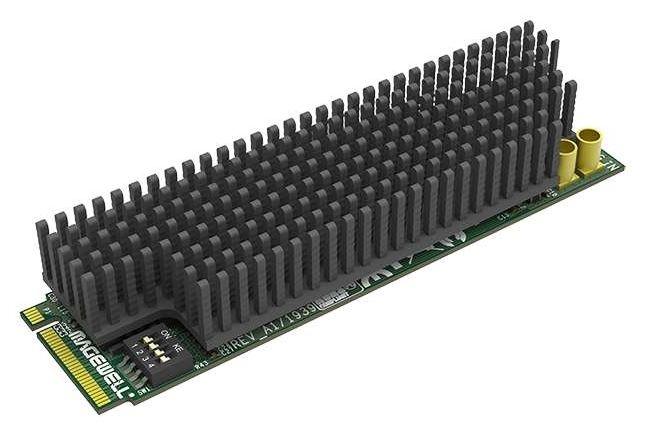

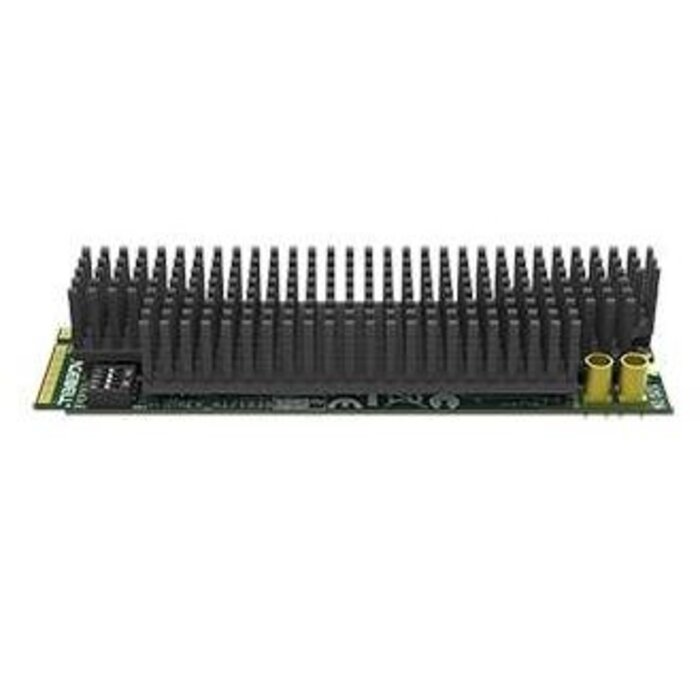

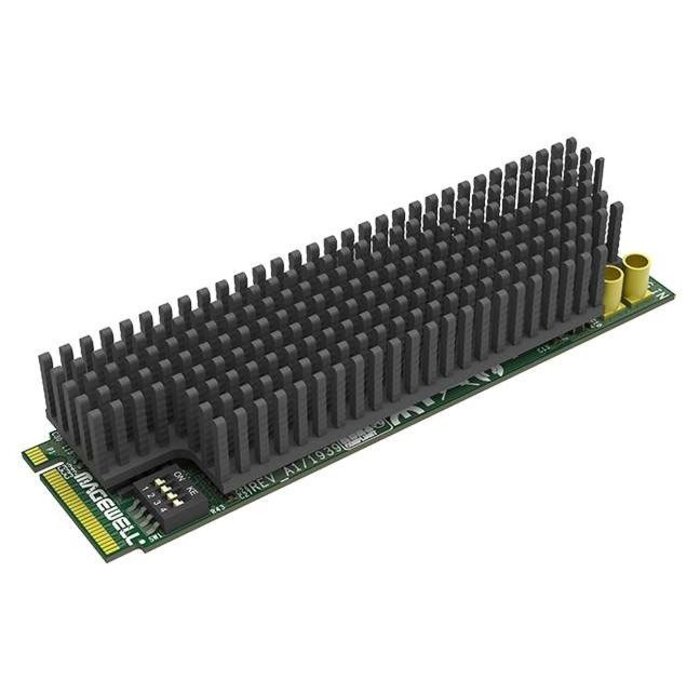

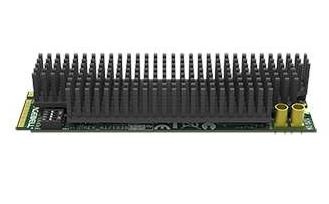

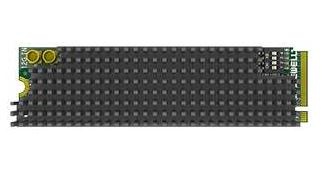

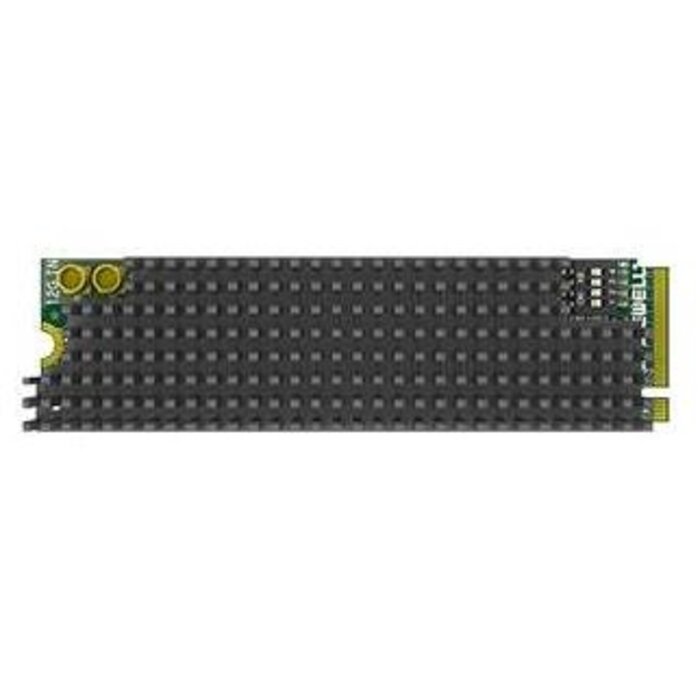

The Magewell Eco Capture SDI 4K Plus M.2 is a single-channel 4K SDI capture card with connection for a M.2 slot. This Eco card supports video capture for SD/HD/3G/6G/12G SDI signals up to 4096×2160 pixels per channel input with embedded audio, and high-frame rate capture up to 144fps. In addition, this card supports Loop-through SD/HD/3G/6G/12G SDI + embedded audio. These cards (22x80mm) are designed for small and portable systems that do not have space for full-size PCIe slots.
The Magewell Eco Capture M.2 cards offer high-performance and powerful video capture solutions with low power consumption. The Magewell SDK enables developers to customize the Magewell APIs for lower-latency capture and synchronize channels across multi-channel or even multiple capture cards.
- Single channel 4K capture card
- Captures SD/HD/3G/6G/12G SDI + embedded audio
- Loop-through SD/HD/3G/6G/12G SDI + embedded audio
How to connect Magewell Eco Capture cards?
The Magewell Eco Capture SDI 4K Plus M.2 supports one SD/HD/3G/6G/12G SDI input and one Loop-through SD/HD/3G/6G/12G SDI + embedded audio, which can be connected via the included MMCX to SDI breakout cables.
- SD/HD/3G/6G/12G SDI
- Support input resolution up to 4096×2160 pixels
Interface
Input Interface
Loop-through Interface
SD/HD/3G/6G/12G SDI
Host Interface
M.2(PCIe Gen2 x4)
Video Engine
10-bit video processing
Deinterlace
Cropping
Color Adjustment
Hardware Timestamp
Color Space Conversion
Up/down Conversion
Aspect Ratio Conversion
SG-DMA Transmission mode
Signal Detection & Support
Auto Detection of Input Signal Format
Closed Caption
Software Environment
OS
Windows, Linux
Driver and Firmware
Universal Driver, Updatable Firmware
Included Software
Capture Express
Compatible Software
Others
Low Power Consumption
Multiple Replicated Capture Streams
Low Latency Mode
Multiple Devices on One Host
Mounting Hole
Continuously Work for 24hx7
Windows & Linux SDK
2-year Warranty
Dip Switch
LED Status Indicator
