Lumantek ez-HSV+ HDMI to 3G-SDI converter
You can easily monitor HDMI video with ez-HSV+. Features you can check are audio bar, incoming resolution and scaled resolution. The ez-HSV+ comes with the ability to embed external audio as well.
Functions
Live monitoring

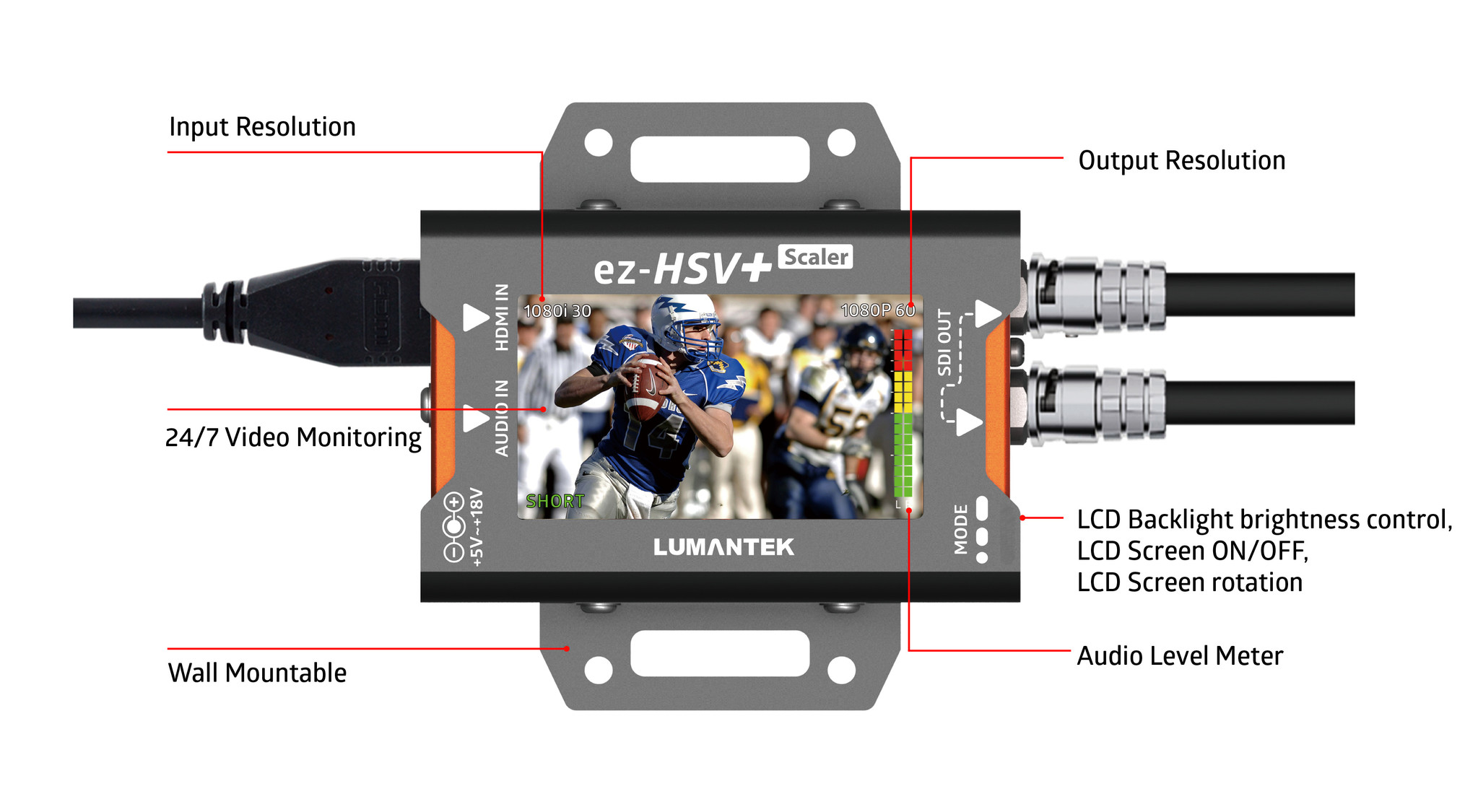

Via the 2.7 inch TFT LCD screen you can easily monitor the resolution of the input and output and the cable length.
Scalable resolution / screen ratio control
The ez-HSV+ can change the resolution of the incoming video to any resolution from 480i to 1080p60. You can also change the aspect ratio. You can choose from a screen ratio of 16:9 (Full) or 4:3 (Pillar Box. All these functions are switched by 'dip switches'.
Flexible mounting
The ez-HSV+ comes with mounting ears for mounting to a rack.
Cable length automatically detected

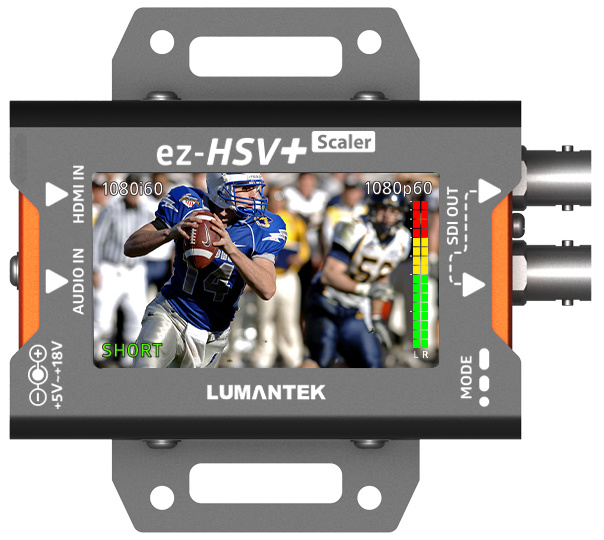

ez-HSV+ automatically detects cable lengths up to 190 m at 3G-SDI. The cable length is shown as 'SHORT', 'MEDIUM' and 'LONG'.
Low energy consumption
The maximum power consumption of the ez-HSV+ is less than 3 watts. Flexible voltage from 5V~18V
†
Data Input | |
Analog Audio Input | Stereo Jack x 1 |
HDMI Video Input | SD/ HD/ 3G (HDMI Type A) x 1 |
Video Formats | – [email protected]/60 |
Data Output | |
SDI Video Output | SD/HD/3G-SDI (BNC 75Ω) x1 |
Video Formats | – [email protected] (DIP SW : 1111) |
Connections | |
power | DC Power Input (DC Jack) x1 |
DIP Switch | (6 Pole) x1 Video In/Out Resolution, Video Output Ratio, Audio (INT. or EXT.) |
FASHION | (Push Switch) x 1 LCD ON/OFF, Menu Selection |
Display | |
2.7 inch TFT LCD | Input Video Display, In/Output Video Resoltuon Display, Input Audio Level Meter Display |
Electrical | |
Power Input | DC + 5V to + 18V |
Power Consumption | 4W (max.) |
Operation Temperature |
0~45℃ |
Physical | |
Dimension | 86.3×57.2×26.6 (include connector) |
weight | 0.3 kg(typ.) |
†
Lumantek EZ-HSV+ HDMI to SDI Converter with Display and Scaler
12 VDC Power Adapter
