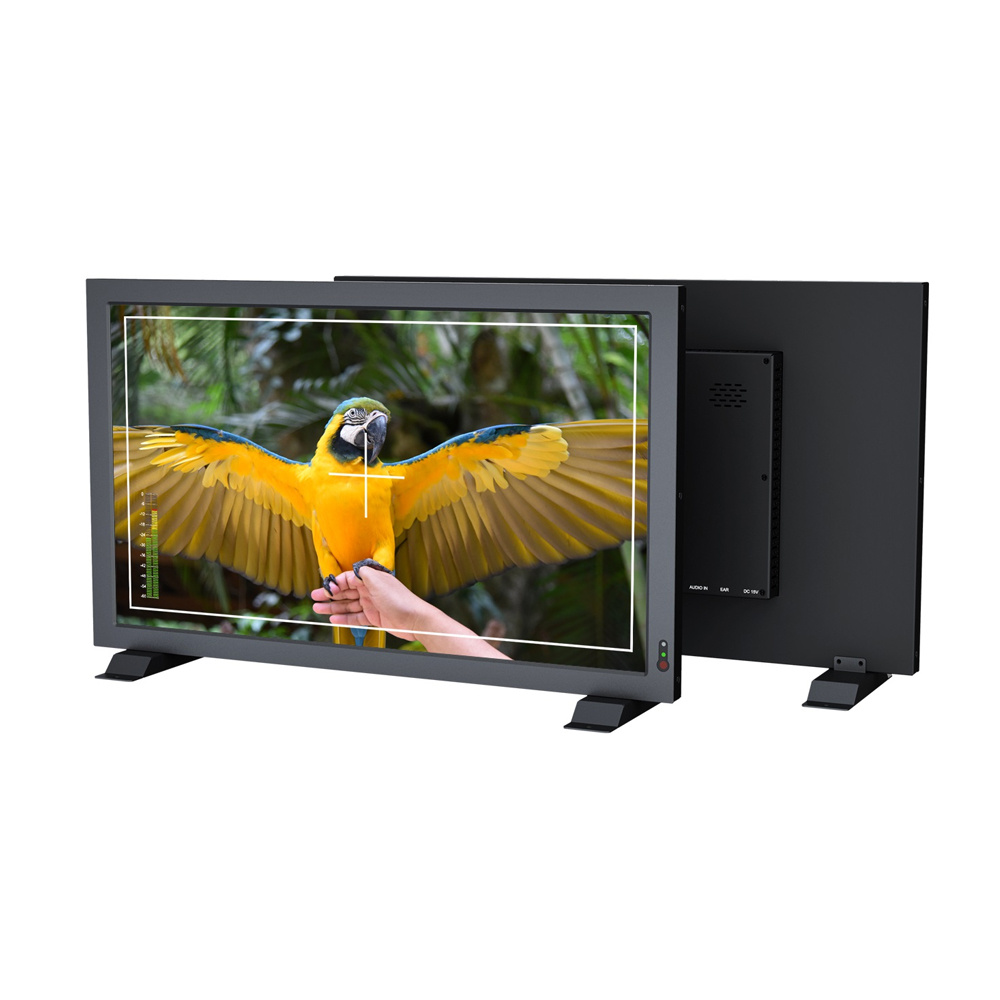

Lilliput PVM210S 21.5 inch SDI/HDMI Monitor
Add a professional monitor to your 4K broadcast studio or field production with this Lilliput PVM210 21.5" 3G-SDI and HDMI Professional Production Monitor. The 21.5" LCD panel has a resolution of 1920 x 1080, a viewing angle of 170° , a contrast ratio of 1500:1 and a brightness of 1000 cd/m², and supports HDR and Rec.709 color space.
The monitor can input up to UHD 4K 3840 x 2160p30 video via the HDMI input. There is also a 3G-SDI, VGA input and an RCA input. Audio support includes support for 24-bit 48 kHz embedded audio, two speakers and a 3.5 mm headphone output.
- Power supply
- HDMI AA cable
- VGA cable
- Analog audio video cable
- Desktop feet
- User manual
display
panel type | LCD |
Display Size | 21.5" / 54.6cm |
Resolution | 1920x1080 |
aspect rate | 16:9 |
View Angle | Horizontal: 170° |
Touch screen | no |
Maximum Brightness | 1000nits/cd/ m2 |
Contrast Ratio | 1500:1 |
HDR Compatibility | Hybrid Log Range |
Pixels Per Inch (ppi) | 102 ppi |
Real Time LUT Monitoring | no |
Video I/O | 1 x HDMI 1.4b Input |
Embedded Audio | HDMI: 8 Channel |
Audio I/O | 1 x 2RCA Line Input |
Built-In Speaker | 2 |
Power I/O | 1 x Barrel Input |
Other I/O | 1 x USB-A Input |
Media/Memory Card Slot | None |
Wi Fi | None |
Format Support
Video Format | HDMI |
Gamma Curve | Rec709 |
Power
DC InputPower | 12 to 24 VDC |
Power Consumption | 36W (Maximum) |
mounting
Mounting-Hole Pattern | 100x100mm, 75x75mm |
Environmental
Operating Temperature | 32 to 122°F / 0 to 50°C |
Storage Temperature | -4 to 140°F / -20 to 60°C |
General
dimensions | 20.7 x 12.3 x 0.8" / 524.8 x 313.3 x 19.8mm |
Weight | 10.6lb / 4.8kg |
