Name: Lilliput Lilliput FS5 - 5.4" HDMI 2.0 & 3G-SDI
Brand: Lilliput
SKU: FS5
Price: 275.00 EUR
Availability: InStock

Description

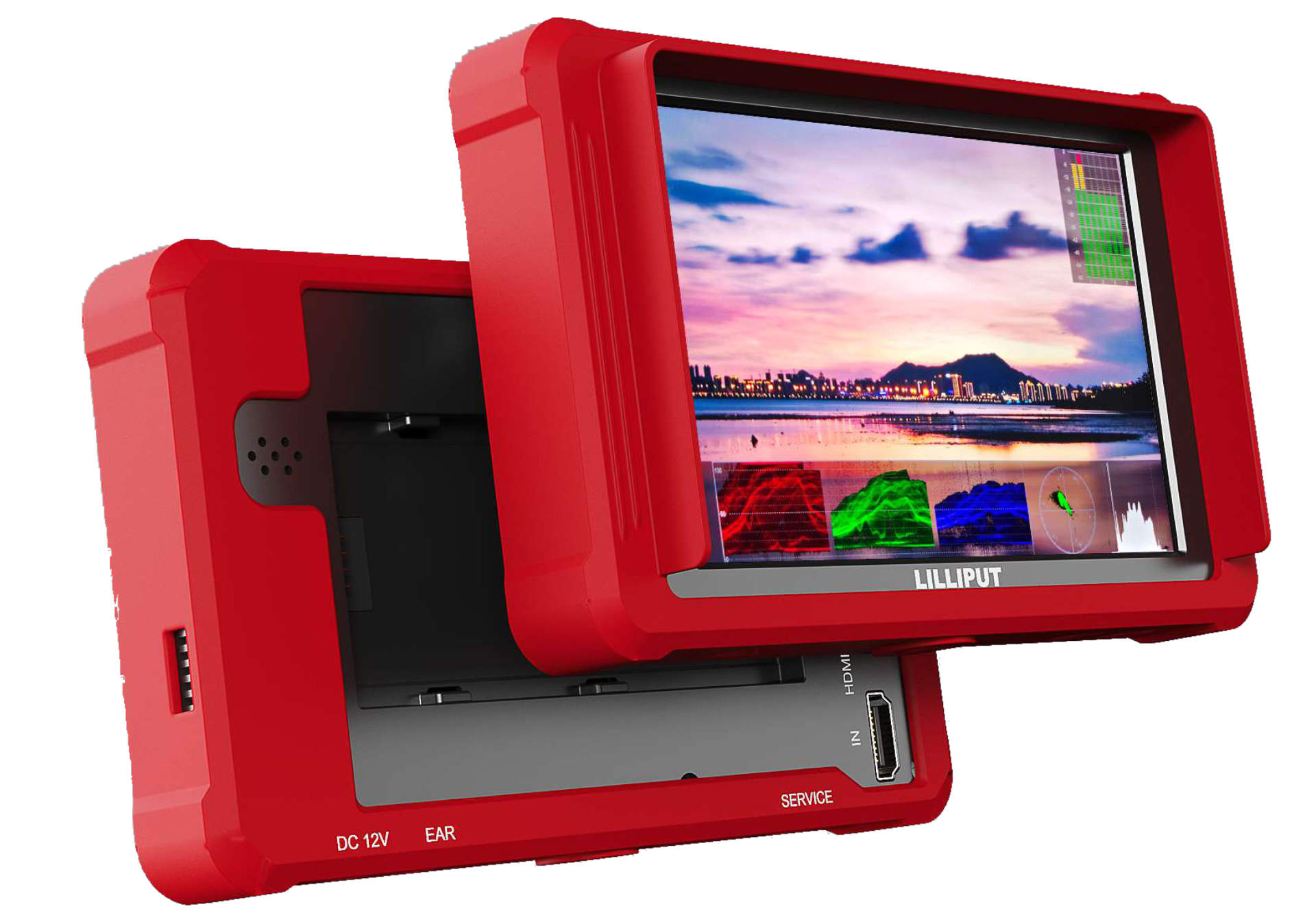

The Lilliput FS5 is a top of the range 5" monitor unit, designed to suit the needs of the portable 4K video shooter. With a built in 1920 x 1200 screen and with the capability to show a 4K 60Hz input (via HDMI 2.0), the FS5 suits most needs for a portable, reliable 5" monitoring solution.

FS5 has 5.4” 1920 x 1200 Full HD monitor with silicone case.

Technische specificaties

DISPLAY:

Panel 5.4 LTPS
Physical Resolution 1920x1200
Aspect Ratio 16:10
Brightness 600cd/m2
Contrast 1100:1
Viewing Angle 160°/ 160° (H/V)
HDR ST 2084 300/1000/10000 / HLG
Supported Log Formats Slog2 / Slog3, Arrilog, Clog, Jlog, Vlog, Nlog or User...
LUT Support 3D LUT (.cube format)
INPUT
3G SDI 1
HDMI 1 (HDMI 2.0, supports up to 4K 60Hz)
OUTPUT
3G SDI 1
HDMI 1 (HDMI 2.0, supports up to 4K 60Hz)
FORMATS
SDI 1080p 60/50/30/25/24, 1080pSF 30/25/24, 1080i 60/50, 720p 60/50...
HDMI 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080i 60/50, 720p 60/50...

AUDIO

Speaker 1
Ear Phone Slot 1

POWER

Current 0.75A (12V)
Input Voltage DC 7-24V
Battery Plate NP-F / LP-E6
Power Consumption ?9W

ENVIRONMENT

Operating Temperature -20°C to 50°C
Storage Temperature -30°C to 70°C

DIMENSIONS

Dimension(LWD) 154.5x90x20mm
Weight 295g
