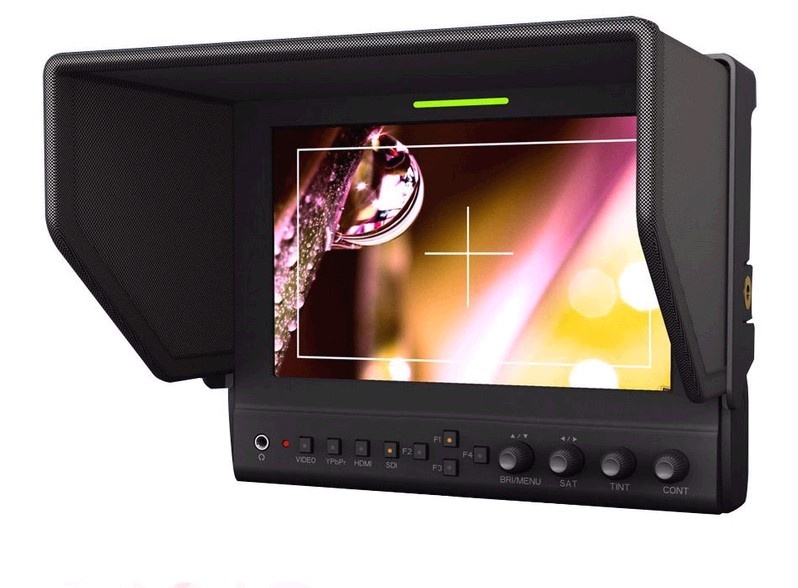

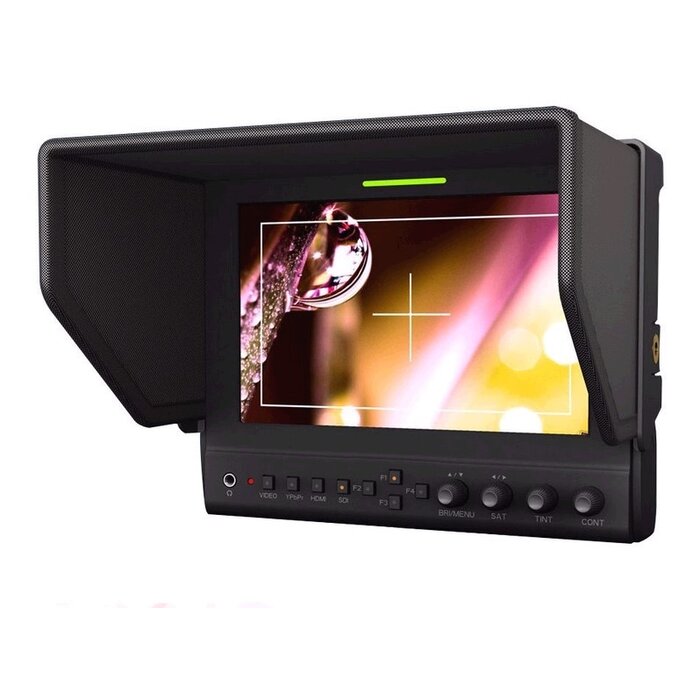

Lilliput 663 O P2 - 7 inch LCD Monitor 1280x800 HDMI I/O
The Lilliput 663 / o / P2 is a control monitor for DSLR and video with HDMI IN / OUT interface
Due to the additional component inputs as well as the composite input, this monitor is suitable for almost all purposes.
VERY STABLE AND HIGH-QUALITY METAL HOUSING - SUITABLE FOR DAILY USE!
The high-quality IPS display allows to judge brightness and color from every angle.
The side and bottom 1/4 inch thread makes the monitor easy to mount.
New model with features like waveform graphics, vector graphics and video analyzer
- Histogram: Brightness, Chroma, and RGB Histogram
- Waveform graphics: Y / Luminance, Cb, Cr, R, G, and B waveform graphics
- Vector graphics
- peak focus help (peaking)
- Zebra, audio frequency histogram, etc.
- Tally display

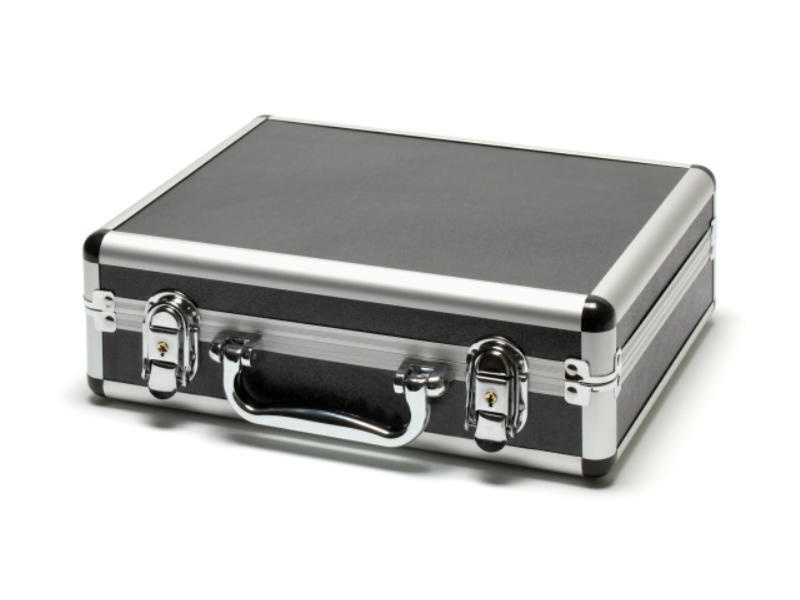

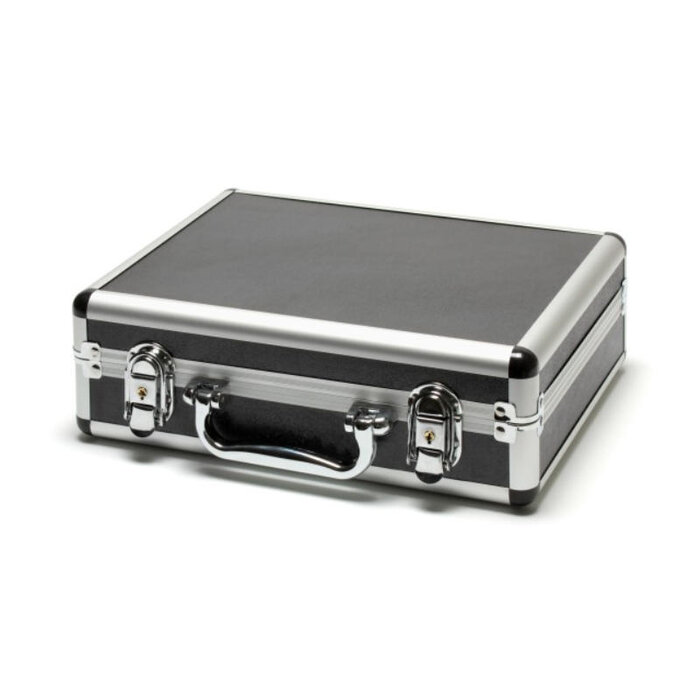

- Well padded and sturdy aluminum carrying case with keys
- Battery adapter plate for Canon battery type LP-E6 and Sony NP-F types are included.
Included:
1 x AC power supply 100-240 volts - 12 volts 1.5A
1 x flash joint shoe
1 x sun visor
1 x table base for use as a control monitor on the table with freely adjustable angle
1 x intermediate plate for mounting a V-mount battery plate
1 x Tally Light adapter cable
1 HDMI cable A-C
- Viewing angle: 178°/178°(H/V) ( IPS panel )
- Metal housing
- Impressive 7 inch (16:9) screen size
- Resolution 1280x800
- Contrast 800:1

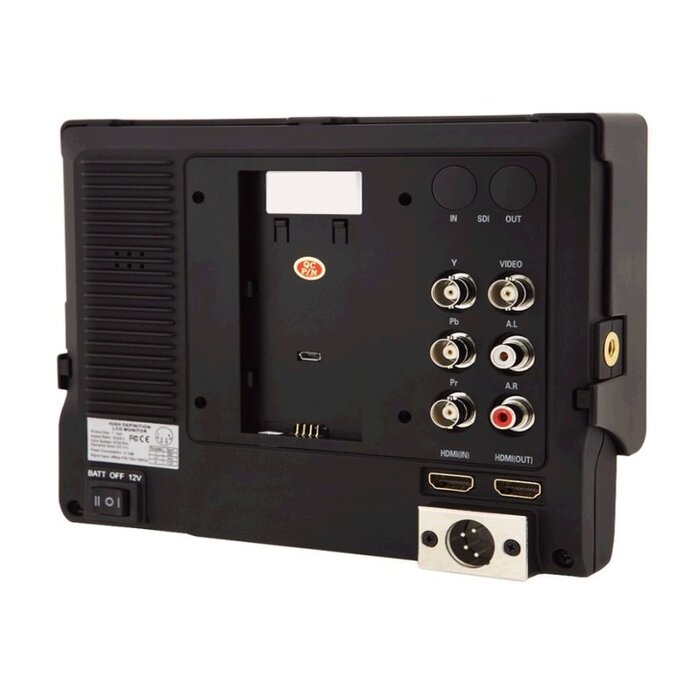

- HDMI input
- HDMI output
- YPbPr (3BNC)
- 16:9 format
- 4 users - definable buttons (F1, F2, F3, F4)
- Peaking filter function
- Exposure
PIP
• False Color
• Color Bar
• Check Field
• H/V Delay
• Histogram
• Center Marker
• Screen Marker
• Underscan
• Pixel-to-Pixel
• 8 x Zoom
• Flip H/V
• Backlit Control
• Camera Mode
• Aspect Ratio
• Freeze Input - integrated headphone connection
- Powered by AC adapter or Sony NP-F batteries
- large lens hood - good for outdoor shots
