Lilliput BM150-4KS - 15.6" 4K monitor with 3D LUTS and HDR

The V-Mount cannot be used if a VESA mount is installed.

The Lilliput BM150-12G is a 15.6 inch field monitor with UHD resolution (3840 x 2160 pixels) and a professional 8-bit FRC IPS panel for the best image quality at 330 cd brightness.

According to experts, an 8-bit FRC panel reproduces the colors / grayscale even better than a pure 10-bit panel.

It is powered by V-Mount batteries or by the included power supply.

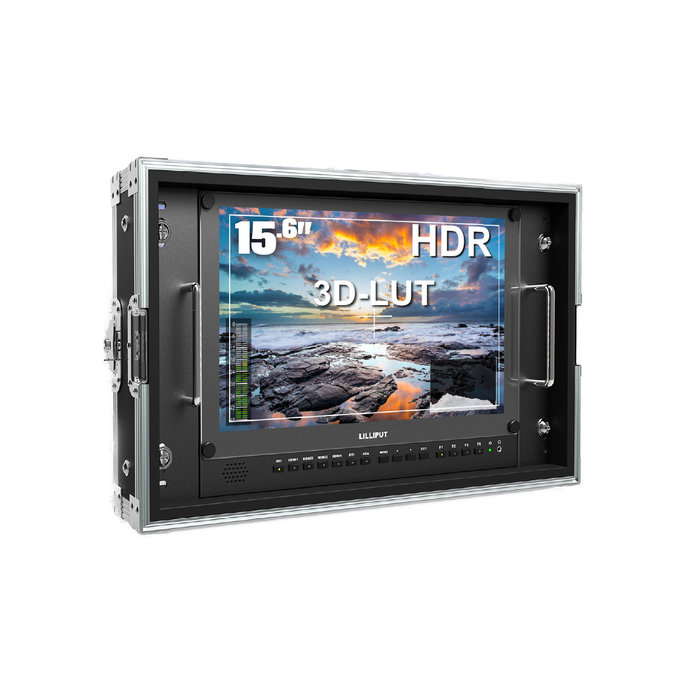

The monitor is delivered built-in in a flight case. This monitor can also be easily expanded so that it fits perfectly in any 19 inch rack with 6U of space.

***Optional screen protector available for a small extra charge! ****

*** The BM150-4KS is delivered calibrated ***

Large field monitor with professional connections. The Lilliput BM150-12G offers a large screen diagonal of 39.7 cm (15.6 inches) with a very sharp native resolution of 3840x2160 pixels. Thanks to the IPS technology, the screen not only displays the colors well, it also has a viewing angle of 176 degrees horizontally and vertically.

Desktop feet for placing on a table are also included.

Characteristics

- HDR capable (HDMI 1 only).

- Supports 3D LUTs (also Native and Rec.709)

- Own 3D LUTs via USB stick

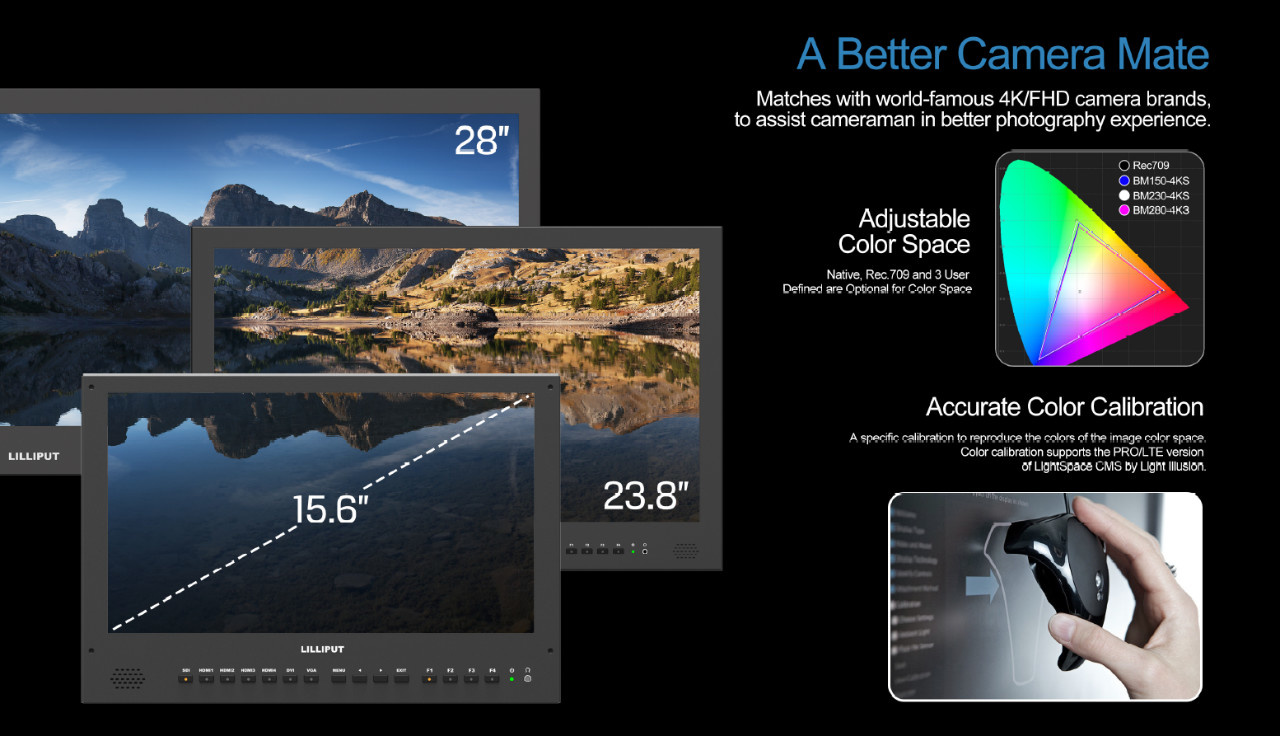

- Color space

- 3D LUT and HDR

- HDR

- Time code

- Histogram

- Lighting

- Level Meter

- False color

- Improved interlaced display

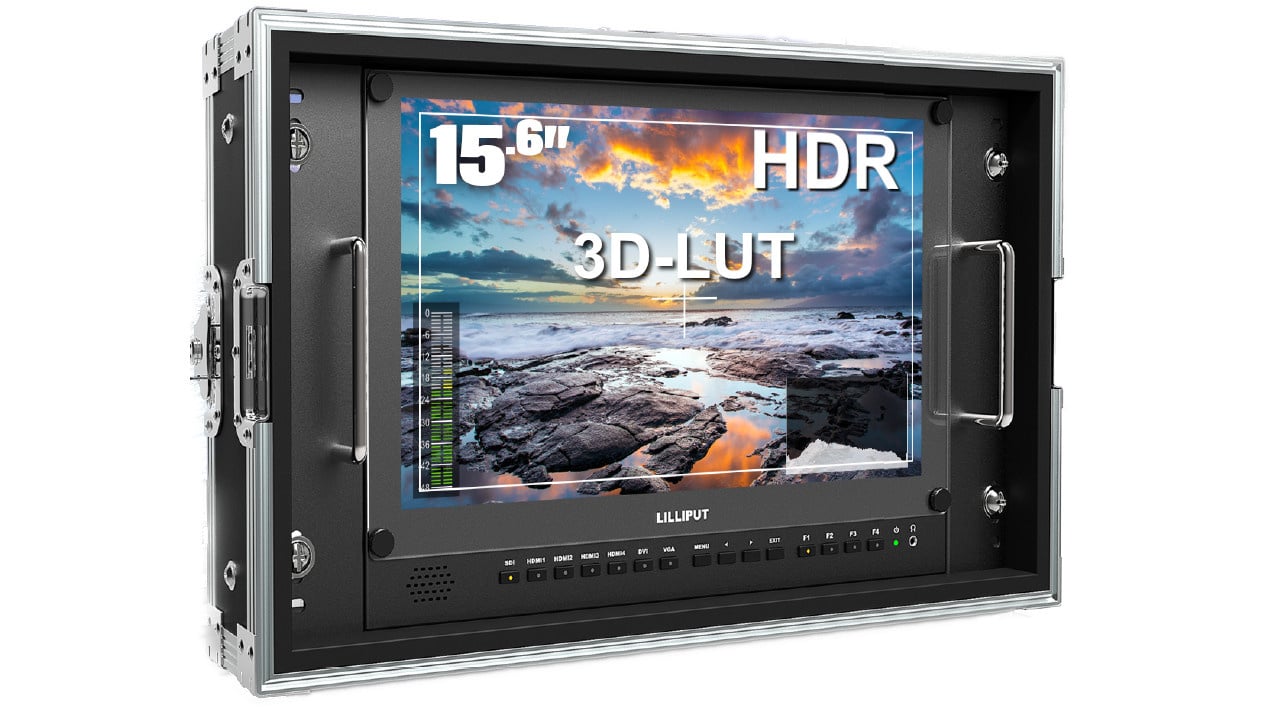

The flight case comes complete with removable front and back. This way the monitor can always be transported protected.

If desired, the monitor can also be installed directly in a 19-inch rack. The monitor covers 6 height units (U) and has a width of 483 mm.

Large field monitor with professional connections. Thanks to the IPS technology, the screen not only displays the colors well, but it can also be viewed from any angle without strong distortions.

- Professional video monitor for directing, editing, studio or on location.

- Clear and sharp screen with a screen diagonal of 39.7 cm

- True 3840 x 2160 pixel resolution enables native 4K previews

- IPS technology ensures good contrast and correct reproduction of colors, regardless of the viewing angle

- Accurate calibration possible via RGB controller

- Virtually all monitor control via the front keypad

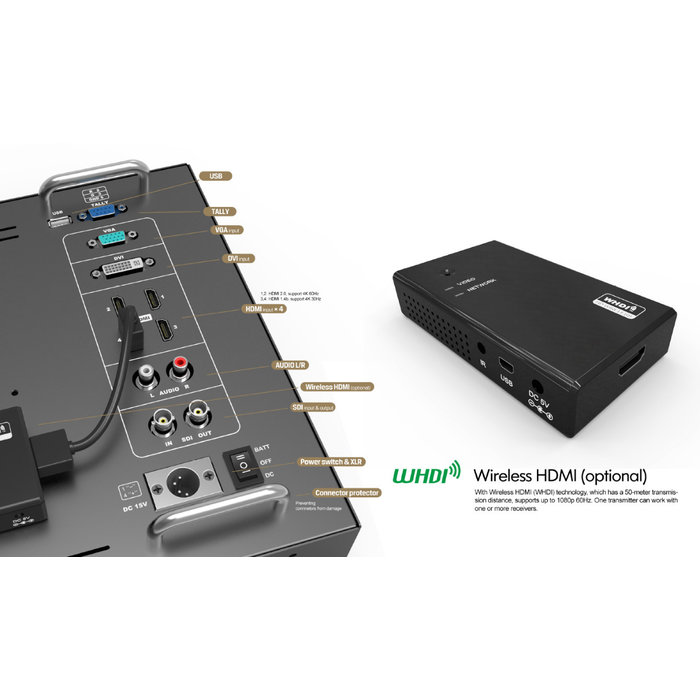

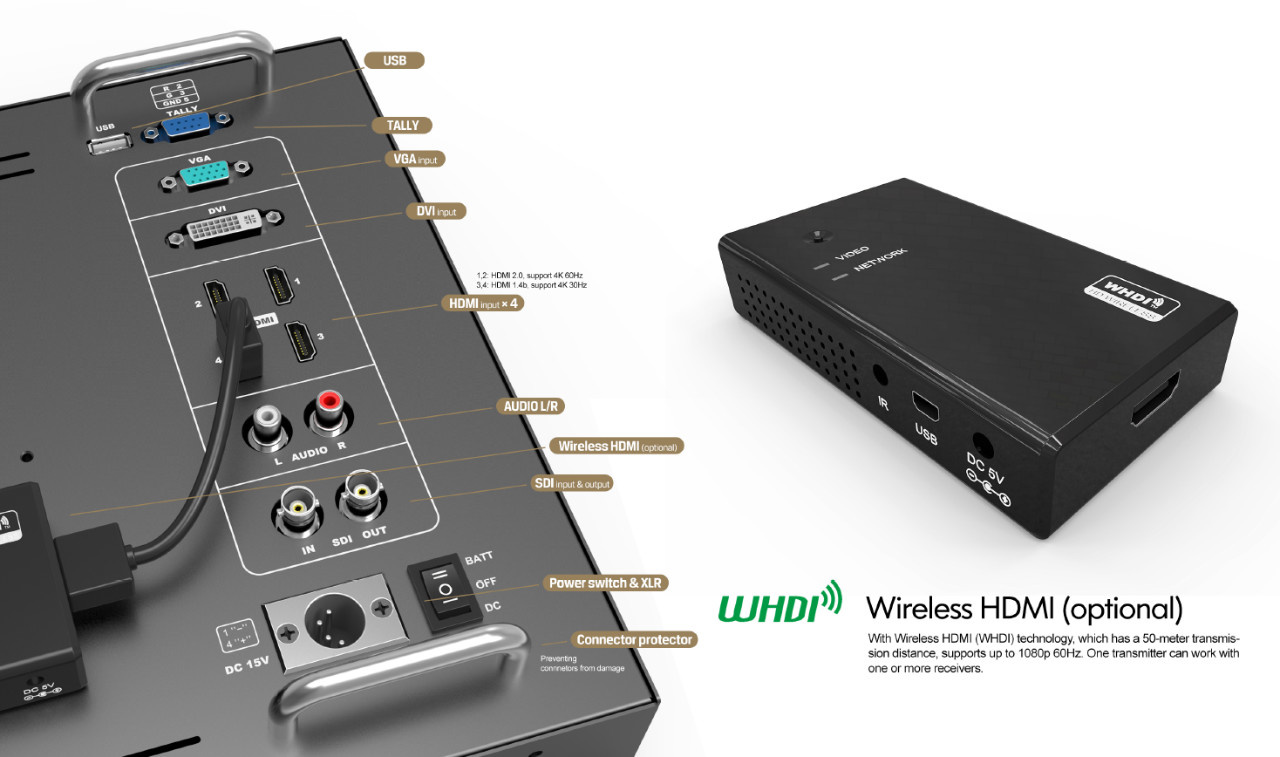

- Video inputs for 4 x HDMI ( 1 x 4 K or 4 x HD ), VGA, DVI and HD-SDI/SDI In/Out

- HDMI input 1 with HDMI 2.0 enables 4K in 25/30/50/60 HZ

- HDMI input 2-4 with HDMI 1.4 are 4K with 25/30 Hz possible

- SDI input with 3G-SDI FullHD ( 1920x1080 ) at 50/60 Hz

- 3D LUT and HDR

- 8-bit FRC color processing (according to manufacturer) - better than 10-bit without FRC

- SDI can be looped through (passthrough)

- Aspect ratio of the image can be adjusted in the device (e.g. for equalization in anamorphic Cinemascope productions)

- Connection for headphones via 3.5mm small jack

- VESA 100x100 wall mounting holes on the back

- Operation via wall outlet or rechargeable batteries (Sony V-Mount)

- Tally connection via 9-pin SUB-D

NOTE: The SDI input supports the HD-SDI 3G standard -> ie Full HD with 50/60 Hz. 4K resolutions are available on all HDMI inputs. HDMI input 1 supports 4K 50/60 Hz here, all others 25/30 Hz.

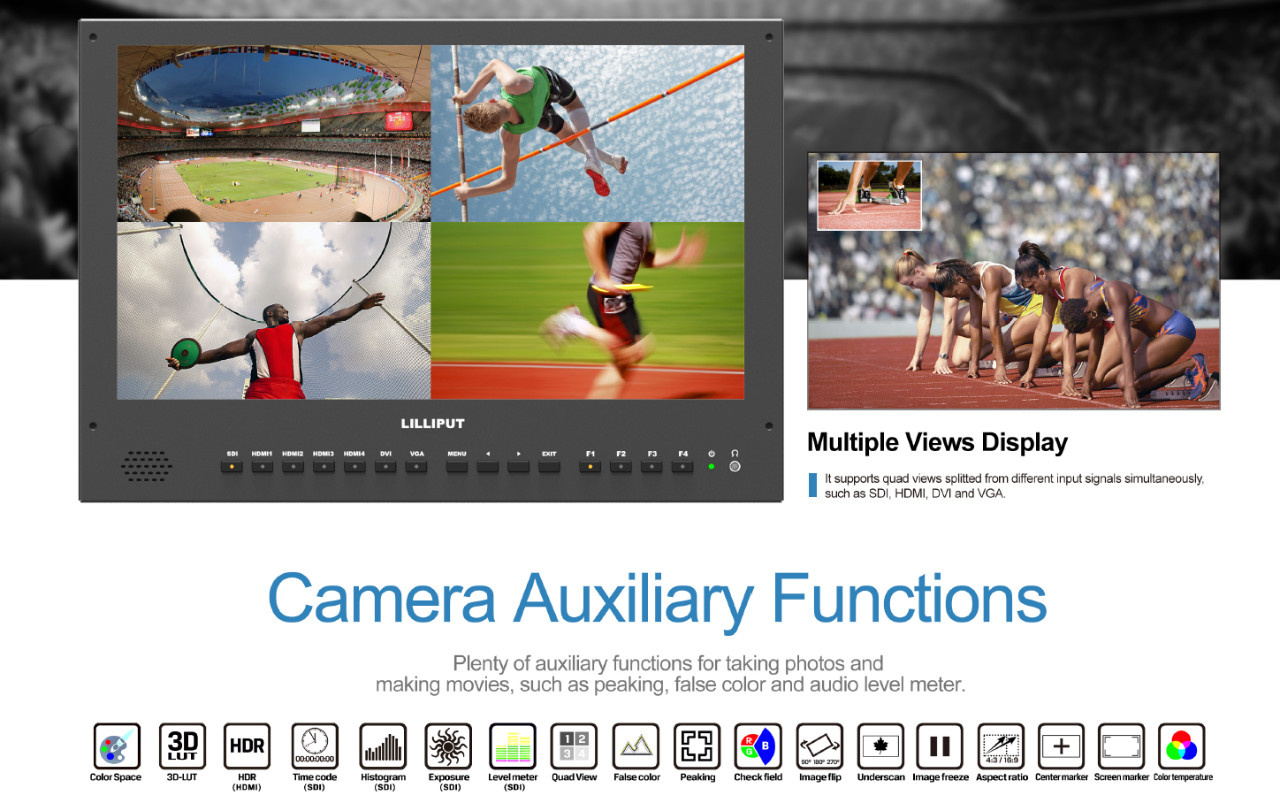

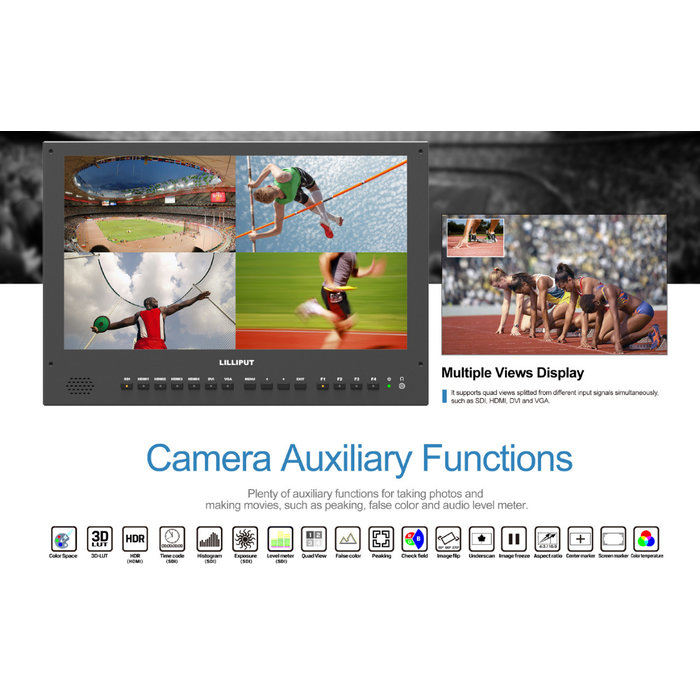

Multiview views:

- 1 input full screen

- 2 inputs left / right

- 2 inputs top / bottom

- 2 inputs picture-in-picture

- 4 Quadview inputs
