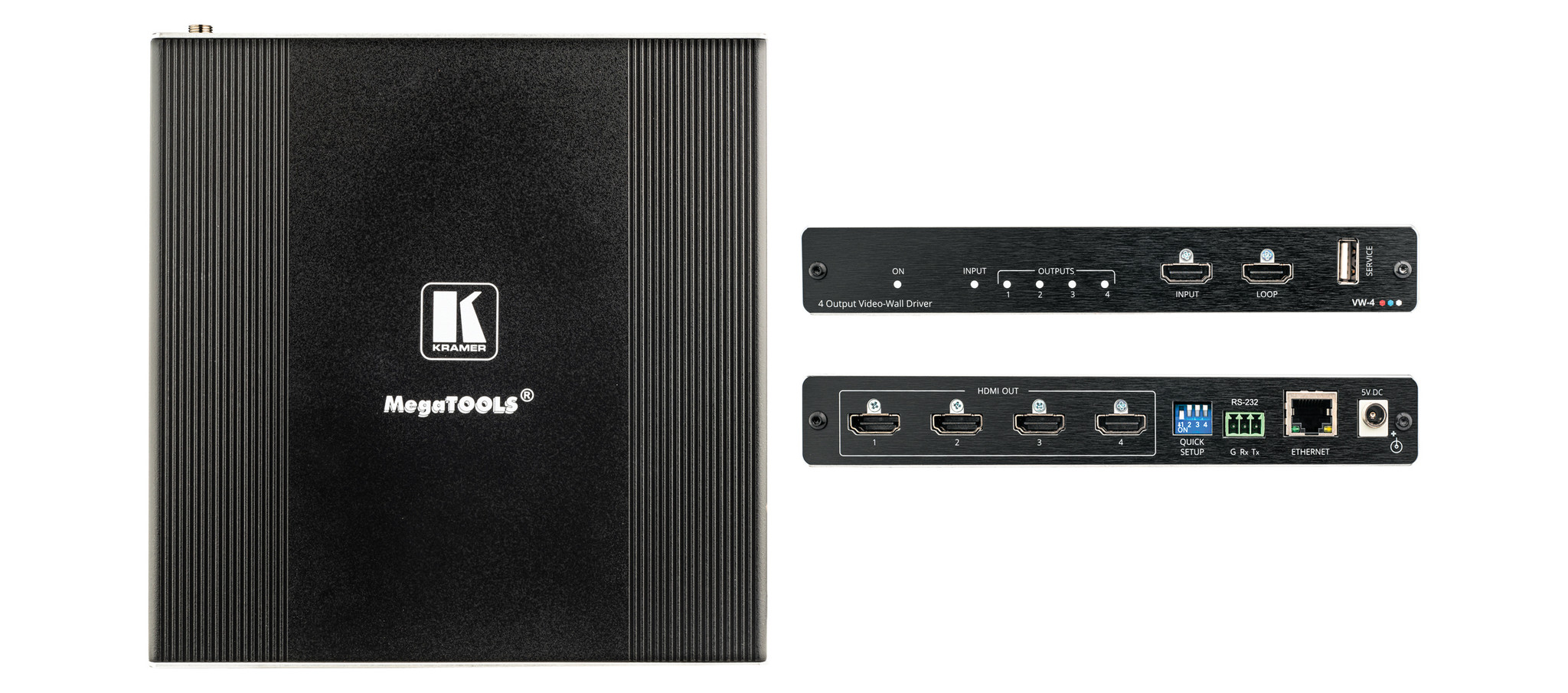

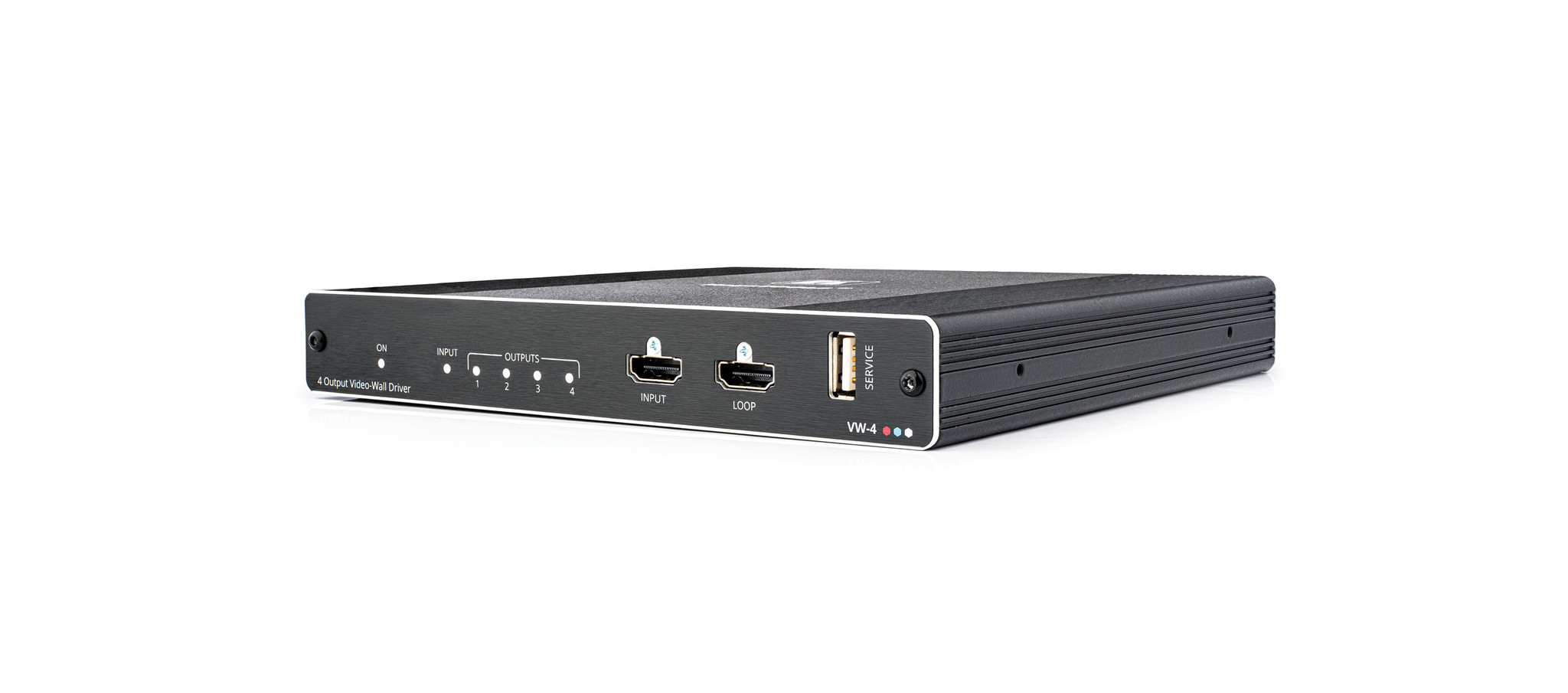

Kramer VW-4 4 Output Video Wall Driver

VW−4 is a 4−output video wall driver designed to quickly and easily configure and manage video walls. Use one VW−4 device to create any wall configuration with up to 4 displays, for example, a 2x2, 4x1, 1x4, 2x1, 3x1 video wall. Connect additional devices to create walls of any size and configuration of up to 64 displays. Configure a single or multiple device setup using the VW−4 app via Ethernet or RS−232, or quickly configure a basic setup using the local dip switches.

• Scalable Video Walls — Create and manage a video wall of up to 4 displays or, by adding devices, create video walls of up to 64 displays.
• Quick, Basic, Local Setup — Use front panel DIP–switches for basic setup of video walls up to 16 displays.
• Full Feature Configuration — Use the VW–4 app via Ethernet or RS–232 to set up video walls of up to 8x8 displays. Also use the app for the following: bezel corrections, HDCP status, factory reset, upgrading firmware, viewing network settings and copying EDID.
• Content Protection — Supports HDCP 2.2 on the input and loop output and HDCP 1.4 on the main outputs. HDCP can be disabled on the input.
• EDID Support — Upload EDID files, copy any output EDID to the input, and select from several built–in EDID files.
• Reliable Video — Features constant output sync and auto–sync off option that stops or delays the 5V shutoff when no input is detected.
• Auto Display Powering — CEC capabilities turn ON or OFF the connected displays according to the status of the input video.
• Easy Installation — Compact MegaTOOLS® fan–less enclosure for surface mounting or side–by–side mounting of 2 units in a 1U rack space with the recommended rack adapter.

SPECIFICATIONS

INPUTS

• 1 HDMI: On a female HDMI connector

OUTPUTS

• 4 HDMI: On female HDMI connectors
• 1 HDMI Loop: On a female HDMI connector

PORTS

• 1 Ethernet: On an R–J45 connector
• 1 RS-232: On a 3–pin terminal block connector
• USB: On a USB type–A connector

VIDEO

• Max Input Resolution: 4K@60Hz (4:4:4)
• Max Input Data Rate: 18Gps
• Output Resolution: 1080p
• Content Protection on Input and Loop Output: HDCP 2.2
• Content Protection on Main Outputs: HDCP 1.4

USER INTERFACE

• Indicators: I/O detection and power LEDs
• Controls: DIP–switches for basic setup, computer app for comprehensive setup via Ethernet or RS–232, firmware upgrade via USB

ACCESSORIES

• Included: Power adapter, bracket set, rubber feet

POWER

• Source: 5V DC
• Consumption: 2.9A

ENVIRONMENTAL CONDITIONS

• Operating Temperature: 0 to + 45°C (32 to + 113 °F), 10% to 90%, non–condensing
• Storage Temperature: –20 to +70°C (–4 to + 158 °F), 10% to 90%, non–condensing
• Humidity: 10% to 90%, non–condensing

PRODUCT DIMENSIONS

• 19.00cm x 19.50cm x 2.70cm (7.48" x 7.68" x 1.06" ) W, D, H

PRODUCT WEIGHT

• 0.9kg (1.9lbs) approx.

SHIPPING DIMENSIONS

• 35.10cm x 21.20cm x 7.20cm (13.82" x 8.35" x 2.83" ) W, D, H

SHIPPING WEIGHT

• 1.4kg (3.1lbs) approx.
