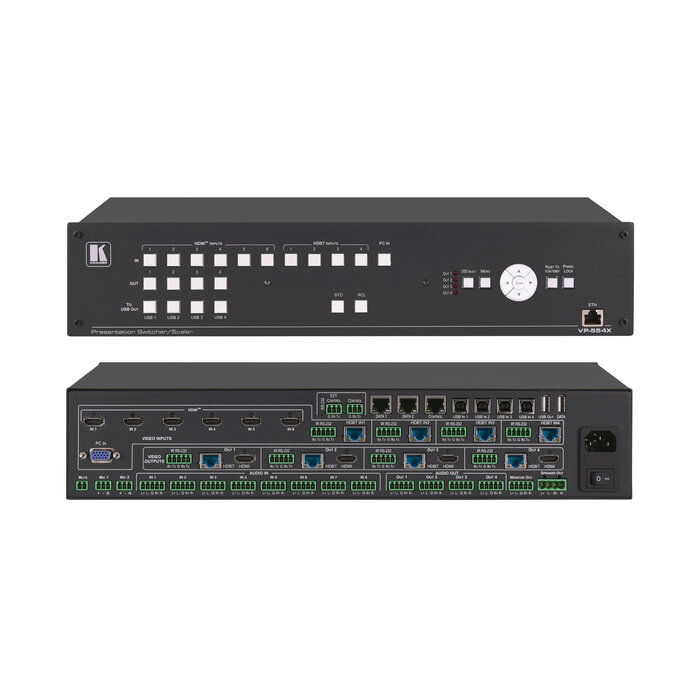

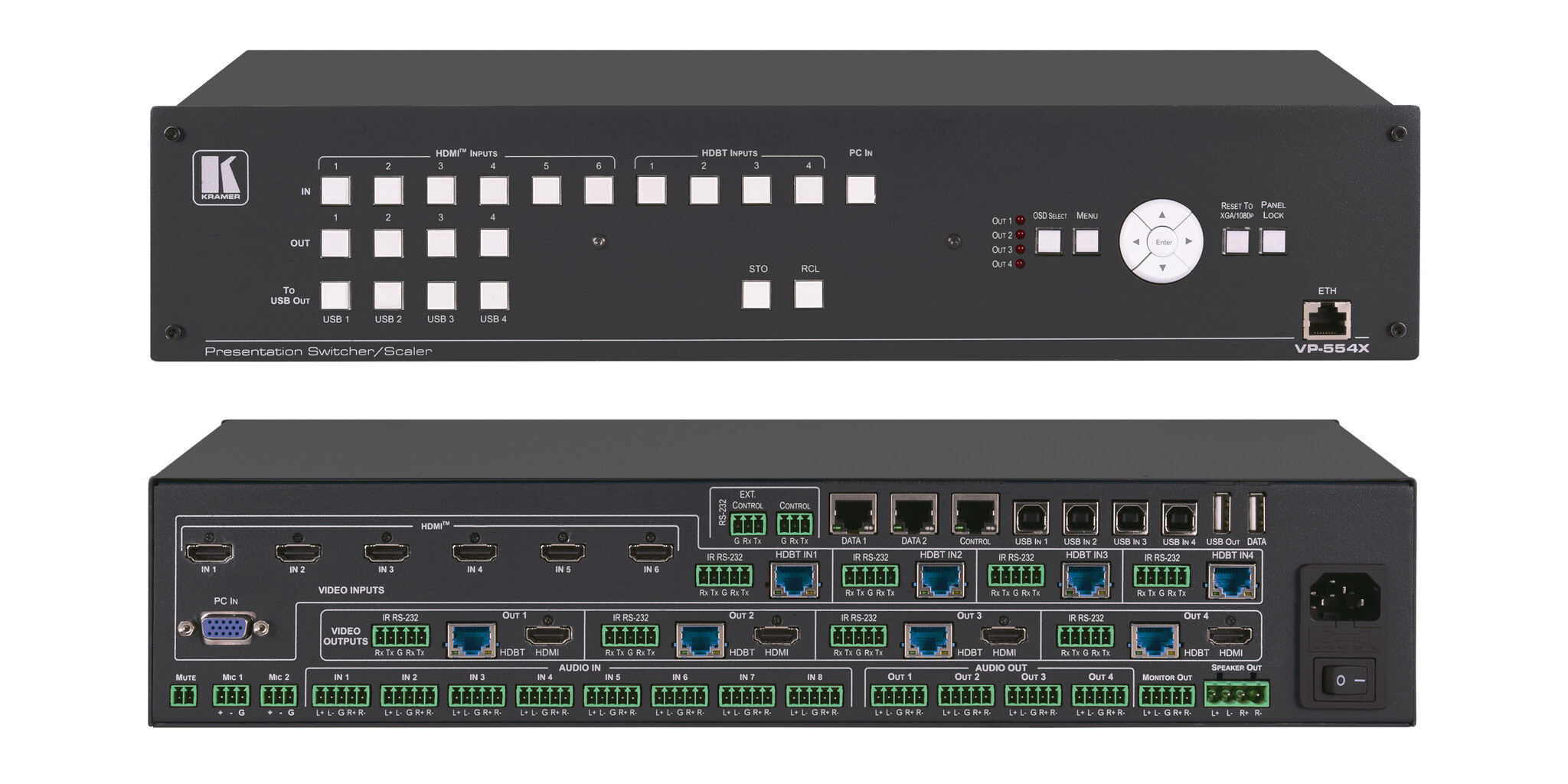

Kramer VP-554X - 11x4:2 Presentation Boardroom Router / Scaler System
The VP−554X is a high−performance presentation scaler/switcher with 4 pairs of independent and scaled outputs. It includes multiple HDMI and HDBaseT inputs – supporting resolutions up to 4K – as well as a legacy VGA input, and each of the 4 outputs is mirrored on both HDMI and HDBT.
VP−554X supports embedded and balanced analog stereo audio, up to 2 microphone inputs, DSP audio features and a built−in stereo power amplifier. It includes a built−in Ethernet switch and supports legacy RS−232, and IR, Ethernet and RS−232 tunneling over HDBT.
- Pix–Perfect™ Scaling Technology — Kramer’s precision pixel mapping and high–quality full up — and down–scaling technology.
- High–Performance Switcher/Scaler — Scales the video and provides constant output sync to prevent signal disruption when switching between inputs and when no video is detected.
- HDCP 2.3 Compliance — The HDCP (High Definition Content Protection) license agreement allows copy–protected data on the HDMI input to pass to HDCP compliant outputs.
- Resolutions — Up to 4K60 4:4:4 on the HDMI ports; up to 4K60 4:2:0 on the HDBaseT ports; and up to 1080p60 on the VGA input.
- System Range for the HDBT inputs and outputs — Up to 100m for 4K; 180m for 1080p.
- 4x1 USB Switcher — Can be set to follow the switching of the video layer or as an independent switcher.
- Audio DSP Features, including input and output level adjustments, microphone talkover, mixing, and EQ.
- Analog & Embedded Audio Support.
- Built–in Power Amplifier — 2x20W.
- Built–in Video ProcAmp — Color, hue, sharpness, noise, contrast, and brightness.
- Option for video wall output mode.
- Multiple Control Options — Front panel buttons with OSD, RS–232, Ethernet and built–in Web pages.
- Includes numerous filters and algorithms for eliminating picture artifacts.
- Converts to 4K60 4:2:0 on HDBaseT outputs when its corresponding mirrored HDMI output resolution is 4K60 4:4:4 (similarly for 4K50).
- HDMI Support — HDR10, CEC, xvYCC color (on input), Dolby TrueHD/DTS–HD Master Audio (by–pass), as specified in HDMI 2.0 as specified in HDMI 2.0.
- Multiple aspect ratio selections.
- Advanced EDID management per input.
- Includes non–volatile memory that retains the last settings, after switching the power off and then on again.
- STO and RCL buttons, a RESET TO XGA/1080P button (to hardware–reset the output resolution); and a PANEL LOCK button.
- Built–in video Proc–Amp — color, hue, sharpness, contrast, and brightness are set individually for each output.
- An OSD (On–Screen Display) — for making adjustments — that can be located anywhere on the screen.
- Efficient power–saving features.
- Advanced EDID management per input.
- Includes non–volatile memory that retains the last settings, after switching the power off and then on again.
- 11 input buttons for switching a selected input to an output.
- Scaled video outputs — 4 pairs of mirrored HDMI and HDBT outputs.
- Embedded audio on the HDMI and HDBT inputs and outputs.
- 11 input buttons for switching a selected input to an output.
- Embedded audio on the HDMI and HDBT inputs and outputs.
- Scaled video outputs — 4 pairs of mirrored HDMI and HDBT outputs.
Top of Form
APPLICATIONS

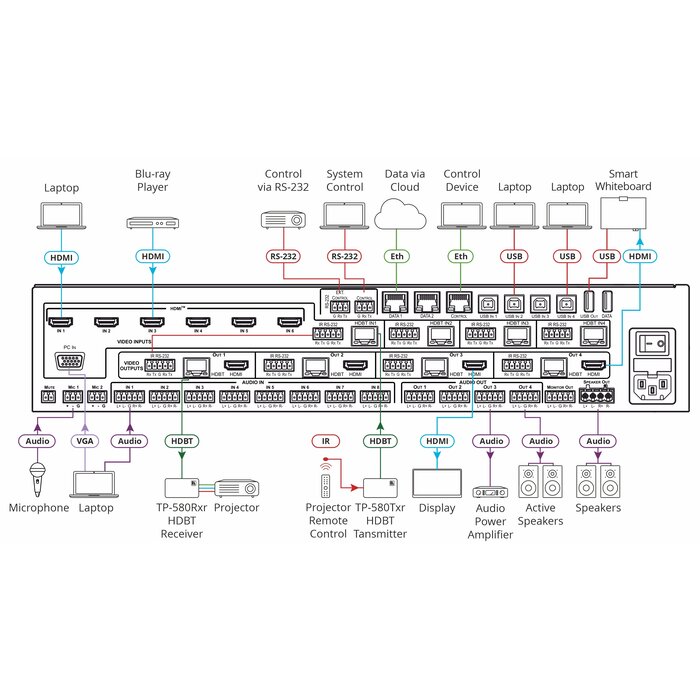

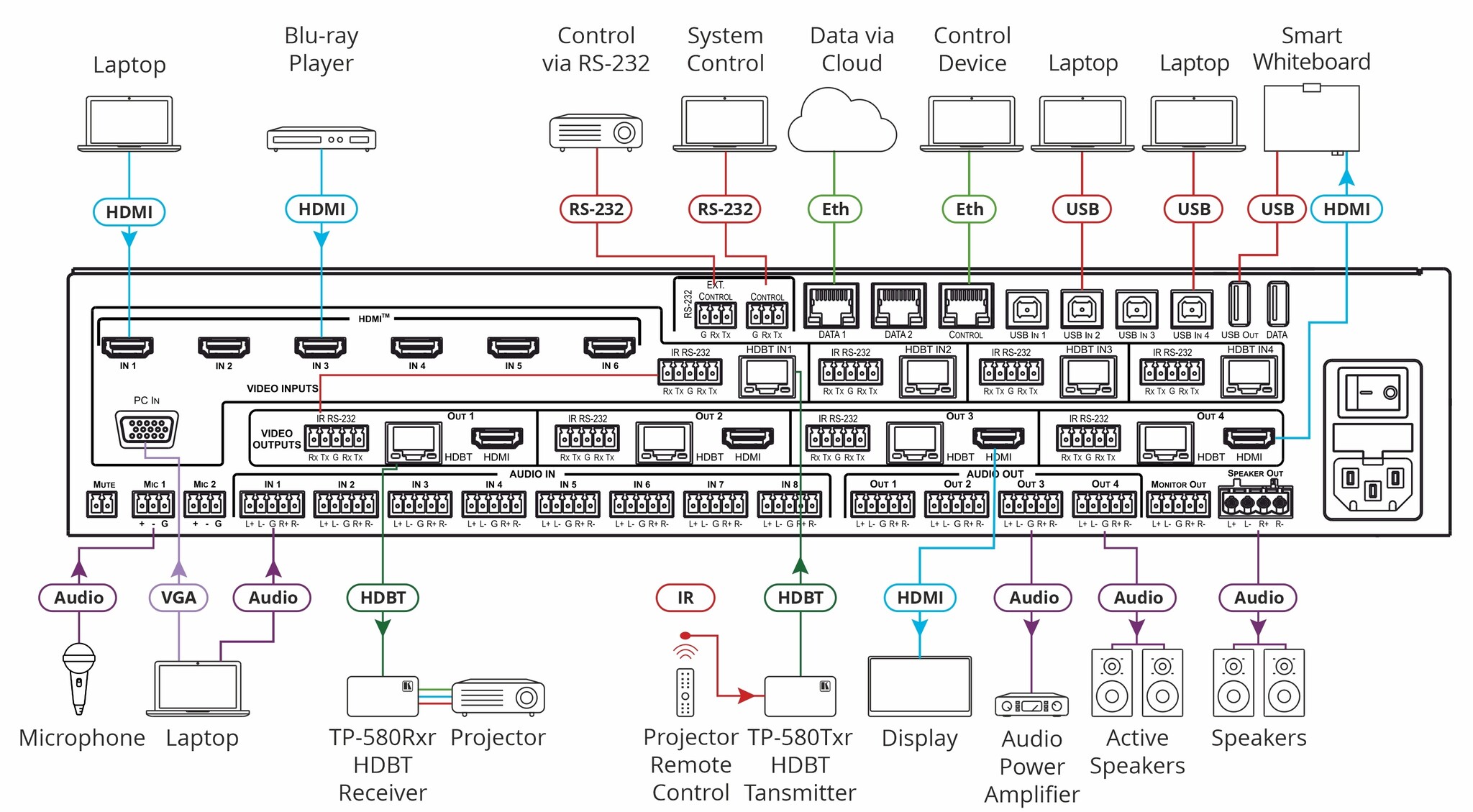

- Presentation and multimedia.
- Projection systems in conference rooms, boardrooms, auditoriums, hotels and churches, production studios, rental and staging.
- Any application where high quality conversion and switching of multiple and different video signals to graphical data signals is required for display or projection purposes.
- 6 HDMI: On female HDMI connectors
- 1 PC: On a 15–pin HD connector
- 4 HDBT: On RJ–45 female connectors
- 8 Stereo Analog Balanced Audio: On 5–pin terminal block connectors
- 2 Unbalanced Mono Audio: On 3–pin terminal block connectors
- 4 HDMI: On female HDMI connectors
- 4 HDBT (mirrored with each HDMI output): On RJ–45 female connectors
- 5 Balanced Stereo Audio: On 5–pin terminal block connectors
- 1 Stereo Balanced Audio: On a 4–pin large terminal block
- Impedance: 16.6kΩ
- Maximum level: +14.7dBu (4.2Vrms)
- Sensitivity: Full power @ +8.7dBu (2.1Vrms) for OUT =1.9Vrms
- Impedance: 47kΩ
- Sensitivity: Full power @ — 37dBu (11mVrms) for OUT =1.9Vrms
- Phantom Power: 48Vdc on/off per input
- Impedance: 500Ω
- Frequency Response: 20Hz — 20kHz @ +/–1dB
- S/N Ratio: >75dB, 20Hz — 20kHz (unweighted),
- S/N Ratio: >81dB, 20Hz — 20kHz (A–weighted)
- Audio THD + Noise: <0.014%, 20Hz — 20kHz (unweighted),
- Audio THD + Noise: <0.0092%, 20Hz–20kHz (A–weighted)
- Crosstalk: <–93 dB, 20Hz to 20kHz
- Output Power: 2 x 20W into 4Ω
- Amplifier Class: D
- Maximum Voltage Gain: 26dB BTL
- Dynamic Range: 103 dB A–Weighted
- Frequency Response: 20Hz — 20kHz @ +/–1dB
- S/N Ratio: >68 dB, 20Hz — 20kHz (unweighted)
- Audio THD + Noise: <0.037%, 20Hz — 20kHz (unweighted)
- Crosstalk: <–77 dB, 20Hz to 20kHz
- 4 IR (for HDBT Outputs): On terminal block connectors for IR link extension
- 4 IR (for HDBT Inputs): On terminal block connectors for IR link extension
- 4 RS-232 (for HDBT Outputs): On terminal block connectors for serial link extension
- 4 RS-232 (for HDBT Inputs): On terminal block connectors for serial link extension
- 5 USB: 4 USB Hosts on USB–B connectors
- 5 USB: 1 USB Client on a USB–A connector
- 1 USB: On a USB–A connector for firmware upgrading
- 2 RS-232: On 3–pin terminal block connectors
- 4 100BaseT Ethernet: On RJ–45 female connectors for device control and LAN extension
- Max Resolution: HDMI: 4K60 4:4:4
- Max Resolution: HDBT: 4K60 4:2:0
- Max Resolution: PC (VGA):1080p
- Compliance: Up to HDMI 2.0 and HDCP 2.2
- Max Transmission Bandwidth: 100Mbps
- Baud Rate: 300 to 115200
- Baud Rate: 115200
- Max, Power Consumption: 190VA
- Storage Temperature: –40° to +70°C (–40° to 158°F)
- Operating Temperature: 0° to +40°C (32° to 104°F)
- Humidity: 10% to 90%, RHL non–condensing
- Safety: CE, FCC
- Environmental: RoHs, WEEE
- Size: 19” 2U
- Type: Aluminum
- Cooling: Fan ventilation
- Included: Power adapter cord
- 43.69cm x 23.60cm x 8.80cm (17.20" x 9.29" x 3.46" ) W, D, H
- 5.0kg (11.0lbs) approx.
- 52.60cm x 47.50cm x 18.40cm (20.71" x 18.70" x 7.24" ) W, D, H
- 6.3kg (13.9lbs) approx.
INPUTS
OUTPUTS
LINE LEVEL INPUT
MICROPHONE LEVEL INPUT
LINE LEVEL OUTPUT
AMPLIFIER
PORTS
VIDEO
EXTENDED ETHERNET
EXTENDED RS-232
CONTROL RS-232
POWER
ENVIRONMENTAL CONDITIONS
REGULATORY COMPLIANCE (STANDARDS COMPLIANCE)
ENCLOSURE
ACCESSORIES
PRODUCT DIMENSIONS
PRODUCT WEIGHT
SHIPPING DIMENSIONS
SHIPPING WEIGHT
