Description
PRODUCT OVERVIEW

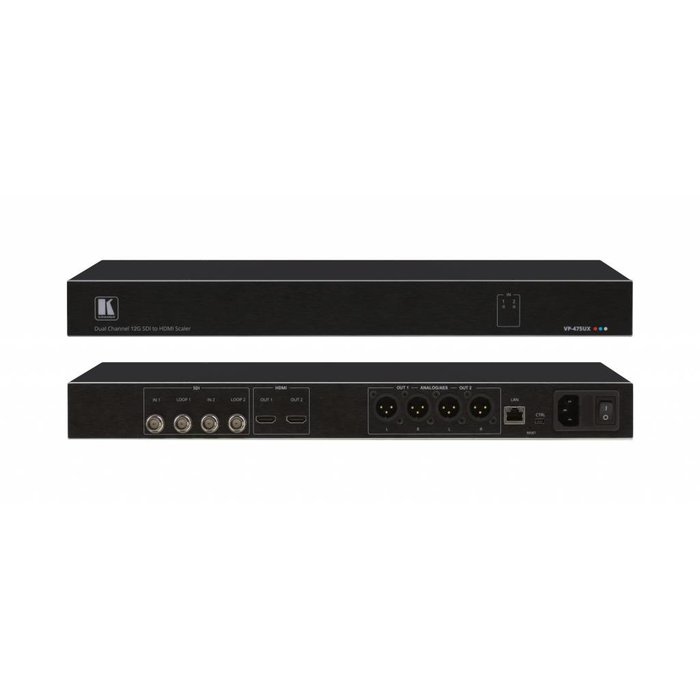

VP-475UX
Dual Port 12G SDI to 4K60 4:4:4 HDMI Scaler/Converter with Audio Extraction
- Dual–port SDI to HDMI scaler & converter
- Up to 12G SDI
- Up to 4K@60 (4:4:4) HDMI
- Built–in independent scaler per port
- Analog audio extraction
VP−475UX is a high−performance, dual channel scaler and format converter for SDI video signals of up to 12G data rate. With its integrated dual scaler, it converts the 12G SDI video signals from its two input channels (with embedded audio) to two 4K@60Hz (4:4:4) HDMI outputs, along with extracting the audio signals and sending them to the analog audio output ports.
- High Performance, Scaled Video Conversion — A high performance, low latency video processing SDI to HDMI converter, with integrated signal resolution scaler, that converts up to 12G multi–rate SDI signals to HDMI 2.0 signals, flexibly scaling to max resolution of 4K@60 (4:4:4) 18G data rate signals, independent per each channel.
- SDI Multi Rate Signals — Auto–adapts from 270Mbps to 12Gbps data rates, accepts SDI, HD–SDI, 3G HD–SDI, 6G and 12G SDI compliant input signals with video resolution of up to 4K@60Hz (4:2:2) 30bpp. Complying with SMPTE 259M (SD–SDI), 292M (HD–SDI), 344M (ED–SDI), 424M (3G HD–SDI), ST–2081 (6G–SDI) and ST–2082 (12G–SDI) standards, it supports pass–through of standard embedded audio channels with ancillary ID and metadata information.
- Adaptable HDMI Data Rates — Flexibly scales to a wide variety of HDMI data rates, from low 480p to as high as 4K@60Hz (4:4:4) video resolution, adapting to any market–available AV acceptor device, such as displays and projectors.

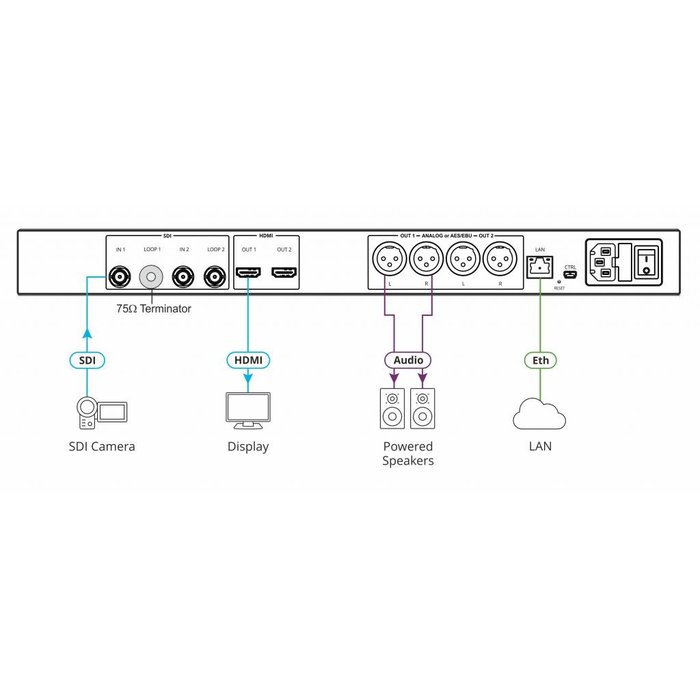

- Flexible Audio Extraction — The user selects to extract 2 or 4 of the 16 audio channels embedded within each SDI input signal. The extracted audio is then embedded in the corresponding converted HDMI output signal, and, in parallel, is extracted and sent to a corresponding device audio output port, either as 2–channel balanced analog or 4–channel AES/EBU–compliant stereo audio signal. This enables high–quality audio playback by routing the audio to external speakers in parallel to routing the audio to the local speakers found on the connected AV acceptor device (such as a TV or laptop).
- Reliable Wire Connectivity — Coaxial broadcast–grade cables are reliably connected via lockable BNC connectors, preventing unintentional wire disconnections, to gain fast and highly professional uncompressed SDI signals distribution deployments.
- Extended–Reach Input Extension — Input signal equalization and output signals reclocking to gain extended–reach signal extension. Using high–quality coaxial SDI cables, supports extension of up to 500m (1640ft) for SD signals; 260m (850ft) for 1.5G HD signals; 220m (720ft) for 3G; 100m (330ft) for 6G HD signals; 70m (230ft) for 12G 4K signals. Note: Reach depends on signal resolution, and quality of copper cable used. For optimal performance, Kramer recommends using Kramer high–performance cables. Reach extension performance may vary while using coaxial cables that are not high–quality.
- Cost–Effective Maintenance — Indicators for SDI input signals status and data rate, and power status, for easy local maintenance and troubleshooting. Remote device management via built–in web UI. Local and remote firmware upgrade via mini–USB or Ethernet connection ensure lasting, field–proven deployment.
- Easy Installation — 19” enclosure for rack mounting a unit in a 1U rack space with included rack ears and universal 100–240V AC power connection.
APPLICATIONS
- SDI video production studios
- Broadcast studio and field SDI video production events
- Easy integration of SDI cameras and sources to HDMI–based system in any Pro–AV application
- Staging and rental deployments
- Medical facilities with highly reliable video deployments
SPECIFICATIONS
INPUTS
- 2 SDI Auto−sensing 12G/6G/HD−SDI/HD−SDI/SDI Video Signal : On 75Ω BNC connectors
OUTPUTS
- 2 HDMI: On female HDMI connectors
- 2 SDI (Input Loop): On 75Ω female BNC connectors
- 2 XLR Balanced Stereo Audio or AES/EBU Digital Audio: On XLR connectors
PORTS
- 1 Ethernet: On an RJ–45 female connector
- 1 USB: On a female mini USB connector
VIDEO
- Standards: 12G–SDI — SMPTE ST–2082–1, 3G HD–SDI — SMPTE 424M, 6G — SMPTE ST–2081, HD–SDI — SMPTE 292M/344M, SDI — SMPTE 259M
- Max SDI Input Resolution: 4K@60Hz (4:2:2)
- SDI Input Data Rate: 259Mbps up to 12Gbps
- Max HDMI Resolution: 4K@60Hz (4:4:4)
- HDMI Output Resolutions: Progressive: Native, 640x480@60Hz, 720x480@60Hz, 720x576@50Hz, 800x600@60Hz, 1024x768@60Hz, 1280x720@50/60Hz, 1280x720@24/25/30/50/60Hz, 1280x768@60Hz, 1280x1024@60Hz, 1600x1200@60Hz, 1680x1050@60Hz, 1920x1080@24/25/30/50/60Hz, 1920x1200@60Hz, 3840x2160@24/25/30/50/60Hz
- Conversion Latency: 50ms (approx.)
MAX SDI INPUT REACH
- 12G–SDI Signals: 70m (230ft)
- 6G HD–SDI Signals: 100m (330ft)
- 3G HD–SDI Signals: 220m (720ft)
- HD–SDI Signals: 260m (850ft)
- SD Signals: 500m (1640ft)
USER INTERFACE
- Indicators: IN LEDs
- Controls: Mini USB, LAN, web UI
POWER
- Source: 100–240V AC
- Consumption: 58VA max
ENVIRONMENTAL CONDITIONS
- Operating Temperature: 0° to +40°C (32° to 104°F)
- Storage Temperature: –40° to +70°C (–40° to 158°F)
- Humidity: 10% to 90%, RH non–condensing
ENCLOSURE
- Size: 19”, 1U
- Type: Aluminum
- Cooling: Fan Ventilation
STANDARDS COMPLIANCE
- Safety: CE
- Environmental: RoHs, WEEE
ACCESSORIES
- Included: Power cord
PRODUCT DIMENSION
- 43.64cm x 23.72cm x 4.36cm (17.18" x 9.34" x 1.72" ) W, D, H
PRODUCT WEIGHT
- 1.8kg (3.9lbs) approx.
SHIPPING DIMENSION
- 52.50cm x 23.00cm x 10.70cm (20.67" x 9.06" x 4.21" ) W, D, H
