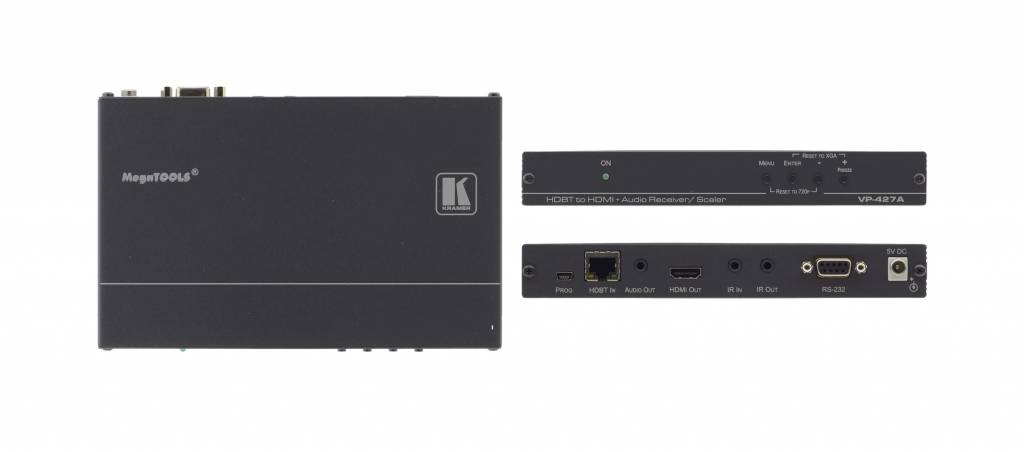

KRAMER - VP-427A HDBaseT to HDMI & Audio ProScale™ Receiver/Scaler

PRODUCT OVERVIEW

VP-427A

HDBaseT to HDMI & Audio ProScale™ Receiver/Scaler

• Max. Data Rate — 6.75Gbps
• Bidirectional RS–232 Port
• Infrared I/O Ports
• System Range — Up to 70m (230ft)
• ProcAmp Control
• On–Screen Display

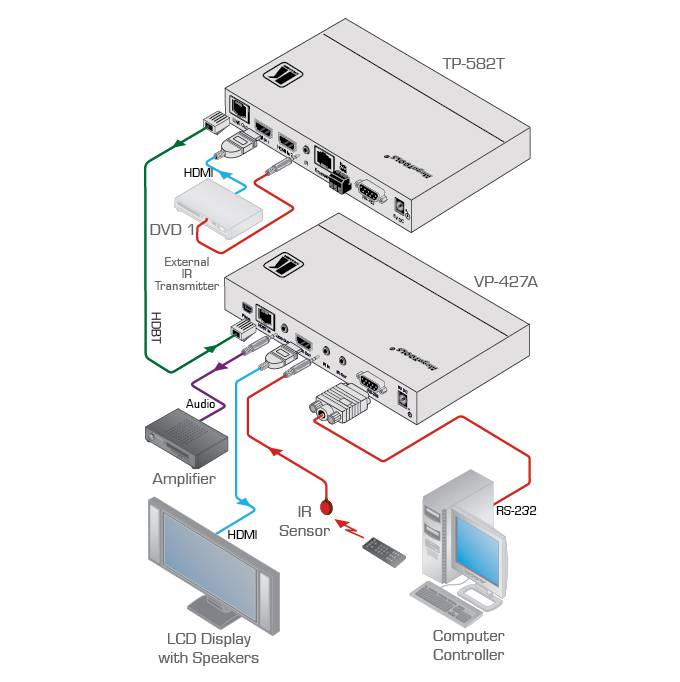

The Kramer VP−427A is a receiver/scaler for HDBaseT twisted pair, HDMI, bidirectional RS−232 and IR signals. The unit receives an HDBaseT signal that it converts to HDMI, IR and RS−232 signals. It up− or down−scales the picture to match the resolution of the HDMI monitor. It includes a simultaneous analog audio output of the embedded HDMI audio.

•  Max. Data Rate — 6.75Gbps (2.25Gbps per graphic channel).
•  Bidirectional RS–232 Port — For embedding/de–embedding control commands in the HDBaseT data stream.
•  Infrared Input and Output Ports — For controlling devices over the HDBaseT data stream.
•  System Range — Up to 70m (230ft).
•  Embedded Audio — Support for LPCM 2CH.
•  Analog Audio Output — Includes a simultaneous unbalanced stereo audio output of the embedded HDMI audio.
•  Constant Output Sync — Even when the input video signal is lost or interrupted.
•  ProcAmp Control — Contrast, brightness, fine tune & R, G, B level/gain.
•  On–Screen Display (OSD) — For easy setup and adjustment, accessible via the front–panel buttons.
•  Non–Volatile Memory — Saves final settings.
•  Freeze Button.
•  USB Port — For upgrading firmware.

APPLICATIONS

•  Home theater
•  Presentation and multimedia
•  Rental and staging

SPECIFICATIONS

INPUTS

• 1 HDBaseT twisted pair on an RJ–45 connector, 1 IR on a 3.5mm mini jack

OUTPUTS

• 1 HDMI connector, 1 IR on a 3.5mm mini jack, 1 unbalanced stereo audio on a 3.5mm mini jack

PORTS

• 1 bidirectional RS–232 port on a 9–pin D–sub connector

OUTPUT RESOLUTIONS

• Native, 480p, 570p, 720p, 1080i, 1080p, 640x480, 800x600, 1024x768, 1280x800, 1280x1084, 1360x768, 1400x1050, 1440x900, 1600x1200, 1680x1050, 1920x1200

OUTPUT REFRESH RATE

• 60Hz for computer graphics resolutions, 50/60Hz for HDTV resolutions

LATENCY

• 30ms approx

VIDEO COLOR DEPTH

• Input: 8/10/12–bit, output: 8–bit

EMBEDDED AUDIO

• Supports LPCM 2CH

RS-232 BAUDRATE

• 115200bps max

CONTROLS

• Front panel buttons, 1 USB for programming

INDICATORS

• ON LED

POWER CONSUMPTION

• 5V DC, 1.5A

OPERATING TEMPERATURE

• 0° to +40°C (32° to 104°F)

STORAGE TEMPERATURE

• –40° to +70°C (–40° to 158°F)

HUMIDITY

• 10% to 90%, RHL non–condensing

INCLUDED ACCESSORIES

• Power supply

PRODUCT DIMENSION

• 18.75cm x 11.50cm x 2.54cm (7.38" x 4.53" x 1.00" ) W, D, H

PRODUCT WEIGHT

• 0.5kg (1.0lbs) approx.

SHIPPING DIMENSION

• 34.50cm x 16.50cm x 5.20cm (13.58" x 6.50" x 2.05" ) W, D, H

SHIPPING WEIGHT

• 1.0kg (2.2lbs) approx.
