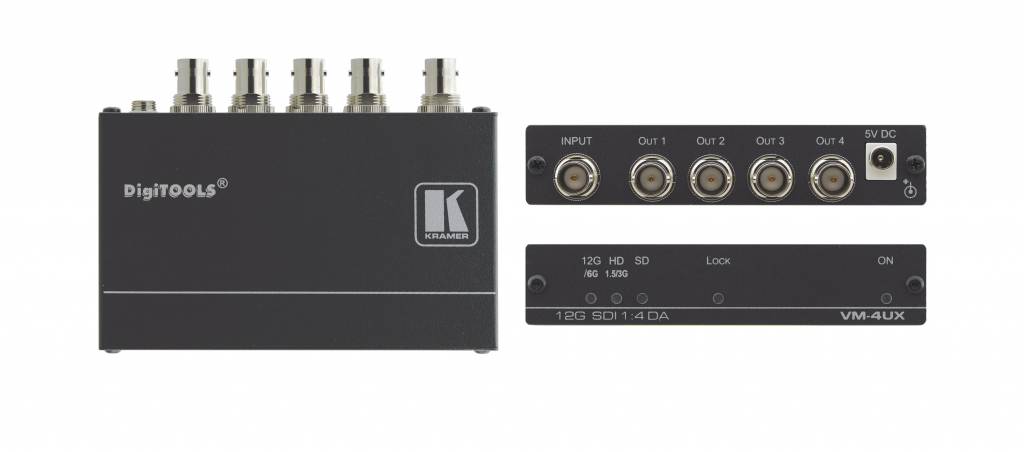

KRAMER - VM-4UX 1:4 4K 12G SDI DA

PRODUCT OVERVIEW

• 1:4 SDI distributor
• Resolution — Up to 4K (4:2:2) 30bpp
• Data rate — Auto–adapting, up to 12Gbps
• Input Reach — Up to 80m (260ft) at 12Gbps
• Compliance — SMPTE standards
• Lockable connections

Bovenkant formulier

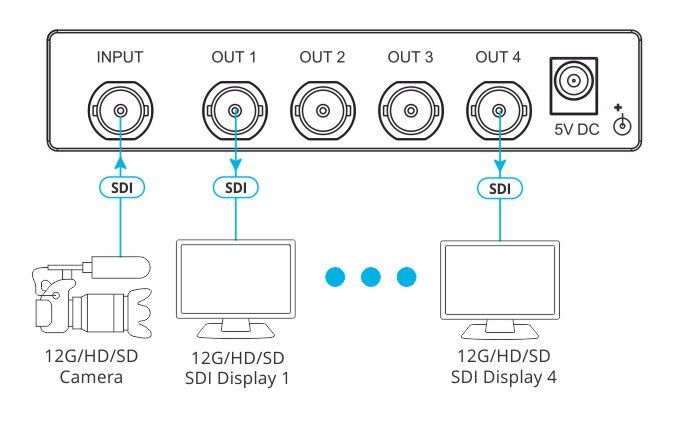

The VM−4UX is a compact and high performance 1:4 4K distributor for standard broadcast−grade SDI signals of up to 12G transmitted data rate. It auto−adapts to the data rate of one SDI input signal, equalizes and re−clocks the signal to improve transmitted signal reach, and distributes the signal to four identical SDI outputs.

•  Reliable Wire Connectivity — Coaxial broadcast–grade cables are reliably connected via lockable BNC connectors, preventing unintentional wire disconnections, to gain fast and highly professional uncompressed SDI signals distribution deployments.

•  Extended–reach Input Extension — Input signal equalization and output signals reclocking to gain extended–reach signal extension. Using Kramer high–quality coaxial SDI cables, supports extension of up to 300m (984ft) for SD signals; 200m (656ft) for 1.5G HD signals; 100m (328ft) for 3G and 6G HD signals; 80m (262ft) for 12G 4K signals.
  Note: Reach depends on signal resolution, and quality of copper cable used. Reach extension performance may vary while using non–Kramer coaxial cables.

•  Transmitted Data Rate — Auto–adapting from 270Mbps to 12Gbps data rates.
•  Compliance — Complies with SMPTE 259M (SD–SDI), 292M (HD–SDI), 344M (ED–SDI), 424M (3G HD–SDI), ST–2081 (6G–SDI) and ST–2082 (12G–SDI) standards.

•  Max. Resolution — 4K@60Hz (4:2:2) 30bpp.

•  SDI Signal Transmission — SDI, HD–SDI, 3G HD–SDI, 6G and 12G SDI compliant signals, supporting pass–through of standard embedded audio channels with ancillary ID and metadata information.

•  LED Indicators — Status indicators for transmitted SDI data rate of input and output connected signals, and power indicator, for ease of maintenance and troubleshooting.

•  Easy Installation — Compact DigiTOOLS™ fan–less enclosure for small footprint spaces and over–ceiling mounting, or side–by–side rack mounting.

APPLICATIONS

•  SDI video production studios
•  Broadcast studio and field SDI video production events
•  Staging and rental deployments
•  Medical facilities with highly reliable video deployments

SPECIFICATIONS

INPUTS

• 1 SMPTE 259M (SD–SDI), 292M (HD–SDI), 344M (ED–SDI), 424M (3G HD–SDI), ST–2081 (6G–SDI) and ST–2082 (12G–SDI) compliant serial video, 75Ω on a BNC connector

OUTPUTS

• 4 equalized and reclocked SMPTE 259M (SD–SDI), 292M (HD–SDI), 344M (ED–SDI), 424M (3G HD–SDI), ST–2081 (6G–SDI) and ST 2082 (12G–SDI), outputs 75Ω on BNC connectors

CABLE EQUALIZATION REACH

• 12Gbps: Up to 80m (260ft), 3Gbps and 6Gbps: Up to 100m (330ft), 1.5Gbps: Up to 200m (660ft), SD: Up to 300m (980ft), Note: The above specs apply when using Kramer cables

VIDEO

• Up to 4K@60Hz (4:2:2) 30bpp resolution, 270Mbps to 12Gbps data rate

MAXIMUM OUTPUT LEVEL

• 800mVpp /75Ω

COUPLING

• AC

STANDARDS COMPLIANCE

• SMPTE 259M (SD–SDI), 292M (HD–SDI), 344M (ED–SDI), 424M (3G HD–SDI), ST–2081 (6G–SDI), ST–2082 (12G–SDI)

POWER CONSUMPTION

• 5V DC, 250mA

POWER SOURCE

• 5.2V/4A

ENCLOSURE

• Tools size, Aluminum type

COOLING

• Convection ventilation

OPERATING TEMPERATURE

• 0° to +40°C (32° to 104°F)

STORAGE TEMPERATURE

• –40° to +70°C (–40° to 158°F)

HUMIDITY

• 10% to 90%, RHL non–condensing

DIMENSIONS

• 12.0cm x 7.1cm x 2.4cm (4.7" x 2.8" x 1.0") W, D, H

WEIGHT

• 0.18kg (0.4lbs) approx

SHIPPING DIMENSIONS

• 23.2cm x 12cm x 8.9cm (9.13” x 4.7” x 3.5”) W, D, H

SHIPPING WEIGHT

• 0.68kg (1.5lbs) approx

INCLUDED ACCESSORIES

• Power supply, mounting bracket, 2 male BNC 75Ω terminators

PRODUCT DIMENSION

• 12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H

PRODUCT WEIGHT

• 0.2kg (0.4lbs) approx.

SHIPPING DIMENSION

• 23.20cm x 12.00cm x 8.90cm (9.13" x 4.72" x 3.50" ) W, D, H

SHIPPING WEIGHT

• 0.7kg (1.5lbs) approx.
