KRAMER - VCO-8 8–Port HDMI Video Content Overlay Solution

PRODUCT OVERVIEW

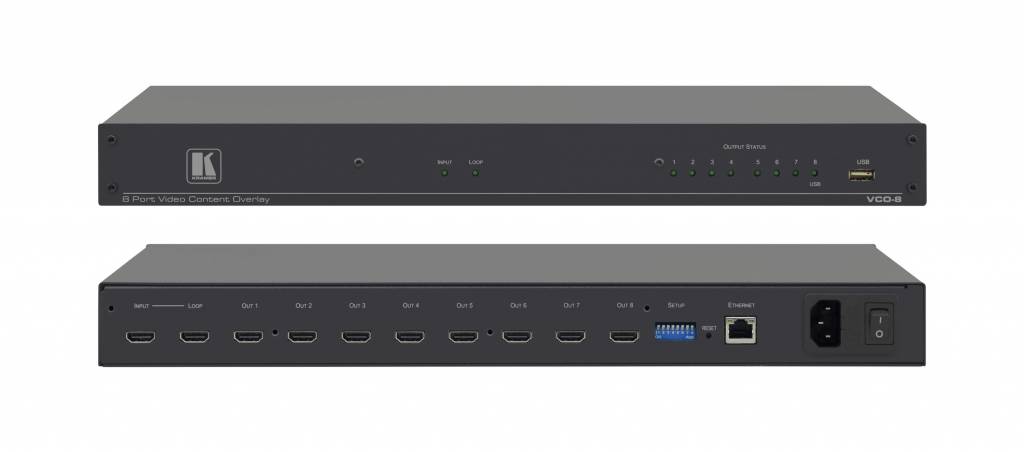

VCO-8

8–Port HDMI Video Content Overlay Solution

• Full HD Overlays
• Looping HDMI Input
• Overlays Any Size Content with Full Transparency Control
• Multiple Overlay Templates
• Centralized Control of all Promotional Overlays
• Support for Unlimited Number of Overlays and Displays

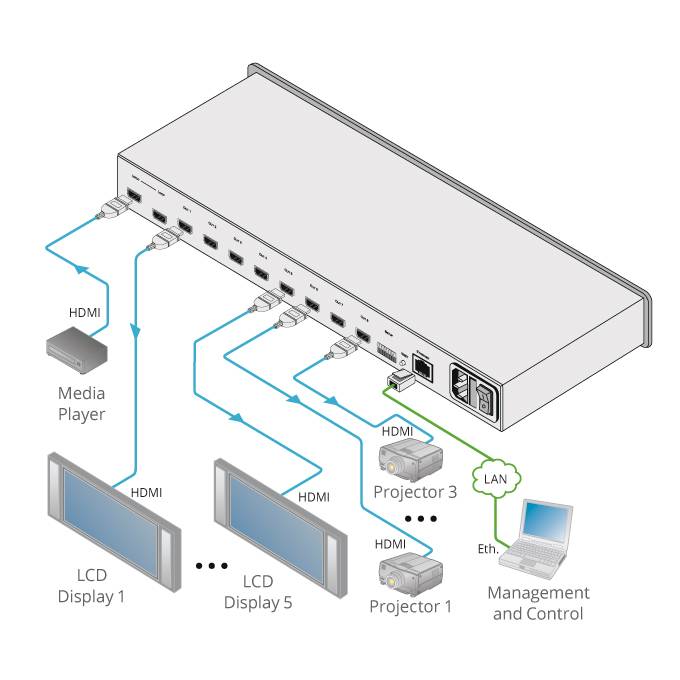

VCO−8 is a video content overlay solution that overlays eight independent graphic images to any number of displays over standard HDMI in full HD – 1080p/60 or 1920x1200 resolution. This allows the display of individual, targeted messages for each and every display in your installation.

•  Full HD Overlays — Static or animated, dynamic color image.
•  Overlays Any Size Content with Full Transparency Control.
•  Multiple Overlay Templates — For multiple applications.
•  Built–in Looping Output — For daisy chaining any number of displays.
•  Centralized Control of all Promotional Overlays.
•  Support for Unlimited Number of Overlays and Displays.
•  Error Reporting — Comprehensive error reporting for connected displays and overlays.
•  Full Overlay Automation — Automates entire overlay process from design to display, in multiple locations.
•  Easy to Use — Feature–rich software — design, schedule, and display.
•  Enables Digital Signage with Unlimited Viewing Zones.

APPLICATIONS

•  Providing visitor information, messages, promotional campaigns, and emergency alerts overlaid on your current display network
•  Hotel lobbies, lounges, guest rooms and conference rooms
•  TV screens, sports bars, fitness centers, nightclubs, special venues
•  Restaurants, cafes, diners

SPECIFICATIONS

INPUTS

• 1 HDMI connector (HDMI, HDCP version 1.4), 1 USB port

OUTPUTS

• 8 HDMI connectors (HDMI, HDCP version 1.4), 1 LOOP HDMI connector

PORTS

• 1 RJ–45 Ethernet port 10/100BaseT

BANDWIDTH

• Full HD resolution (1080p60 or 1920x1200)

CONTROLS

• IP address setup DIP–switches, Reset/Test button, Ethernet (VCO Setup App), output status indication LEDs, input indication LED, loop indication LED

POWER CONSUMPTION

• 100–240V AC, 32VA max

OPERATING TEMPERATURE

• 0° to +40°C (32° to 104°F)

STORAGE TEMPERATURE

• –40° to +70°C (–40° to 158°F)

HUMIDITY

• 10% to 90%, RHL non–condensing

DIMENSIONS

• 19" x 7" x 1U (W, D, H) rack mountable

SHIPPING DIMENSIONS

• 55cm x 27.6cm x 10.7cm (21.6" x 10.9" x 4.2") W, D, H

WEIGHT

• VCO–8: 1.53kg (3.37lbs) approx

SHIPPING WEIGHT

• VCO–8: 2.42kg (5.3lbs) approx

INCLUDED ACCESSORIES

• Power cord, rack ears, cable bracket, cable plastic ties

PRODUCT DIMENSION

• 19" x 7.20 x 1U (43.6cm x 18.30cm 4.36cm) W, D, H

PRODUCT WEIGHT

• 1.5kg (3.4lbs) approx.

SHIPPING DIMENSION

• 55.00cm x 27.60cm x 10.70cm (21.65" x 10.87" x 4.21" ) W, D, H

SHIPPING WEIGHT

• 2.4kg (5.3lbs) approx.
