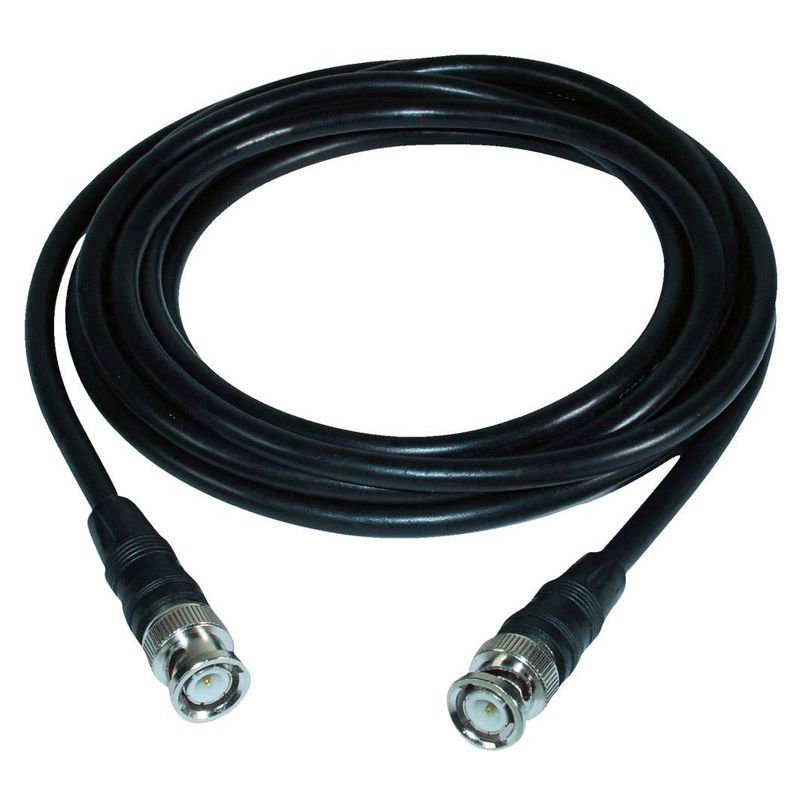

SDI/HD-SDI Kabel 4,6 mtr
Kramer’s BM series cables are constructed of high performance RG-6 cable with 75Ω BNC connectors at each end. They offer outstanding quality, durability, and high performance for any video signal application.
- Quality Construction- RG-6 cable for the highest resolution signals.
- High-Quality Connectors- True 75Ω BNC connectors maintain correct impedance end-to-end.
- Cable Specs- See Kramer BC-1X bulk cable for detailed specs.
- Varied Selection of Lengths- Available in 1.5, 3, 6, 10, 15, 25, 35, 50, 75, 100 and 150ft versions (0.45 to 45m).
SDI/HD-SDI Kabel 4,6 mtr
ATTENUATION (DB/100 FT.): | - 0.3 dB @ 1MHz. |
CONDUCTOR: | 18 AWG solid bare copper. |
DIELECTRIC: | Skin foam. |
SHIELD: | (A) 61% braid 34 AWG aluminum wire. |
OUTSIDE JACKET: | PVC. |
OUTSIDE JACKET COLOR: | Dark gray with white lettering. |
CENTER CONDUCTOR: | 0.0403 inches, 1.02mm. |
DIELECTRIC: | 0.179 inches, 4.57mm. |
OUTSIDE DIAMETER: | 0.391 inches, 6.95mm. |
IMPEDANCE: | 75Ω. |
DC RESISTANCE: | 6.6Ω per 1000ft, 21.8Ω per km. |
CAPACITANCE: | 16.1pF per foot, 53.1pF per meter. |
VELOCITY OF PROPAGATION: | 82%. |
TEMPERATURE: | -4° to 167°F (-20° to 75°C) |
UL: | CL2. |
CSA: | C(UL) CL2. |
