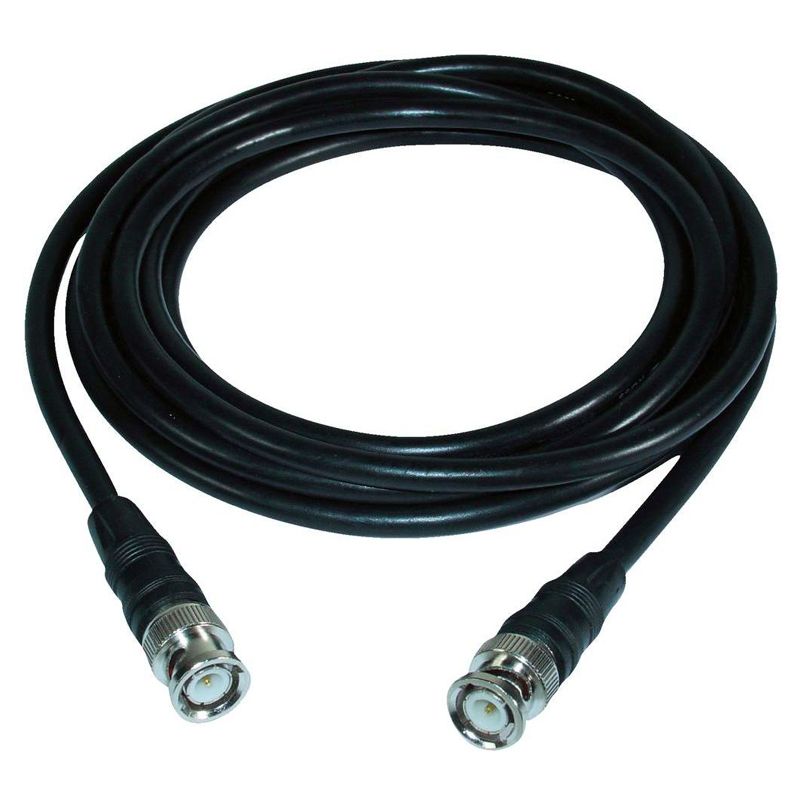

SDI/HD-SDI Kabel 45,7 mtr

ATTENUATION (DB/100 FT.):

- 0.3 dB @ 1MHz.
- 0.6 dB @ 5 MHz.
- 0.8 dB @ 10 MHz.
- 1.6 dB @ 50MHz.
- 2.0 dB @ 100MHz.
- 2.8 dB @ 180 MHz.
- 4.4 dB @ 400 MHz.
- 5.7 dB @ 750 MHz.
- 6.7 dB @ 1000 MHz.

CONDUCTOR:

18 AWG solid bare copper.

DIELECTRIC:

Skin foam.

SHIELD:

(A) 61% braid 34 AWG aluminum wire.
(B) Dual foil/Mylar 25% overlap rate.

OUTSIDE JACKET:

PVC.

OUTSIDE JACKET COLOR:

Dark gray with white lettering.

CENTER CONDUCTOR:

0.0403 inches, 1.02mm.

DIELECTRIC:

0.179 inches, 4.57mm.

OUTSIDE DIAMETER:

0.391 inches, 6.95mm.

IMPEDANCE:

75Ω.

DC RESISTANCE:

6.6Ω per 1000ft, 21.8Ω per km.

CAPACITANCE:

16.1pF per foot, 53.1pF per meter.

VELOCITY OF PROPAGATION:

82%.

TEMPERATURE:

-4° to 167°F (-20° to 75°C)

UL:

CL2.

CSA:

C(UL) CL2.
