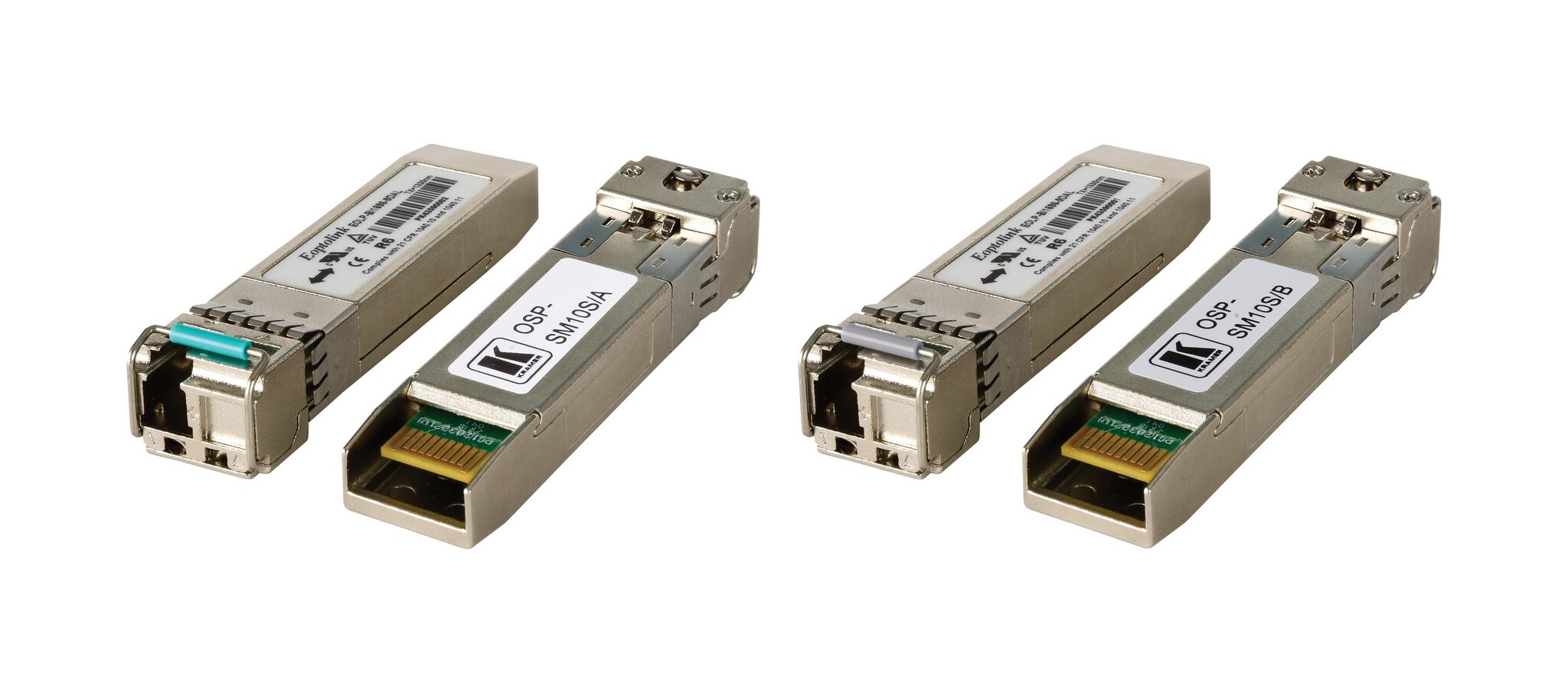

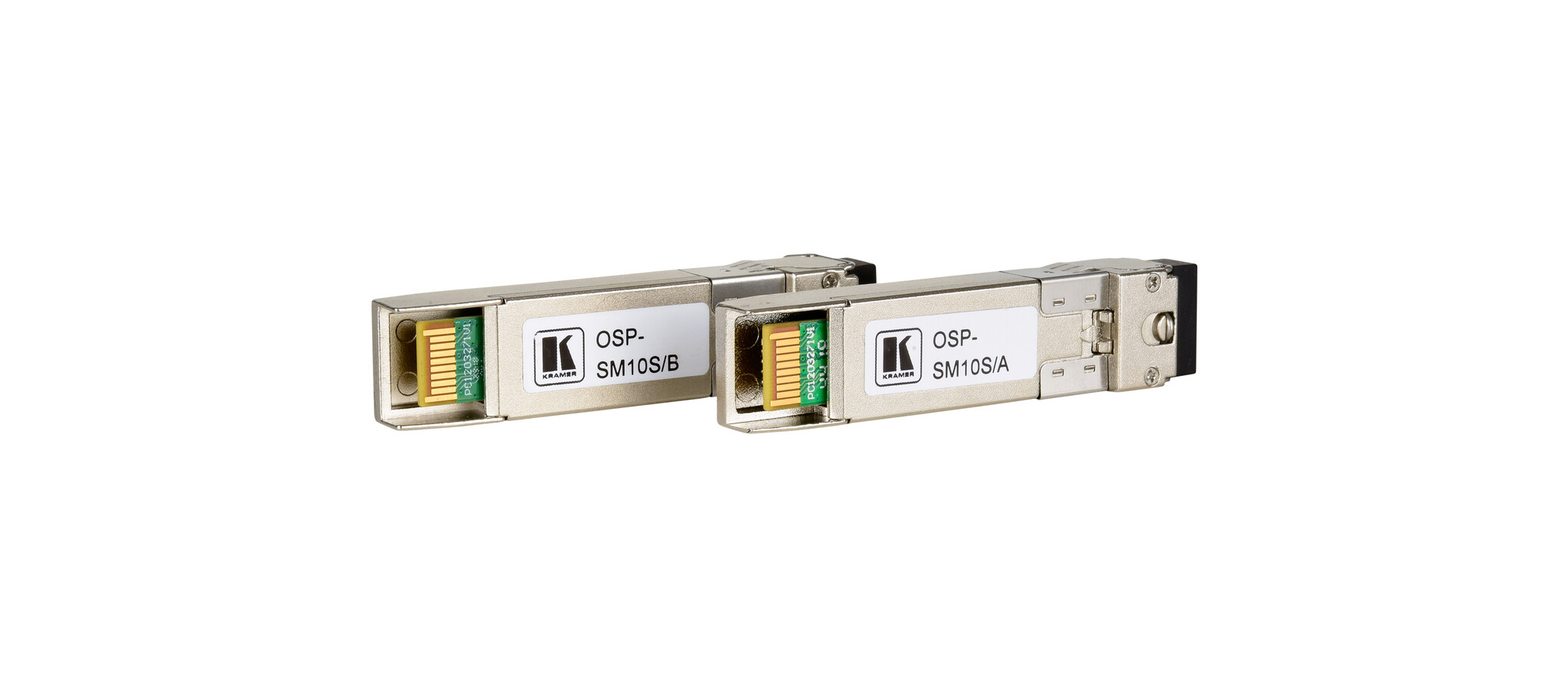

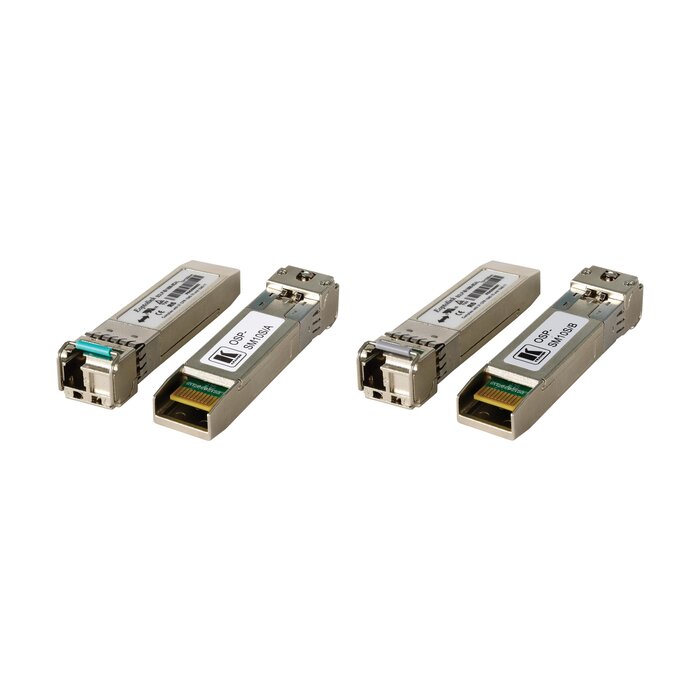

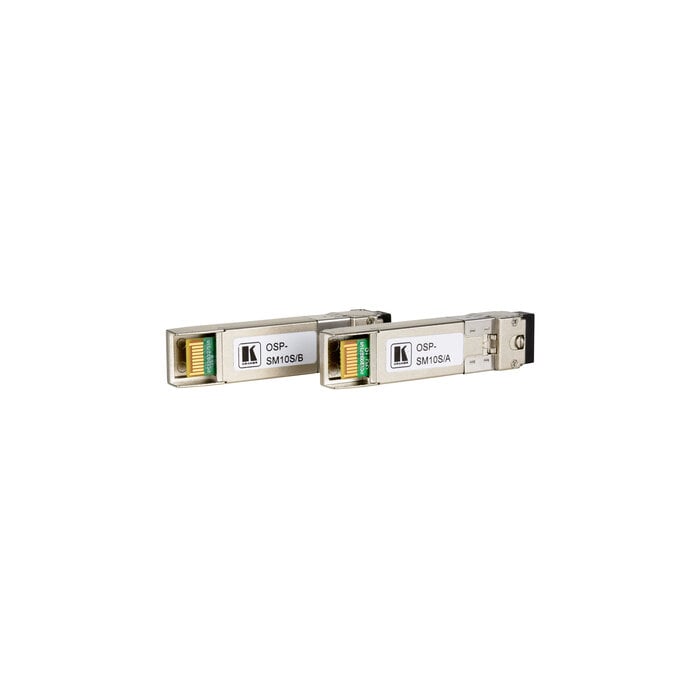

Kramer - OSP-SM10S - Optical SFP+ Transceiver Pair over 10G 1270/1330nm Simplex SM Fiber

Description

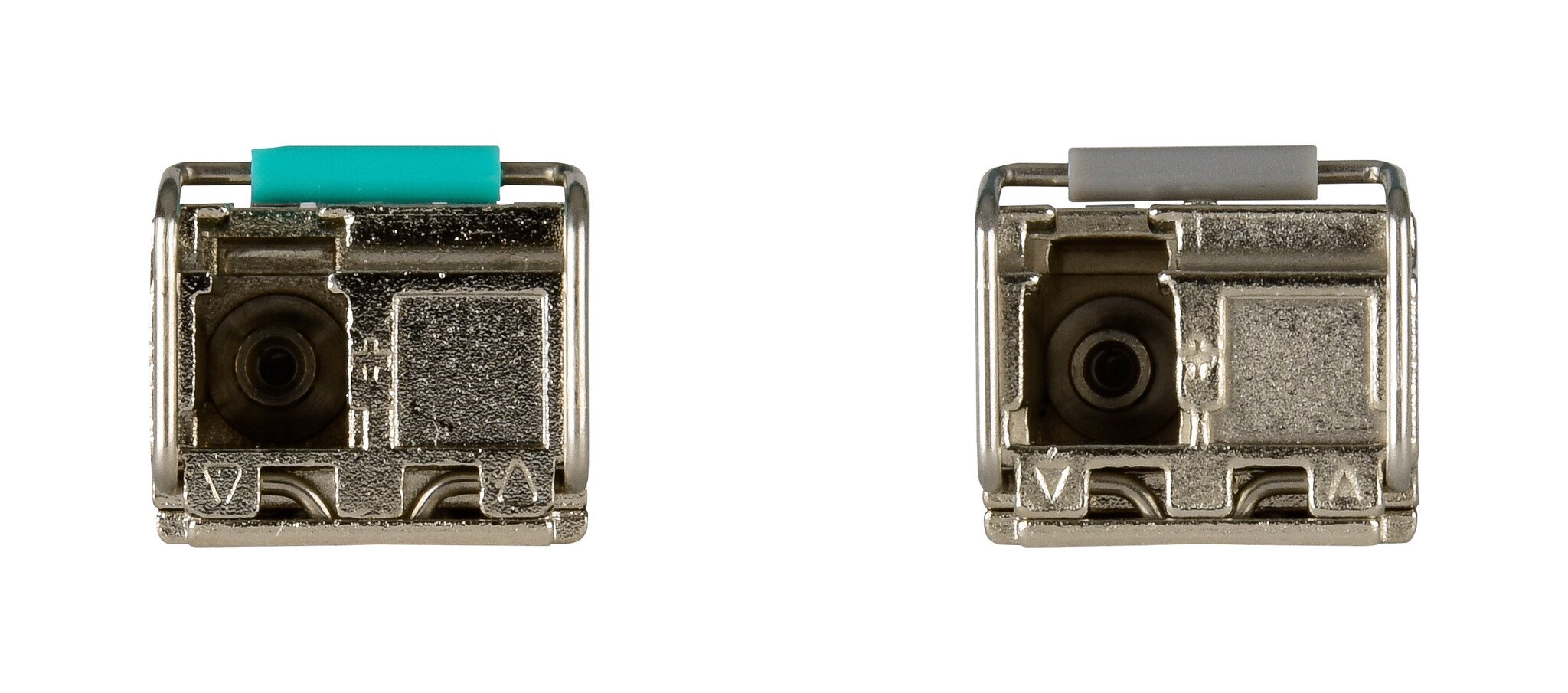

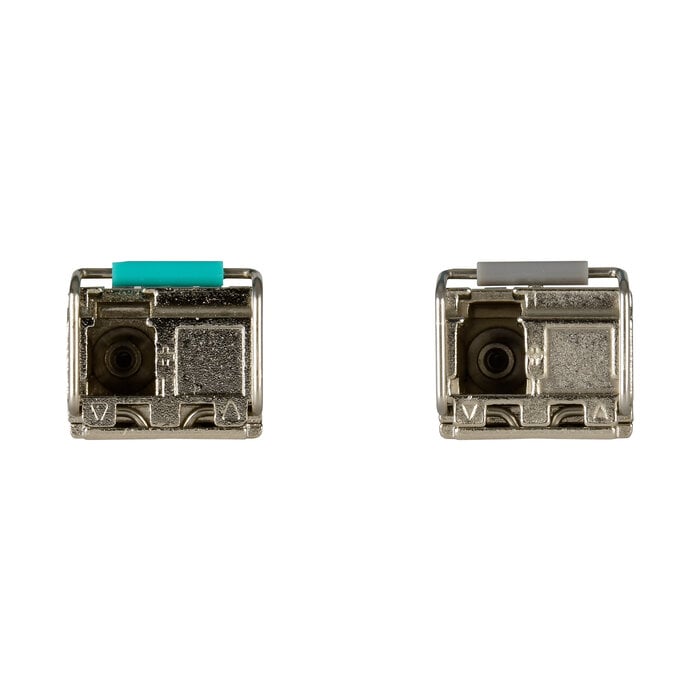

OSP−SM10S is a pair of fiber optic transceivers for 1270/1330nm single−mode signals. These standard pluggable SFP+ optical modules have one LC connector for reception and transmission of signals over one strand of single−mode optical fiber.

Certified Transceiver — Kramer certified, hot–pluggable, simplex SFP+ optical modules, for high–quality transmission of 10.2Gbps signal over single–mode fiber cable, connecting 1 single–mode fiber strand via LC PC/UPC connector.

Technische specificaties

GENERAL

Optical Line: Single–mode G.652D compliant OFNR fiber
Nominal Peak Wavelength: Module A: 1270 transmitter /1330nm receiver
Module B: 1330 transmitter /1270nm receiver
Max. Data Rate: 10.2Gbps
Transmitter Type: DFB
Optical Typical Transmission Power: –5dBm
Optical Typical Maximum Receiver Sensitivity: –14dBm
Optical Typical Maximum Loss Budget: 9dB

PORTS

1 Optical: On single–strand LC–connected single–mode fiber
Note: Do not use with LC(APC) cable connectors

EXTENSION LINE

Max. Reach: 20Km (12.4 miles) reach over OS1 SM fiber

REGULATORY COMPLIANCE (STANDARDS COMPLIANCE)

Quality: IEEE 802.3ae, SFF–8431, SFF–8472
Laser Safety: Laser Class I
Safety: FDA CDRH 1040.10, TUV EN60950–1 and EN60825–1/2, UL and CSA EN60950–1, RoHS, EMC EN 55032 and EN 55024

POWER

Consumption: 1W

ENVIRONMENTAL CONDITIONS

Operating Temperature: 0° to 70°C
Storage Temperature: –40° to 85°C
Humidity: 5% to 95% RH

PRODUCT DIMENSIONS

1.33cm x 5.70cm x 0.85cm (0.52" x 2.24" x 0.33" ) W, D, H

PRODUCT WEIGHT

0.1kg (0.1lbs) approx.

SHIPPING DIMENSIONS

12.60cm x 8.40cm x 4.10cm (4.96" x 3.31" x 1.61" ) W, D, H

SHIPPING WEIGHT

0.1kg (0.2lbs) approx.
