KRAMER - KDS-EN5 4K30 4:4:4, H.264 Video Encoder supporting PoE and Video Wall

PRODUCT OVERVIEW

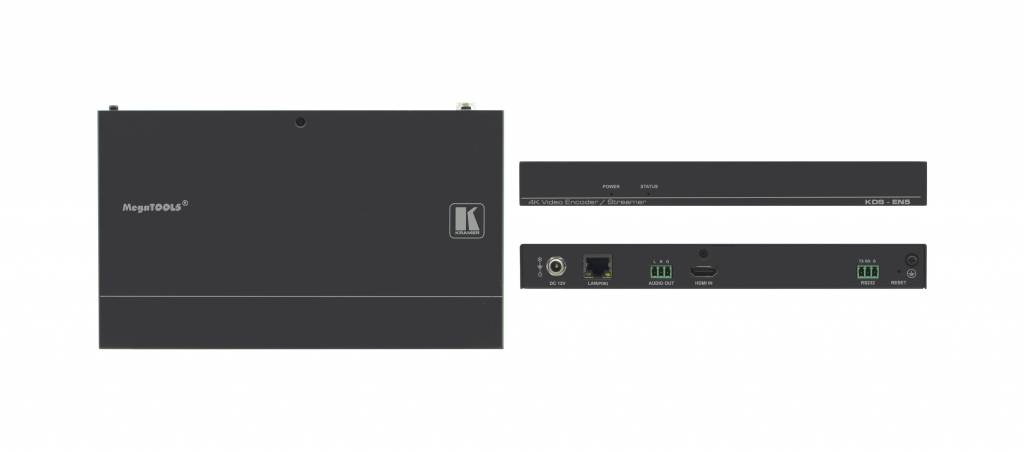

KDS-EN5

4K30 4:4:4, H.264 Video Encoder supporting PoE and Video Wall

• AVC Support — H.264/MPEG–4 & AAC codec
• Open Encoding — Enables software decoding through VLC® player software.
• Streaming Support — Multicast, Unicast, RTP over RTSP
• Managed via open API
• Powered by the network (PoE)
• Video wall (16x16) support

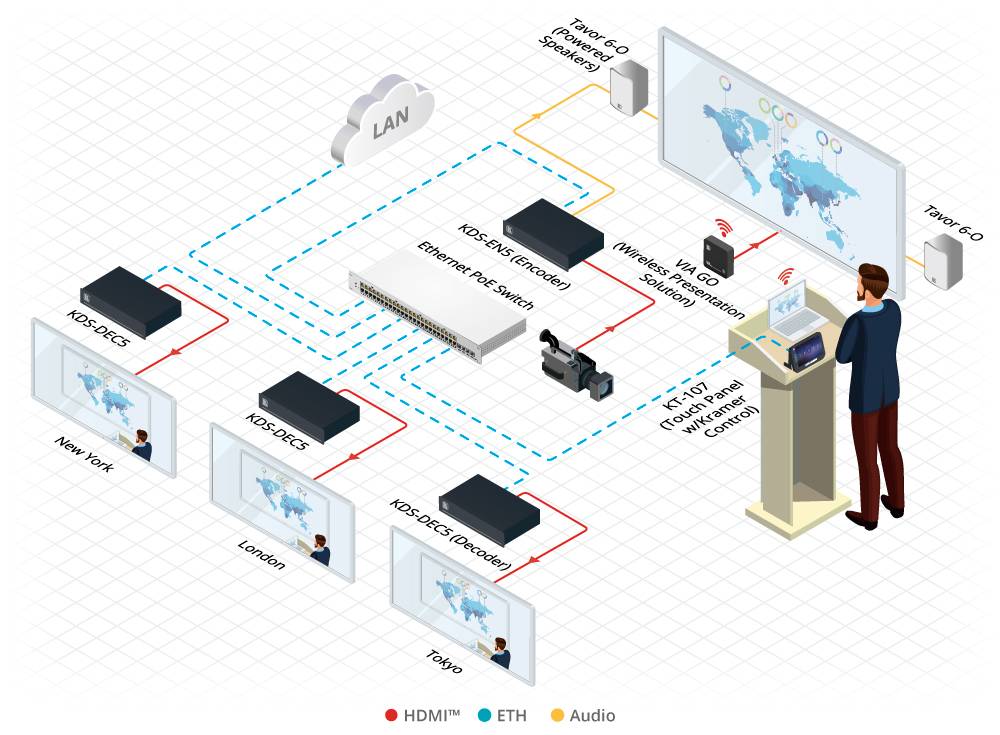

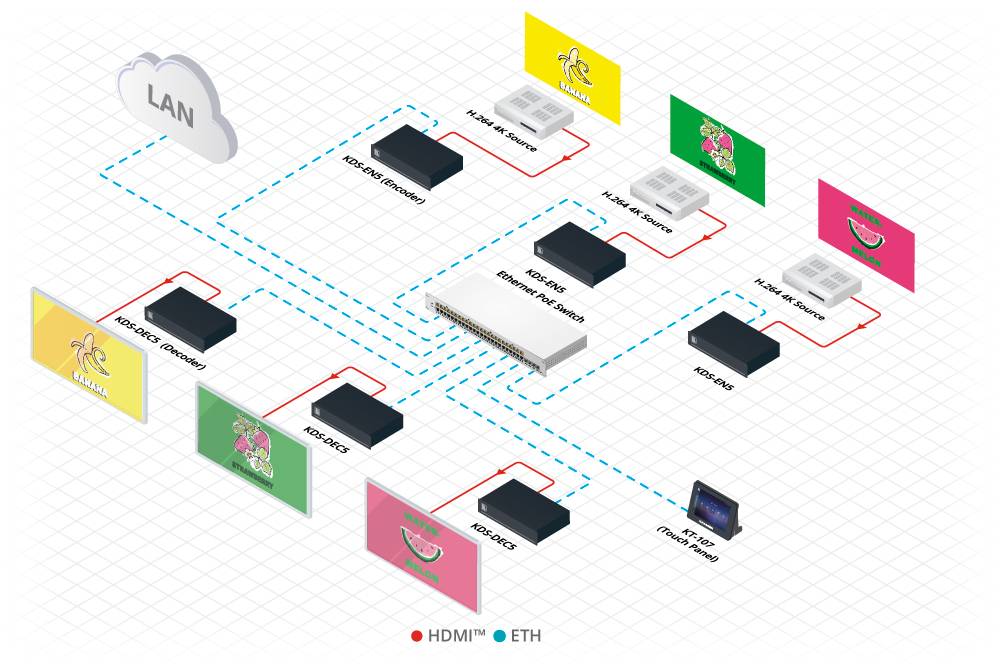

KDS−EN5 is a high performance 4K@30Hz (4:4:4), H.264 video encoder that supports PoE and video wall in unicast (one−to−one) or multicast (many−to−many) configurations.

•  Max. Data Rate — HDMI 4K@30Hz (4:4:4) input.
•  Standard AVC Support — H.264 & AAC codecs.
•  Virtualization — RS–232 over IP.
•  Network and IP Support — Standard Ethernet network operation 10/100/1000 Mb. Managed switch: 1G, multicast, IGMP snooping, layer 2. Configurable DHCP, Static or Auto IP.
•  Streaming and Session Control — Unicast, multicast, and RTP over RTSP.
•  Management and Control Options — Embedded web pages and API

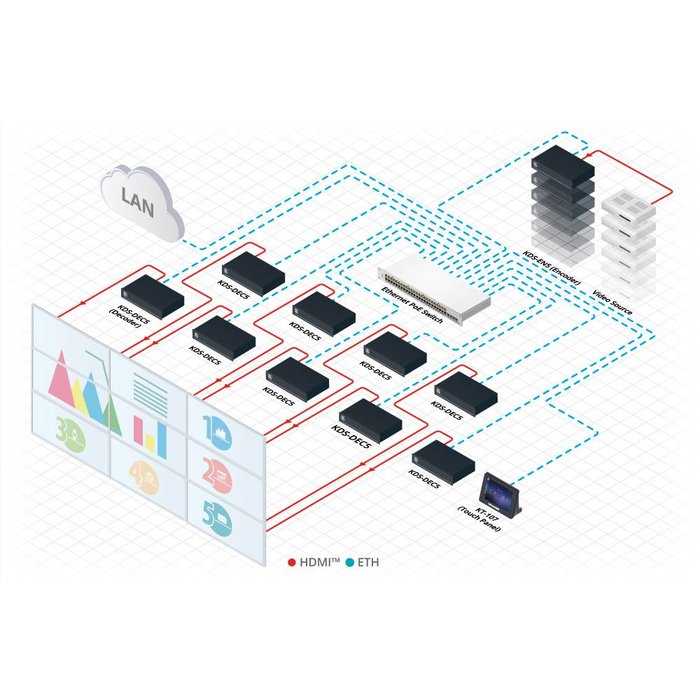

•  Video Wall — Up to 256 screens (16x16).
•  Audio Monitoring — Via an analog audio output.
•  Power — PoE or external power supply (not included).

SPECIFICATIONS

INPUTS

• 1 HDMI (1.4): On a female HDMI connector

OUTPUTS

• 1 Unbalanced Stereo Audio: On a 3–pin terminal block connector

PORTS

• 1 Ethernet: On an R–J45 connector
• 1 RS-232: On a 3–pin terminal block connector

VIDEO

• Compression Standard: H.264/MPEG–4 AVC
• Profiles: Base line, Main, High profile
• Levels: Up to 5.0
• Rate Control: CBR,VBR, adjustable GOP size
• Bit Rates: 2Mbps–30Mbps
• Encapsulation Format: MPEG–2 transport stream
• Transmission format: TS over UDP, TS over RTP
• Input Resolutions: 640x480, 800x600, 1024x768, 1280x800, 1280x1024, 1360x768, 1366x768, 1440x900, 1400x1050, 1600x1200, 1680x1050, 1920x1200, 720x480 (480p), 720x576 (576p), 1280x720 (720p30), 1280x720 (720p50), 1280x720 (720p60), 1920x1080 (1080p24), 1920x1080 (1080p25), 1920x1080 (1080p30), 1920x1080 (1080p50), 1920x1080 (1080p60) , 1920x1200, 3840x2160 (4Kp24), 3840x2160 (4Kp30)
• Output Resolutions: 640x480, 720x480 (480p), 720x576 (576p), 800x600, 1024x768, 1280x720 (720p50), 1280x720 (720p60), 1280x800, 1280x1024, 1366x768, 1440x900, 1600x1200, 1680x1050, 1920x1080 (1080p24), 1920x1080 (1080p25), 1920x1080 (1080p30), 1920x1080 (1080p50), 1920x1080 (1080p60), 1920x1200, 3840x2160 (4Kp24), 3840x2160 (4Kp30)

AUDIO

• Compression Standard: MPEG4 AACLC
• Channels: 2 channel (stereo), HDMI with stereo LPCM/AAC audio
• Sample Frequency: 48kHz, Bitrate: 1.6Mbps(LPCM), ≤240Kbps(AAC)

POWER

• Source: PoE or 12V DC power supply (not included)
• Consumption: 5.6W

ENVIRONMENTAL CONDITIONS

• Operating Temperature: 0 to + 45°C (32 to + 113 °F), 10% to 90%, non–condensing
• Storage Temperature: –20 to +70°C (–4 to + 158 °F), 10% to 90%, non–condensing
• Humidity: 10% to 90%, non–condensing

PRODUCT DIMENSION

• 21.90cm x 13.50cm x 2.50cm (8.62" x 5.31" x 0.98" ) W, D, H

PRODUCT WEIGHT

• 0.8kg (1.7lbs) approx.

SHIPPING DIMENSION

• 35.10cm x 21.20cm x 7.20cm (13.82" x 8.35" x 2.83" ) W, D, H

SHIPPING WEIGHT

• 1.1kg (2.4lbs) approx.
