KRAMER - FC-69 4K60 4:2:0 HDMI Audio Embedder/De–Embedder

PRODUCT OVERVIEW

FC-69

4K60 4:2:0 HDMI Audio Embedder/De–Embedder

• Max Data Rate — 8.91Gbps (2.97Gbps per data channel)
• 4K@60Hz (4:2:0) UHD, 4Kx2K support
• Kramer Equalization & re–Klocking™ Technology

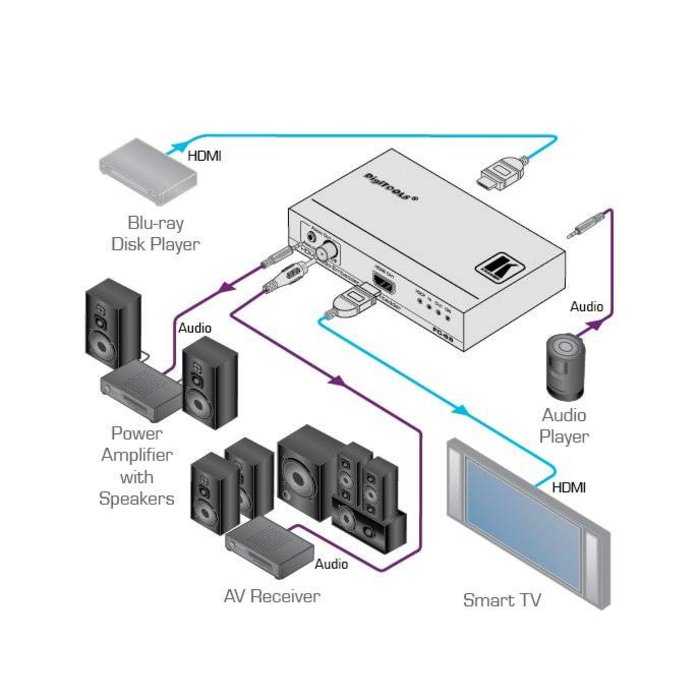

FC−69 is a high−performance 4K@60Hz (4:2:0), 4Kx2K HDMI audio embedder and de−embedder. The unit can embed analog audio to the HDMI output or de−embed audio from the HDMI input or from the HDMI output Audio Return Channel to S/PDIF and unbalanced stereo audio outputs simultaneously.

•  Max. Resolution — 4K@60Hz (4:2:0), 4Kx2K.
•  Max. Data Rate — 8.91Gbps (2.97Gbps per data channel).
•  HDTV Compatible.
•  HDCP Compliant.
•  HDMI Support — ARC, 7.1 PCM, deep color.
•  Audio Embedding — Even without an HDMI source.
•  Audio de–Embedding — To unbalanced analog and S/PDIF, selectable from input or ARC.
•  Kramer Equalization & re–Klocking™ Technology — Rebuilds the digital signal to travel longer distances.
•  Sleep Mode — 5V on the output, following the input, allows the display to turn off when no video is being sent.
•  Preconfigured Control Options — DIP–switches control locking/modifying EDID, HDCP, embedding/de–embedding and sleep mode functionality.

APPLICATIONS

•  Home theater, presentation and multimedia applications
•  Rental and staging
•  Education and corporate

SPECIFICATIONS

INPUT

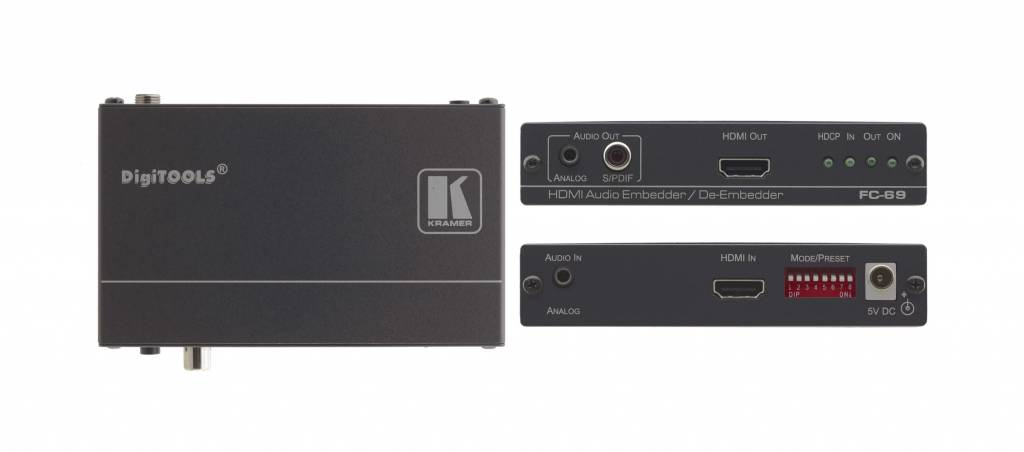

• 1 HDMI on an HDMI connector, 1 analog stereo audio on a 3.5mm mini jack

OUTPUTS

• 1 HDMI on an HDMI connector, 1 S/PDIF digital audio on an RCA connector, 1 analog stereo audio on a 3.5 mm mini jack

MAX DATA RATE

• 8.91Gbps (2.97Gbps per graphic channel), 1080p @60Hz, 36–bit Deep Color, supports 4K@60 UHD (4:2:0), 4Kx2K

AUDIO THD+N

• –75dB

COMPLIANCE WITH HDMI STANDARD

• Supports HDMI, HDCP

CONTROLS

• 8–way DIP–switch

INDICATOR LEDS

• ON, IN, OUT, HDCP

POWER SOURCE

• 5V DC, 500mA

OPERATING TEMPERATURE

• 0° to +40°C (32° to 104°F)

STORAGE TEMPERATURE

• –40° to +70°C (–40° to 158°F)

HUMIDITY

• 10% to 90%, RHL non–condensing

COOLING

• Convection

ENCLOSURE TYPE

• Aluminum

RACK MOUNT

• With optional adapter

FURNITURE MOUNT

• With included rubber feet

VIBRATION

• ISTA 1A in carton (International Safe Transit Association)

REGULATORY COMPLIANCE

• CE

ENVIRONMENTAL REGULATORY COMPLIANCE

• RoHs and WEEE

INCLUDED ACCESSORIES

• Power supply

WARRANTY

• 7 years parts and labor

PRODUCT DIMENSION

• 12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H

PRODUCT WEIGHT

• 0.2kg (0.4lbs) approx.

SHIPPING DIMENSION

• 15.70cm x 12.00cm x 8.70cm (6.18" x 4.72" x 3.43" ) W, D, H

SHIPPING WEIGHT

• 0.5kg (1.0lbs) approx.
