KRAMER - FC-340S 3G HD–SDI Scaler/Embedder/Scan Converter

PRODUCT OVERVIEW

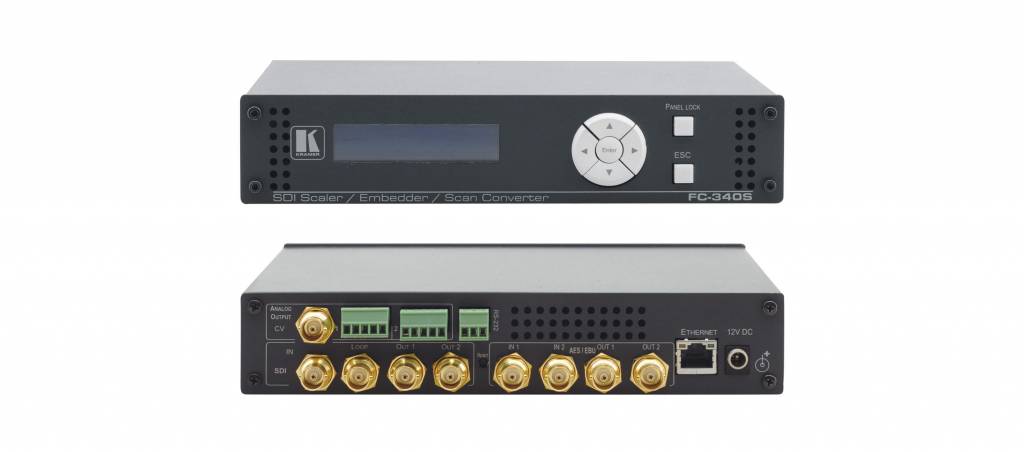

FC-340S

3G HD–SDI Scaler/Embedder/Scan Converter

• Max. Data Rate — 3Gbps
• Looping Input
• Embedds/De–Embeds Audio
• Control — RS–232 & Ethernet

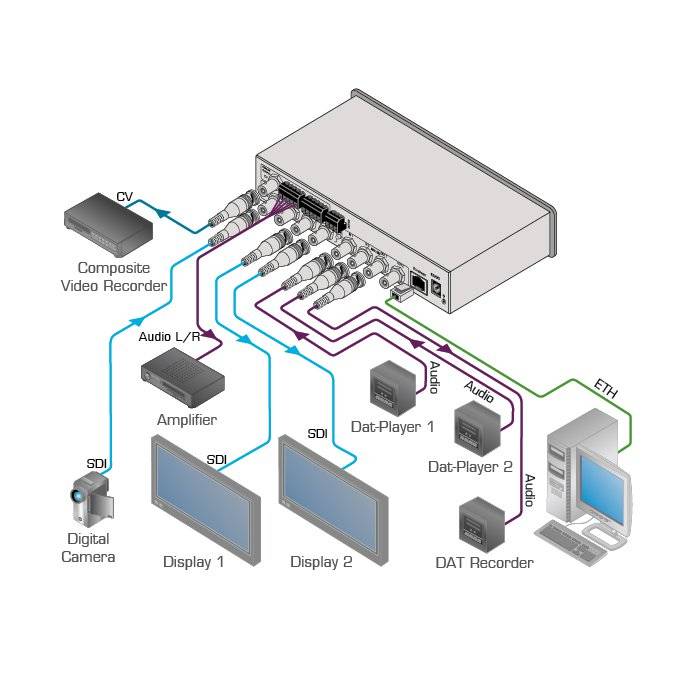

The FC-340S is a broadcast-quality video scaler and audio embedder/de-embedder for digital signals up to 3G HD-SDI. The unit inputs SDI and AES/3id signals and simultaneously outputs two SDI and composite video signals while the audio embedded in the SDI input signal is output to both AES/3id and balanced stereo audio outputs.

•  Max. Data Rate — 3Gbps.
•  HDTV Compatible.
•  Multi–Standard Operation — SDI (SMPTE 259M), HD–SDI (SMPTE 292M) and 3G HD–SDI (SMPTE 424M).
•  Looping Video Input.
•  Kramer Equalization & re–Klocking™ Technology — Rebuilds the digital signal to travel longer distances.
•  Embedding Options — Selects embedded audio or embeds two independent audio groups.
•  Flexible Control Options — Front panel with 2–row LCD, Ethernet & RS–232.

APPLICATIONS

•  Broadcast and production studios.
•  Digital/analog AV authoring.

SPECIFICATIONS

DIGITAL INPUTS

• 1 SD/HD/3G HD–SDI with loop, 75Ω on BNC connectors
• 2 AES–3id audio on BNC connectors

DIGITAL OUTPUTS

• 2 SD/HD/3G HD–SDI, 75Ω on BNC connectors
• 2 AES–3id audio on BNC connectors

ANALOG OUTPUTS

• 1 composite video on a BNC connector, PAL/NTSC (according to output frame rate)
• 2 balanced stereo audio on 5–pin terminal blocks

MAX. DIGITAL VIDEO INPUT/OUTPUT LEVEL

• 800mVpp/75Ω

SAMPLE CONVERSION RATE

• 48kHz (digital audio)

BANDWIDTH

• 20kHz (analog audio)

INPUT RESOLUTIONS

• 480i @59.94, 576i @50, 720p @59.94/60/50, 1080i @59.94/60/50, 1080p @29.97/30/23.98/24, 23.98sF/24sF, 1080p @59.94/60/50

OUTPUT RESOLUTIONS

• 480i @59.94, 576i @50, 72p @59.94/60/50, 1080i @59.94/60/50, 1080p @59.94/60/50

POWER CONSUMPTION

• 12V DC, 1A

OPERATING TEMPERATURE

• 0° to +40°C (32° to 104°F)

STORAGE TEMPERATURE

• –40° to +70°C (–40° to 158°F)

HUMIDITY

• 10% to 90%, RHL non–condensing

INCLUDED ACCESSORIES

• Power supply

PRODUCT DIMENSION

• 21.46cm x 16.30cm x 4.36cm (8.45" x 6.42" x 1.72" ) W, D, H

PRODUCT WEIGHT

• 1.0kg (2.2lbs) approx.

SHIPPING DIMENSION

• 35.10cm x 21.20cm x 7.20cm (13.82" x 8.35" x 2.83" ) W, D, H

SHIPPING WEIGHT

• 1.6kg (3.6lbs) approx.
