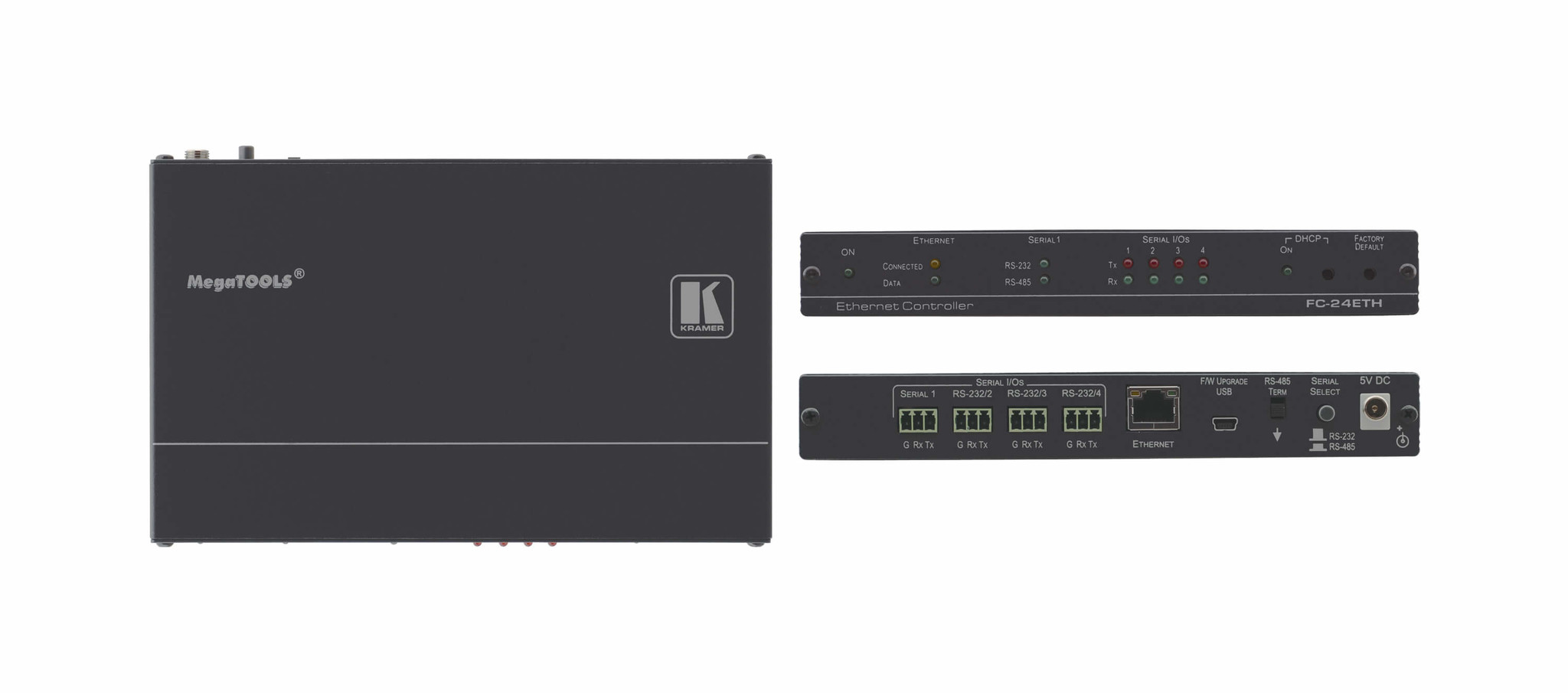

Kramer FC-24ETH - 4–port Serial Control Gateway

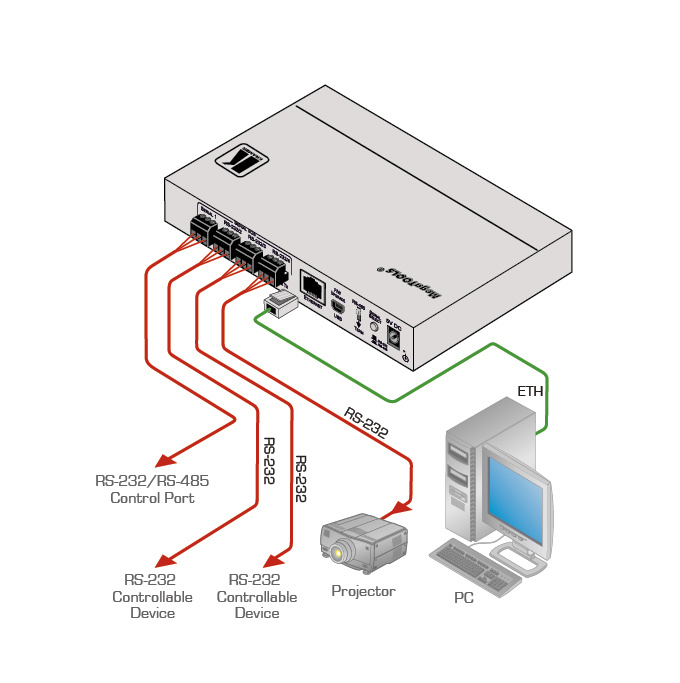

The FC−24ETH is an Ethernet control gateway, capable of plug and play deployment over a customer Ethernet LAN for remote control of customer controlled devices via bidirectional RS−232 or RS−485 serial control connections. Multiple control clients can be IP−connected to the FC−24ETH control gateway for concurrent control of two RS−232 or RS−485 controllable devices, such as AV scalers, video displays, and audio amplifiers.

•  1 RS–485 or RS–232 Selectable Bidirectional Control Port — Controls a device via bidirectional serial control protocols.
•  3 RS–232 Bidirectional Control Ports — Control devices via bidirectional RS–232 serial control protocols.
•  1 Ethernet Control Port — Remote protocol–based control port.
•  Built–in Web Pages — Remote browser–based control and support.
•  Simultaneous IP Control Communication — With up to 40 IP control clients.
•  Mini USB Port — For firmware upgrades and local technical services.
•  Easy Installation — Plug & play IP auto–setup deployment for simple and cost–reducing installation.

Top of Form

APPLICATIONS

•  Remote IP control of serial controlled devices
•  K–Touch multi–clients IP room control
•  LAN–based expansion of K–Config control system
