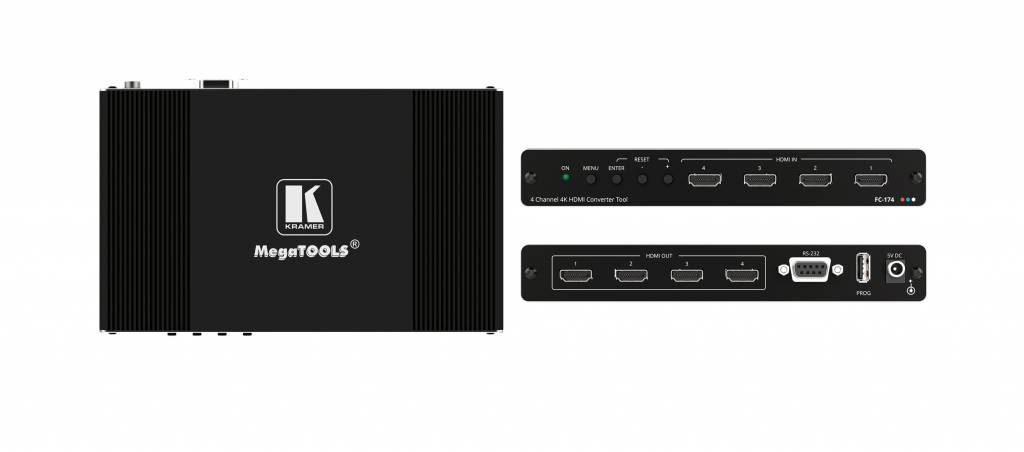

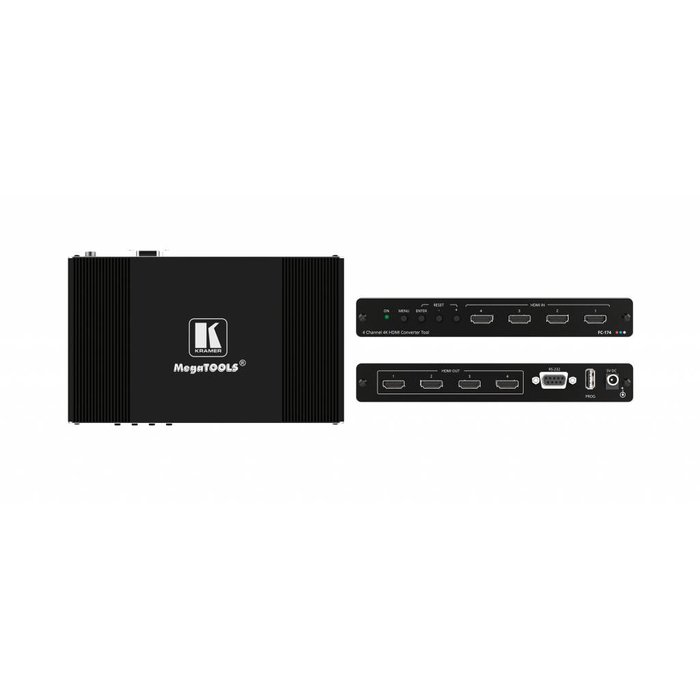

KRAMER - FC-174 4–Channel HDMI 4K60 4:4:4/4:2:0 Converter with HDCP 1.4 & 2.2

PRODUCT OVERVIEW

FC-174

4–Channel HDMI 4K60 4:4:4/4:2:0 Converter with HDCP 1.4 & 2.2

• Compatibility between HDCP 1.4 and HDCP 2.2
• Enables 4K60 4:4:4 to 4K60 4:2:0 Chroma Sampling Reduction
• EDID Management
• HDMI Extender
• Pattern Generator

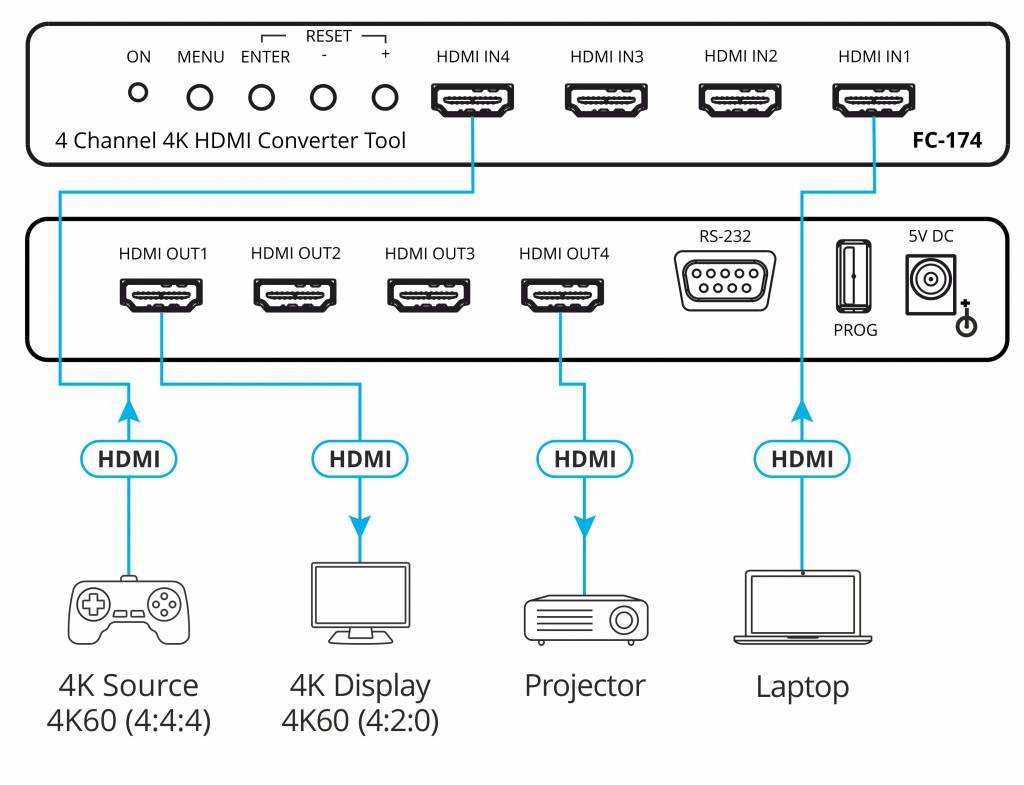

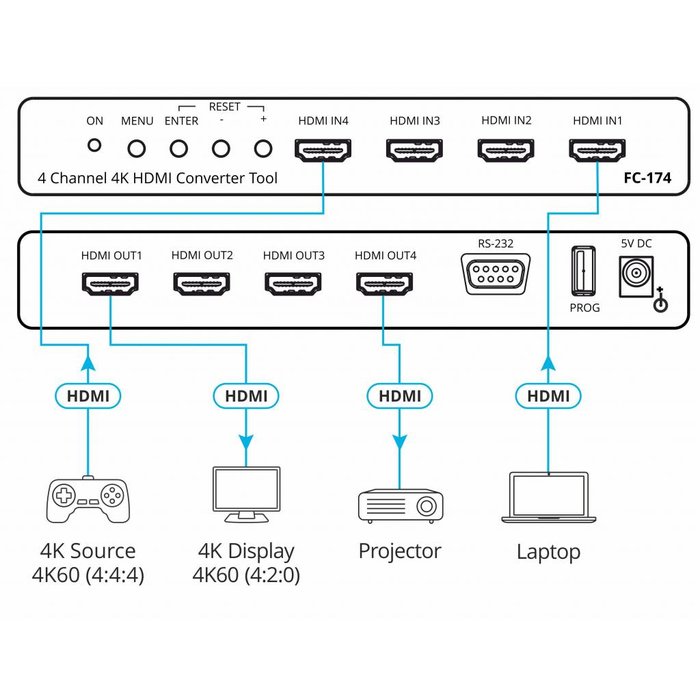

FC−174 is a versatile HDMI 4K@60Hz (4:4:4/4:2:0) multi−channel converter tool. FC−174 can convert up to four inputs/outputs from 4:4:4 to 4:2:0 color sampling and offers EDID management via a user−friendly software application. It also enables interoperability between HDCP 2.2 and HDCP 1.4 systems for up to 4 HDMI sources simultaneously. FC−174 acts as an HDMI extender that equalizes and reclocks TMDS data before re−transmitting, thus increasing the HDMI cable range from each of the 4 outputs.

•  Max. Resolution — 4K@60Hz (4:4:4).
•  HDMI Compliance — HDMI 1.4 and 2.0.
•  HDCP Compliance — HDCP 1.4 and 2.2
•  Kramer Equalization & re–Klocking™ Technology — Rebuilds the digital signal integrity to travel longer distances.
•  Selectable EDID Options — Default (internal), external (sink) or user–defined.
•  Independent Pattern Generators on Each Output — Displays a variety of patterns and resolutions.
•  User Friendly Control — OSD menu via front–panel buttons.
•  Convenient USB Port — For application control and upgrading firmware.

SPECIFICATIONS

INPUTS

• 4 HDMI: On female HDMI connectors

OUTPUTS

• 4 HDMI: On female HDMI connectors

PORTS

• 1 USB: On a female USB type–A connector for firmware upgrade
• 1 RS-232: On a 9–pin D–sub connector for EDID management via a software application

VIDEO

• HDMI Standards Compliance: 1.4 & 2.0
• HDCP Standards Compliance: 1.4 & 2.2
• Max. Resolution: 4K@60Hz (4:4:4)

USER INTERFACE

• Control: OSD menu via front panel buttons
• Indicators: ON LED

POWER

• Source: 5V DC
• Consumption: 1.8A

ENVIRONMENTAL CONDITIONS

• Operating Temperature: 0° to +40°C (32° to 104°F)
• Storage Temperature: –40° to +70°C (–40° to 158°F)
• Humidity: 10% to 90%, RHL non–condensing

ACCESSORIES

• Included: Power adapter, bracket set

PRODUCT DIMENSION

• 18.75cm x 11.50cm x 2.54cm (7.38" x 4.53" x 1.00" ) W, D, H

PRODUCT WEIGHT

• 0.5kg (1.0lbs) approx.

SHIPPING DIMENSION

• 34.50cm x 16.50cm x 5.20cm (13.58" x 6.50" x 2.05" ) W, D, H

SHIPPING WEIGHT

• 1.0kg (2.2lbs) approx.
