Description

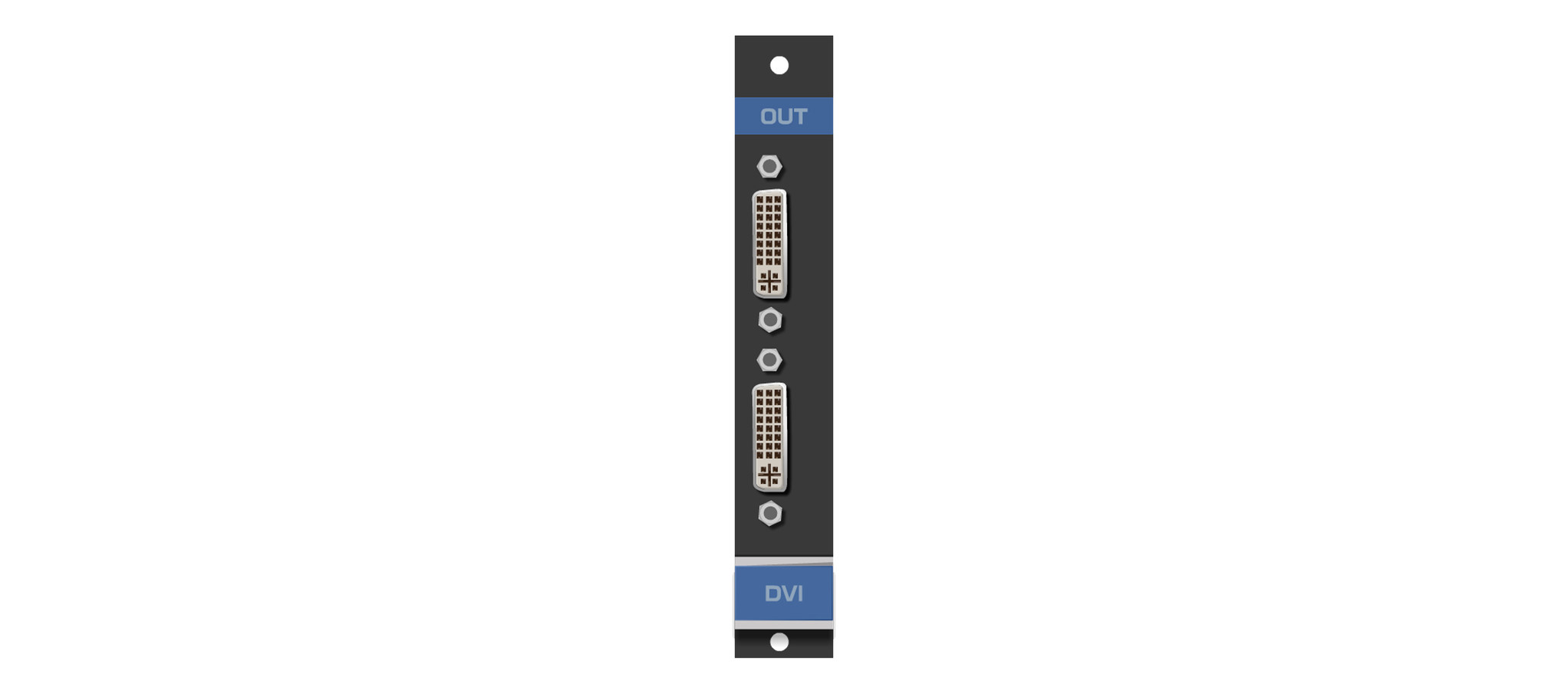

DVI−OUT2−F16 is a two−channel DVI output card for the VS−1616 Series Modular Multi−Format Digital Matrix Switchers. The DVI−OUT2−F16 outputs two DVI signals from the chassis.

Max. Data Rate — 4.95Gbps (1.65Gbps per graphic channel).
DVI Rev. 1.0.

Top of Form

APPLICATIONS

Home theater, presentation and multimedia applications
Rental and staging

Technische specificaties

PORTS

2 DVI–D on Molex 24–pin (F) connectors

BANDWIDTH PER CHANNEL

1.65Gbps

TOTAL BANDWIDTH

4.95Gbps

MAXIMUM RANGE

15m (49ft)

3D PASS THROUGH

Not supported

POWER CONSUMPTION

2.2W

OPERATING TEMPERATURE

0° to +40°C (32° to 104°F)

STORAGE TEMPERATURE

–40° to +70°C (–40° to 158°F)

HUMIDITY

10% to 90%, RHL non–condensing

STANDARD COMPLIANCE

DVI 1.0

SAFETY REGULATORY COMPLIANCE

CE, FCC

ENVIRONMENTAL REGULATORY COMPLIANCE

Complies with appropriate requirements of RoHs and WEEE

PRODUCT DIMENSIONS

19.00cm x 13.00cm x 2.00cm (7.48" x 5.12" x 0.79" ) W, D, H

PRODUCT WEIGHT

0.1kg (0.3lbs) approx.

SHIPPING DIMENSIONS

34.50cm x 16.50cm x 5.20cm (13.58" x 6.50" x 2.05" ) W, D, H

SHIPPING WEIGHT

0.3kg (0.6lbs) approx.

Kramer DVI-OUT2-F16 - 2–Channel DVI Output Card
